Description

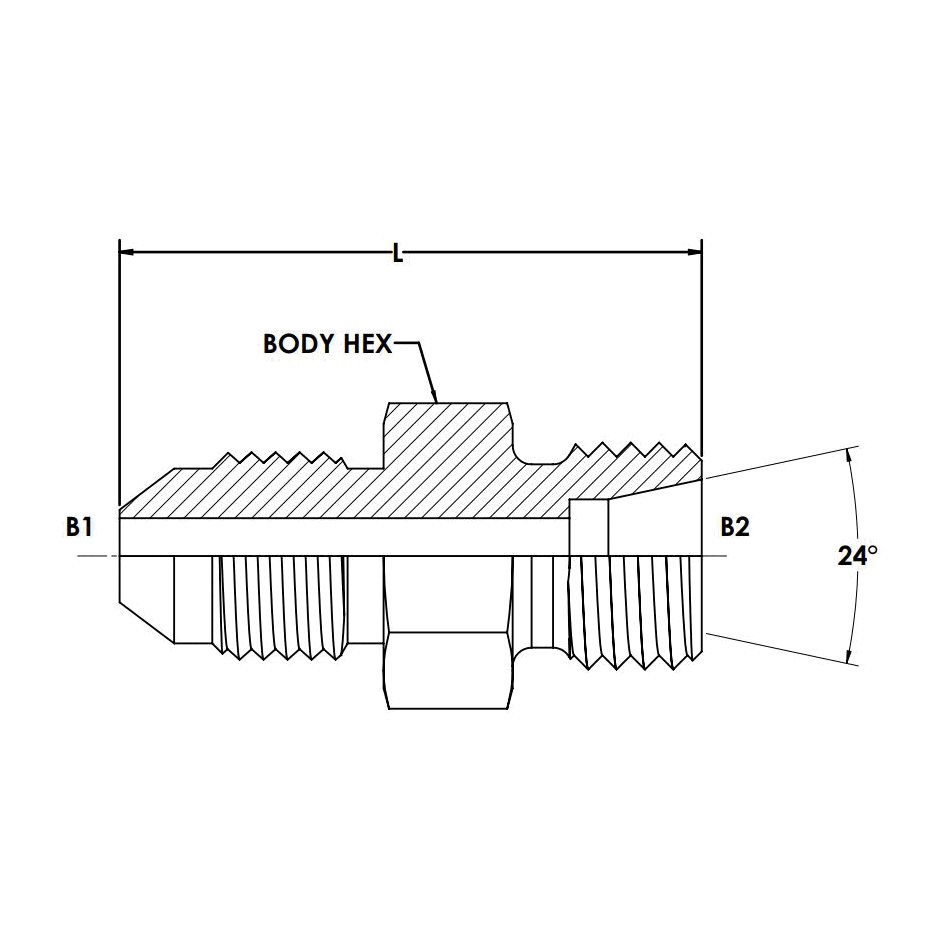

MJ-MM STRAIGHT WITH 24 DEGREE SEAT, KOBELCO
Description
Variations (7)
7005-12-L22-30X1.5
$67.05Attribute: 7005-12-L22-30X1.5 (12MJ-30MMX1....)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 1-1/16-12 |
| THREAD DRILL B1 (MM) | 15.5 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC DIN 24 DEG SEAT |
| THREAD SIZE B2 | M30X1.5 |
| THREAD DRILL B2 (MM) | 19.0 |
| THREAD SPECIFICATION B2 | DIN 235 |
| BODY HEX (MM) | 32.0 |
| OVERALL LENGTH L (MM) | 44.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.306 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 2.749 |
7005-12-L28-36X1.5
$90.47Attribute: 7005-12-L28-36X1.5 (12MJ-36MMX1....)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 1-1/16-12 |
| THREAD DRILL B1 (MM) | 15.5 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC DIN 24 DEG SEAT |
| THREAD SIZE B2 | M36X1.5 |
| THREAD DRILL B2 (MM) | 24.0 |
| THREAD SPECIFICATION B2 | DIN 235 |
| BODY HEX (MM) | 38.0 |
| OVERALL LENGTH L (MM) | 44.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.344 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 3.921 |
7005-12-S20-30X1.5
$62.41Attribute: 7005-12-S20-30X1.5 (12MJ-30MMX1....)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 1-1/16-12 |
| THREAD DRILL B1 (MM) | 15.5 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC DIN 24 DEG SEAT |
| THREAD SIZE B2 | M30X1.5 |
| THREAD DRILL B2 (MM) | 15.5 |
| THREAD SPECIFICATION B2 | DIN 235 |
| BODY HEX (MM) | 32.0 |
| OVERALL LENGTH L (MM) | 49.9 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.300 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 3.118 |
7005-16-L22-30X1.5
$91.36Attribute: 7005-16-L22-30X1.5 (16MJ-30MMX1....)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 1-5/16-12 |
| THREAD DRILL B1 (MM) | 21.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC DIN 24 DEG SEAT |
| THREAD SIZE B2 | M30X1.5 |
| THREAD DRILL B2 (MM) | 19.0 |
| THREAD SPECIFICATION B2 | DIN 235 |
| BODY HEX (MM) | 36.0 |
| OVERALL LENGTH L (MM) | 48.1 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.375 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 3.804 |
7005-16-L28-36X1.5
$92.30Attribute: 7005-16-L28-36X1.5 (16MJ-36MMX1....)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 1-5/16-12 |
| THREAD DRILL B1 (MM) | 21.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC DIN 24 DEG SEAT |
| THREAD SIZE B2 | M36X1.5 |
| THREAD DRILL B2 (MM) | 24.0 |
| THREAD SPECIFICATION B2 | DIN 235 |
| BODY HEX (MM) | 38.0 |
| OVERALL LENGTH L (MM) | 45.6 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.450 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 4.018 |
7005-16-L35-45X1.5
$142.16Attribute: 7005-16-L35-45X1.5 (16MJ-45MMX1....)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 1-5/16-12 |
| THREAD DRILL B1 (MM) | 21.5 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC DIN 24 DEG SEAT |
| THREAD SIZE B2 | M45X1.5 |
| THREAD DRILL B2 (MM) | 30.0 |
| THREAD SPECIFICATION B2 | DIN 235 |
| BODY HEX (MM) | 46.0 |
| OVERALL LENGTH L (MM) | 48.1 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.881 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 6.211 |
7005-20-L35-45X1.5
$178.91Attribute: 7005-20-L35-45X1.5 (20MJ-45MMX1....)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 1-5/8-12 |
| THREAD DRILL B1 (MM) | 27.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC DIN 24 DEG SEAT |
| THREAD SIZE B2 | M45X1.5 |
| THREAD DRILL B2 (MM) | 30.0 |
| THREAD SPECIFICATION B2 | DIN 235 |
| BODY HEX (MM) | 46.0 |
| OVERALL LENGTH L (MM) | 49.8 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.663 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 6.430 |
General Attributes
| Connections | JIC, Metric |
|---|---|
| Shape | Straight |
