7005-DIN LIGHT-BS

7005-04-L06-12-BS

$18.66

Attribute: 7005-04-L06-12-BS (04MJ-12MM MBT...)

Stock Status: True

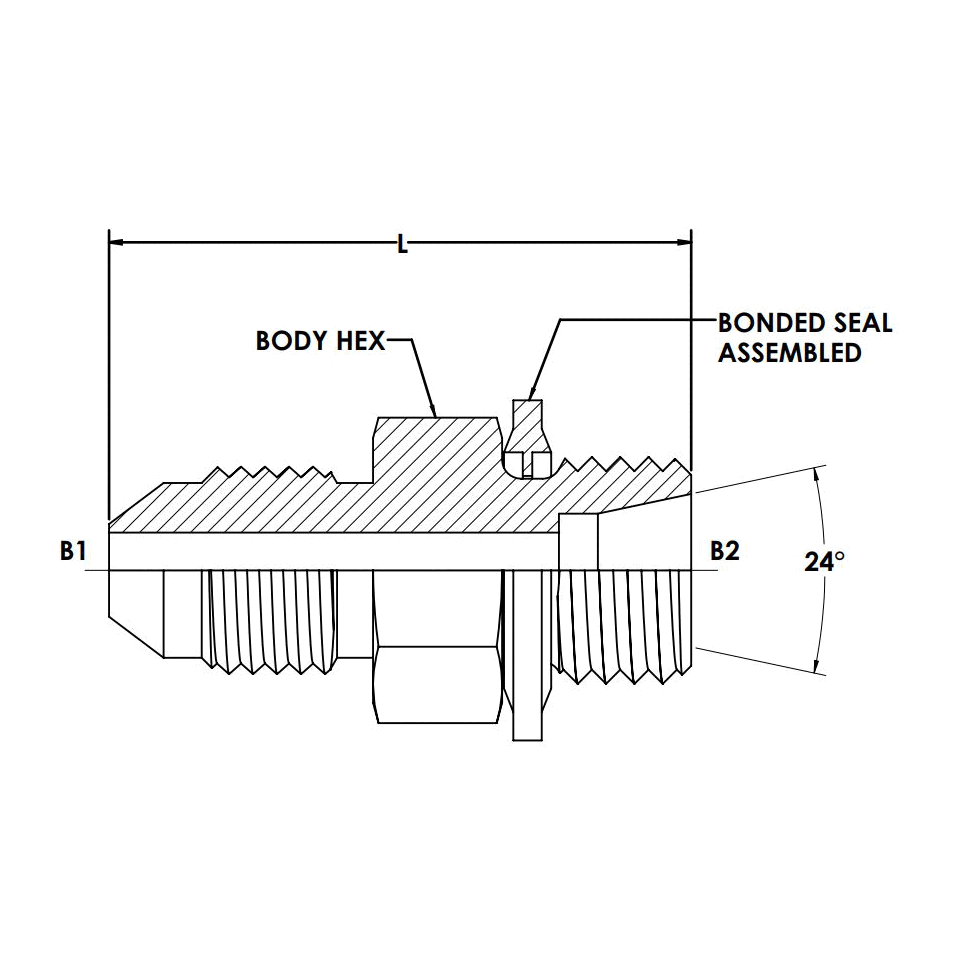

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC DIN 24 DEG SEAT
THREAD SIZE B2	M12X1.5
THREAD DRILL B2 (MM)	4.0
THREAD SPECIFICATION B2	FOR ISO 9974 PORT
ASSEMBLED METRIC BONDED SEAL	8800-12
BODY HEX (MM)	14.0
OVERALL LENGTH L (MM)	30.8
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.075
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.368

7005-04-L08-14-BS

$20.93

Attribute: 7005-04-L08-14-BS (04MJ-14MM MBT...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.2
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC DIN 24 DEG SEAT
THREAD SIZE B2	M14X1.5
THREAD DRILL B2 (MM)	6.0
THREAD SPECIFICATION B2	FOR ISO 9974 PORT
ASSEMBLED METRIC BONDED SEAL	8800-14
BODY HEX (MM)	17.0
OVERALL LENGTH L (MM)	29.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.085
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.520

7005-06-L10-16-BS

$27.32

Attribute: 7005-06-L10-16-BS (06MJ-16MM MBT...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC DIN 24 DEG SEAT
THREAD SIZE B2	M16X1.5
THREAD DRILL B2 (MM)	8.0
THREAD SPECIFICATION B2	FOR ISO 9974 PORT
ASSEMBLED METRIC BONDED SEAL	8800-16
BODY HEX (MM)	17.0
OVERALL LENGTH L (MM)	32.7
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.006
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.577

7005-06-L12-18-BS

$26.78

Attribute: 7005-06-L12-18-BS (06MJ-18MM MBT...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC DIN 24 DEG SEAT
THREAD SIZE B2	M18X1.5
THREAD DRILL B2 (MM)	10.0
THREAD SPECIFICATION B2	FOR ISO 9974 PORT
ASSEMBLED METRIC BONDED SEAL	8800-18
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	31.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.006
MAXIMUM DYNAMIC PRESSURE (PSI)	3,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.694

7005-08-L10-16-BS

$27.14

Attribute: 7005-08-L10-16-BS (08MJ-16MM MBT...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.6
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC DIN 24 DEG SEAT
THREAD SIZE B2	M16X1.5
THREAD DRILL B2 (MM)	8.0
THREAD SPECIFICATION B2	FOR ISO 9974 PORT
ASSEMBLED METRIC BONDED SEAL	8800-16
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	34.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.006
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.004

7005-08-L12-18-BS

$14.18

Attribute: 7005-08-L12-18-BS (08MJ-18MM MBT...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC DIN 24 DEG SEAT
THREAD SIZE B2	M18X1.5
THREAD DRILL B2 (MM)	9.9
THREAD SPECIFICATION B2	FOR ISO 9974 PORT
ASSEMBLED METRIC BONDED SEAL	8800-18
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	35.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.006
MAXIMUM DYNAMIC PRESSURE (PSI)	3,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.782

7005-08-L15-22-BS

$37.80

Attribute: 7005-08-L15-22-BS (08MJ-22MM MBT...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.6
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC DIN 24 DEG SEAT
THREAD SIZE B2	M22X1.5
THREAD DRILL B2 (MM)	12.0
THREAD SPECIFICATION B2	FOR ISO 9974 PORT
ASSEMBLED METRIC BONDED SEAL	8800-22
BODY HEX (MM)	24.0
OVERALL LENGTH L (MM)	35.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.025
MAXIMUM DYNAMIC PRESSURE (PSI)	3,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.248

7005-10-L15-22-BS

$14.18

Attribute: 7005-10-L15-22-BS (10MJ-22MM MBT...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC DIN 24 DEG SEAT
THREAD SIZE B2	M22X1.5
THREAD DRILL B2 (MM)	12.0
THREAD SPECIFICATION B2	FOR ISO 9974 PORT
ASSEMBLED METRIC BONDED SEAL	8800-22
BODY HEX (MM)	24.0
OVERALL LENGTH L (MM)	38.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.025
MAXIMUM DYNAMIC PRESSURE (PSI)	3,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.336

7005-10-L18-26-BS

$19.44

Attribute: 7005-10-L18-26-BS (10MJ-26MM MBT...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC DIN 24 DEG SEAT
THREAD SIZE B2	M26X1.5
THREAD DRILL B2 (MM)	15.0
THREAD SPECIFICATION B2	FOR ISO 9974 PORT
ASSEMBLED METRIC BONDED SEAL	8800-26
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	38.8
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.175
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.726

7005-12-L15-22-BS

$49.76

Attribute: 7005-12-L15-22-BS (12MJ-22MM MBT...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC DIN 24 DEG SEAT
THREAD SIZE B2	M22X1.5
THREAD DRILL B2 (MM)	12.0
THREAD SPECIFICATION B2	FOR ISO 9974 PORT
ASSEMBLED METRIC BONDED SEAL	8800-22
BODY HEX (MM)	30.0
OVERALL LENGTH L (MM)	44.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.269
MAXIMUM DYNAMIC PRESSURE (PSI)	3,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.417

7005-12-L18-24-BS

$54.70

Attribute: 7005-12-L18-24-BS (12MJ-24MM MBT...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	14.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC DIN 24 DEG SEAT
THREAD SIZE B2	M24X1.5
THREAD DRILL B2 (MM)	46.3
THREAD SPECIFICATION B2	FOR ISO 9974 PORT
ASSEMBLED METRIC BONDED SEAL	8800-24
BODY HEX (MM)	30.0
OVERALL LENGTH L (MM)	32.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.019
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.757

7005-12-L18-26-BS

$26.82

Attribute: 7005-12-L18-26-BS (12MJ-26MM MBT...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC DIN 24 DEG SEAT
THREAD SIZE B2	M26X1.5
THREAD DRILL B2 (MM)	15.0
THREAD SPECIFICATION B2	FOR ISO 9974 PORT
ASSEMBLED METRIC BONDED SEAL	8800-26
BODY HEX (MM)	30.0
OVERALL LENGTH L (MM)	42.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.250
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.307

7005-12-L18-26-SS-BS

$338.33

Attribute: 7005-12-L18-26-SS-BS (12MJ-26MM ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC DIN 24 DEG SEAT
THREAD SIZE B2	M26X1.5
THREAD DRILL B2 (MM)	15.0
THREAD SPECIFICATION B2	FOR ISO 9974 PORT
ASSEMBLED METRIC BONDED SEAL	8800-26-SS
BODY HEX (MM)	30.0
OVERALL LENGTH L (MM)	42.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.307

7005-12-L22-30-BS

$80.48

Attribute: 7005-12-L22-30-BS (12MJ-30MM MBT...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC DIN 24 DEG SEAT
THREAD SIZE B2	M30X2.0
THREAD DRILL B2 (MM)	19.0
THREAD SPECIFICATION B2	FOR ISO 9974 PORT
ASSEMBLED METRIC BONDED SEAL	8800-30
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	44.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.286
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.749

7005-16-L28-36-BS

$134.09

Attribute: 7005-16-L28-36-BS (16MJ-36MM MBT...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE METRIC DIN 24 DEG SEAT
THREAD SIZE B2	M36X2.0
THREAD DRILL B2 (MM)	24.0
THREAD SPECIFICATION B2	FOR ISO 9974 PORT
ASSEMBLED METRIC BONDED SEAL	8800-36
BODY HEX (MM)	38.0
OVERALL LENGTH L (MM)	45.6
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.050
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.018

Connections	JIC, Metric
Shape	Straight

ID	10147884
Category	Conversion Adapters

Description

Description

Variations (15)

7005-04-L06-12-BS

7005-04-L08-14-BS

7005-06-L10-16-BS

7005-06-L12-18-BS

7005-08-L10-16-BS

7005-08-L12-18-BS

7005-08-L15-22-BS

7005-10-L15-22-BS

7005-10-L18-26-BS

7005-12-L15-22-BS

7005-12-L18-24-BS

7005-12-L18-26-BS

7005-12-L18-26-SS-BS

7005-12-L22-30-BS

7005-16-L28-36-BS
