7005-DIN HEAVY-NBR

7005-04-S06-14-NBR

$25.65

Attribute: 7005-04-S06-14-NBR (04MJ-S06MBT ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S06
THREAD SIZE B2	4.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S06
DIN TUBE SLEEVE	D0319-06

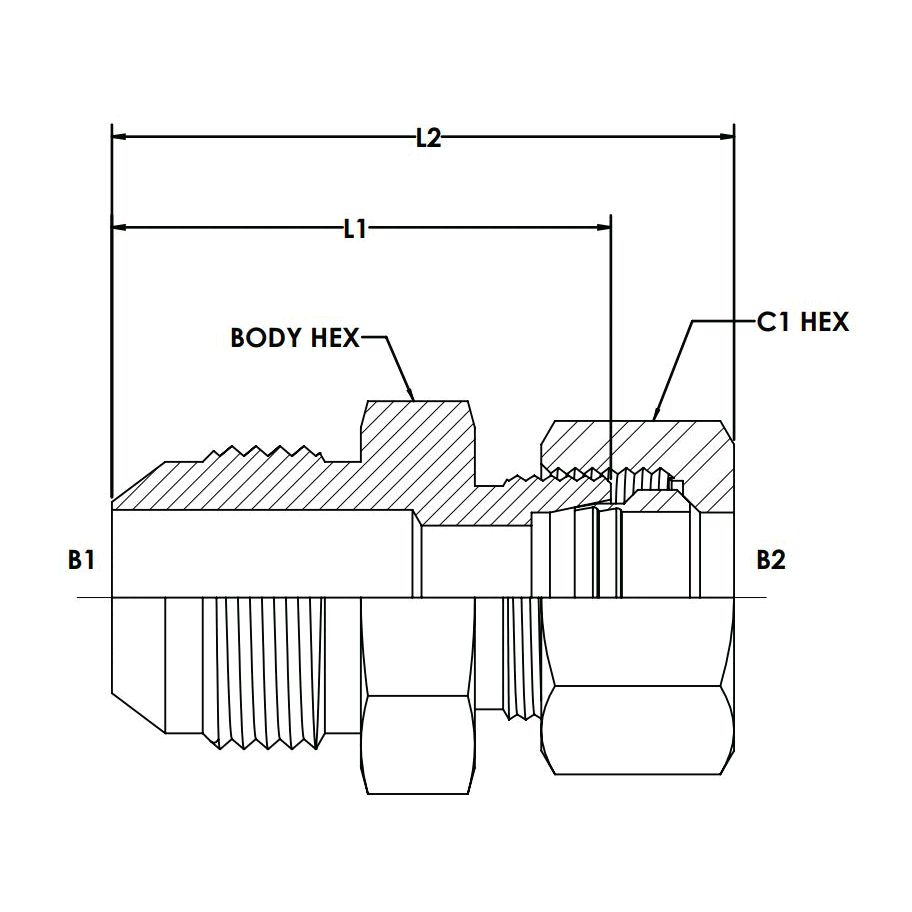

BODY HEX (MM)	14.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L2 (MM)	38.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	7,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.679

7005-04-S06-14-NBR-SS

$147.52

Attribute: 7005-04-S06-14-NBR-SS (04MJ-S06M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S06
THREAD SIZE B2	4.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S06-SS
DIN TUBE SLEEVE	D0319-06-SS
BODY HEX (MM)	14.0
HEX C 1 (MM)	17.0
OVERALL LENGTH L2 (MM)	38.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	7,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.679

7005-04-S08-16-NBR

$38.69

Attribute: 7005-04-S08-16-NBR (04MJ-S08MBT ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	3.8
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S08
THREAD SIZE B2	3.8
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S08
DIN TUBE SLEEVE	D0319-08
BODY HEX (MM)	17.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L2 (MM)	40.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	7,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.881

7005-04-S08-16-NBR-SS

$161.06

Attribute: 7005-04-S08-16-NBR-SS (04MJ-S08M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	3.8
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S08
THREAD SIZE B2	3.8
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S08-SS
DIN TUBE SLEEVE	D0319-08-SS
BODY HEX (MM)	17.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L2 (MM)	40.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	7,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.881

7005-04-S10-18-NBR

$43.22

Attribute: 7005-04-S10-18-NBR (04MJ-S10MBT ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S10
THREAD SIZE B2	4.4
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S10
DIN TUBE SLEEVE	D0319-10
BODY HEX (MM)	24.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L2 (MM)	44.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	7,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.564

7005-05-S08-16-NBR-SS

$190.10

Attribute: 7005-05-S08-16-NBR-SS (05MJ-S08M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1/2-20
THREAD DRILL B1 (MM)	5.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S08
THREAD SIZE B2	5.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S08-SS
DIN TUBE SLEEVE	D0319-08-SS
BODY HEX (MM)	17.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L2 (MM)	40.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.881

7005-06-S08-16-NBR

$29.62

Attribute: 7005-06-S08-16-NBR (06MJ-S08MBT ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	5.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S08
THREAD SIZE B2	5.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S08
DIN TUBE SLEEVE	D0319-08
BODY HEX (MM)	17.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L2 (MM)	40.1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.883

7005-06-S08-16-NBR-SS

$162.46

Attribute: 7005-06-S08-16-NBR-SS (06MJ-S08M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	5.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S08
THREAD SIZE B2	5.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S08-SS
DIN TUBE SLEEVE	D0319-08-SS
BODY HEX (MM)	17.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L2 (MM)	40.1
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.883

7005-06-S10-18-NBR

$36.13

Attribute: 7005-06-S10-18-NBR (06MJ-S10MBT ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S10
THREAD SIZE B2	7.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S10
DIN TUBE SLEEVE	D0319-10
BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L2 (MM)	41.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.211

7005-06-S10-18-NBR-SS

$188.77

Attribute: 7005-06-S10-18-NBR-SS (06MJ-S10M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S10
THREAD SIZE B2	7.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S10-SS
DIN TUBE SLEEVE	D0319-10-SS
BODY HEX (MM)	19.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L2 (MM)	41.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.211

7005-06-S12-20-NBR

$35.63

Attribute: 7005-06-S12-20-NBR (06MJ-S12MBT ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S12
THREAD SIZE B2	7.5
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S12
DIN TUBE SLEEVE	D0319-12
BODY HEX (MM)	22.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L2 (MM)	41.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.441

7005-06-S12-20-NBR-SS

$187.15

Attribute: 7005-06-S12-20-NBR-SS (06MJ-S12M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S12
THREAD SIZE B2	7.5
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S12-SS
DIN TUBE SLEEVE	D0319-12-SS
BODY HEX (MM)	22.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L2 (MM)	41.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.441

7005-06-S14-22-NBR

$46.44

Attribute: 7005-06-S14-22-NBR (06MJ-S14MBT ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S14
THREAD SIZE B2	10.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S14
DIN TUBE SLEEVE	D0319-14
BODY HEX (MM)	27.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L2 (MM)	48.6
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.162

7005-08-S08-16-NBR

$31.46

Attribute: 7005-08-S08-16-NBR (08MJ-S08MBT ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.6
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S08
THREAD SIZE B2	5.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S08
DIN TUBE SLEEVE	D0319-08
BODY HEX (MM)	22.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L2 (MM)	45.2
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.335

7005-08-S08-16-NBR-SS

$175.14

Attribute: 7005-08-S08-16-NBR-SS (08MJ-S08M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.6
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S08
THREAD SIZE B2	5.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S08-SS
DIN TUBE SLEEVE	D0319-08-SS
BODY HEX (MM)	22.0
HEX C 1 (MM)	19.0
OVERALL LENGTH L2 (MM)	45.2
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.335

7005-08-S10-18-NBR

$38.14

Attribute: 7005-08-S10-18-NBR (08MJ-S10MBT ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S10
THREAD SIZE B2	7.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S10
DIN TUBE SLEEVE	D0319-10
BODY HEX (MM)	22.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L2 (MM)	45.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.344

7005-08-S10-18-NBR-SS

$195.42

Attribute: 7005-08-S10-18-NBR-SS (08MJ-S10M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S10
THREAD SIZE B2	7.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S10-SS
DIN TUBE SLEEVE	D0319-10-SS
BODY HEX (MM)	22.0
HEX C 1 (MM)	22.0
OVERALL LENGTH L2 (MM)	45.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.344

7005-08-S12-20-NBR

$41.25

Attribute: 7005-08-S12-20-NBR (08MJ-S12MBT ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	8.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S12
THREAD SIZE B2	8.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S12
DIN TUBE SLEEVE	D0319-12
BODY HEX (MM)	22.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L2 (MM)	45.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.599

7005-08-S12-20-NBR-SS

$214.03

Attribute: 7005-08-S12-20-NBR-SS (08MJ-S12M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	8.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S12
THREAD SIZE B2	8.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S12-SS
DIN TUBE SLEEVE	D0319-12-SS
BODY HEX (MM)	22.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L2 (MM)	45.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.599

7005-08-S14-22-NBR

$44.60

Attribute: 7005-08-S14-22-NBR (08MJ-S14MBT ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S14
THREAD SIZE B2	9.9
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S14
DIN TUBE SLEEVE	D0319-14
BODY HEX (MM)	27.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L2 (MM)	50.2
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.233

7005-08-S14-22-NBR-SS

$213.60

Attribute: 7005-08-S14-22-NBR-SS (08MJ-S14M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S14
THREAD SIZE B2	9.9
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S14-SS
DIN TUBE SLEEVE	D0319-14-SS
BODY HEX (MM)	27.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L2 (MM)	50.2
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.233

7005-08-S16-24-NBR

$42.08

Attribute: 7005-08-S16-24-NBR (08MJ-S16MBT ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.6
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S16
THREAD SIZE B2	12.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S16
DIN TUBE SLEEVE	D0319-16
BODY HEX (MM)	27.0
HEX C 1 (MM)	30.0
OVERALL LENGTH L2 (MM)	49.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.189
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.691

7005-08-S16-24-NBR-SS

$242.60

Attribute: 7005-08-S16-24-NBR-SS (08MJ-S16M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.6
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S16
THREAD SIZE B2	12.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S16-SS
DIN TUBE SLEEVE	D0319-16-SS
BODY HEX (MM)	27.0
HEX C 1 (MM)	30.0
OVERALL LENGTH L2 (MM)	49.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.691

7005-08-S20-30-NBR-SS

$439.27

Attribute: 7005-08-S20-30-NBR-SS (08MJ-S20M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S20
THREAD SIZE B2	12.3
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S20-SS
DIN TUBE SLEEVE	D0319-20-SS
BODY HEX (MM)	36.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L2 (MM)	53.2
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.207

7005-08-S25-36-NBR-SS

$371.45

Attribute: 7005-08-S25-36-NBR-SS (08MJ-S25M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S25
THREAD SIZE B2	20.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S25-SS
DIN TUBE SLEEVE	D0319-25-SS
BODY HEX (MM)	38.0
HEX C 1 (MM)	46.0
OVERALL LENGTH L2 (MM)	58.7
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	7.580

7005-10-S12-20-NBR

$43.01

Attribute: 7005-10-S12-20-NBR (10MJ-S12MBT ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S12
THREAD SIZE B2	7.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S12
DIN TUBE SLEEVE	D0319-12
BODY HEX (MM)	24.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L2 (MM)	49.3
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.733

7005-10-S12-20-NBR-SS

$227.77

Attribute: 7005-10-S12-20-NBR-SS (10MJ-S12M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S12
THREAD SIZE B2	7.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S12-SS
DIN TUBE SLEEVE	D0319-12-SS
BODY HEX (MM)	24.0
HEX C 1 (MM)	24.0
OVERALL LENGTH L2 (MM)	49.3
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.733

7005-10-S14-22-NBR

$53.82

Attribute: 7005-10-S14-22-NBR (10MJ-S14MBT ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S14
THREAD SIZE B2	10.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S14
DIN TUBE SLEEVE	D0319-14
BODY HEX (MM)	27.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L2 (MM)	52.8
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.349

7005-10-S14-22-NBR-SS

$280.09

Attribute: 7005-10-S14-22-NBR-SS (10MJ-S14M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S14
THREAD SIZE B2	10.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S14-SS
DIN TUBE SLEEVE	D0319-14-SS
BODY HEX (MM)	27.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L2 (MM)	52.8
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.349

7005-10-S16-24-NBR

$57.34

Attribute: 7005-10-S16-24-NBR (10MJ-S16MBT ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S16
THREAD SIZE B2	12.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S16
DIN TUBE SLEEVE	D0319-16
BODY HEX (MM)	27.0
HEX C 1 (MM)	30.0
OVERALL LENGTH L2 (MM)	51.3
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.817

7005-10-S16-24-NBR-SS

$352.64

Attribute: 7005-10-S16-24-NBR-SS (10MJ-S16M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S16
THREAD SIZE B2	12.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S16-SS
DIN TUBE SLEEVE	D0319-16-SS
BODY HEX (MM)	27.0
HEX C 1 (MM)	30.0
OVERALL LENGTH L2 (MM)	51.3
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.817

7005-10-S20-30-NBR

$76.70

Attribute: 7005-10-S20-30-NBR (10MJ-S20MBT ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S20
THREAD SIZE B2	12.3
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S20
DIN TUBE SLEEVE	D0319-20
BODY HEX (MM)	32.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L2 (MM)	55.8
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.413

7005-12-S14-22-NBR

$61.21

Attribute: 7005-12-S14-22-NBR (12MJ-S14MBT ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S14
THREAD SIZE B2	10.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S14
DIN TUBE SLEEVE	D0319-14
BODY HEX (MM)	32.0
HEX C 1 (MM)	27.0
OVERALL LENGTH L2 (MM)	55.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.437

7005-12-S16-24-NBR

$64.71

Attribute: 7005-12-S16-24-NBR (12MJ-S16MBT ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S16
THREAD SIZE B2	12.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S16
DIN TUBE SLEEVE	D0319-16
BODY HEX (MM)	32.0
HEX C 1 (MM)	30.0
OVERALL LENGTH L2 (MM)	55.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.437

7005-12-S16-24-NBR-SS

$421.16

Attribute: 7005-12-S16-24-NBR-SS (12MJ-S16M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S16
THREAD SIZE B2	12.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S16-SS
DIN TUBE SLEEVE	D0319-16-SS
BODY HEX (MM)	32.0
HEX C 1 (MM)	30.0
OVERALL LENGTH L2 (MM)	55.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.437

7005-12-S20-30-NBR

$76.70

Attribute: 7005-12-S20-30-NBR (12MJ-S20MBT ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S20
THREAD SIZE B2	15.5
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S20
DIN TUBE SLEEVE	D0319-20
BODY HEX (MM)	32.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L2 (MM)	58.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.619

7005-12-S20-30-NBR-SS

$473.79

Attribute: 7005-12-S20-30-NBR-SS (12MJ-S20M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S20
THREAD SIZE B2	15.5
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S20-SS
DIN TUBE SLEEVE	D0319-20-SS
BODY HEX (MM)	32.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L2 (MM)	58.4
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.619

7005-12-S25-36-NBR

$114.47

Attribute: 7005-12-S25-36-NBR (12MJ-S25MBT ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S25
THREAD SIZE B2	15.5
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S25
DIN TUBE SLEEVE	D0319-25
BODY HEX (MM)	32.0
HEX C 1 (MM)	46.0
OVERALL LENGTH L2 (MM)	63.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.251

7005-12-S25-36-NBR-SS

$636.62

Attribute: 7005-12-S25-36-NBR-SS (12MJ-S25M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S25
THREAD SIZE B2	20.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S25-SS
DIN TUBE SLEEVE	D0319-25-SS
BODY HEX (MM)	38.0
HEX C 1 (MM)	46.0
OVERALL LENGTH L2 (MM)	63.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.251

7005-12-S30-42-NBR-SS

$938.95

Attribute: 7005-12-S30-42-NBR-SS (12MJ-S30M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S30
THREAD SIZE B2	20.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S30-SS
DIN TUBE SLEEVE	D0319-30-SS
BODY HEX (MM)	38.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L2 (MM)	68.1
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.389

7005-16-S20-30-NBR

$108.06

Attribute: 7005-16-S20-30-NBR (16MJ-S20MBT ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S20
THREAD SIZE B2	15.5
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S20
DIN TUBE SLEEVE	D0319-20
BODY HEX (MM)	41.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L2 (MM)	63.3
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.493

7005-16-S20-30-NBR-SS

$499.72

Attribute: 7005-16-S20-30-NBR-SS (16MJ-S20M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S20
THREAD SIZE B2	15.5
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S20-SS
DIN TUBE SLEEVE	D0319-20-SS
BODY HEX (MM)	41.0
HEX C 1 (MM)	36.0
OVERALL LENGTH L2 (MM)	63.3
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.493

7005-16-S25-36-NBR

$140.54

Attribute: 7005-16-S25-36-NBR (16MJ-S25MBT ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	20.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S25
THREAD SIZE B2	20.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S25
DIN TUBE SLEEVE	D0319-25
BODY HEX (MM)	41.0
HEX C 1 (MM)	46.0
OVERALL LENGTH L2 (MM)	66.8
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.626

7005-16-S25-36-NBR-SS

$562.14

Attribute: 7005-16-S25-36-NBR-SS (16MJ-S25M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	20.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S25
THREAD SIZE B2	20.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S25-SS
DIN TUBE SLEEVE	D0319-25-SS
BODY HEX (MM)	41.0
HEX C 1 (MM)	46.0
OVERALL LENGTH L2 (MM)	66.8
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	8.626

7005-16-S30-42-NBR

$157.95

Attribute: 7005-16-S30-42-NBR (16MJ-S30MBT ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S30
THREAD SIZE B2	21.4
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S30
DIN TUBE SLEEVE	D0319-30
BODY HEX (MM)	46.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L2 (MM)	68.1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.389

7005-16-S30-42-NBR-SS

$938.95

Attribute: 7005-16-S30-42-NBR-SS (16MJ-S30M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S30
THREAD SIZE B2	21.4
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S30-SS
DIN TUBE SLEEVE	D0319-30-SS
BODY HEX (MM)	46.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L2 (MM)	68.1
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.389

7005-16-S38-52-NBR-SS

$1,258.51

Attribute: 7005-16-S38-52-NBR-SS (16MJ-S38M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S38
THREAD SIZE B2	32.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S38-SS
DIN TUBE SLEEVE	D0319-38-SS
BODY HEX (MM)	55.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L2 (MM)	74.6
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	16.389

7005-20-S30-42-NBR

$244.84

Attribute: 7005-20-S30-42-NBR (20MJ-S30MBT ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/8-12
THREAD DRILL B1 (MM)	27.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S30
THREAD SIZE B2	25.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S30
DIN TUBE SLEEVE	D0319-30
BODY HEX (MM)	46.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L2 (MM)	69.3
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.572

7005-20-S30-42-NBR-SS

$938.95

Attribute: 7005-20-S30-42-NBR-SS (20MJ-S30M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/8-12
THREAD DRILL B1 (MM)	27.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S30
THREAD SIZE B2	25.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S30-SS
DIN TUBE SLEEVE	D0319-30-SS
BODY HEX (MM)	46.0
HEX C 1 (MM)	50.0
OVERALL LENGTH L2 (MM)	69.3
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	10.572

7005-20-S38-52-NBR

$203.73

Attribute: 7005-20-S38-52-NBR (20MJ-S38MBT ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/8-12
THREAD DRILL B1 (MM)	27.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S38
THREAD SIZE B2	32.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S38
DIN TUBE SLEEVE	D0319-38
BODY HEX (MM)	55.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L2 (MM)	75.8
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	1.882
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	16.652

7005-20-S38-52-NBR-SS

$976.37

Attribute: 7005-20-S38-52-NBR-SS (20MJ-S38M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/8-12
THREAD DRILL B1 (MM)	27.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S38
THREAD SIZE B2	32.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S38-SS
DIN TUBE SLEEVE	D0319-38-SS
BODY HEX (MM)	55.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L2 (MM)	75.8
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	16.652

7005-24-S38-52-NBR

$341.22

Attribute: 7005-24-S38-52-NBR (24MJ-S38MBT ...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-7/8-12
THREAD DRILL B1 (MM)	33.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S38
THREAD SIZE B2	32.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S38
DIN TUBE SLEEVE	D0319-38
BODY HEX (MM)	55.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L2 (MM)	79.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	17.355

7005-24-S38-52-NBR-SS

$1,075.59

Attribute: 7005-24-S38-52-NBR-SS (24MJ-S38M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-7/8-12
THREAD DRILL B1 (MM)	33.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	METRIC DIN TUBE
TUBE SIZE B2	S38
THREAD SIZE B2	32.0
THREAD SPECIFICATION B2	ASSEMBLY WITH DIN NUT & SLEEVE
DIN TUBE NUT	D0318-S38-SS
DIN TUBE SLEEVE	D0319-38-SS
BODY HEX (MM)	55.0
HEX C 1 (MM)	60.0
OVERALL LENGTH L2 (MM)	79.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	17.355

Description

Description

Variations (53)

7005-04-S06-14-NBR

7005-04-S06-14-NBR-SS

7005-04-S08-16-NBR

7005-04-S08-16-NBR-SS

7005-04-S10-18-NBR

7005-05-S08-16-NBR-SS

7005-06-S08-16-NBR

7005-06-S08-16-NBR-SS

7005-06-S10-18-NBR

7005-06-S10-18-NBR-SS

7005-06-S12-20-NBR

7005-06-S12-20-NBR-SS

7005-06-S14-22-NBR

7005-08-S08-16-NBR

7005-08-S08-16-NBR-SS

7005-08-S10-18-NBR

7005-08-S10-18-NBR-SS

7005-08-S12-20-NBR

7005-08-S12-20-NBR-SS

7005-08-S14-22-NBR

7005-08-S14-22-NBR-SS

7005-08-S16-24-NBR

7005-08-S16-24-NBR-SS

7005-08-S20-30-NBR-SS

7005-08-S25-36-NBR-SS

7005-10-S12-20-NBR

7005-10-S12-20-NBR-SS

7005-10-S14-22-NBR

7005-10-S14-22-NBR-SS

7005-10-S16-24-NBR

7005-10-S16-24-NBR-SS

7005-10-S20-30-NBR

7005-12-S14-22-NBR

7005-12-S16-24-NBR

7005-12-S16-24-NBR-SS

7005-12-S20-30-NBR

7005-12-S20-30-NBR-SS

7005-12-S25-36-NBR

7005-12-S25-36-NBR-SS

7005-12-S30-42-NBR-SS

7005-16-S20-30-NBR

7005-16-S20-30-NBR-SS

7005-16-S25-36-NBR

7005-16-S25-36-NBR-SS

7005-16-S30-42-NBR

7005-16-S30-42-NBR-SS

7005-16-S38-52-NBR-SS

7005-20-S30-42-NBR

7005-20-S30-42-NBR-SS

7005-20-S38-52-NBR

7005-20-S38-52-NBR-SS

7005-24-S38-52-NBR

7005-24-S38-52-NBR-SS

General Attributes

PDF Documents
