Description

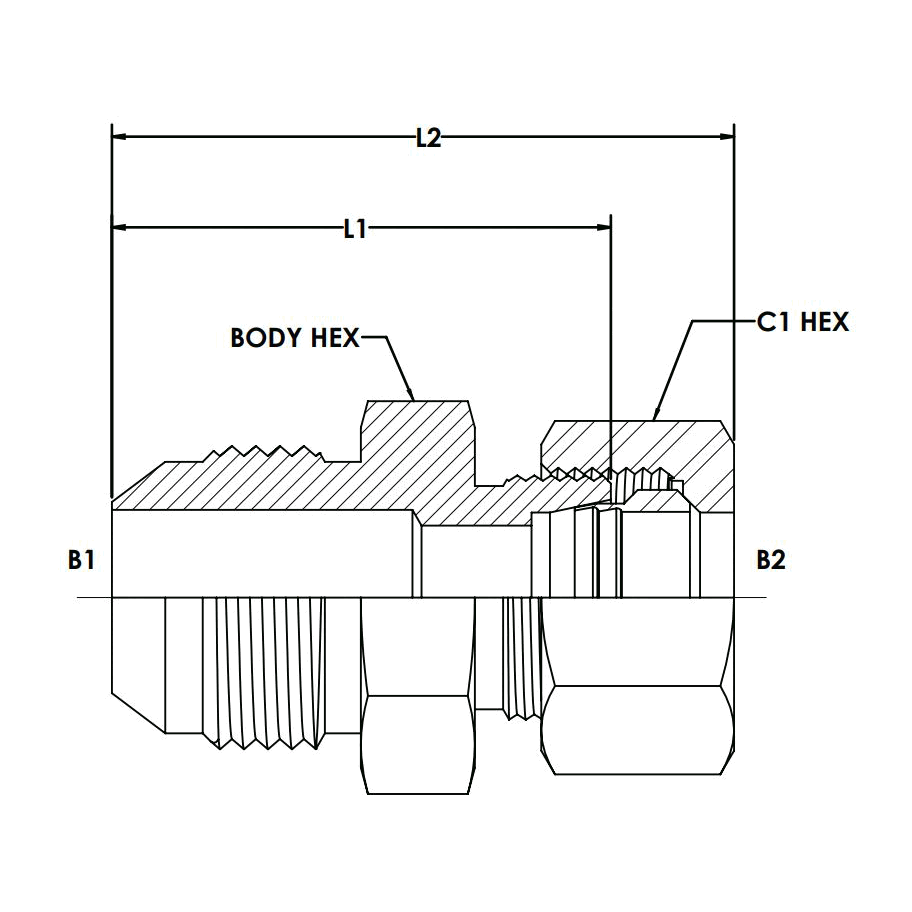

MJ-MM STRAIGHT WITH 24 DEGREE SEAT, DIN 2353 EXTRA LIGHT WITH DIN NUT AND SLEEVE ASSEMBLED
Description
Variations (4)
7005-04-LL06-10-NBR
$96.16Attribute: 7005-04-LL06-10-NBR (04MJ-LL06MB...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/16-20 |
| THREAD DRILL B1 (MM) | 3.6 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | METRIC DIN TUBE |
| TUBE SIZE B2 | LL06 |
| THREAD SIZE B2 | 3.6 |
| THREAD SPECIFICATION B2 | ASSEMBLY WITH DIN NUT & SLEEVE |
| DIN TUBE NUT | D0318-E06 |
| DIN TUBE SLEEVE | D0319-E06 |
| BODY HEX (MM) | 14.0 |
| HEX C 1 (MM) | 12.0 |
| OVERALL LENGTH L2 (MM) | 34.6 |
| OVERALL LENGTH L1 (MM) | 30.8 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.414 |
7005-04-LL08-12-NBR
$32.72Attribute: 7005-04-LL08-12-NBR (04MJ-LL08MB...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/16-20 |
| THREAD DRILL B1 (MM) | 4.0 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | METRIC DIN TUBE |
| TUBE SIZE B2 | LL08 |
| THREAD SIZE B2 | 4.0 |
| THREAD SPECIFICATION B2 | ASSEMBLY WITH DIN NUT & SLEEVE |
| DIN TUBE NUT | D0318-E08 |
| DIN TUBE SLEEVE | D0319-E08 |
| BODY HEX (MM) | 14.0 |
| HEX C 1 (MM) | 14.0 |
| OVERALL LENGTH L2 (MM) | 34.1 |
| OVERALL LENGTH L1 (MM) | 30.8 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.408 |
7005-04-LL10-14-NBR
$28.66Attribute: 7005-04-LL10-14-NBR (04MJ-LL10MB...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/16-20 |
| THREAD DRILL B1 (MM) | 4.0 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | METRIC DIN TUBE |
| TUBE SIZE B2 | LL10 |
| THREAD SIZE B2 | 6.0 |
| THREAD SPECIFICATION B2 | ASSEMBLY WITH DIN NUT & SLEEVE |
| DIN TUBE NUT | D0318-E10 |
| DIN TUBE SLEEVE | D0319-E10 |
| BODY HEX (MM) | 17.0 |
| HEX C 1 (MM) | 17.0 |
| OVERALL LENGTH L2 (MM) | 34.4 |
| OVERALL LENGTH L1 (MM) | 30.8 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.607 |
7005-06-LL08-12-NBR
$26.98Attribute: 7005-06-LL08-12-NBR (06MJ-LL08MB...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 9/16-18 |
| THREAD DRILL B1 (MM) | 6.0 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | METRIC DIN TUBE |
| TUBE SIZE B2 | LL08 |
| THREAD SIZE B2 | 6.0 |
| THREAD SPECIFICATION B2 | ASSEMBLY WITH DIN NUT & SLEEVE |
| DIN TUBE NUT | D0318-E08 |
| DIN TUBE SLEEVE | D0319-E08 |
| BODY HEX (MM) | 17.0 |
| HEX C 1 (MM) | 14.0 |
| OVERALL LENGTH L2 (MM) | 34.3 |
| OVERALL LENGTH L1 (MM) | 31.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.605 |
