Description

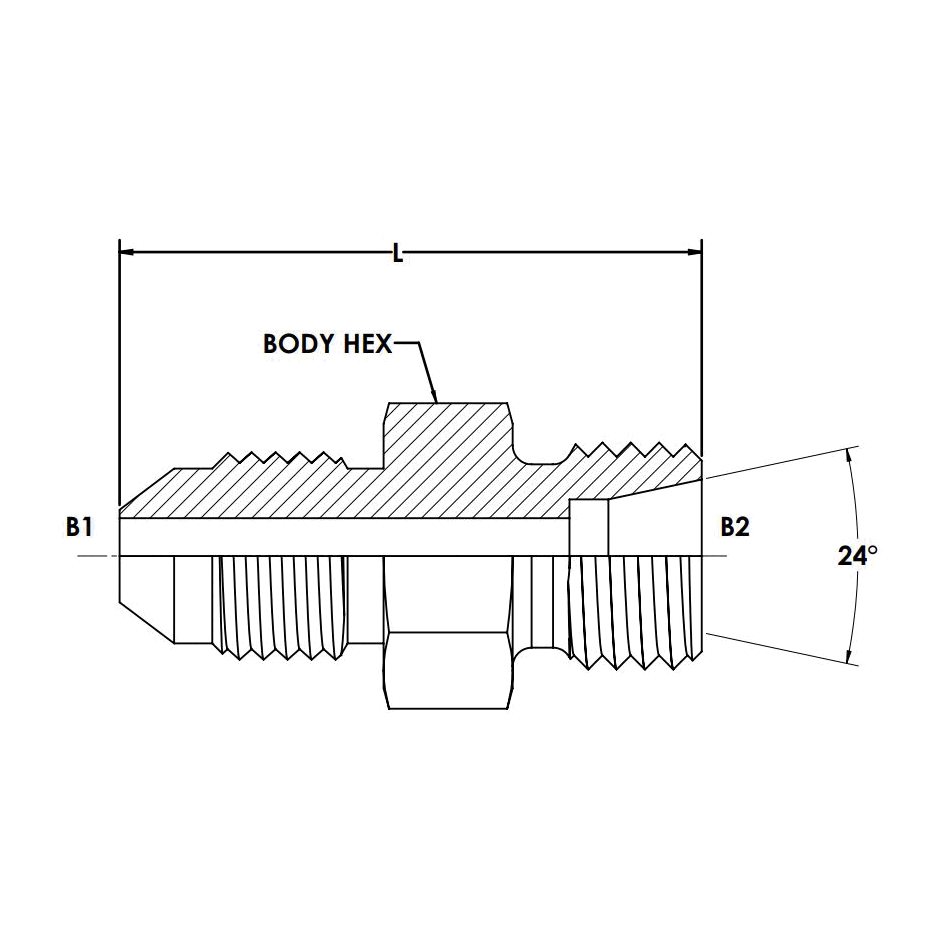

MJ-MM STRAIGHT WITH 24 DEGREE SEAT, DIN 2353 EXTRA LIGHT
Description
Variations (4)
7005-04-LL06-10
$37.66Attribute: 7005-04-LL06-10 (04MJ-10MM MBT S...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/16-20 |
| THREAD DRILL B1 (MM) | 3.6 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC DIN 24 DEG SEAT |
| THREAD SIZE B2 | M10X1.0 |
| THREAD DRILL B2 (MM) | 3.6 |
| THREAD SPECIFICATION B2 | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 14.0 |
| OVERALL LENGTH L (MM) | 30.8 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| WEIGHT (LBS) | 0.050 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.368 |
7005-04-LL08-12
$28.15Attribute: 7005-04-LL08-12 (04MJ-12MM MBT S...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/16-20 |
| THREAD DRILL B1 (MM) | 4.0 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC DIN 24 DEG SEAT |
| THREAD SIZE B2 | M12X1.5 |
| THREAD DRILL B2 (MM) | 4.0 |
| THREAD SPECIFICATION B2 | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 14.0 |
| OVERALL LENGTH L (MM) | 30.8 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.368 |
7005-04-LL10-14
$20.83Attribute: 7005-04-LL10-14 (04MJ-14MM MBT S...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/16-20 |
| THREAD DRILL B1 (MM) | 4.0 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC DIN 24 DEG SEAT |
| THREAD SIZE B2 | M14X1.5 |
| THREAD DRILL B2 (MM) | 6.0 |
| THREAD SPECIFICATION B2 | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 17.0 |
| OVERALL LENGTH L (MM) | 30.8 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.543 |
7005-06-LL08-12
$20.30Attribute: 7005-06-LL08-12 (06MJ-12MM MBT S...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 9/16-18 |
| THREAD DRILL B1 (MM) | 6.0 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC DIN 24 DEG SEAT |
| THREAD SIZE B2 | M12X1.5 |
| THREAD DRILL B2 (MM) | 6.0 |
| THREAD SPECIFICATION B2 | DIN 2353, ISO 8434-1 |
| BODY HEX (MM) | 17.0 |
| OVERALL LENGTH L (MM) | 31.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 6,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.547 |
General Attributes
| Connections | JIC, Metric |
|---|---|
| Shape | Straight |
