Description

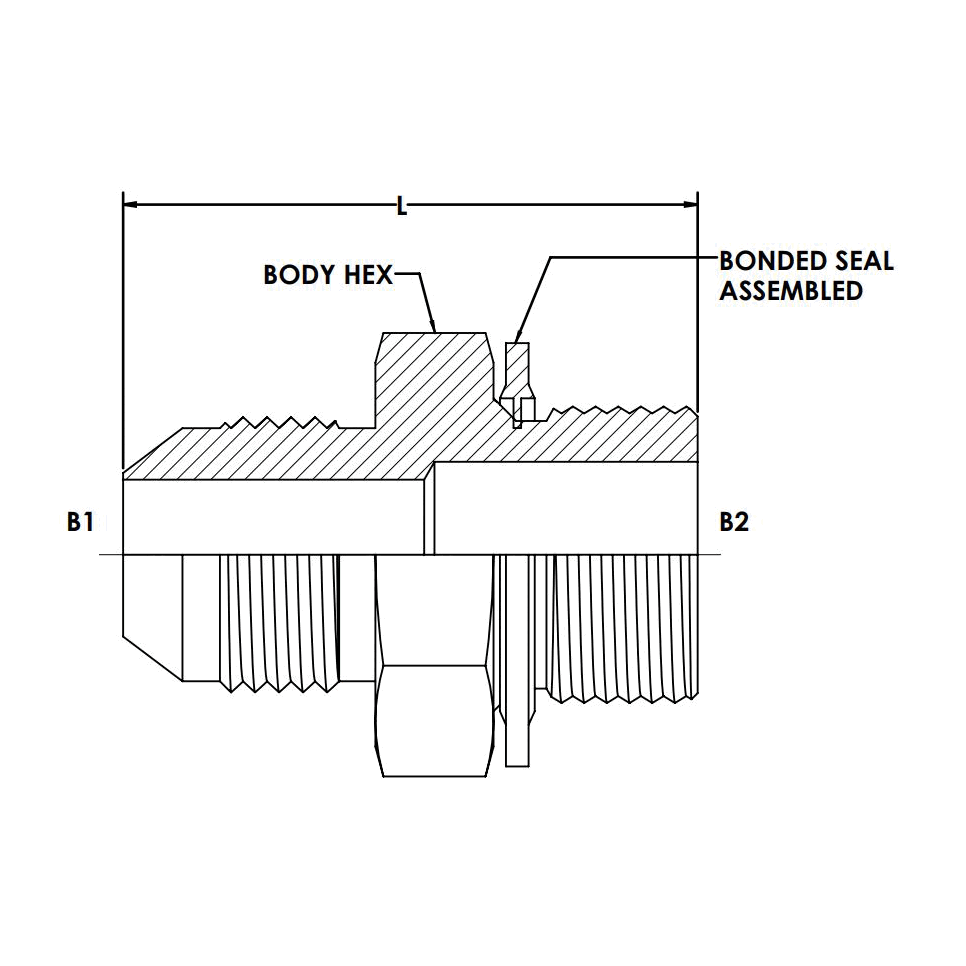

MJ-MM STRAIGHT WITH BONDED SEAL ASSEMBLED (FOR ISO 9974 PORT)
Description
Variations (88)
7005-02-10-BS
$21.04Attribute: 7005-02-10-BS (02MJ-10MM Straigh...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 5/16-24 |
| THREAD DRILL B1 (MM) | 1.6 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M10X1.0 |
| THREAD DRILL B2 (MM) | 4.4 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-10 |
| BODY HEX (MM) | 17.0 |
| OVERALL LENGTH L (MM) | 29.4 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.518 |
7005-04-08X1.00-BS
$19.11Attribute: 7005-04-08X1.00-BS (04MJ-08MM St...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/16-20 |
| THREAD DRILL B1 (MM) | 4.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M08X1.0 |
| THREAD DRILL B2 (MM) | 4.4 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-08 |
| BODY HEX (MM) | 12.7 |
| OVERALL LENGTH L (MM) | 27.7 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.273 |
7005-04-08X1.25-BS
$19.11Attribute: 7005-04-08X1.25-BS (04MJ-08MM St...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/16-20 |
| THREAD DRILL B1 (MM) | 4.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M08X1.25 |
| THREAD DRILL B2 (MM) | 4.4 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-08 |
| BODY HEX (MM) | 12.7 |
| OVERALL LENGTH L (MM) | 27.7 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.273 |
7005-04-10-BS
$15.06Attribute: 7005-04-10-BS (04MJ-10MM Straigh...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/16-20 |
| THREAD DRILL B1 (MM) | 4.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M10X1.0 |
| THREAD DRILL B2 (MM) | 4.4 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-10 |
| BODY HEX (MM) | 17.0 |
| OVERALL LENGTH L (MM) | 32.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.056 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.564 |
7005-04-10-BS-VITON
$22.20Attribute: 7005-04-10-BS-VITON (04MJ-10MM S...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/16-20 |
| THREAD DRILL B1 (MM) | 4.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M10X1.0 |
| THREAD DRILL B2 (MM) | 4.4 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-10-VITON |
| BODY HEX (MM) | 17.0 |
| OVERALL LENGTH L (MM) | 32.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | VITON |
| WEIGHT (LBS) | 0.056 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.564 |
7005-04-10-SS-BS
$88.08Attribute: 7005-04-10-SS-BS (04MJ-10MM Stra...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/16-20 |
| THREAD DRILL B1 (MM) | 4.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M10X1.0 |
| THREAD DRILL B2 (MM) | 4.4 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-10-SS |
| BODY HEX (MM) | 17.0 |
| OVERALL LENGTH L (MM) | 32.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.564 |
7005-04-10X1.25-BS
$13.63Attribute: 7005-04-10X1.25-BS (04MJ-10MM St...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/16-20 |
| THREAD DRILL B1 (MM) | 4.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M10X1.25 |
| THREAD DRILL B2 (MM) | 4.4 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-10 |
| BODY HEX (MM) | 17.0 |
| OVERALL LENGTH L (MM) | 32.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.062 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.564 |
7005-04-10X1.50-BS
$16.40Attribute: 7005-04-10X1.50-BS (04MJ-10MM St...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/16-20 |
| THREAD DRILL B1 (MM) | 4.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M10X1.5 |
| THREAD DRILL B2 (MM) | 4.4 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-10 |
| BODY HEX (MM) | 17.0 |
| OVERALL LENGTH L (MM) | 32.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.564 |
7005-04-12-BS
$17.33Attribute: 7005-04-12-BS (04MJ-12MM Straigh...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/16-20 |
| THREAD DRILL B1 (MM) | 4.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M12X1.5 |
| THREAD DRILL B2 (MM) | 5.0 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-12 |
| BODY HEX (MM) | 17.0 |
| OVERALL LENGTH L (MM) | 34.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.062 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.600 |
7005-04-12-SS-BS
$88.95Attribute: 7005-04-12-SS-BS (04MJ-12MM Stra...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/16-20 |
| THREAD DRILL B1 (MM) | 4.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M12X1.5 |
| THREAD DRILL B2 (MM) | 5.0 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-12-SS |
| BODY HEX (MM) | 17.5 |
| OVERALL LENGTH L (MM) | 34.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.075 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.635 |
7005-04-14-BS
$21.51Attribute: 7005-04-14-BS (04MJ-14MM Straigh...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/16-20 |
| THREAD DRILL B1 (MM) | 4.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M14X1.5 |
| THREAD DRILL B2 (MM) | 6.0 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-14 |
| BODY HEX (MM) | 19.0 |
| OVERALL LENGTH L (MM) | 34.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.154 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.749 |
7005-04-14-SS-BS
$88.52Attribute: 7005-04-14-SS-BS (04MJ-14MM Stra...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/16-20 |
| THREAD DRILL B1 (MM) | 4.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M14X1.5 |
| THREAD DRILL B2 (MM) | 6.0 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-14-SS |
| BODY HEX (MM) | 19.0 |
| OVERALL LENGTH L (MM) | 34.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.085 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.749 |
7005-04-16-BS
$27.14Attribute: 7005-04-16-BS (04MJ-16MM Straigh...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/16-20 |
| THREAD DRILL B1 (MM) | 4.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M16X1.5 |
| THREAD DRILL B2 (MM) | 7.5 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-16 |
| BODY HEX (MM) | 22.0 |
| OVERALL LENGTH L (MM) | 33.85 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.000 |
7005-04-16-SS-BS
$94.80Attribute: 7005-04-16-SS-BS (04MJ-16MM Stra...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/16-20 |
| THREAD DRILL B1 (MM) | 4.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M16X1.5 |
| THREAD DRILL B2 (MM) | 7.5 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-16-SS |
| BODY HEX (MM) | 22.0 |
| OVERALL LENGTH L (MM) | 33.85 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.000 |
7005-04-18-BS
$34.06Attribute: 7005-04-18-BS (04MJ-18MM Straigh...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/16-20 |
| THREAD DRILL B1 (MM) | 4.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M18X1.5 |
| THREAD DRILL B2 (MM) | 11.0 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-18 |
| BODY HEX (MM) | 22.0 |
| OVERALL LENGTH L (MM) | 34.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.100 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 3,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.019 |
7005-04-18-SS-BS
$135.27Attribute: 7005-04-18-SS-BS (04MJ-18MM Stra...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/16-20 |
| THREAD DRILL B1 (MM) | 4.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M18X1.5 |
| THREAD DRILL B2 (MM) | 11.0 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-18-SS |
| BODY HEX (MM) | 22.0 |
| OVERALL LENGTH L (MM) | 34.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 3,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.019 |
7005-04-20-BS
$38.89Attribute: 7005-04-20-BS (04MJ-20MM Straigh...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/16-20 |
| THREAD DRILL B1 (MM) | 4.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M20X1.5 |
| THREAD DRILL B2 (MM) | 12.5 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-20 |
| BODY HEX (MM) | 27.0 |
| OVERALL LENGTH L (MM) | 37.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.013 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.646 |
7005-04-20-SS-BS
$190.00Attribute: 7005-04-20-SS-BS (04MJ-20MM Stra...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/16-20 |
| THREAD DRILL B1 (MM) | 4.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M20X1.5 |
| THREAD DRILL B2 (MM) | 12.5 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-20-SS |
| BODY HEX (MM) | 27.0 |
| OVERALL LENGTH L (MM) | 37.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.646 |
7005-04-22-BS
$37.70Attribute: 7005-04-22-BS (04MJ-22MM Straigh...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/16-20 |
| THREAD DRILL B1 (MM) | 4.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M22X1.5 |
| THREAD DRILL B2 (MM) | 12.3 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-22 |
| BODY HEX (MM) | 27.0 |
| OVERALL LENGTH L (MM) | 38.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.025 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 3,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.690 |
7005-04-22-SS-BS
$222.16Attribute: 7005-04-22-SS-BS (04MJ-22MM Stra...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/16-20 |
| THREAD DRILL B1 (MM) | 4.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M22X1.5 |
| THREAD DRILL B2 (MM) | 12.3 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-22-SS |
| BODY HEX (MM) | 27.0 |
| OVERALL LENGTH L (MM) | 38.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 3,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.690 |
7005-05-12-BS
$34.50Attribute: 7005-05-12-BS (05MJ-12MM Straigh...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 1/2-20 |
| THREAD DRILL B1 (MM) | 6.0 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M12X1.5 |
| THREAD DRILL B2 (MM) | 6.0 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-12 |
| BODY HEX (MM) | 19.0 |
| OVERALL LENGTH L (MM) | 33.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.138 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.727 |
7005-05-12-SS-BS
$123.21Attribute: 7005-05-12-SS-BS (05MJ-12MM Stra...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 1/2-20 |
| THREAD DRILL B1 (MM) | 6.0 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M12X1.5 |
| THREAD DRILL B2 (MM) | 6.0 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-12-SS |
| BODY HEX (MM) | 19.0 |
| OVERALL LENGTH L (MM) | 33.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.727 |
7005-06-10-BS
$17.09Attribute: 7005-06-10-BS (06MJ-10MM Straigh...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 9/16-18 |
| THREAD DRILL B1 (MM) | 7.5 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M10X1.0 |
| THREAD DRILL B2 (MM) | 4.0 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-10 |
| BODY HEX (MM) | 15.9 |
| OVERALL LENGTH L (MM) | 33.1 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.006 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.511 |
7005-06-12-BS
$19.64Attribute: 7005-06-12-BS (06MJ-12MM Straigh...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 9/16-18 |
| THREAD DRILL B1 (MM) | 7.5 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M12X1.5 |
| THREAD DRILL B2 (MM) | 5.0 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-12 |
| BODY HEX (MM) | 17.0 |
| OVERALL LENGTH L (MM) | 33.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.150 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.582 |
7005-06-12-SS-BS
$79.41Attribute: 7005-06-12-SS-BS (06MJ-12MM Stra...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 9/16-18 |
| THREAD DRILL B1 (MM) | 7.5 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M12X1.5 |
| THREAD DRILL B2 (MM) | 5.0 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-12-SS |
| BODY HEX (MM) | 17.0 |
| OVERALL LENGTH L (MM) | 33.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.582 |
7005-06-12X1.25-BS
$19.74Attribute: 7005-06-12X1.25-BS (06MJ-12MM St...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 9/16-18 |
| THREAD DRILL B1 (MM) | 7.5 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M12X1.25 |
| THREAD DRILL B2 (MM) | 5.0 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-12 |
| BODY HEX (MM) | 17.0 |
| OVERALL LENGTH L (MM) | 33.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.138 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.582 |
7005-06-14-BS
$20.43Attribute: 7005-06-14-BS (06MJ-14MM Straigh...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 9/16-18 |
| THREAD DRILL B1 (MM) | 7.5 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M14X1.5 |
| THREAD DRILL B2 (MM) | 6.0 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-14 |
| BODY HEX (MM) | 19.0 |
| OVERALL LENGTH L (MM) | 34.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.160 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.749 |
7005-06-14-SS-BS
$73.64Attribute: 7005-06-14-SS-BS (06MJ-14MM Stra...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 9/16-18 |
| THREAD DRILL B1 (MM) | 7.5 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M14X1.5 |
| THREAD DRILL B2 (MM) | 6.0 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-14-SS |
| BODY HEX (MM) | 19.0 |
| OVERALL LENGTH L (MM) | 34.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.749 |
7005-06-16-BS
$23.78Attribute: 7005-06-16-BS (06MJ-16MM Straigh...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 9/16-18 |
| THREAD DRILL B1 (MM) | 7.5 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M16X1.5 |
| THREAD DRILL B2 (MM) | 7.5 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-16 |
| BODY HEX (MM) | 22.0 |
| OVERALL LENGTH L (MM) | 34.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.112 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.004 |
7005-06-16-SS-BS
$73.60Attribute: 7005-06-16-SS-BS (06MJ-16MM Stra...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 9/16-18 |
| THREAD DRILL B1 (MM) | 7.5 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M16X1.5 |
| THREAD DRILL B2 (MM) | 7.5 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-16-SS |
| BODY HEX (MM) | 22.0 |
| OVERALL LENGTH L (MM) | 34.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.004 |
7005-06-18-BS
$24.47Attribute: 7005-06-18-BS (06MJ-18MM Straigh...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 9/16-18 |
| THREAD DRILL B1 (MM) | 7.5 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M18X1.5 |
| THREAD DRILL B2 (MM) | 11.0 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-18 |
| BODY HEX (MM) | 22.0 |
| OVERALL LENGTH L (MM) | 34.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.119 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 3,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.004 |
7005-06-18-SS-BS
$105.16Attribute: 7005-06-18-SS-BS (06MJ-18MM Stra...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 9/16-18 |
| THREAD DRILL B1 (MM) | 7.5 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M18X1.5 |
| THREAD DRILL B2 (MM) | 11.0 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-18-SS |
| BODY HEX (MM) | 22.0 |
| OVERALL LENGTH L (MM) | 34.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 3,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.004 |
7005-06-20-BS
$24.71Attribute: 7005-06-20-BS (06MJ-20MM Straigh...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 9/16-18 |
| THREAD DRILL B1 (MM) | 7.5 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M20X1.5 |
| THREAD DRILL B2 (MM) | 12.3 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-20 |
| BODY HEX (MM) | 25.4 |
| OVERALL LENGTH L (MM) | 35.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.119 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.378 |
7005-06-20-SS-BS
$190.00Attribute: 7005-06-20-SS-BS (06MJ-20MM Stra...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 9/16-18 |
| THREAD DRILL B1 (MM) | 7.5 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M20X1.5 |
| THREAD DRILL B2 (MM) | 12.3 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-20-SS |
| BODY HEX (MM) | 25.4 |
| OVERALL LENGTH L (MM) | 35.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.378 |
7005-06-22-BS
$46.12Attribute: 7005-06-22-BS (06MJ-22MM Straigh...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 9/16-18 |
| THREAD DRILL B1 (MM) | 7.5 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M22X1.5 |
| THREAD DRILL B2 (MM) | 14.3 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-22 |
| BODY HEX (MM) | 27.0 |
| OVERALL LENGTH L (MM) | 36.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 3,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.602 |
7005-06-24-DOM-BS
$170.90Attribute: 7005-06-24-DOM-BS (06MJ-24MM Str...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 9/16-18 |
| THREAD DRILL B1 (MM) | 7.5 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M24X1.5 |
| THREAD DRILL B2 (MM) | 15.5 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-24 |
| BODY HEX (MM) | 28.58 |
| OVERALL LENGTH L (MM) | 35.8 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.784 |
7005-08-12-BS
$27.02Attribute: 7005-08-12-BS (08MJ-12MM Straigh...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 3/4-16 |
| THREAD DRILL B1 (MM) | 9.9 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M12X1.5 |
| THREAD DRILL B2 (MM) | 4.0 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-12 |
| BODY HEX (MM) | 22.0 |
| OVERALL LENGTH L (MM) | 37.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.106 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.093 |
7005-08-12-BS-VITON
$34.16Attribute: 7005-08-12-BS-VITON (08MJ-12MM S...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 3/4-16 |
| THREAD DRILL B1 (MM) | 9.9 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M12X1.5 |
| THREAD DRILL B2 (MM) | 4.0 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-12-VITON |
| BODY HEX (MM) | 22.0 |
| OVERALL LENGTH L (MM) | 37.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | VITON |
| WEIGHT (LBS) | 0.106 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.093 |
7005-08-12-SS-BS
$139.65Attribute: 7005-08-12-SS-BS (08MJ-12MM Stra...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 3/4-16 |
| THREAD DRILL B1 (MM) | 9.9 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M12X1.5 |
| THREAD DRILL B2 (MM) | 4.0 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-12-SS |
| BODY HEX (MM) | 22.0 |
| OVERALL LENGTH L (MM) | 37.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.093 |
7005-08-14-BS
$27.61Attribute: 7005-08-14-BS (08MJ-14MM Straigh...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 3/4-16 |
| THREAD DRILL B1 (MM) | 9.9 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M14X1.5 |
| THREAD DRILL B2 (MM) | 6.0 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-14 |
| BODY HEX (MM) | 20.0 |
| OVERALL LENGTH L (MM) | 37.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.204 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.915 |
7005-08-14-SS-BS
$128.12Attribute: 7005-08-14-SS-BS (08MJ-14MM Stra...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 3/4-16 |
| THREAD DRILL B1 (MM) | 9.9 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M14X1.5 |
| THREAD DRILL B2 (MM) | 6.0 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-14-SS |
| BODY HEX (MM) | 20.0 |
| OVERALL LENGTH L (MM) | 37.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.915 |
7005-08-16-BS
$22.54Attribute: 7005-08-16-BS (08MJ-16MM Straigh...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 3/4-16 |
| THREAD DRILL B1 (MM) | 9.9 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M16X1.5 |
| THREAD DRILL B2 (MM) | 8.0 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-16 |
| BODY HEX (MM) | 22.0 |
| OVERALL LENGTH L (MM) | 36.9 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.137 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.090 |
7005-08-16-BS-VITON
$29.68Attribute: 7005-08-16-BS-VITON (08MJ-16MM S...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 3/4-16 |
| THREAD DRILL B1 (MM) | 9.9 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M16X1.5 |
| THREAD DRILL B2 (MM) | 8.0 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-16-VITON |
| BODY HEX (MM) | 22.0 |
| OVERALL LENGTH L (MM) | 36.9 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | VITON |
| WEIGHT (LBS) | 0.131 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.090 |
7005-08-16-SS-BS
$100.25Attribute: 7005-08-16-SS-BS (08MJ-16MM Stra...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 3/4-16 |
| THREAD DRILL B1 (MM) | 9.9 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M16X1.5 |
| THREAD DRILL B2 (MM) | 8.0 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-16-SS |
| BODY HEX (MM) | 22.0 |
| OVERALL LENGTH L (MM) | 36.9 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.090 |
7005-08-18-BS
$27.12Attribute: 7005-08-18-BS (08MJ-18MM Straigh...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 3/4-16 |
| THREAD DRILL B1 (MM) | 9.9 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M18X1.5 |
| THREAD DRILL B2 (MM) | 11.1 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-18 |
| BODY HEX (MM) | 24.0 |
| OVERALL LENGTH L (MM) | 37.2 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.137 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 3,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.308 |
7005-08-18-SS-BS
$99.45Attribute: 7005-08-18-SS-BS (08MJ-18MM Stra...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 3/4-16 |
| THREAD DRILL B1 (MM) | 9.9 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M18X1.5 |
| THREAD DRILL B2 (MM) | 11.1 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-18-SS |
| BODY HEX (MM) | 24.0 |
| OVERALL LENGTH L (MM) | 37.2 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.006 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 3,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.308 |
7005-08-20-BS
$30.18Attribute: 7005-08-20-BS (08MJ-20MM Straigh...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 3/4-16 |
| THREAD DRILL B1 (MM) | 9.9 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M20X1.5 |
| THREAD DRILL B2 (MM) | 12.3 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-20 |
| BODY HEX (MM) | 25.4 |
| OVERALL LENGTH L (MM) | 38.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.169 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.496 |
7005-08-20-SS-BS
$165.25Attribute: 7005-08-20-SS-BS (08MJ-20MM Stra...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 3/4-16 |
| THREAD DRILL B1 (MM) | 9.9 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M20X1.5 |
| THREAD DRILL B2 (MM) | 12.3 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-20-SS |
| BODY HEX (MM) | 25.4 |
| OVERALL LENGTH L (MM) | 38.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.006 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.496 |
7005-08-22-BS
$34.56Attribute: 7005-08-22-BS (08MJ-22MM Straigh...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 3/4-16 |
| THREAD DRILL B1 (MM) | 9.9 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M22X1.5 |
| THREAD DRILL B2 (MM) | 12.3 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-22 |
| BODY HEX (MM) | 27.0 |
| OVERALL LENGTH L (MM) | 40.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.188 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 3,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.802 |
7005-08-22-SS-BS
$187.90Attribute: 7005-08-22-SS-BS (08MJ-22MM Stra...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 3/4-16 |
| THREAD DRILL B1 (MM) | 9.9 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M22X1.5 |
| THREAD DRILL B2 (MM) | 12.3 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-22-SS |
| BODY HEX (MM) | 27.0 |
| OVERALL LENGTH L (MM) | 40.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.006 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 3,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.802 |
7005-08-27-BS
$46.81Attribute: 7005-08-27-BS (08MJ-27MM Straigh...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 3/4-16 |
| THREAD DRILL B1 (MM) | 9.9 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M27X2.0 |
| THREAD DRILL B2 (MM) | 9.9 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-27 |
| BODY HEX (MM) | 33.0 |
| OVERALL LENGTH L (MM) | 45.3 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.025 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 3,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 3.010 |
7005-08-27-BS-VITON
$53.95Attribute: 7005-08-27-BS-VITON (08MJ-27MM S...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 3/4-16 |
| THREAD DRILL B1 (MM) | 9.9 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M27X2.0 |
| THREAD DRILL B2 (MM) | 9.9 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-27-VITON |
| BODY HEX (MM) | 33.0 |
| OVERALL LENGTH L (MM) | 45.3 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | VITON |
| WEIGHT (LBS) | 4.719 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 3,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 3.010 |
7005-08-27-SS-BS
$370.88Attribute: 7005-08-27-SS-BS (08MJ-27MM Stra...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 3/4-16 |
| THREAD DRILL B1 (MM) | 9.9 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M27X2.0 |
| THREAD DRILL B2 (MM) | 9.9 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-27-SS |
| BODY HEX (MM) | 33.0 |
| OVERALL LENGTH L (MM) | 45.3 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.006 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 3,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 3.010 |
7005-10-14-BS
$34.29Attribute: 7005-10-14-BS (10MJ-14MM Straigh...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/8-14 |
| THREAD DRILL B1 (MM) | 12.3 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M14X1.5 |
| THREAD DRILL B2 (MM) | 6.0 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-14 |
| BODY HEX (MM) | 24.0 |
| OVERALL LENGTH L (MM) | 40.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.424 |
7005-10-16-BS
$29.88Attribute: 7005-10-16-BS (10MJ-16MM Straigh...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/8-14 |
| THREAD DRILL B1 (MM) | 12.3 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M16X1.5 |
| THREAD DRILL B2 (MM) | 8.0 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-16 |
| BODY HEX (MM) | 24.0 |
| OVERALL LENGTH L (MM) | 40.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.006 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.424 |
7005-10-18-BS
$31.85Attribute: 7005-10-18-BS (10MJ-18MM Straigh...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/8-14 |
| THREAD DRILL B1 (MM) | 12.3 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M18X1.5 |
| THREAD DRILL B2 (MM) | 11.0 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-18 |
| BODY HEX (MM) | 24.0 |
| OVERALL LENGTH L (MM) | 41.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.181 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 3,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.459 |
7005-10-18-BS-VITON
$38.99Attribute: 7005-10-18-BS-VITON (10MJ-18MM S...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/8-14 |
| THREAD DRILL B1 (MM) | 12.3 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M18X1.5 |
| THREAD DRILL B2 (MM) | 11.0 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-18-VITON |
| BODY HEX (MM) | 24.0 |
| OVERALL LENGTH L (MM) | 41.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | VITON |
| WEIGHT (LBS) | 0.175 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 3,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.459 |
7005-10-18-SS-BS
$164.18Attribute: 7005-10-18-SS-BS (10MJ-18MM Stra...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/8-14 |
| THREAD DRILL B1 (MM) | 12.3 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M18X1.5 |
| THREAD DRILL B2 (MM) | 11.0 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-18-SS |
| BODY HEX (MM) | 24.0 |
| OVERALL LENGTH L (MM) | 41.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.006 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 3,500 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.459 |
7005-10-20-BS
$34.26Attribute: 7005-10-20-BS (10MJ-20MM Straigh...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/8-14 |
| THREAD DRILL B1 (MM) | 12.3 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M20X1.5 |
| THREAD DRILL B2 (MM) | 12.5 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-20 |
| BODY HEX (MM) | 27.0 |
| OVERALL LENGTH L (MM) | 40.3 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.170 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.793 |
7005-10-20-SS-BS
$151.93Attribute: 7005-10-20-SS-BS (10MJ-20MM Stra...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/8-14 |
| THREAD DRILL B1 (MM) | 12.3 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M20X1.5 |
| THREAD DRILL B2 (MM) | 12.5 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-20-SS |
| BODY HEX (MM) | 27.0 |
| OVERALL LENGTH L (MM) | 40.3 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.006 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.793 |
7005-10-22-BS
$35.69Attribute: 7005-10-22-BS (10MJ-22MM Straigh...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/8-14 |
| THREAD DRILL B1 (MM) | 12.3 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M22X1.5 |
| THREAD DRILL B2 (MM) | 12.3 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-22 |
| BODY HEX (MM) | 27.0 |
| OVERALL LENGTH L (MM) | 43.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.206 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.913 |
7005-10-22-SS-BS
$205.60Attribute: 7005-10-22-SS-BS (10MJ-22MM Stra...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/8-14 |
| THREAD DRILL B1 (MM) | 12.3 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M22X1.5 |
| THREAD DRILL B2 (MM) | 12.3 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-22-SS |
| BODY HEX (MM) | 27.0 |
| OVERALL LENGTH L (MM) | 43.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.006 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.913 |
7005-10-26-BS
$58.38Attribute: 7005-10-26-BS (10MJ-26MM Straigh...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/8-14 |
| THREAD DRILL B1 (MM) | 12.3 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M26X1.5 |
| THREAD DRILL B2 (MM) | 18.0 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-26 |
| BODY HEX (MM) | 32.0 |
| OVERALL LENGTH L (MM) | 45.3 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.012 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 2.831 |
7005-10-26-SS-BS
$251.28Attribute: 7005-10-26-SS-BS (10MJ-26MM Stra...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/8-14 |
| THREAD DRILL B1 (MM) | 12.3 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M26X1.5 |
| THREAD DRILL B2 (MM) | 18.0 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-26-SS |
| BODY HEX (MM) | 32.0 |
| OVERALL LENGTH L (MM) | 45.3 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.006 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 2.831 |
7005-12-16-BS
$41.88Attribute: 7005-12-16-BS (12MJ-16MM Straigh...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 1-1/16-12 |
| THREAD DRILL B1 (MM) | 14.0 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M16X1.5 |
| THREAD DRILL B2 (MM) | 8.0 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-16 |
| BODY HEX (MM) | 27.0 |
| OVERALL LENGTH L (MM) | 44.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.006 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.980 |
7005-12-18-BS
$39.83Attribute: 7005-12-18-BS (12MJ-18MM Straigh...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 1-1/16-12 |
| THREAD DRILL B1 (MM) | 14.0 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M18X1.5 |
| THREAD DRILL B2 (MM) | 11.0 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-18 |
| BODY HEX (MM) | 27.0 |
| OVERALL LENGTH L (MM) | 45.7 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 2.033 |
7005-12-22-BS
$47.99Attribute: 7005-12-22-BS (12MJ-22MM Straigh...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 1-1/16-12 |
| THREAD DRILL B1 (MM) | 14.0 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M22X1.5 |
| THREAD DRILL B2 (MM) | 14.0 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-22 |
| BODY HEX (MM) | 27.0 |
| OVERALL LENGTH L (MM) | 46.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.300 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 2.046 |
7005-12-22-SS-BS
$279.28Attribute: 7005-12-22-SS-BS (12MJ-22MM Stra...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 1-1/16-12 |
| THREAD DRILL B1 (MM) | 14.0 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M22X1.5 |
| THREAD DRILL B2 (MM) | 14.0 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-22-SS |
| BODY HEX (MM) | 27.0 |
| OVERALL LENGTH L (MM) | 46.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.006 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 2.046 |
7005-12-24-BS
$56.16Attribute: 7005-12-24-BS (12MJ-24MM Straigh...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 1-1/16-12 |
| THREAD DRILL B1 (MM) | 15.5 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M24X1.5 |
| THREAD DRILL B2 (MM) | 15.5 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-24 |
| BODY HEX (MM) | 32.0 |
| OVERALL LENGTH L (MM) | 47.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.300 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 2.968 |
7005-12-24-SS-BS
$216.35Attribute: 7005-12-24-SS-BS (12MJ-24MM Stra...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 1-1/16-12 |
| THREAD DRILL B1 (MM) | 15.5 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M24X1.5 |
| THREAD DRILL B2 (MM) | 15.5 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-24-SS |
| BODY HEX (MM) | 32.0 |
| OVERALL LENGTH L (MM) | 47.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 2.968 |
7005-12-26-BS
$60.44Attribute: 7005-12-26-BS (12MJ-26MM Straigh...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 1-1/16-12 |
| THREAD DRILL B1 (MM) | 15.5 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M26X1.5 |
| THREAD DRILL B2 (MM) | 15.5 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-26 |
| BODY HEX (MM) | 32.0 |
| OVERALL LENGTH L (MM) | 48.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.319 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 2.999 |
7005-12-26-BS-VITON
$67.58Attribute: 7005-12-26-BS-VITON (12MJ-26MM S...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 1-1/16-12 |
| THREAD DRILL B1 (MM) | 15.5 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M26X1.5 |
| THREAD DRILL B2 (MM) | 15.5 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-26-VITON |
| BODY HEX (MM) | 32.0 |
| OVERALL LENGTH L (MM) | 48.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | VITON |
| WEIGHT (LBS) | 0.319 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 2.999 |
7005-12-26-SS-BS
$327.44Attribute: 7005-12-26-SS-BS (12MJ-26MM Stra...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 1-1/16-12 |
| THREAD DRILL B1 (MM) | 15.5 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M26X1.5 |
| THREAD DRILL B2 (MM) | 15.5 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-26-SS |
| BODY HEX (MM) | 32.0 |
| OVERALL LENGTH L (MM) | 48.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 2.999 |
7005-12-27-BS
$83.28Attribute: 7005-12-27-BS (12MJ-27MM Straigh...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 1-1/16-12 |
| THREAD DRILL B1 (MM) | 15.5 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M27X2.0 |
| THREAD DRILL B2 (MM) | 15.5 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-27 |
| BODY HEX (MM) | 36.0 |
| OVERALL LENGTH L (MM) | 49.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.025 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 3.875 |
7005-12-27-SS-BS
$338.52Attribute: 7005-12-27-SS-BS (12MJ-27MM Stra...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 1-1/16-12 |
| THREAD DRILL B1 (MM) | 15.5 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M27X2.0 |
| THREAD DRILL B2 (MM) | 15.5 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-27-SS |
| BODY HEX (MM) | 36.0 |
| OVERALL LENGTH L (MM) | 49.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 3.875 |
7005-12-30-BS
$91.17Attribute: 7005-12-30-BS (12MJ-30MM Straigh...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 1-1/16-12 |
| THREAD DRILL B1 (MM) | 15.5 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M30X2.0 |
| THREAD DRILL B2 (MM) | 20.0 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-30 |
| BODY HEX (MM) | 38.0 |
| OVERALL LENGTH L (MM) | 51.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 4.538 |
7005-16-16-SS-BS
$365.50Attribute: 7005-16-16-SS-BS (16MJ-16MM Stra...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 1-5/16-12 |
| THREAD DRILL B1 (MM) | 21.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M16X1.5 |
| THREAD DRILL B2 (MM) | 8.0 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-16-SS |
| BODY HEX (MM) | 41.0 |
| OVERALL LENGTH L (MM) | 51.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 5.232 |
7005-16-33-BS
$122.32Attribute: 7005-16-33-BS (16MJ-33MM Straigh...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 1-5/16-12 |
| THREAD DRILL B1 (MM) | 21.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M33X2.0 |
| THREAD DRILL B2 (MM) | 21.4 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-33 |
| BODY HEX (MM) | 41.0 |
| OVERALL LENGTH L (MM) | 54.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.519 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 5.539 |
7005-16-33-SS-BS
$481.34Attribute: 7005-16-33-SS-BS (16MJ-33MM Stra...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 1-5/16-12 |
| THREAD DRILL B1 (MM) | 21.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M33X2.0 |
| THREAD DRILL B2 (MM) | 21.4 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-33-SS |
| BODY HEX (MM) | 41.0 |
| OVERALL LENGTH L (MM) | 54.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 5.539 |
7005-16-36-BS
$253.35Attribute: 7005-16-36-BS (16MJ-36MM Straigh...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 1-5/16-12 |
| THREAD DRILL B1 (MM) | 21.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M36X2.0 |
| THREAD DRILL B2 (MM) | 21.4 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-36 |
| BODY HEX (MM) | 46.0 |
| OVERALL LENGTH L (MM) | 54.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 6.973 |
7005-20-30-BS
$157.57Attribute: 7005-20-30-BS (20MJ-30MM Straigh...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 1-5/8-12 |
| THREAD DRILL B1 (MM) | 27.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M30X2.0 |
| THREAD DRILL B2 (MM) | 20.0 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-30 |
| BODY HEX (MM) | 46.0 |
| OVERALL LENGTH L (MM) | 55.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 7.167 |
7005-20-30-SS-BS
$497.97Attribute: 7005-20-30-SS-BS (20MJ-30MM Stra...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 1-5/8-12 |
| THREAD DRILL B1 (MM) | 27.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M30X2.0 |
| THREAD DRILL B2 (MM) | 20.0 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-30-SS |
| BODY HEX (MM) | 46.0 |
| OVERALL LENGTH L (MM) | 55.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 7.167 |
7005-20-42-BS
$205.46Attribute: 7005-20-42-BS (20MJ-42MM Straigh...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 1-5/8-12 |
| THREAD DRILL B1 (MM) | 27.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M42X2.0 |
| THREAD DRILL B2 (MM) | 25.0 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-42 |
| BODY HEX (MM) | 50.0 |
| OVERALL LENGTH L (MM) | 56.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.038 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 8.620 |
7005-20-42-SS-BS
$627.21Attribute: 7005-20-42-SS-BS (20MJ-42MM Stra...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 1-5/8-12 |
| THREAD DRILL B1 (MM) | 27.4 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M42X2.0 |
| THREAD DRILL B2 (MM) | 25.0 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-42-SS |
| BODY HEX (MM) | 50.0 |
| OVERALL LENGTH L (MM) | 56.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 8.620 |
7005-24-42-BS
$210.93Attribute: 7005-24-42-BS (24MJ-42MM Straigh...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 1-7/8-12 |
| THREAD DRILL B1 (MM) | 30.0 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M42X2.0 |
| THREAD DRILL B2 (MM) | 30.0 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-42 |
| BODY HEX (MM) | 50.8 |
| OVERALL LENGTH L (MM) | 67.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.038 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 10.551 |
7005-24-42-SS-BS
$592.95Attribute: 7005-24-42-SS-BS (24MJ-42MM Stra...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 1-7/8-12 |
| THREAD DRILL B1 (MM) | 30.0 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M42X2.0 |
| THREAD DRILL B2 (MM) | 30.0 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-42-SS |
| BODY HEX (MM) | 50.8 |
| OVERALL LENGTH L (MM) | 67.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 10.551 |
7005-24-48-BS
$530.69Attribute: 7005-24-48-BS (24MJ-48MM Straigh...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 1-7/8-12 |
| THREAD DRILL B1 (MM) | 33.0 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M48X2.0 |
| THREAD DRILL B2 (MM) | 36.0 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-48 |
| BODY HEX (MM) | 55.0 |
| OVERALL LENGTH L (MM) | 63.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.900 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 11.722 |
7005-24-48-SS-BS
$968.74Attribute: 7005-24-48-SS-BS (24MJ-48MM Stra...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 1-7/8-12 |
| THREAD DRILL B1 (MM) | 33.0 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC |
| THREAD SIZE B2 | M48X2.0 |
| THREAD DRILL B2 (MM) | 36.0 |
| THREAD SPECIFICATION B2 | FOR ISO 9974 PORT |
| ASSEMBLED METRIC BONDED SEAL | 8800-48-SS |
| BODY HEX (MM) | 55.0 |
| OVERALL LENGTH L (MM) | 63.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 11.722 |
General Attributes
| Connections | JIC, Metric |
|---|---|
| Shape | Straight |
PDF Documents
No PDF documents scraped.
