7004

7004-04-02

$16.00

Attribute: 7004-04-02 (04MJ-02FBSPPS Straig...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	3.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	3.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200

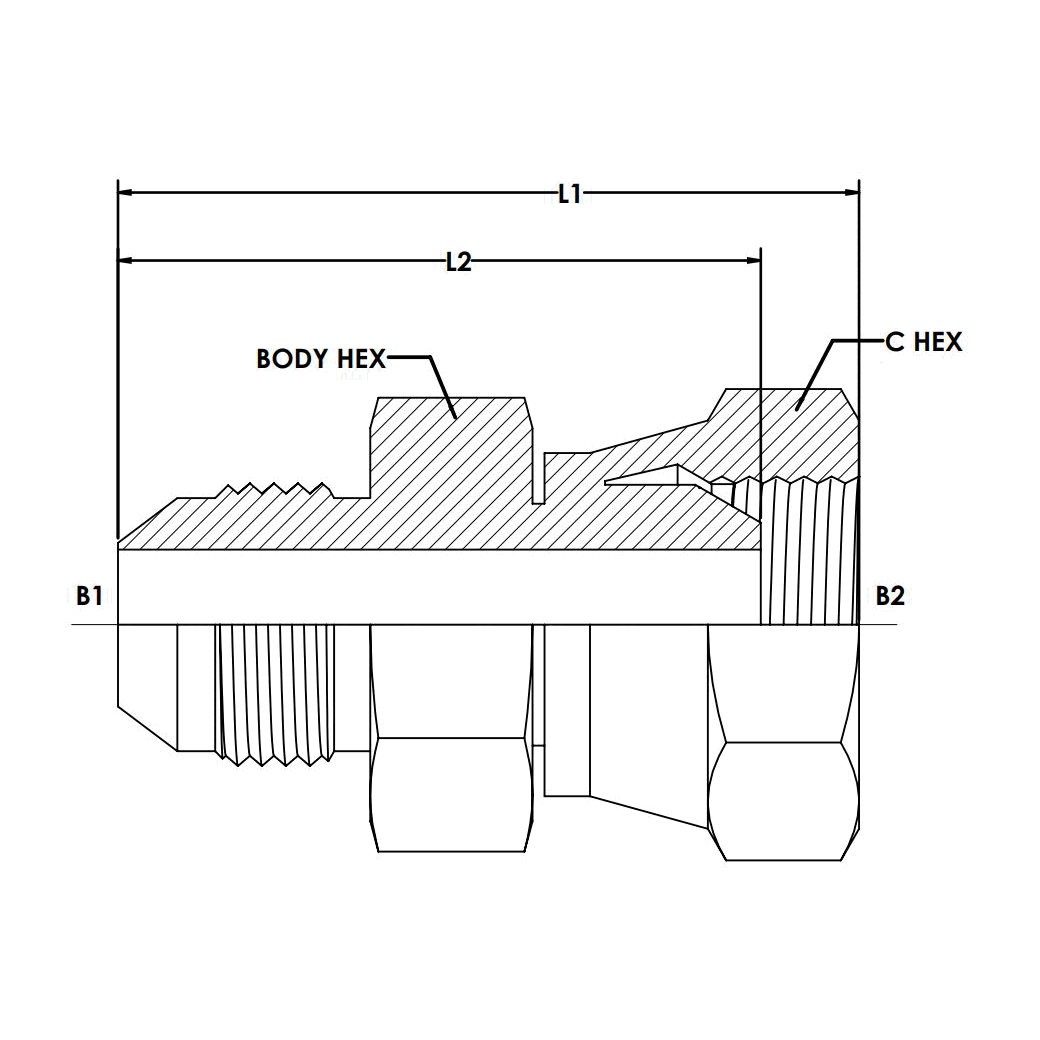

BODY HEX (MM)	12.7
C HEX 1 (MM)	14.0
OVERALL LENGTH L1 (MM)	33.5
OVERALL LENGTH L2 (MM)	29.6
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.063
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.401

7004-04-02-SS

$81.77

Attribute: 7004-04-02-SS (04MJ-02FBSPPS Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.37
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/8-28
THREAD DRILL B2 (MM)	3.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	14.0
C HEX 1 (MM)	14.0
OVERALL LENGTH L1 (MM)	33.5
OVERALL LENGTH L2 (MM)	29.6
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.063
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.401

7004-04-04

$16.24

Attribute: 7004-04-04 (04MJ-04FBSPPS Straig...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	3.8
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	3.8
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	18.0
C HEX 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	44.5
OVERALL LENGTH L2 (MM)	36.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.100
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.980

7004-04-04-SS

$97.17

Attribute: 7004-04-04-SS (04MJ-04FBSPPS Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.37
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	4.7
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	17.46
C HEX 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	44.5
OVERALL LENGTH L2 (MM)	36.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.100
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.980

7004-04-06

$20.83

Attribute: 7004-04-06 (04MJ-06FBSPPS Straig...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.37
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.9
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
C HEX 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	41.1
OVERALL LENGTH L2 (MM)	35.1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.156
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.214

7004-04-06-SS

$126.95

Attribute: 7004-04-06-SS (04MJ-06FBSPPS Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.37
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.9
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
C HEX 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	41.1
OVERALL LENGTH L2 (MM)	35.1
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.138
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.214

7004-04-08

$38.00

Attribute: 7004-04-08 (04MJ-08FBSPPS Straig...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.37
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	9.93
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	26.0
C HEX 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	45.0
OVERALL LENGTH L2 (MM)	38.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.002

7004-05-04

$41.00

Attribute: 7004-05-04 (05MJ-04FBSPPS Straig...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1/2-20
THREAD DRILL B1 (MM)	5.94
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	4.7
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	14.0
C HEX 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	37.2
OVERALL LENGTH L2 (MM)	32.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.820

7004-05-04-SS

$179.91

Attribute: 7004-05-04-SS (05MJ-04FBSPPS Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1/2-20
THREAD DRILL B1 (MM)	5.94
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	4.7
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	14.0
C HEX 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	37.2
OVERALL LENGTH L2 (MM)	32.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.100
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.820

7004-05-06

$22.94

Attribute: 7004-05-06 (05MJ-06FBSPPS Straig...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1/2-20
THREAD DRILL B1 (MM)	6.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.1
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	15.88
C HEX 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	39.9
OVERALL LENGTH L2 (MM)	35.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.119
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.178

7004-05-06-SS

$424.01

Attribute: 7004-05-06-SS (05MJ-06FBSPPS Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1/2-20
THREAD DRILL B1 (MM)	6.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.1
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	15.88
C HEX 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	39.9
OVERALL LENGTH L2 (MM)	35.4
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.138
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.178

7004-05-08

$54.44

Attribute: 7004-05-08 (05MJ-08FBSPPS Straig...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1/2-20
THREAD DRILL B1 (MM)	6.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	9.93
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	26.0
C HEX 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	46.4
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.064

7004-06-04

$21.21

Attribute: 7004-06-04 (06MJ-04FBSPPS Straig...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	4.7
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
C HEX 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	36.5
OVERALL LENGTH L2 (MM)	32.3
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.106
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.804

7004-06-04-SS

$76.14

Attribute: 7004-06-04-SS (06MJ-04FBSPPS Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	4.7
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
C HEX 1 (MM)	19.0
OVERALL LENGTH L1 (MM)	36.5
OVERALL LENGTH L2 (MM)	32.3
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.106
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.804

7004-06-06

$21.37

Attribute: 7004-06-06 (06MJ-06FBSPPS Straig...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.0
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
C HEX 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	40.6
OVERALL LENGTH L2 (MM)	34.6
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.138
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.199

7004-06-06-SS

$136.25

Attribute: 7004-06-06-SS (06MJ-06FBSPPS Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
C HEX 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	40.6
OVERALL LENGTH L2 (MM)	34.6
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.138
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.199

7004-06-08

$22.40

Attribute: 7004-06-08 (06MJ-08FBSPPS Straig...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	9.93
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	26.0
C HEX 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	46.5
OVERALL LENGTH L2 (MM)	40.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.250
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.069

7004-06-08-SS

$120.65

Attribute: 7004-06-08-SS (06MJ-08FBSPPS Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	9.93
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	26.0
C HEX 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	46.5
OVERALL LENGTH L2 (MM)	40.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.069

7004-08-06

$23.87

Attribute: 7004-08-06 (08MJ-06FBSPPS Straig...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.93
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.9
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
C HEX 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	42.3
OVERALL LENGTH L2 (MM)	36.3
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.169
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.249

7004-08-06-SS

$84.32

Attribute: 7004-08-06-SS (08MJ-06FBSPPS Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.93
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.9
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
C HEX 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	42.3
OVERALL LENGTH L2 (MM)	36.3
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,100
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.249

7004-08-08

$26.64

Attribute: 7004-08-08 (08MJ-08FBSPPS Straig...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.93
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	9.93
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	26.0
C HEX 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	49.02
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.263
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.181

7004-08-08-SS

$183.56

Attribute: 7004-08-08-SS (08MJ-08FBSPPS Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.93
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	9.93
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
C HEX 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	49.02
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.281
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.181

7004-08-10

$37.12

Attribute: 7004-08-10 (08MJ-10FBSPPS Straig...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.93
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	5/8-14
THREAD DRILL B2 (MM)	14.3
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
C HEX 1 (MM)	30.0
OVERALL LENGTH L1 (MM)	53.7
OVERALL LENGTH L2 (MM)	39.8
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.181
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.949

7004-08-10-SS

$145.26

Attribute: 7004-08-10-SS (08MJ-10FBSPPS Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.93
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	5/8-14
THREAD DRILL B2 (MM)	14.3
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
C HEX 1 (MM)	30.0
OVERALL LENGTH L1 (MM)	53.7
OVERALL LENGTH L2 (MM)	39.8
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.949

7004-08-12

$47.55

Attribute: 7004-08-12 (08MJ-12FBSPPS Straig...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.93
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	16.7
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
C HEX 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	53.7
OVERALL LENGTH L2 (MM)	42.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.294
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.356

7004-08-12-SS

$247.80

Attribute: 7004-08-12-SS (08MJ-12FBSPPS Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.93
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	16.7
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
C HEX 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	53.7
OVERALL LENGTH L2 (MM)	42.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.356

7004-10-06

$38.40

Attribute: 7004-10-06 (10MJ-04FBSPPS Straig...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.9
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	25.4
C HEX 1 (MM)	22.0
OVERALL LENGTH L1 (MM)	41.8
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.163
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.646

7004-10-08

$34.75

Attribute: 7004-10-08 (10MJ-08FBSPPS Straig...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	9.93
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	25.4
C HEX 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	49.8
OVERALL LENGTH L2 (MM)	43.3
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.269
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.961

7004-10-08-SS

$179.02

Attribute: 7004-10-08-SS (10MJ-08FBSPPS Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	9.93
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	25.4
C HEX 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	49.8
OVERALL LENGTH L2 (MM)	43.3
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.215

7004-10-10

$55.33

Attribute: 7004-10-10 (10MJ-10FBSPPS Straig...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	5/8-14
THREAD DRILL B2 (MM)	12.3
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
C HEX 1 (MM)	30.0
OVERALL LENGTH L1 (MM)	52.5
OVERALL LENGTH L2 (MM)	42.8
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.313
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.883

7004-10-10-SS

$203.72

Attribute: 7004-10-10-SS (10MJ-10FBSPPS Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	5/8-14
THREAD DRILL B2 (MM)	12.3
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
C HEX 1 (MM)	30.0
OVERALL LENGTH L1 (MM)	52.5
OVERALL LENGTH L2 (MM)	42.8
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.883

7004-10-12

$50.65

Attribute: 7004-10-12 (10MJ-12FBSPPS Straig...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	16.7
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
C HEX 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	56.3
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.344
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.518

7004-10-12-SS

$275.02

Attribute: 7004-10-12-SS (10MJ-12FBSPPS Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	16.7
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
C HEX 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	56.3
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.518

7004-12-08

$67.98

Attribute: 7004-12-08 (12MJ-08FBSPPS Straig...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	9.93
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	28.58
C HEX 1 (MM)	27.0
OVERALL LENGTH L1 (MM)	56.75
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.319
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.829

7004-12-12

$43.81

Attribute: 7004-12-12 (12MJ-12FBSPPS Straig...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	16.7
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	28.58
C HEX 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	57.15
OVERALL LENGTH L2 (MM)	48.15
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.369
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.571

7004-12-12-SS

$234.07

Attribute: 7004-12-12-SS (12MJ-12FBSPPS Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	16.7
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	28.58
C HEX 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	57.2
OVERALL LENGTH L2 (MM)	48.15
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.369
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.574

7004-12-16

$61.28

Attribute: 7004-12-16 (12MJ-16FBSPPS Straig...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.2
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	38.0
C HEX 1 (MM)	41.0
OVERALL LENGTH L1 (MM)	58.8
OVERALL LENGTH L2 (MM)	38.3
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.544
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.032

7004-12-16-SS

$401.23

Attribute: 7004-12-16-SS (12MJ-16FBSPPS Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.2
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	38.0
C HEX 1 (MM)	41.0
OVERALL LENGTH L1 (MM)	58.8
OVERALL LENGTH L2 (MM)	38.3
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.032

7004-12-24

$252.42

Attribute: 7004-12-24 (12MJ-24FBSPPS Straig...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.3
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	50.0
C HEX 1 (MM)	55.0
OVERALL LENGTH L1 (MM)	73.75
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	13.614

7004-16-12

$58.33

Attribute: 7004-16-12 (16MJ-12FBSPPS Straig...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	16.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	36.0
C HEX 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	59.1
OVERALL LENGTH L2 (MM)	50.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.450
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.674

7004-16-12-SS

$252.52

Attribute: 7004-16-12-SS (16MJ-12FBSPPS Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	3/4-14
THREAD DRILL B2 (MM)	16.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	36.0
C HEX 1 (MM)	32.0
OVERALL LENGTH L1 (MM)	59.1
OVERALL LENGTH L2 (MM)	50.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	2,900
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.674

7004-16-16

$59.76

Attribute: 7004-16-16 (16MJ-16FBSPPS Straig...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	20.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	20.5
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	36.0
C HEX 1 (MM)	41.0
OVERALL LENGTH L1 (MM)	62.5
OVERALL LENGTH L2 (MM)	52.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.506
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.411

7004-16-16-SS

$366.47

Attribute: 7004-16-16-SS (16MJ-16FBSPPS Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1-11
THREAD DRILL B2 (MM)	22.2
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
C HEX 1 (MM)	41.0
OVERALL LENGTH L1 (MM)	60.0
OVERALL LENGTH L2 (MM)	49.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.669
MAXIMUM DYNAMIC PRESSURE (PSI)	1,700
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.155

7004-20-20

$100.67

Attribute: 7004-20-20 (20MJ-20FBSPPS Straig...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/8-12
THREAD DRILL B1 (MM)	26.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	26.0
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	50.0
C HEX 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	65.0
OVERALL LENGTH L2 (MM)	59.2
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.994
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.916

7004-20-20-SS

$571.10

Attribute: 7004-20-20-SS (20MJ-20FBSPPS Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/8-12
THREAD DRILL B1 (MM)	27.4
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1-1/4-11
THREAD DRILL B2 (MM)	28.6
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	50.0
C HEX 1 (MM)	50.0
OVERALL LENGTH L1 (MM)	65.0
OVERALL LENGTH L2 (MM)	59.2
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.916

7004-24-24

$127.83

Attribute: 7004-24-24 (24MJ-24FBSPPS Straig...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-7/8-12
THREAD DRILL B1 (MM)	33.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.3
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	50.0
C HEX 1 (MM)	55.0
OVERALL LENGTH L1 (MM)	79.3
OVERALL LENGTH L2 (MM)	67.1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	1.344
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	14.639

7004-24-24-SS

$875.69

Attribute: 7004-24-24-SS (24MJ-24FBSPPS Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-7/8-12
THREAD DRILL B1 (MM)	33.0
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	1-1/2-11
THREAD DRILL B2 (MM)	33.3
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	50.0
C HEX 1 (MM)	55.0
OVERALL LENGTH L1 (MM)	79.3
OVERALL LENGTH L2 (MM)	67.1
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	1,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	14.639

7004-32-32

$288.21

Attribute: 7004-32-32 (32MJ-32FBSPPS Straig...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	2-1/2-12
THREAD DRILL B1 (MM)	45.2
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	45.2
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	66.7
C HEX 1 (MM)	70.0
OVERALL LENGTH L1 (MM)	92.5
OVERALL LENGTH L2 (MM)	76.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	2.313
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	27.659

7004-32-32-SS

$1,372.81

Attribute: 7004-32-32-SS (32MJ-32FBSPPS Str...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	2-1/2-12
THREAD DRILL B1 (MM)	45.2
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP SWIVEL
THREAD SIZE B2	2-11
THREAD DRILL B2 (MM)	45.2
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	66.7
C HEX 1 (MM)	70.0
OVERALL LENGTH L1 (MM)	92.5
OVERALL LENGTH L2 (MM)	76.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	27.659

Connections	JIC, BSP
Shape	Straight

Description

Description

Variations (49)

7004-04-02

7004-04-02-SS

7004-04-04

7004-04-04-SS

7004-04-06

7004-04-06-SS

7004-04-08

7004-05-04

7004-05-04-SS

7004-05-06

7004-05-06-SS

7004-05-08

7004-06-04

7004-06-04-SS

7004-06-06

7004-06-06-SS

7004-06-08

7004-06-08-SS

7004-08-06

7004-08-06-SS

7004-08-08

7004-08-08-SS

7004-08-10

7004-08-10-SS

7004-08-12

7004-08-12-SS

7004-10-06

7004-10-08

7004-10-08-SS

7004-10-10

7004-10-10-SS

7004-10-12

7004-10-12-SS

7004-12-08

7004-12-12

7004-12-12-SS

7004-12-16

7004-12-16-SS

7004-12-24

7004-16-12

7004-16-12-SS

7004-16-16

7004-16-16-SS

7004-20-20

7004-20-20-SS

7004-24-24

7004-24-24-SS

7004-32-32

7004-32-32-SS

General Attributes

PDF Documents
