7003

7003-04-02

$16.24

Attribute: 7003-04-02 (04MJ-02FBSPP Straigh...)

Stock Status: True

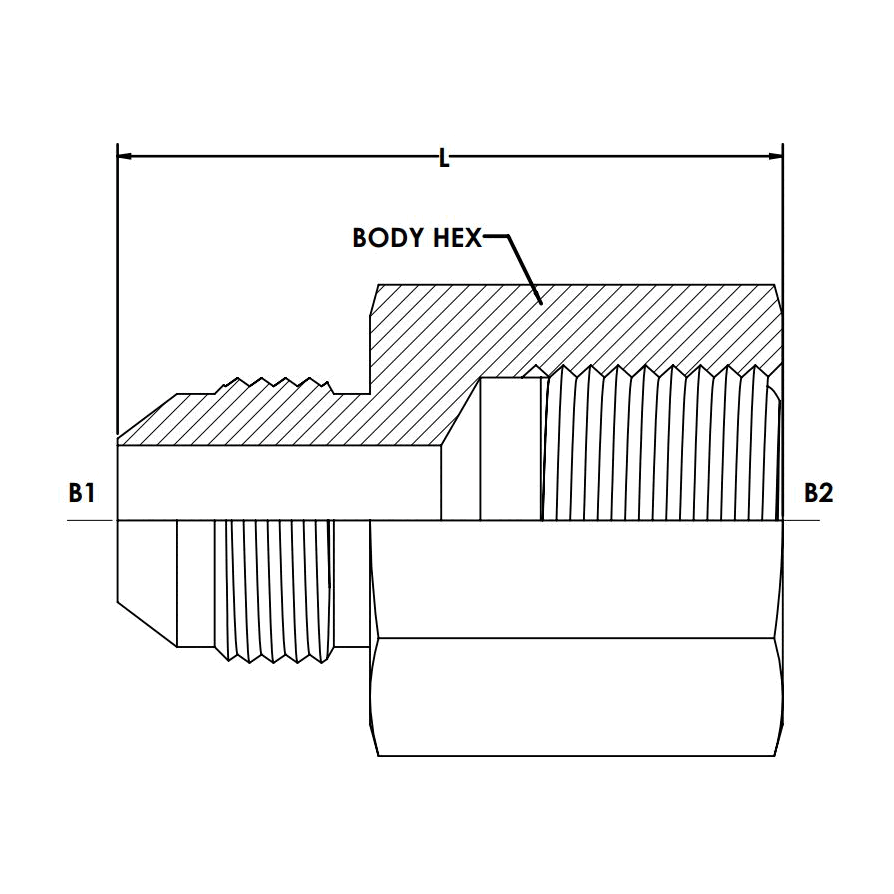

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.37
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/8-28
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	14.28
OVERALL LENGTH L (MM)	30.23
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.050
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.376

7003-04-02-SS

$51.59

Attribute: 7003-04-02-SS (04MJ-02FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.37
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/8-28
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	14.28
OVERALL LENGTH L (MM)	30.23
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.376

7003-04-04

$21.27

Attribute: 7003-04-04 (04MJ-04FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.37
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/4-19
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	33.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.088
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.727

7003-04-04-SS

$69.90

Attribute: 7003-04-04-SS (04MJ-04FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.37
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/4-19
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	33.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.088
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.727

7003-04-06

$14.72

Attribute: 7003-04-06 (04MJ-06FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.37
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3/8-19
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.22
OVERALL LENGTH L (MM)	40.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.163
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.205

7003-04-06-SS

$95.30

Attribute: 7003-04-06-SS (04MJ-06FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.37
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3/8-19
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.22
OVERALL LENGTH L (MM)	40.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.205

7003-04-08

$47.06

Attribute: 7003-04-08 (04MJ-08FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.37
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/2-14
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	36.95
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.644

7003-05-02

$63.01

Attribute: 7003-05-02 (05MJ-02FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1/2-20
THREAD DRILL B1 (MM)	5.94
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/8-28
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	14.28
OVERALL LENGTH L (MM)	30.23
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.376

7003-05-04

$49.82

Attribute: 7003-05-04 (05MJ-04FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1/2-20
THREAD DRILL B1 (MM)	5.94
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/4-19
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	33.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.727

7003-06-04

$23.58

Attribute: 7003-06-04 (06MJ-04FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.54
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/4-19
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	36.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.100
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.793

7003-06-04-SS

$48.68

Attribute: 7003-06-04-SS (06MJ-04FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.54
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/4-19
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	36.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.793

7003-06-06

$30.38

Attribute: 7003-06-06 (06MJ-06FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.54
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3/8-19
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	37.1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.125
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.096

7003-06-06-SS

$90.13

Attribute: 7003-06-06-SS (06MJ-06FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.54
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3/8-19
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	37.1
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.125
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.096

7003-06-08

$29.44

Attribute: 7003-06-08 (06MJ-08FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.54
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/2-14
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	37.1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.163
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.650

7003-06-08-SS

$344.23

Attribute: 7003-06-08-SS (06MJ-08FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.54
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/2-14
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	37.1
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.650

7003-08-06

$31.11

Attribute: 7003-08-06 (08MJ-06FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.93
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3/8-19
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	39.6
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.138
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.170

7003-08-06-SS

$65.37

Attribute: 7003-08-06-SS (08MJ-06FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.93
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3/8-19
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	39.6
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.170

7003-08-08

$35.93

Attribute: 7003-08-08 (08MJ-08FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.6
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/2-14
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	44.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.294
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.957

7003-08-08-SS

$139.60

Attribute: 7003-08-08-SS (08MJ-08FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.38
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/2-14
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	30.0
OVERALL LENGTH L (MM)	45.47
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.300
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.497

7003-08-10

$37.02

Attribute: 7003-08-10 (08MJ-10FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	5/8-14
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	30.0
OVERALL LENGTH L (MM)	41.7
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.288
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.290

7003-08-10-SS

$185.09

Attribute: 7003-08-10-SS (08MJ-10FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	5/8-14
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	30.0
OVERALL LENGTH L (MM)	41.7
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.290

7003-08-12

$41.60

Attribute: 7003-08-12 (08MJ-12FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.93
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3/4-14
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	51.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.406
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.187

7003-08-12-SS

$153.23

Attribute: 7003-08-12-SS (08MJ-12FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.93
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3/4-14
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	32.0
OVERALL LENGTH L (MM)	51.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.187

7003-10-06

$55.13

Attribute: 7003-10-06 (10MJ-06FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3/8-19
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	30.0
OVERALL LENGTH L (MM)	42.16
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.315

7003-10-08

$43.17

Attribute: 7003-10-08 (10MJ-08FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/2-14
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	30.0
OVERALL LENGTH L (MM)	48.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.250
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.636

7003-10-08-SS

$109.18

Attribute: 7003-10-08-SS (10MJ-08FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/2-14
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	30.0
OVERALL LENGTH L (MM)	48.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.636

7003-10-10

$43.67

Attribute: 7003-10-10 (10MJ-10FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	5/8-14
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	30.0
OVERALL LENGTH L (MM)	44.3
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.250
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.433

7003-10-10-SS

$151.76

Attribute: 7003-10-10-SS (10MJ-10FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	5/8-14
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	30.0
OVERALL LENGTH L (MM)	44.3
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	2.433

7003-10-12

$47.01

Attribute: 7003-10-12 (10MJ-12FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3/4-14
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	36.0
OVERALL LENGTH L (MM)	50.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.425
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.954

7003-10-12-SS

$159.19

Attribute: 7003-10-12-SS (10MJ-12FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD DRILL B1 (MM)	12.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3/4-14
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	36.0
OVERALL LENGTH L (MM)	50.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	3.954

7003-12-08

$45.54

Attribute: 7003-12-08 (12MJ-08FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.47
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1/2-14
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	36.0
OVERALL LENGTH L (MM)	50.7
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.010

7003-12-12

$47.99

Attribute: 7003-12-12 (12MJ-12FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.47
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3/4-14
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	36.0
OVERALL LENGTH L (MM)	52.3
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.450
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.136

7003-12-12-SS

$246.42

Attribute: 7003-12-12-SS (12MJ-12FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.47
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3/4-14
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	36.0
OVERALL LENGTH L (MM)	52.3
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT (LBS)	0.469
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	4.136

7003-12-16

$147.56

Attribute: 7003-12-16 (12MJ-16FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.47
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1-11
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	52.9
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	4,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.427

7003-12-16-B

$282.89

Attribute: 7003-12-16-B (12MJ-16FBSPP Strai...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.47
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1-11
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	52.9
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.427

7003-12-16-SS

$372.23

Attribute: 7003-12-16-SS (12MJ-16FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD DRILL B1 (MM)	15.47
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1-11
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	52.9
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	4,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.427

7003-16-12

$129.12

Attribute: 7003-16-12 (16MJ-12FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.44
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3/4-14
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	54.1
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.550

7003-16-12-SS

$154.47

Attribute: 7003-16-12-SS (16MJ-12FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.44
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	3/4-14
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	54.1
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	5.550

7003-16-16

$96.23

Attribute: 7003-16-16 (16MJ-16FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.44
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1-11
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	59.7
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.619
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.124

7003-16-16-SS

$199.99

Attribute: 7003-16-16-SS (16MJ-16FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/16-12
THREAD DRILL B1 (MM)	21.44
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1-11
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	41.0
OVERALL LENGTH L (MM)	59.7
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	6.124

7003-20-20

$130.20

Attribute: 7003-20-20 (20MJ-20FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/8-12
THREAD DRILL B1 (MM)	27.38
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1-1/4-11
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	65.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.931
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.993

7003-20-20-SS

$407.32

Attribute: 7003-20-20-SS (20MJ-20FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/8-12
THREAD DRILL B1 (MM)	27.38
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1-1/4-11
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	50.0
OVERALL LENGTH L (MM)	65.5
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	9.993

7003-24-24

$251.14

Attribute: 7003-24-24 (24MJ-24FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-7/8-12
THREAD DRILL B1 (MM)	33.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1-1/2-11
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	55.0
OVERALL LENGTH L (MM)	67.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	0.950
MAXIMUM DYNAMIC PRESSURE (PSI)	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.368

7003-24-24-SS

$728.03

Attribute: 7003-24-24-SS (24MJ-24FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-7/8-12
THREAD DRILL B1 (MM)	33.3
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	1-1/2-11
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	55.0
OVERALL LENGTH L (MM)	67.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
MAXIMUM DYNAMIC PRESSURE (PSI)	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	12.368

7003-32-32

$296.38

Attribute: 7003-32-32 (32MJ-32FBSPP Straigh...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	2-1/2-12
THREAD DRILL B1 (MM)	45.2
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	2-11
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	70.0
OVERALL LENGTH L (MM)	72.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT (LBS)	2.281
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	20.034

7003-32-32-SS

$1,037.79

Attribute: 7003-32-32-SS (32MJ-32FBSPP Stra...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	2-1/2-12
THREAD DRILL B1 (MM)	45.2
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	FEMALE BSPP (G)
THREAD SIZE B2	2-11
THREAD SPECIFICATION B2	ISO 1179, ISO 8434-6, BS 5200
BODY HEX (MM)	70.0
OVERALL LENGTH L (MM)	67.0
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	20.034

Connections	JIC, BSP
Shape	Straight

ID	10147509
Category	Conversion Adapters

Description

Description

Variations (46)

7003-04-02

7003-04-02-SS

7003-04-04

7003-04-04-SS

7003-04-06

7003-04-06-SS

7003-04-08

7003-05-02

7003-05-04

7003-06-04

7003-06-04-SS

7003-06-06

7003-06-06-SS

7003-06-08

7003-06-08-SS

7003-08-06

7003-08-06-SS

7003-08-08

7003-08-08-SS

7003-08-10

7003-08-10-SS

7003-08-12

7003-08-12-SS

7003-10-06

7003-10-08

7003-10-08-SS

7003-10-10

7003-10-10-SS

7003-10-12

7003-10-12-SS

7003-12-08

7003-12-12

7003-12-12-SS

7003-12-16

7003-12-16-B

7003-12-16-SS

7003-16-12

7003-16-12-SS

7003-16-16

7003-16-16-SS

7003-20-20

7003-20-20-SS

7003-24-24

7003-24-24-SS

7003-32-32

7003-32-32-SS

General Attributes

PDF Documents
