Conversion Adapters

7002-L-BS

Scraped 2026-02-15 08:27:42

Description

Description

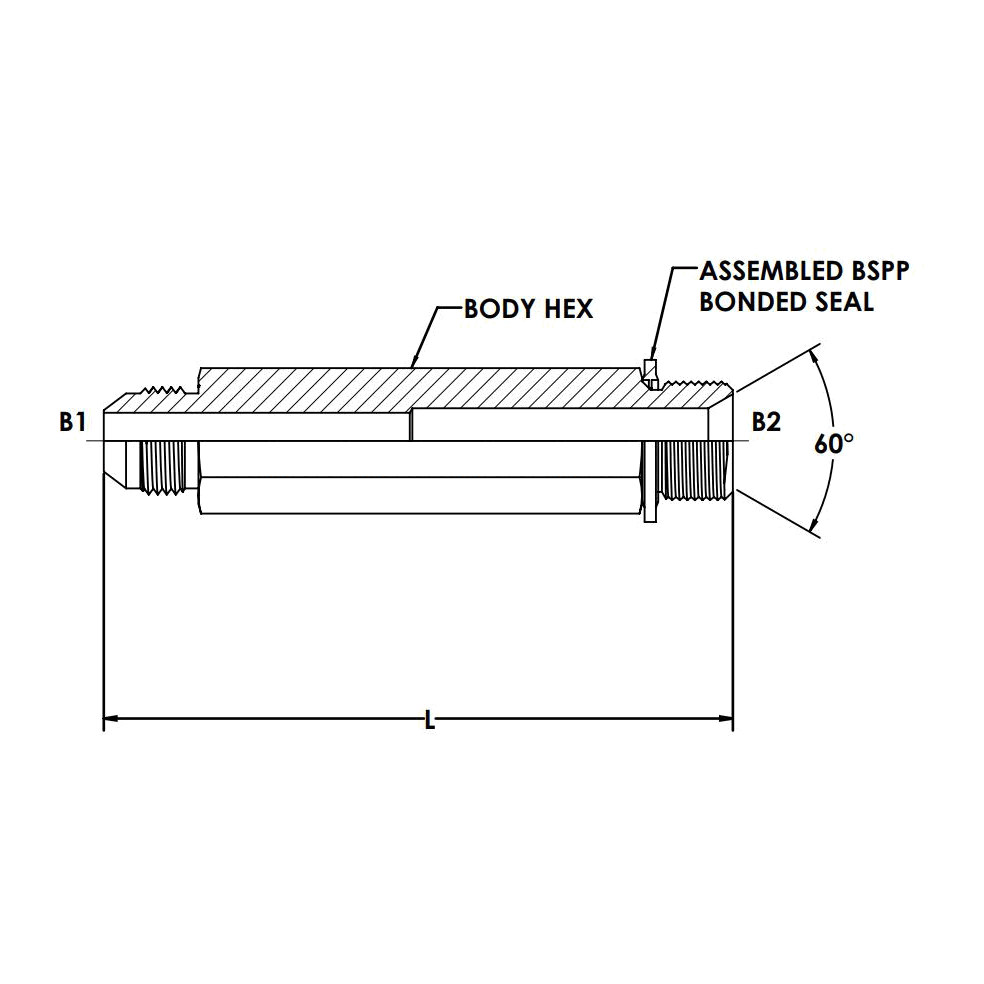

MJ-MBSPP STRAIGHT LONG WITH 60 DEGREE SEAT WITH BONDED SEAL

Variations (4)

7002-L-06-06-BS

$30.28

Attribute: 7002-L-06-06-BS (06MJ-06MBSPP St...)

Stock Status: True

THREAD TYPE B1MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B19/16-18
THREAD SPECIFICATION B1SAE J514
THREAD TYPE B2MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B23/8-19
THREAD SPECIFICATION B2FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL9900-06
BODY HEX (MM)22.0
OVERALL LENGTH L (MM)57.5
SHAPESTRAIGHT
BODY MATERIALSTEEL
RAW MATERIAL TYPESTRAIGHT STEEL
PLATINGCR3
O-RING / SEAL MATERIALNBR
WEIGHT (LBS)0.012
MAXIMUM DYNAMIC PRESSURE (PSI)5,100
CALIFORNIA RESIDENTSPROP-65 WARNING
CUBIC INCH SPACE (L X W X H)1.698

7002-L-12-08-BS

$113.60

Attribute: 7002-L-12-08-BS (12MJ-08MBSPP St...)

Stock Status: True

THREAD TYPE B1MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B11-1/16-12
THREAD DRILL B1 (MM)15.5
THREAD SPECIFICATION B1SAE J514
THREAD TYPE B2MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B21/2-14
THREAD DRILL B2 (MM)12.7
THREAD SPECIFICATION B2FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL9900-08
BODY HEX (MM)30.0
SHAPESTRAIGHT
BODY MATERIALSTEEL
RAW MATERIAL TYPESTRAIGHT STEEL
PLATINGCR3
O-RING / SEAL MATERIALNBR
WEIGHT (LBS)0.012
MAXIMUM DYNAMIC PRESSURE (PSI)2,900
CALIFORNIA RESIDENTSPROP-65 WARNING

7002-L-12-12-BS

$96.13

Attribute: 7002-L-12-12-BS (12MJ-12MBSPP St...)

Stock Status: True

THREAD TYPE B1MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B11-1/16-12
THREAD DRILL B1 (MM)15.5
THREAD SPECIFICATION B1SAE J514
THREAD TYPE B2MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B23/4-14
THREAD DRILL B2 (MM)22.0
THREAD SPECIFICATION B2FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL9900-12
BODY HEX (MM)32.0
SHAPESTRAIGHT
BODY MATERIALSTEEL
RAW MATERIAL TYPESTRAIGHT STEEL
PLATINGCR3
O-RING / SEAL MATERIALNBR
WEIGHT (LBS)0.018
MAXIMUM DYNAMIC PRESSURE (PSI)2,900
CALIFORNIA RESIDENTSPROP-65 WARNING

7002-L-16-12-BS

$160.68

Attribute: 7002-L-16-12-BS (16MJ-12MBSPP St...)

Stock Status: True

THREAD TYPE B1MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B11-5/16-12
THREAD DRILL B1 (MM)21.4
THREAD SPECIFICATION B1SAE J514
THREAD TYPE B2MALE BSPP WITH 60 DEGREE SEAT
THREAD SIZE B23/4-14
THREAD DRILL B2 (MM)17.0
THREAD SPECIFICATION B2FOR ISO 1179 PORT
ASSEMBLED BSPP BONDED SEAL9900-12
BODY HEX (MM)36.0
SHAPESTRAIGHT
BODY MATERIALSTEEL
RAW MATERIAL TYPESTRAIGHT STEEL
PLATINGCR3
O-RING / SEAL MATERIALNBR
WEIGHT (LBS)0.018
MAXIMUM DYNAMIC PRESSURE (PSI)2,900
CALIFORNIA RESIDENTSPROP-65 WARNING

General Attributes

Connections JIC, BSP
Shape Straight
