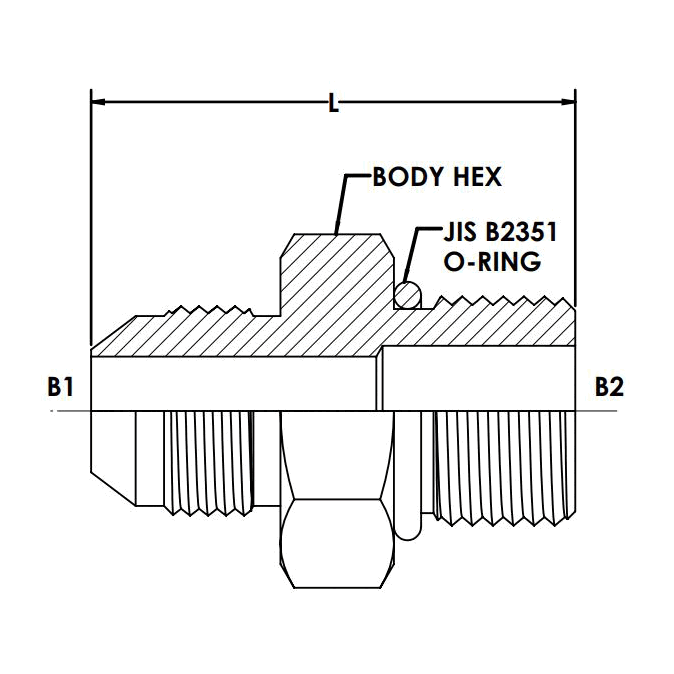

7002-JIS B2351

7002-04-04-ZN-B2351-PC

$21.34

Attribute: 7002-04-04-ZN-B2351-PC (04MJ-04M...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/16-20
THREAD DRILL B1 (MM)	4.39
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH JIS B2351 ORING
THREAD SIZE B2	1/4-19
THREAD DRILL B2 (MM)	4.39
THREAD SPECIFICATION B2	PORT ONLY
BODY HEX (MM)	19.0
OVERALL LENGTH L (MM)	34.01
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	ZINC NICKEL
O-RING / SEAL MATERIAL	PEROXIDE CURED NBR
MAXIMUM DYNAMIC PRESSURE (PSI)	7,500
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	0.749

7002-06-04-B2351

$14.59

Attribute: 7002-06-04-B2351 (06MJ-04MBSPP B...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH JIS B2351 ORING
THREAD SIZE B2	1/4-19
THREAD SPECIFICATION B2	PORT ONLY
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.062
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

7002-06-06-B2351

$14.56

Attribute: 7002-06-06-B2351 (06MJ-06MBSPP B...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD DRILL B1 (MM)	7.5
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH JIS B2351 ORING
THREAD SIZE B2	3/8-19
THREAD DRILL B2 (MM)	7.5
THREAD SPECIFICATION B2	PORT ONLY
BODY HEX (MM)	22.0
OVERALL LENGTH L (MM)	46.0
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.125
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.359

7002-06-08-B2351

$19.63

Attribute: 7002-06-08-B2351 (06MJ-08MBSPP B...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	9/16-18
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH JIS B2351 ORING
THREAD SIZE B2	1/2-14
THREAD SPECIFICATION B2	PORT ONLY
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.131
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

7002-08-06-B2351

$22.18

Attribute: 7002-08-06-B2351 (08MJ-06MBSPP B...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH JIS B2351 ORING
THREAD SIZE B2	3/8-19
THREAD SPECIFICATION B2	PORT ONLY
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.125
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

7002-08-08-B2351

$21.26

Attribute: 7002-08-08-B2351 (08MJ-08MBSPP B...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD DRILL B1 (MM)	9.9
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH JIS B2351 ORING
THREAD SIZE B2	1/2-14
THREAD DRILL B2 (MM)	9.9
THREAD SPECIFICATION B2	PORT ONLY
BODY HEX (MM)	27.0
OVERALL LENGTH L (MM)	42.5
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.157
MAXIMUM DYNAMIC PRESSURE (PSI)	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE (L X W X H)	1.891

7002-10-08-B2351

$24.85

Attribute: 7002-10-08-B2351 (10MJ-08MBSPP B...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH JIS B2351 ORING
THREAD SIZE B2	1/2-14
THREAD SPECIFICATION B2	PORT ONLY
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.200
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

7002-10-12-B2351

$33.86

Attribute: 7002-10-12-B2351 (10MJ-12MBSPP B...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH JIS B2351 ORING
THREAD SIZE B2	3/4-14
THREAD SPECIFICATION B2	PORT ONLY
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.263
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

7002-10-16-B2351

$35.54

Attribute: 7002-10-16-B2351 (10MJ-16MBSPP B...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	7/8-14
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH JIS B2351 ORING
THREAD SIZE B2	1-11
THREAD SPECIFICATION B2	PORT ONLY
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.438
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

7002-12-12-B2351

$21.41

Attribute: 7002-12-12-B2351 (12MJ-12MBSPP B...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-1/16-12
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH JIS B2351 ORING
THREAD SIZE B2	3/4-14
THREAD SPECIFICATION B2	PORT ONLY
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.300
MAXIMUM DYNAMIC PRESSURE (PSI)	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

7002-16-12-B2351

$53.06

Attribute: 7002-16-12-B2351 (16MJ-12MBSPP B...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/16-12
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH JIS B2351 ORING
THREAD SIZE B2	3/4-14
THREAD SPECIFICATION B2	PORT ONLY
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.381
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

7002-16-16-B2351

$36.67

Attribute: 7002-16-16-B2351 (16MJ-16MBSPP B...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/16-12
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH JIS B2351 ORING
THREAD SIZE B2	1-11
THREAD SPECIFICATION B2	PORT ONLY
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.500
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

7002-20-16-B2351

$107.09

Attribute: 7002-20-16-B2351 (20MJ-16MBSPP B...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	1-5/8-12
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH JIS B2351 ORING
THREAD SIZE B2	1-11
THREAD SPECIFICATION B2	PORT ONLY
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.650
MAXIMUM DYNAMIC PRESSURE (PSI)	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING

7014-08-12-O

$44.25

Attribute: 7014-08-12-O (08MJ-12MBSPPOR B23...)

Stock Status: True

THREAD TYPE B1	MALE JIC SAE 37 DEGREE FLARE
THREAD SIZE B1	3/4-16
THREAD SPECIFICATION B1	SAE J514
THREAD TYPE B2	MALE BSPP WITH JIS B2351 ORING
THREAD SIZE B2	3/4-14
THREAD SPECIFICATION B2	PORT ONLY
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT (LBS)	0.306
MAXIMUM DYNAMIC PRESSURE (PSI)	5,800
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	JIC, BSP
Shape	Straight

ID	10147475
Category	Conversion Adapters

Description

Description

Variations (14)

7002-04-04-ZN-B2351-PC

7002-06-04-B2351

7002-06-06-B2351

7002-06-08-B2351

7002-08-06-B2351

7002-08-08-B2351

7002-10-08-B2351

7002-10-12-B2351

7002-10-16-B2351

7002-12-12-B2351

7002-16-12-B2351

7002-16-16-B2351

7002-20-16-B2351

7014-08-12-O

General Attributes

PDF Documents
