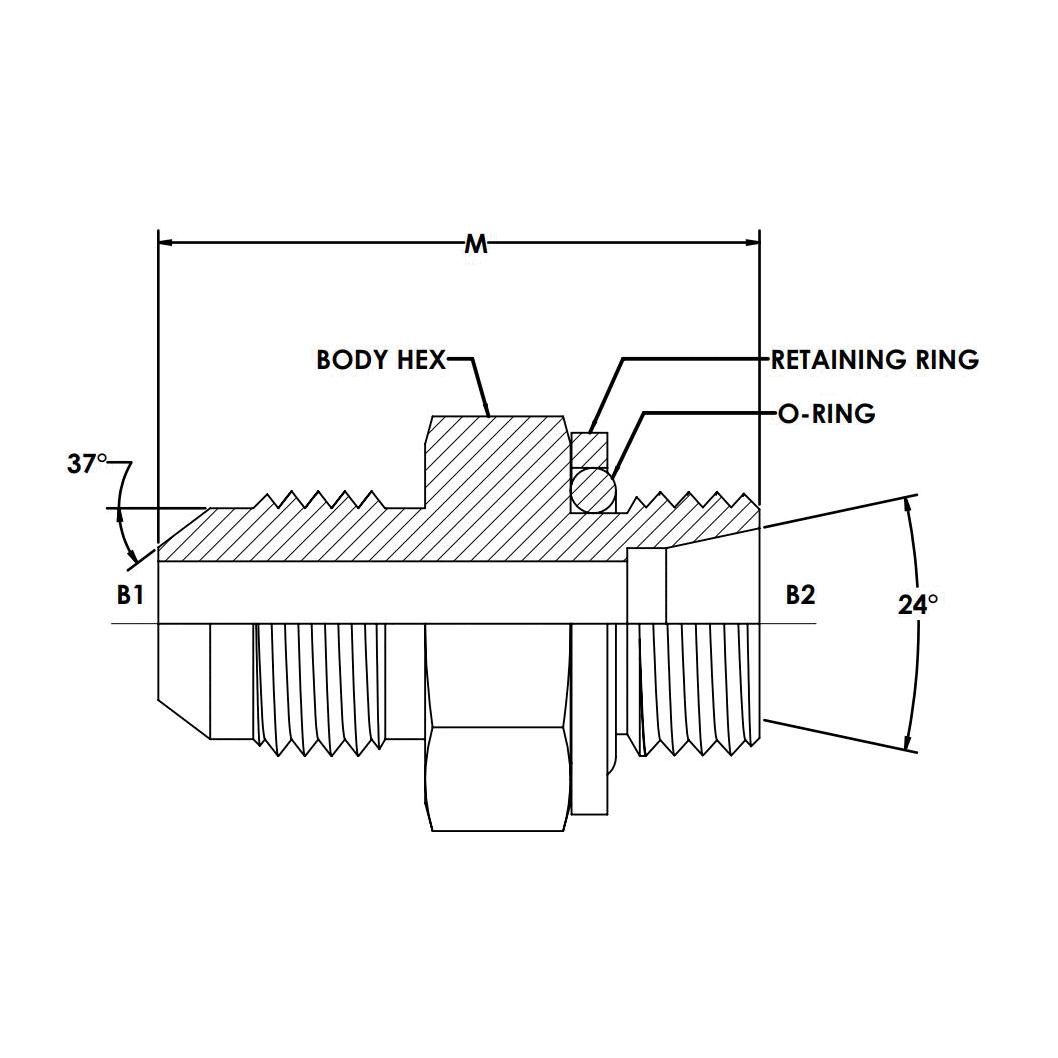

MJ-MMORR STRAIGHT. MALE METRIC O-RING & RETAINING RING (HEAVY DUTY DIN 2353 / ISO 8434-1)
Description
Variations (1)
7001-06-S12-20
$0.00Attribute: 7001-06-S12-20 (06MJ-20MM MBT OR...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 9/16-18 |
| THREAD DRILL B1 (MM) | 7.54 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC O-RING & RET RING |
| THREAD SIZE B2 | M20X1.5 |
| THREAD DRILL B2 (MM) | 9.6 |
| THREAD SPECIFICATION B2 | DIN 2353 / ISO 8434-1 |
| BODY HEX (MM) | 27.0 |
| OVERALL LENGTH M (MM) | 34.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.535 |
General Attributes
| Connections | JIC, Other |
|---|---|
| Shape | Straight |
