Description

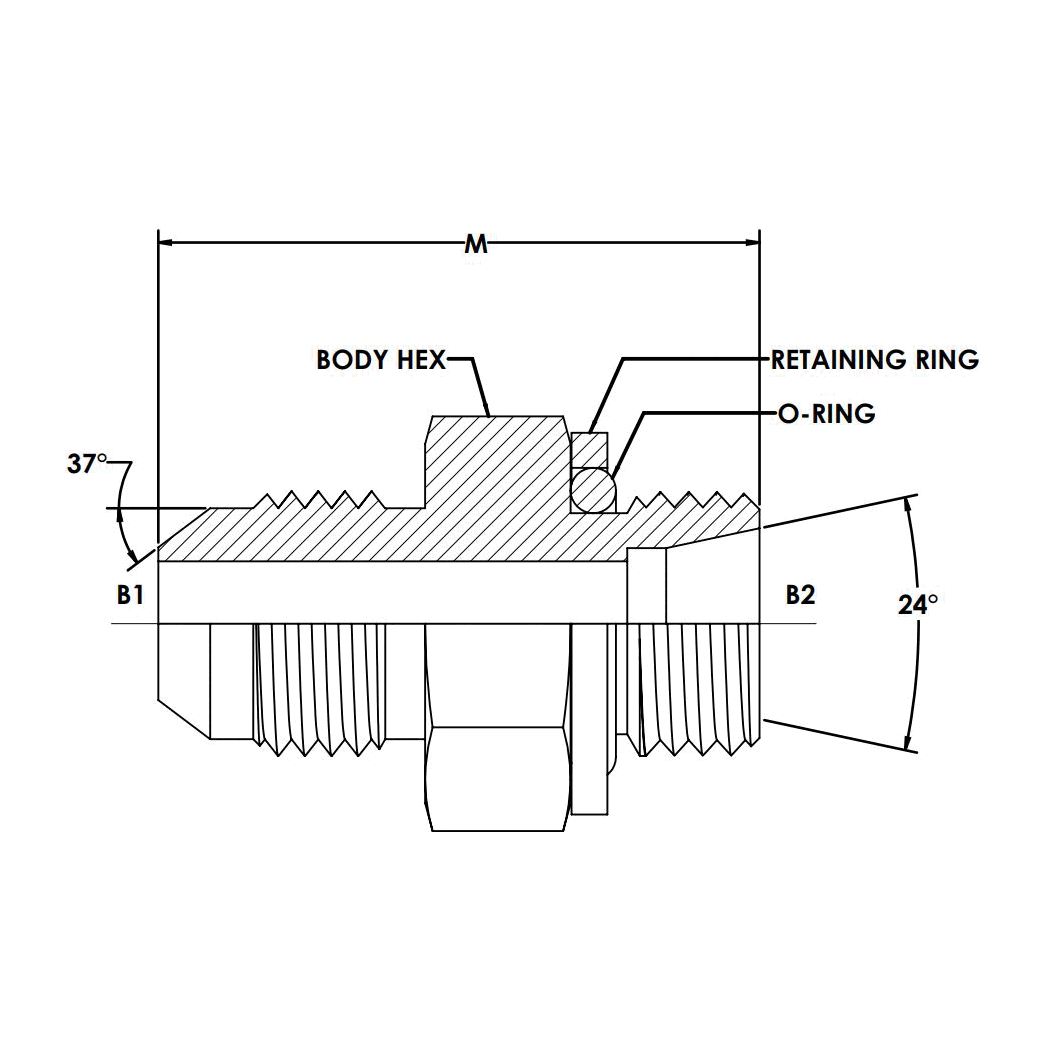

MJ-MMORR STRAIGHT. MALE METRIC O-RING & RETAINING RING (LIGHT DUTY DIN 2353 / ISO 8434-1)
Description
Variations (5)
7001-04-L08-14
$20.83Attribute: 7001-04-L08-14 (04MJ-14MM MBT OR...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/16-20 |
| THREAD DRILL B1 (MM) | 4.37 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC O-RING & RET RING |
| THREAD SIZE B2 | M14X1.5 |
| THREAD DRILL B2 (MM) | 7.5 |
| THREAD SPECIFICATION B2 | DIN 2353 / ISO 8434-1 |
| BODY HEX (MM) | 19.0 |
| OVERALL LENGTH M (MM) | 32.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.716 |
7001-06-L08-14
$38.94Attribute: 7001-06-L08-14 (06MJ-14MM MBT OR...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 9/16-18 |
| THREAD DRILL B1 (MM) | 6.6 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC O-RING & RET RING |
| THREAD SIZE B2 | M14X1.5 |
| THREAD DRILL B2 (MM) | 6.6 |
| THREAD SPECIFICATION B2 | DIN 2353 / ISO 8434-1 |
| BODY HEX (MM) | 19.0 |
| OVERALL LENGTH M (MM) | 31.8 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 5,000 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 0.701 |
7001-06-L12-18
$31.99Attribute: 7001-06-L12-18 (06MJ-18MM MBT OR...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 9/16-18 |
| THREAD DRILL B1 (MM) | 7.0 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC O-RING & RET RING |
| THREAD SIZE B2 | M18X1.5 |
| THREAD DRILL B2 (MM) | 7.0 |
| THREAD SPECIFICATION B2 | DIN 2353 / ISO 8434-1 |
| BODY HEX (MM) | 24.0 |
| OVERALL LENGTH M (MM) | 35.5 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 3,600 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.248 |
7001-08-L12-18
$19.74Attribute: 7001-08-L12-18 (08MJ-18MM MBT OR...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 3/4-16 |
| THREAD DRILL B1 (MM) | 9.93 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC O-RING & RET RING |
| THREAD SIZE B2 | M18X1.5 |
| THREAD DRILL B2 (MM) | 9.93 |
| THREAD SPECIFICATION B2 | DIN 2353 / ISO 8434-1 |
| BODY HEX (MM) | 24.0 |
| OVERALL LENGTH M (MM) | 36.0 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.375 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 3,600 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.265 |
7001-10-L15-22
$38.10Attribute: 7001-10-L15-22 (10MJ-22MM MBT OR...)
Stock Status: True
| THREAD TYPE B1 | MALE JIC SAE 37 DEGREE FLARE |
|---|---|
| THREAD SIZE B1 | 7/8-14 |
| THREAD DRILL B1 (MM) | 12.3 |
| THREAD SPECIFICATION B1 | SAE J514 |
| THREAD TYPE B2 | MALE METRIC O-RING & RET RING |
| THREAD SIZE B2 | M22X1.5 |
| THREAD DRILL B2 (MM) | 12.3 |
| THREAD SPECIFICATION B2 | DIN 2353 / ISO 8434-1 |
| BODY HEX (MM) | 26.98 |
| OVERALL LENGTH M (MM) | 41.15 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT (LBS) | 0.194 |
| MAXIMUM DYNAMIC PRESSURE (PSI) | 3,600 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
| CUBIC INCH SPACE (L X W X H) | 1.828 |
General Attributes
| Connections | JIC, Other |
|---|---|
| Shape | Straight |
