0318-B

0318-02-B

$5.95

Attribute: 0318-02-B (02 JIC Tube Nut Brass)

Stock Status: True

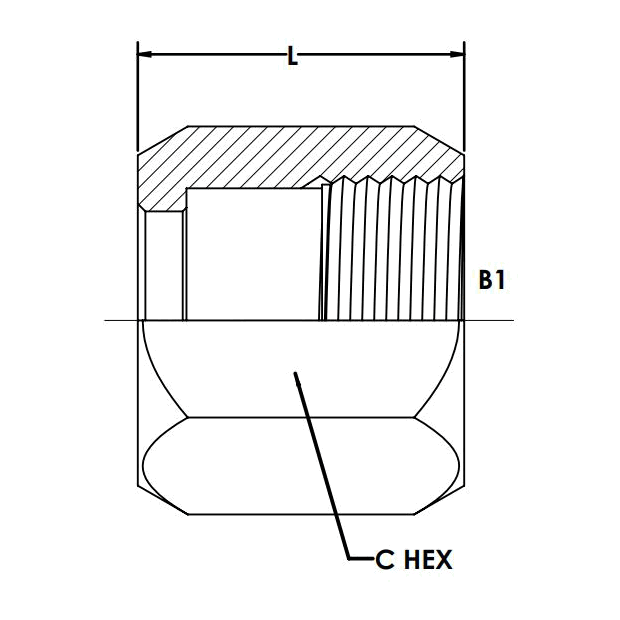

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	5/16-24
THREAD B1 DRILL IN	0.179
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	0.375
OVERALL LENGTH L IN	0.550
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.0178
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.077

0318-03-B

$4.72

Attribute: 0318-03-B (03 JIC Tube Nut Brass)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	3/8-24
THREAD B1 DRILL IN	0.241
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	0.438
OVERALL LENGTH L IN	0.610
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.0187
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.117

0318-04-B

$5.30

Attribute: 0318-04-B (04 JIC Tube Nut Brass)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.304
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	0.562
OVERALL LENGTH L IN	0.610
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.025
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.196

0318-05-B

$5.55

Attribute: 0318-05-B (05 JIC Tube Nut Brass)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.373
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	0.625
OVERALL LENGTH L IN	0.680
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.0375
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.266

0318-06-B

$7.26

Attribute: 0318-06-B (06 JIC Tube Nut Brass)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.439
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	0.688
OVERALL LENGTH L IN	0.730
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.05
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.346

0318-08-B

$12.27

Attribute: 0318-08-B (08 JIC Tube Nut Brass)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.568
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	0.875
OVERALL LENGTH L IN	0.850
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.075
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.651

0318-10-B

$13.34

Attribute: 0318-10-B (10 JIC Tube Nut Brass)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.696
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	1.000
OVERALL LENGTH L IN	0.980
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.1
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.980

0318-12-B

$18.42

Attribute: 0318-12-B (12 JIC Tube Nut Brass)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.832
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.030
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.1687
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.609

0318-14-B

$86.31

Attribute: 0318-14-B (14 JIC Tube Nut Brass)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	1-3/16-12
THREAD B1 DRILL IN	0.959
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	1.375
OVERALL LENGTH L IN	1.090
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.1993
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.061

0318-16-B

$48.30

Attribute: 0318-16-B (16 JIC Tube Nut Brass)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	1.087
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	1.500
OVERALL LENGTH L IN	1.130
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.2437
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.543

0318-20-B

$44.40

Attribute: 0318-20-B (20 JIC Tube Nut Brass)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.344
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	2.000
OVERALL LENGTH L IN	1.230
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.2659
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	4.920

0318-24-B

$197.67

Attribute: 0318-24-B (24 JIC Tube Nut Brass)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.614
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	2.250
OVERALL LENGTH L IN	1.420
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.277
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	7.189

0318-32-B

$333.28

Attribute: 0318-32-B (32 JIC Tube Nut Brass)

Stock Status: True

THREAD B1 TYPE	JIC TUBE NUT
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	2.164
THREAD B1 SPECIFICATION	SAE J514
C HEX 1 IN	2.875
OVERALL LENGTH L IN	1.750
SHAPE	STRAIGHT
BODY MATERIAL	BRASS
RAW MATERIAL TYPE	STRAIGHT BRASS
WEIGHT LBS	0.2825
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	14.465

ID	10147078
Category	Brass Fittings

Description

Description

Variations (13)

0318-02-B

0318-03-B

0318-04-B

0318-05-B

0318-06-B

0318-08-B

0318-10-B

0318-12-B

0318-14-B

0318-16-B

0318-20-B

0318-24-B

0318-32-B

General Attributes

PDF Documents

Connections	Tube
Shape	Nut
