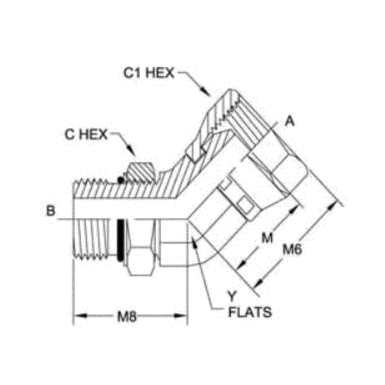

6902-NWO-FG

6902-04-02-NWO-FG

$15.95

Attribute: 6902-04-02-NWO-FG (04MAORB-02FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.110
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.438
C HEX 1 IN	0.562
C HEX 2 IN	0.562
OVERALL LENGTH L IN	0.760
OVERALL LENGTH L2 IN	0.620
CENTERLINE LENGTH M IN	1.050
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.0812
CALIFORNIA RESIDENTS	PROP-65 WARNING

6902-04-04-NWO-FG

$15.16

Attribute: 6902-04-04-NWO-FG (04MAORB-04FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.220
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.438
C HEX 1 IN	0.563
C HEX 2 IN	0.688
OVERALL LENGTH L IN	0.800
OVERALL LENGTH L2 IN	0.610
CENTERLINE LENGTH M IN	1.050
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.0937
CALIFORNIA RESIDENTS	PROP-65 WARNING

6902-04-06-NWO-FG

$44.50

Attribute: 6902-04-06-NWO-FG (04MAORB-06FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.340
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
C HEX 1 IN	0.563
C HEX 2 IN	0.875
OVERALL LENGTH L IN	1.040
OVERALL LENGTH L2 IN	0.830
CENTERLINE LENGTH M IN	1.080
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.2187
CALIFORNIA RESIDENTS	PROP-65 WARNING

6902-06-04-NWO-FG

$24.85

Attribute: 6902-06-04-NWO-FG (06MAORB-04FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.220
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
C HEX 1 IN	0.688
C HEX 2 IN	0.688
OVERALL LENGTH L IN	1.000
OVERALL LENGTH L2 IN	0.810
CENTERLINE LENGTH M IN	1.140
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1312
CALIFORNIA RESIDENTS	PROP-65 WARNING

6902-06-06-NWO-FG

$18.16

Attribute: 6902-06-06-NWO-FG (06MAORB-06FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.32/0.36
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
C HEX 1 IN	0.688
C HEX 2 IN	0.875
OVERALL LENGTH L IN	1.040
OVERALL LENGTH L2 IN	0.830
CENTERLINE LENGTH M IN	1.140
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.15
CALIFORNIA RESIDENTS	PROP-65 WARNING

6902-06-06-NWO-SS

$199.89

Attribute: 6902-06-06-NWO-SS (06MAORB-06FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.32/0.36
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
C HEX 1 IN	0.688
C HEX 2 IN	0.875
OVERALL LENGTH L IN	1.040
OVERALL LENGTH L2 IN	0.830
CENTERLINE LENGTH M IN	1.170
SHAPE	45 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

6902-06-08-NWO-FG

$30.72

Attribute: 6902-06-08-NWO-FG (06MAORB-08FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.46
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
C HEX 1 IN	0.688
C HEX 2 IN	1.000
OVERALL LENGTH L IN	1.170
OVERALL LENGTH L2 IN	0.890
CENTERLINE LENGTH M IN	1.140
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.2062
CALIFORNIA RESIDENTS	PROP-65 WARNING

6902-08-04-NWO-FG

$19.10

Attribute: 6902-08-04-NWO-FG (08MAORB-04FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.220
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
C HEX 1 IN	0.875
C HEX 2 IN	0.688
OVERALL LENGTH L IN	0.980
OVERALL LENGTH L2 IN	0.790
CENTERLINE LENGTH M IN	1.300
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.225
CALIFORNIA RESIDENTS	PROP-65 WARNING

6902-08-06-NWO-FG

$20.93

Attribute: 6902-08-06-NWO-FG (08MAORB-06FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.320
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
C HEX 1 IN	0.875
C HEX 2 IN	0.875
OVERALL LENGTH L IN	1.020
OVERALL LENGTH L2 IN	0.810
CENTERLINE LENGTH M IN	1.300
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.25
CALIFORNIA RESIDENTS	PROP-65 WARNING

6902-08-06-NWO-SS

$176.61

Attribute: 6902-08-06-NWO-SS (08MAORB-06FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.34
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
C HEX 1 IN	0.875
C HEX 2 IN	0.875
OVERALL LENGTH L IN	1.020
OVERALL LENGTH L2 IN	0.810
CENTERLINE LENGTH M IN	1.300
SHAPE	45 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

6902-08-08-NWO-FG

$23.73

Attribute: 6902-08-08-NWO-FG (08MAORB-08FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.44/0.46
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
C HEX 1 IN	0.875
C HEX 2 IN	1.000
OVERALL LENGTH L IN	1.170
OVERALL LENGTH L2 IN	0.890
CENTERLINE LENGTH M IN	1.300
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.2625
CALIFORNIA RESIDENTS	PROP-65 WARNING

6902-08-08-NWO-SS

$433.50

Attribute: 6902-08-08-NWO-SS (08MAORB-08FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.46
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
C HEX 1 IN	0.875
C HEX 2 IN	1.000
OVERALL LENGTH L IN	1.160
OVERALL LENGTH L2 IN	0.880
CENTERLINE LENGTH M IN	1.360
SHAPE	45 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

6902-08-12-NWO-FG

$33.92

Attribute: 6902-08-12-NWO-FG (08MAORB-12FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.635
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
C HEX 1 IN	0.875
C HEX 2 IN	1.250
OVERALL LENGTH L IN	1.370
OVERALL LENGTH L2 IN	1.020
CENTERLINE LENGTH M IN	1.410
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.4375
CALIFORNIA RESIDENTS	PROP-65 WARNING

6902-10-06-NWO-FG

$34.22

Attribute: 6902-10-06-NWO-FG (10MAORB-06FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.320
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
C HEX 1 IN	1.000
C HEX 2 IN	0.875
OVERALL LENGTH L IN	1.020
OVERALL LENGTH L2 IN	0.810
CENTERLINE LENGTH M IN	1.520
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.3312
CALIFORNIA RESIDENTS	PROP-65 WARNING

6902-10-08-NWO-FG

$34.56

Attribute: 6902-10-08-NWO-FG (10MAORB-08FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.46
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
C HEX 1 IN	1.000
C HEX 2 IN	1.000
OVERALL LENGTH L IN	1.160
OVERALL LENGTH L2 IN	0.880
CENTERLINE LENGTH M IN	1.520
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.3375
CALIFORNIA RESIDENTS	PROP-65 WARNING

6902-10-12-NWO-FG

$67.78

Attribute: 6902-10-12-NWO-FG (10MAORB-12FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.635
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
C HEX 1 IN	1.000
C HEX 2 IN	1.250
OVERALL LENGTH L IN	1.370
OVERALL LENGTH L2 IN	1.020
CENTERLINE LENGTH M IN	1.570
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.4812
CALIFORNIA RESIDENTS	PROP-65 WARNING

6902-12-08-NWO-FG

$59.31

Attribute: 6902-12-08-NWO-FG (12MAORB-08FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.46
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
C HEX 1 IN	1.250
C HEX 2 IN	1.000
OVERALL LENGTH L IN	1.300
OVERALL LENGTH L2 IN	1.020
CENTERLINE LENGTH M IN	1.730
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.5625
CALIFORNIA RESIDENTS	PROP-65 WARNING

6902-12-08-NWO-SS

$504.48

Attribute: 6902-12-08-NWO-SS (12MAORB-08FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.46
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
C HEX 1 IN	1.250
C HEX 2 IN	1.000
OVERALL LENGTH L IN	1.300
OVERALL LENGTH L2 IN	1.020
CENTERLINE LENGTH M IN	1.730
SHAPE	45 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

6902-12-12-NWO-FG

$53.12

Attribute: 6902-12-12-NWO-FG (12MAORB-12FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	.61/.63
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
C HEX 1 IN	1.250
C HEX 2 IN	1.250
OVERALL LENGTH L IN	1.370
OVERALL LENGTH L2 IN	1.020
CENTERLINE LENGTH M IN	1.730
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.5625
CALIFORNIA RESIDENTS	PROP-65 WARNING

6902-12-12-NWO-SS

$383.16

Attribute: 6902-12-12-NWO-SS (12MAORB-12FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.635
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
C HEX 1 IN	1.250
C HEX 2 IN	1.250
OVERALL LENGTH L IN	1.370
OVERALL LENGTH L2 IN	1.020
CENTERLINE LENGTH M IN	1.730
SHAPE	45 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

6902-12-16-NWO-FG

$80.97

Attribute: 6902-12-16-NWO-FG (12MAORB-16FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.78
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.312
C HEX 1 IN	1.250
C HEX 2 IN	1.500
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	1.150
CENTERLINE LENGTH M IN	1.860
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.8125
CALIFORNIA RESIDENTS	PROP-65 WARNING

6902-16-12-NWO-FG

$88.55

Attribute: 6902-16-12-NWO-FG (16MAORB-12FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.620
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.312
C HEX 1 IN	1.500
C HEX 2 IN	1.250
OVERALL LENGTH L IN	1.360
OVERALL LENGTH L2 IN	1.010
CENTERLINE LENGTH M IN	1.860
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.7625
CALIFORNIA RESIDENTS	PROP-65 WARNING

6902-16-16-NWO-FG

$64.98

Attribute: 6902-16-16-NWO-FG (16MAORB-16FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.780
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.500
C HEX 1 IN	1.500
C HEX 2 IN	1.500
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	1.150
CENTERLINE LENGTH M IN	1.860
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.8375
CALIFORNIA RESIDENTS	PROP-65 WARNING

6902-16-16-NWO-SS

$571.10

Attribute: 6902-16-16-NWO-SS (16MAORB-16FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.780
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.500
C HEX 1 IN	1.500
C HEX 2 IN	1.500
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	1.150
CENTERLINE LENGTH M IN	1.860
SHAPE	45 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

6902-16-20-NWO-FG

$140.14

Attribute: 6902-16-20-NWO-FG (16MAORB-20FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.087
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.500
C HEX 1 IN	1.500
C HEX 2 IN	1.875
OVERALL LENGTH L IN	1.660
OVERALL LENGTH L2 IN	1.230
CENTERLINE LENGTH M IN	1.910
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.2125
CALIFORNIA RESIDENTS	PROP-65 WARNING

6902-20-16-NWO-FG

$147.08

Attribute: 6902-20-16-NWO-FG (20MAORB-16FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.78/0.80
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.875
C HEX 1 IN	1.875
C HEX 2 IN	1.500
OVERALL LENGTH L IN	1.550
OVERALL LENGTH L2 IN	1.200
CENTERLINE LENGTH M IN	1.910
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.2562
CALIFORNIA RESIDENTS	PROP-65 WARNING

6902-20-20-NWO-FG

$111.64

Attribute: 6902-20-20-NWO-FG (20MAORB-20FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.010
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.875
C HEX 1 IN	1.875
C HEX 2 IN	1.875
OVERALL LENGTH L IN	1.650
OVERALL LENGTH L2 IN	1.230
CENTERLINE LENGTH M IN	1.910
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.3687
CALIFORNIA RESIDENTS	PROP-65 WARNING

6902-24-24-NWO-FG

$154.81

Attribute: 6902-24-24-NWO-FG (24MAORB-24FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.250
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.125
C HEX 1 IN	2.125
C HEX 2 IN	2.125
OVERALL LENGTH L IN	1.770
OVERALL LENGTH L2 IN	1.350
CENTERLINE LENGTH M IN	1.910
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.6812
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	NPT, ORB
Shape	Elbow

ID	10147025
Category	Tube Fittings and Adapters

Description

Description

Variations (28)

6902-04-02-NWO-FG

6902-04-04-NWO-FG

6902-04-06-NWO-FG

6902-06-04-NWO-FG

6902-06-06-NWO-FG

6902-06-06-NWO-SS

6902-06-08-NWO-FG

6902-08-04-NWO-FG

6902-08-06-NWO-FG

6902-08-06-NWO-SS

6902-08-08-NWO-FG

6902-08-08-NWO-SS

6902-08-12-NWO-FG

6902-10-06-NWO-FG

6902-10-08-NWO-FG

6902-10-12-NWO-FG

6902-12-08-NWO-FG

6902-12-08-NWO-SS

6902-12-12-NWO-FG

6902-12-12-NWO-SS

6902-12-16-NWO-FG

6902-16-12-NWO-FG

6902-16-16-NWO-FG

6902-16-16-NWO-SS

6902-16-20-NWO-FG

6902-20-16-NWO-FG

6902-20-20-NWO-FG

6902-24-24-NWO-FG

General Attributes

PDF Documents
