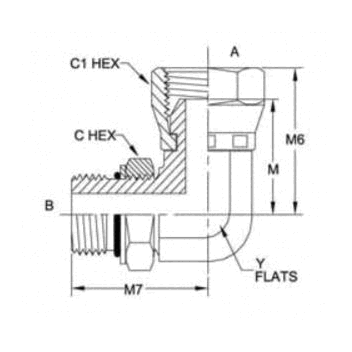

6901-NWO-FG

6901-04-02-NWO-FG

$14.37

Attribute: 6901-04-02-NWO-FG (04MAORB-02FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	.11/.13
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.438
C HEX 1 IN	0.563
C HEX 2 IN	0.562
OVERALL LENGTH L IN	0.840
OVERALL LENGTH L2 IN	0.700
CENTERLINE LENGTH M IN	1.030
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.0812
CALIFORNIA RESIDENTS	PROP-65 WARNING

6901-04-04-NWO-FG

$14.82

Attribute: 6901-04-04-NWO-FG (04MAORB-04FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.220
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.438
C HEX 1 IN	0.563
C HEX 2 IN	0.688
OVERALL LENGTH L IN	0.980
OVERALL LENGTH L2 IN	0.790
CENTERLINE LENGTH M IN	1.030
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.0937
CALIFORNIA RESIDENTS	PROP-65 WARNING

6901-04-04-NWO-SS

$372.28

Attribute: 6901-04-04-NWO-SS (04MAORB-04FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.220
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.438
C HEX 1 IN	0.563
C HEX 2 IN	0.688
OVERALL LENGTH L IN	0.980
OVERALL LENGTH L2 IN	0.790
CENTERLINE LENGTH M IN	1.030
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1
CALIFORNIA RESIDENTS	PROP-65 WARNING

6901-04-06-NWO-FG

$20.03

Attribute: 6901-04-06-NWO-FG (04MAORB-06FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.320
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
C HEX 1 IN	0.563
C HEX 2 IN	0.875
OVERALL LENGTH L IN	1.200
OVERALL LENGTH L2 IN	0.990
CENTERLINE LENGTH M IN	1.260
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.2187
CALIFORNIA RESIDENTS	PROP-65 WARNING

6901-04-08-NWO-FG

$20.43

Attribute: 6901-04-08-NWO-FG (04MAORB-08FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.440
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
C HEX 1 IN	0.563
C HEX 2 IN	1.000
OVERALL LENGTH L IN	1.390
OVERALL LENGTH L2 IN	1.110
CENTERLINE LENGTH M IN	1.260
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.2312
CALIFORNIA RESIDENTS	PROP-65 WARNING

6901-06-04-NWO-FG

$13.83

Attribute: 6901-06-04-NWO-FG (06MAORB-04FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.220
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
C HEX 1 IN	0.688
C HEX 2 IN	0.688
OVERALL LENGTH L IN	1.070
OVERALL LENGTH L2 IN	0.880
CENTERLINE LENGTH M IN	1.250
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1437
CALIFORNIA RESIDENTS	PROP-65 WARNING

6901-06-04-NWO-SS

$1,148.37

Attribute: 6901-06-04-NWO-SS (06MAORB-04FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.220
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
C HEX 1 IN	0.688
C HEX 2 IN	0.688
OVERALL LENGTH L IN	1.070
OVERALL LENGTH L2 IN	0.880
CENTERLINE LENGTH M IN	1.250
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.2625
CALIFORNIA RESIDENTS	PROP-65 WARNING

6901-06-06-NWO-FG

$18.76

Attribute: 6901-06-06-NWO-FG (06MAORB-06FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.340
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
C HEX 1 IN	0.688
C HEX 2 IN	0.875
OVERALL LENGTH L IN	1.110
OVERALL LENGTH L2 IN	0.900
CENTERLINE LENGTH M IN	1.250
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1625
CALIFORNIA RESIDENTS	PROP-65 WARNING

6901-06-06-NWO-SS

$273.82

Attribute: 6901-06-06-NWO-SS (06MAORB-06FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.340
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
C HEX 1 IN	0.688
C HEX 2 IN	0.875
OVERALL LENGTH L IN	1.110
OVERALL LENGTH L2 IN	0.900
CENTERLINE LENGTH M IN	1.250
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.2375
CALIFORNIA RESIDENTS	PROP-65 WARNING

6901-06-08-NWO-FG

$20.93

Attribute: 6901-06-08-NWO-FG (06MAORB-08FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.44/0.46
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
C HEX 1 IN	0.688
C HEX 2 IN	1.000
OVERALL LENGTH L IN	1.320
OVERALL LENGTH L2 IN	1.040
CENTERLINE LENGTH M IN	1.320
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.2375
CALIFORNIA RESIDENTS	PROP-65 WARNING

6901-08-04-NWO-FG

$21.31

Attribute: 6901-08-04-NWO-FG (08MAORB-04FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.220
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
C HEX 1 IN	0.875
C HEX 2 IN	0.688
OVERALL LENGTH L IN	1.160
OVERALL LENGTH L2 IN	0.970
CENTERLINE LENGTH M IN	1.450
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.25
CALIFORNIA RESIDENTS	PROP-65 WARNING

6901-08-06-NWO-FG

$21.01

Attribute: 6901-08-06-NWO-FG (08MAORB-06FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.320/0.360
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
C HEX 1 IN	0.875
C HEX 2 IN	0.875
OVERALL LENGTH L IN	1.200
OVERALL LENGTH L2 IN	0.990
CENTERLINE LENGTH M IN	1.450
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.275
CALIFORNIA RESIDENTS	PROP-65 WARNING

6901-08-06-NWO-SS

$266.53

Attribute: 6901-08-06-NWO-SS (08MAORB-06FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.340
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
C HEX 1 IN	0.875
C HEX 2 IN	0.875
OVERALL LENGTH L IN	1.200
OVERALL LENGTH L2 IN	0.990
CENTERLINE LENGTH M IN	1.450
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

6901-08-08-NWO-FG

$23.68

Attribute: 6901-08-08-NWO-FG (08MAORB-08FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.460
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
C HEX 1 IN	0.875
C HEX 2 IN	1.000
OVERALL LENGTH L IN	1.390
OVERALL LENGTH L2 IN	1.110
CENTERLINE LENGTH M IN	1.450
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.2812
CALIFORNIA RESIDENTS	PROP-65 WARNING

6901-08-08-NWO-SS

$428.29

Attribute: 6901-08-08-NWO-SS (08MAORB-08FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.460
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
C HEX 1 IN	0.875
C HEX 2 IN	1.000
OVERALL LENGTH L IN	1.390
OVERALL LENGTH L2 IN	1.110
CENTERLINE LENGTH M IN	1.450
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1432
CALIFORNIA RESIDENTS	PROP-65 WARNING

6901-08-12-NWO-FG

$42.38

Attribute: 6901-08-12-NWO-FG (08MAORB-12FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
C HEX 1 IN	0.875
C HEX 2 IN	1.250
OVERALL LENGTH L IN	1.580
OVERALL LENGTH L2 IN	1.270
CENTERLINE LENGTH M IN	1.450
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.525
CALIFORNIA RESIDENTS	PROP-65 WARNING

6901-10-04-NWO-FG

$31.80

Attribute: 6901-10-04-NWO-FG (10MAORB-04FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.220
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
C HEX 1 IN	1.000
C HEX 2 IN	0.688
OVERALL LENGTH L IN	1.210
OVERALL LENGTH L2 IN	1.020
CENTERLINE LENGTH M IN	1.700
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.3687
CALIFORNIA RESIDENTS	PROP-65 WARNING

6901-10-06-NWO-FG

$25.60

Attribute: 6901-10-06-NWO-FG (10MAORB-06FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.340
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
C HEX 1 IN	1.000
C HEX 2 IN	0.875
OVERALL LENGTH L IN	1.250
OVERALL LENGTH L2 IN	1.040
CENTERLINE LENGTH M IN	1.700
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.3875
CALIFORNIA RESIDENTS	PROP-65 WARNING

6901-10-08-NWO-FG

$31.45

Attribute: 6901-10-08-NWO-FG (10MAORB-08FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.460
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
C HEX 1 IN	1.000
C HEX 2 IN	1.000
OVERALL LENGTH L IN	1.390
OVERALL LENGTH L2 IN	1.110
CENTERLINE LENGTH M IN	1.700
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.3875
CALIFORNIA RESIDENTS	PROP-65 WARNING

6901-10-08-NWO-SS

$435.93

Attribute: 6901-10-08-NWO-SS (10MAORB-08FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.460
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
C HEX 1 IN	1.000
C HEX 2 IN	1.000
OVERALL LENGTH L IN	1.390
OVERALL LENGTH L2 IN	1.110
CENTERLINE LENGTH M IN	1.700
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.7875
CALIFORNIA RESIDENTS	PROP-65 WARNING

6901-10-12-NWO-FG

$53.36

Attribute: 6901-10-12-NWO-FG (10MAORB-12FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.620
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
C HEX 1 IN	1.000
C HEX 2 IN	1.250
OVERALL LENGTH L IN	1.620
OVERALL LENGTH L2 IN	1.270
CENTERLINE LENGTH M IN	1.780
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.5625
CALIFORNIA RESIDENTS	PROP-65 WARNING

6901-10-12-NWO-SS

$422.54

Attribute: 6901-10-12-NWO-SS (10MAORB-12FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.635
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
C HEX 1 IN	1.000
C HEX 2 IN	1.250
OVERALL LENGTH L IN	1.650
OVERALL LENGTH L2 IN	1.300
CENTERLINE LENGTH M IN	1.780
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.3937
CALIFORNIA RESIDENTS	PROP-65 WARNING

6901-12-06-NWO-FG

$44.25

Attribute: 6901-12-06-NWO-FG (12MAORB-06FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.320/0.360
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
C HEX 1 IN	1.250
C HEX 2 IN	0.875
OVERALL LENGTH L IN	1.470
OVERALL LENGTH L2 IN	1.260
CENTERLINE LENGTH M IN	1.940
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.6437
CALIFORNIA RESIDENTS	PROP-65 WARNING

6901-12-08-NWO-FG

$38.99

Attribute: 6901-12-08-NWO-FG (12MAORB-08FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.460
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
C HEX 1 IN	1.250
C HEX 2 IN	1.000
OVERALL LENGTH L IN	1.580
OVERALL LENGTH L2 IN	1.300
CENTERLINE LENGTH M IN	1.940
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.625
CALIFORNIA RESIDENTS	PROP-65 WARNING

6901-12-08-NWO-SS

$480.18

Attribute: 6901-12-08-NWO-SS (12MAORB-08FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.460
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
C HEX 1 IN	1.250
C HEX 2 IN	1.000
OVERALL LENGTH L IN	1.580
OVERALL LENGTH L2 IN	1.300
CENTERLINE LENGTH M IN	1.940
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.3687
CALIFORNIA RESIDENTS	PROP-65 WARNING

6901-12-12-NWO-FG

$42.14

Attribute: 6901-12-12-NWO-FG (12MAORB-12FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.620
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
C HEX 1 IN	1.250
C HEX 2 IN	1.250
OVERALL LENGTH L IN	1.650
OVERALL LENGTH L2 IN	1.300
CENTERLINE LENGTH M IN	1.940
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.6562
CALIFORNIA RESIDENTS	PROP-65 WARNING

6901-12-12-NWO-SS

$552.20

Attribute: 6901-12-12-NWO-SS (12MAORB-12FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.635
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
C HEX 1 IN	1.250
C HEX 2 IN	1.250
OVERALL LENGTH L IN	1.650
OVERALL LENGTH L2 IN	1.300
CENTERLINE LENGTH M IN	1.940
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.35
CALIFORNIA RESIDENTS	PROP-65 WARNING

6901-12-16-NWO-FG

$109.03

Attribute: 6901-12-16-NWO-FG (12MAORB-16FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	.78/.80
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.312
C HEX 1 IN	1.250
C HEX 2 IN	1.500
OVERALL LENGTH L IN	1.890
OVERALL LENGTH L2 IN	1.540
CENTERLINE LENGTH M IN	2.050
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.9687
CALIFORNIA RESIDENTS	PROP-65 WARNING

6901-14-12-NWO-FG

$95.69

Attribute: 6901-14-12-NWO-FG (14MAORB-12FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-3/16-12
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.620
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.312
C HEX 1 IN	1.375
C HEX 2 IN	1.250
OVERALL LENGTH L IN	1.750
OVERALL LENGTH L2 IN	1.400
CENTERLINE LENGTH M IN	2.000
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.9187
CALIFORNIA RESIDENTS	PROP-65 WARNING

6901-16-12-NWO-FG

$55.37

Attribute: 6901-16-12-NWO-FG (16MAORB-12FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.610/0.630
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.312
C HEX 1 IN	1.500
C HEX 2 IN	1.250
OVERALL LENGTH L IN	1.750
OVERALL LENGTH L2 IN	1.400
CENTERLINE LENGTH M IN	2.050
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.9562
CALIFORNIA RESIDENTS	PROP-65 WARNING

6901-16-16-NWO-FG

$64.54

Attribute: 6901-16-16-NWO-FG (16MAORB-16FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.78/0.88
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.312
C HEX 1 IN	1.500
C HEX 2 IN	1.500
OVERALL LENGTH L IN	1.890
OVERALL LENGTH L2 IN	1.540
CENTERLINE LENGTH M IN	2.050
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.025
CALIFORNIA RESIDENTS	PROP-65 WARNING

6901-16-16-NWO-SS

$766.61

Attribute: 6901-16-16-NWO-SS (16MAORB-16FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.831
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.312
C HEX 1 IN	1.500
C HEX 2 IN	1.500
OVERALL LENGTH L IN	1.890
OVERALL LENGTH L2 IN	1.540
CENTERLINE LENGTH M IN	2.050
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	2.0875
CALIFORNIA RESIDENTS	PROP-65 WARNING

6901-16-20-NWO-FG

$145.46

Attribute: 6901-16-20-NWO-FG (16MAORB-20FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.01/1.16
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.625
C HEX 1 IN	1.500
C HEX 2 IN	1.875
OVERALL LENGTH L IN	2.200
OVERALL LENGTH L2 IN	1.780
CENTERLINE LENGTH M IN	2.250
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.5937
CALIFORNIA RESIDENTS	PROP-65 WARNING

6901-20-12-NWO-FG

$195.71

Attribute: 6901-20-12-NWO-FG (20MAORB-12FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.620
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.625
C HEX 1 IN	1.875
C HEX 2 IN	1.250
OVERALL LENGTH L IN	1.960
OVERALL LENGTH L2 IN	1.610
CENTERLINE LENGTH M IN	2.250
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.65
CALIFORNIA RESIDENTS	PROP-65 WARNING

6901-20-16-NWO-FG

$171.84

Attribute: 6901-20-16-NWO-FG (20MAORB-16FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.831
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.625
C HEX 1 IN	1.875
C HEX 2 IN	1.500
OVERALL LENGTH L IN	2.050
OVERALL LENGTH L2 IN	1.700
CENTERLINE LENGTH M IN	2.250
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.6625
CALIFORNIA RESIDENTS	PROP-65 WARNING

6901-20-20-NWO-FG

$115.09

Attribute: 6901-20-20-NWO-FG (20MAORB-20FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.01/1.16
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.625
C HEX 1 IN	1.875
C HEX 2 IN	1.875
OVERALL LENGTH L IN	2.150
OVERALL LENGTH L2 IN	1.730
CENTERLINE LENGTH M IN	2.250
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.762
CALIFORNIA RESIDENTS	PROP-65 WARNING

6901-20-20-NWO-SS

$761.47

Attribute: 6901-20-20-NWO-SS (20MAORB-20FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.01/1.16
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.625
C HEX 1 IN	1.875
C HEX 2 IN	1.875
OVERALL LENGTH L IN	2.150
OVERALL LENGTH L2 IN	1.730
CENTERLINE LENGTH M IN	2.250
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1325
CALIFORNIA RESIDENTS	PROP-65 WARNING

6901-24-20-NWO-FG

$176.27

Attribute: 6901-24-20-NWO-FG (24MAORB-20FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.01/1.16
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.875
C HEX 1 IN	2.125
C HEX 2 IN	1.875
OVERALL LENGTH L IN	2.250
OVERALL LENGTH L2 IN	1.830
CENTERLINE LENGTH M IN	2.390
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	2.2812
CALIFORNIA RESIDENTS	PROP-65 WARNING

6901-24-24-NWO-FG

$248.29

Attribute: 6901-24-24-NWO-FG (24MAORB-24FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.317
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.875
C HEX 1 IN	2.125
C HEX 2 IN	2.125
OVERALL LENGTH L IN	2.310
OVERALL LENGTH L2 IN	1.890
CENTERLINE LENGTH M IN	2.390
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	2.15
CALIFORNIA RESIDENTS	PROP-65 WARNING

6901-24-24-NWO-SS

$1,271.36

Attribute: 6901-24-24-NWO-SS (24MAORB-24FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.317
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.875
C HEX 1 IN	2.125
C HEX 2 IN	2.125
OVERALL LENGTH L IN	2.310
OVERALL LENGTH L2 IN	1.890
CENTERLINE LENGTH M IN	2.390
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	4.7972
CALIFORNIA RESIDENTS	PROP-65 WARNING

6901-32-32-NWO-FG

$429.58

Attribute: 6901-32-32-NWO-FG (32MAORB-32FPS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	2-11-1/2
THREAD B2 DRILL IN	1.720
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.500
C HEX 1 IN	2.750
C HEX 2 IN	2.625
OVERALL LENGTH L IN	2.850
OVERALL LENGTH L2 IN	2.430
CENTERLINE LENGTH M IN	2.890
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	4.3875
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	NPT, ORB
Shape	Elbow

ID	10146981
Category	Tube Fittings and Adapters

Description

Description

Variations (41)

6901-04-02-NWO-FG

6901-04-04-NWO-FG

6901-04-04-NWO-SS

6901-04-06-NWO-FG

6901-04-08-NWO-FG

6901-06-04-NWO-FG

6901-06-04-NWO-SS

6901-06-06-NWO-FG

6901-06-06-NWO-SS

6901-06-08-NWO-FG

6901-08-04-NWO-FG

6901-08-06-NWO-FG

6901-08-06-NWO-SS

6901-08-08-NWO-FG

6901-08-08-NWO-SS

6901-08-12-NWO-FG

6901-10-04-NWO-FG

6901-10-06-NWO-FG

6901-10-08-NWO-FG

6901-10-08-NWO-SS

6901-10-12-NWO-FG

6901-10-12-NWO-SS

6901-12-06-NWO-FG

6901-12-08-NWO-FG

6901-12-08-NWO-SS

6901-12-12-NWO-FG

6901-12-12-NWO-SS

6901-12-16-NWO-FG

6901-14-12-NWO-FG

6901-16-12-NWO-FG

6901-16-16-NWO-FG

6901-16-16-NWO-SS

6901-16-20-NWO-FG

6901-20-12-NWO-FG

6901-20-16-NWO-FG

6901-20-20-NWO-FG

6901-20-20-NWO-SS

6901-24-20-NWO-FG

6901-24-24-NWO-FG

6901-24-24-NWO-SS

6901-32-32-NWO-FG

General Attributes

PDF Documents
