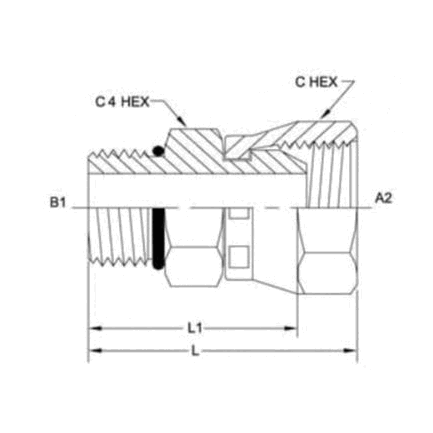

6900-O

6900-04-02-O

$14.18

Attribute: 6900-04-02-O (04MORB-02FPS Strai...)

Stock Status: True

THREAD B1 TYPE	MALE O-RING BOSS
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.110
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
C HEX 1 IN	0.562
OVERALL LENGTH L IN	1.140
OVERALL LENGTH L2 IN	1.000
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.0562
CALIFORNIA RESIDENTS	PROP-65 WARNING

6900-04-02-O-SS

$209.41

Attribute: 6900-04-02-O-SS (04MORB-02FPS St...)

Stock Status: True

THREAD B1 TYPE	MALE O-RING BOSS
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.110
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
C HEX 1 IN	0.562
OVERALL LENGTH L IN	1.140
OVERALL LENGTH L2 IN	1.000
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

6900-04-04-O

$7.09

Attribute: 6900-04-04-O (04MORB-04FPS Strai...)

Stock Status: True

THREAD B1 TYPE	MALE O-RING BOSS
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.220
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.300
OVERALL LENGTH L2 IN	1.110
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.05
CALIFORNIA RESIDENTS	PROP-65 WARNING

6900-04-04-O-SS

$128.23

Attribute: 6900-04-04-O-SS (04MORB-04FPS St...)

Stock Status: True

THREAD B1 TYPE	MALE O-RING BOSS
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.220
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.300
OVERALL LENGTH L2 IN	1.110
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.075
CALIFORNIA RESIDENTS	PROP-65 WARNING

6900-04-06-O

$23.14

Attribute: 6900-04-06-O (04MORB-06FPS Strai...)

Stock Status: True

THREAD B1 TYPE	MALE O-RING BOSS
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.340
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.688
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.360
OVERALL LENGTH L2 IN	1.150
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.15
CALIFORNIA RESIDENTS	PROP-65 WARNING

6900-04-06-O-SS

$209.41

Attribute: 6900-04-06-O-SS (04MORB-06FPS St...)

Stock Status: True

THREAD B1 TYPE	MALE O-RING BOSS
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.340
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.688
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.360
OVERALL LENGTH L2 IN	1.150
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

6900-04-08-O

$20.28

Attribute: 6900-04-08-O (04MORB-08FPS Strai...)

Stock Status: True

THREAD B1 TYPE	MALE O-RING BOSS
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.44/0.46
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.812
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.490
OVERALL LENGTH L2 IN	1.210
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.15
CALIFORNIA RESIDENTS	PROP-65 WARNING

6900-05-04-O

$14.82

Attribute: 6900-05-04-O (05MORB-04FPS Strai...)

Stock Status: True

THREAD B1 TYPE	MALE O-RING BOSS
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.220
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.625
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.280
OVERALL LENGTH L2 IN	1.090
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.08
CALIFORNIA RESIDENTS	PROP-65 WARNING

6900-05-08-O

$19.14

Attribute: 6900-05-08-O (05MORB-08FPS Strai...)

Stock Status: True

THREAD B1 TYPE	MALE O-RING BOSS
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.44/0.46
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.812
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.580
OVERALL LENGTH L2 IN	1.300
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1625
CALIFORNIA RESIDENTS	PROP-65 WARNING

6900-06-04-O

$8.27

Attribute: 6900-06-04-O (06MORB-04FPS Strai...)

Stock Status: True

THREAD B1 TYPE	MALE O-RING BOSS
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.220
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.688
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.260
OVERALL LENGTH L2 IN	1.140
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1
CALIFORNIA RESIDENTS	PROP-65 WARNING

6900-06-06-O

$12.55

Attribute: 6900-06-06-O (06MORB-06FPS Strai...)

Stock Status: True

THREAD B1 TYPE	MALE O-RING BOSS
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.340
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.688
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.460
OVERALL LENGTH L2 IN	1.170
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.112
CALIFORNIA RESIDENTS	PROP-65 WARNING

6900-06-06-O-SS

$146.69

Attribute: 6900-06-06-O-SS (06MORB-06FPS St...)

Stock Status: True

THREAD B1 TYPE	MALE O-RING BOSS
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.340
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.688
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.460
OVERALL LENGTH L2 IN	1.170
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1163
CALIFORNIA RESIDENTS	PROP-65 WARNING

6900-06-08-O

$16.29

Attribute: 6900-06-08-O (06MORB-08FPS Strai...)

Stock Status: True

THREAD B1 TYPE	MALE O-RING BOSS
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.44/0.46
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.812
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.570
OVERALL LENGTH L2 IN	1.290
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1772
CALIFORNIA RESIDENTS	PROP-65 WARNING

6900-08-04-O

$12.65

Attribute: 6900-08-04-O (08MORB-04FPS Strai...)

Stock Status: True

THREAD B1 TYPE	MALE O-RING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.220
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.360
OVERALL LENGTH L2 IN	1.170
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1275
CALIFORNIA RESIDENTS	PROP-65 WARNING

6900-08-06-O

$15.50

Attribute: 6900-08-06-O (08MORB-06FPS Strai...)

Stock Status: True

THREAD B1 TYPE	MALE O-RING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.340
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.400
OVERALL LENGTH L2 IN	1.230
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1286
CALIFORNIA RESIDENTS	PROP-65 WARNING

6900-08-06-O-SS

$222.75

Attribute: 6900-08-06-O-SS (08MORB-06FPS St...)

Stock Status: True

THREAD B1 TYPE	MALE O-RING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.340
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.400
OVERALL LENGTH L2 IN	1.230
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

6900-08-08-O

$15.85

Attribute: 6900-08-08-O (08MORB-08FPS Strai...)

Stock Status: True

THREAD B1 TYPE	MALE O-RING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.44/0.46
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.550
OVERALL LENGTH L2 IN	1.300
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1687
CALIFORNIA RESIDENTS	PROP-65 WARNING

6900-08-08-O-SS

$184.39

Attribute: 6900-08-08-O-SS (08MORB-08FPS St...)

Stock Status: True

THREAD B1 TYPE	MALE O-RING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.44/0.46
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.550
OVERALL LENGTH L2 IN	1.300
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.0937
CALIFORNIA RESIDENTS	PROP-65 WARNING

6900-08-12-O

$21.95

Attribute: 6900-08-12-O (08MORB-12FPS Strai...)

Stock Status: True

THREAD B1 TYPE	MALE O-RING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.620
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.000
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.760
OVERALL LENGTH L2 IN	1.410
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.3
CALIFORNIA RESIDENTS	PROP-65 WARNING

6900-10-06-O

$14.47

Attribute: 6900-10-06-O (10MORB-06FPS Strai...)

Stock Status: True

THREAD B1 TYPE	MALE O-RING BOSS
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.340
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.000
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.470
OVERALL LENGTH L2 IN	1.260
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.2
CALIFORNIA RESIDENTS	PROP-65 WARNING

6900-10-06-O-SS

$306.43

Attribute: 6900-10-06-O-SS (10MORB-06FPS St...)

Stock Status: True

THREAD B1 TYPE	MALE O-RING BOSS
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.340
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.000
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.470
OVERALL LENGTH L2 IN	1.260
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.05
CALIFORNIA RESIDENTS	PROP-65 WARNING

6900-10-08-O

$17.97

Attribute: 6900-10-08-O (10MORB-08FPS Strai...)

Stock Status: True

THREAD B1 TYPE	MALE O-RING BOSS
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.44/0.46
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.000
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.610
OVERALL LENGTH L2 IN	1.400
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.204
CALIFORNIA RESIDENTS	PROP-65 WARNING

6900-10-08-O-SS

$460.00

Attribute: 6900-10-08-O-SS (10MORB-08FPS St...)

Stock Status: True

THREAD B1 TYPE	MALE O-RING BOSS
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.44/0.46
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.000
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.610
OVERALL LENGTH L2 IN	1.400
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.0937
CALIFORNIA RESIDENTS	PROP-65 WARNING

6900-10-12-O

$23.63

Attribute: 6900-10-12-O (10MORB-12FPS Strai...)

Stock Status: True

THREAD B1 TYPE	MALE O-RING BOSS
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.620
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.000
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.720
OVERALL LENGTH L2 IN	1.370
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.3125
CALIFORNIA RESIDENTS	PROP-65 WARNING

6900-10-12-O-SS

$511.06

Attribute: 6900-10-12-O-SS (10MORB-12FPS St...)

Stock Status: True

THREAD B1 TYPE	MALE O-RING BOSS
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.620
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.000
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.720
OVERALL LENGTH L2 IN	1.370
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

6900-12-06-O

$23.73

Attribute: 6900-12-06-O (12MORB-06FPS Strai...)

Stock Status: True

THREAD B1 TYPE	MALE O-RING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.340
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.250
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.620
OVERALL LENGTH L2 IN	1.410
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.2812
CALIFORNIA RESIDENTS	PROP-65 WARNING

6900-12-08-O

$24.02

Attribute: 6900-12-08-O (12MORB-08FPS Strai...)

Stock Status: True

THREAD B1 TYPE	MALE O-RING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.44/0.46
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.250
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.730
OVERALL LENGTH L2 IN	1.450
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.28
CALIFORNIA RESIDENTS	PROP-65 WARNING

6900-12-08-O-SS

$293.04

Attribute: 6900-12-08-O-SS (12MORB-08FPS St...)

Stock Status: True

THREAD B1 TYPE	MALE O-RING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.44/0.46
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.250
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.730
OVERALL LENGTH L2 IN	1.450
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.3062
CALIFORNIA RESIDENTS	PROP-65 WARNING

6900-12-12-O

$26.04

Attribute: 6900-12-12-O (12MORB-12FPS Strai...)

Stock Status: True

THREAD B1 TYPE	MALE O-RING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.620
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.250
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.950
OVERALL LENGTH L2 IN	1.600
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.3467
CALIFORNIA RESIDENTS	PROP-65 WARNING

6900-12-12-O-SS

$408.17

Attribute: 6900-12-12-O-SS (12MORB-12FPS St...)

Stock Status: True

THREAD B1 TYPE	MALE O-RING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.620
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.250
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.950
OVERALL LENGTH L2 IN	1.600
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.4062
CALIFORNIA RESIDENTS	PROP-65 WARNING

6900-12-16-O

$48.39

Attribute: 6900-12-16-O (12MORB-16FPS Strai...)

Stock Status: True

THREAD B1 TYPE	MALE O-RING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.780
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.500
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.050
OVERALL LENGTH L2 IN	1.700
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.57
CALIFORNIA RESIDENTS	PROP-65 WARNING

6900-14-12-O

$35.24

Attribute: 6900-14-12-O (14MORB-12FPS Strai...)

Stock Status: True

THREAD B1 TYPE	MALE O-RING BOSS
THREAD B1 SIZE	1-3/16-12
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.620
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.375
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.960
OVERALL LENGTH L2 IN	1.610
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.456
CALIFORNIA RESIDENTS	PROP-65 WARNING

6900-14-16-O

$224.22

Attribute: 6900-14-16-O (14MORB-16FPS Strai...)

Stock Status: True

THREAD B1 TYPE	MALE O-RING BOSS
THREAD B1 SIZE	1-3/16-12
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.780
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.500
C HEX 1 IN	1.500
OVERALL LENGTH L IN	1.950
OVERALL LENGTH L2 IN	1.600
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.4812
CALIFORNIA RESIDENTS	PROP-65 WARNING

6900-16-08-O

$33.92

Attribute: 6900-16-08-O (16MORB-08FPS Strai...)

Stock Status: True

THREAD B1 TYPE	MALE O-RING BOSS
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.44/0.46
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.500
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.900
OVERALL LENGTH L2 IN	1.620
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.4437
CALIFORNIA RESIDENTS	PROP-65 WARNING

6900-16-12-O

$31.75

Attribute: 6900-16-12-O (16MORB-12FPS Strai...)

Stock Status: True

THREAD B1 TYPE	MALE O-RING BOSS
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.620
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.500
C HEX 1 IN	1.250
OVERALL LENGTH L IN	2.080
OVERALL LENGTH L2 IN	1.730
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.57
CALIFORNIA RESIDENTS	PROP-65 WARNING

6900-16-16-O

$31.85

Attribute: 6900-16-16-O (16MORB-16FPS Strai...)

Stock Status: True

THREAD B1 TYPE	MALE O-RING BOSS
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.780
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.500
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.060
OVERALL LENGTH L2 IN	1.710
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.56
CALIFORNIA RESIDENTS	PROP-65 WARNING

6900-16-16-O-SS

$370.95

Attribute: 6900-16-16-O-SS (16MORB-16FPS St...)

Stock Status: True

THREAD B1 TYPE	MALE O-RING BOSS
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.780
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.500
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.060
OVERALL LENGTH L2 IN	1.710
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.525
CALIFORNIA RESIDENTS	PROP-65 WARNING

6900-16-20-O

$128.48

Attribute: 6900-16-20-O (16MORB-20FPS Strai...)

Stock Status: True

THREAD B1 TYPE	MALE O-RING BOSS
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1 1/4-11 1/2
THREAD B2 DRILL IN	1.020
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.875
C HEX 1 IN	1.875
OVERALL LENGTH L IN	2.320
OVERALL LENGTH L2 IN	1.900
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.512
CALIFORNIA RESIDENTS	PROP-65 WARNING

6900-20-12-O

$122.18

Attribute: 6900-20-12-O (20MORB-12FPS Strai...)

Stock Status: True

THREAD B1 TYPE	MALE O-RING BOSS
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.620
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.875
C HEX 1 IN	1.250
OVERALL LENGTH L IN	2.010
OVERALL LENGTH L2 IN	1.660
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.6125
CALIFORNIA RESIDENTS	PROP-65 WARNING

6900-20-16-O

$73.54

Attribute: 6900-20-16-O (20MORB-16FPS Strai...)

Stock Status: True

THREAD B1 TYPE	MALE O-RING BOSS
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.780
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.875
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.140
OVERALL LENGTH L2 IN	1.790
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.85
CALIFORNIA RESIDENTS	PROP-65 WARNING

6900-20-16-O-SS

$637.74

Attribute: 6900-20-16-O-SS (20MORB-16FPS St...)

Stock Status: True

THREAD B1 TYPE	MALE O-RING BOSS
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.780
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.875
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.140
OVERALL LENGTH L2 IN	1.790
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

6900-20-20-O

$58.87

Attribute: 6900-20-20-O (20MORB-20FPS Strai...)

Stock Status: True

THREAD B1 TYPE	MALE O-RING BOSS
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1 1/4-11 1/2
THREAD B2 DRILL IN	1.020
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.875
C HEX 1 IN	1.875
OVERALL LENGTH L IN	2.210
OVERALL LENGTH L2 IN	1.790
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.9154
CALIFORNIA RESIDENTS	PROP-65 WARNING

6900-20-20-O-SS

$547.76

Attribute: 6900-20-20-O-SS (20MORB-20FPS St...)

Stock Status: True

THREAD B1 TYPE	MALE O-RING BOSS
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1 1/4-11 1/2
THREAD B2 DRILL IN	1.020
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.875
C HEX 1 IN	1.875
OVERALL LENGTH L IN	2.210
OVERALL LENGTH L2 IN	1.790
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.2312
CALIFORNIA RESIDENTS	PROP-65 WARNING

6900-24-20-O

$68.38

Attribute: 6900-24-20-O (24MORB-20FPS Strai...)

Stock Status: True

THREAD B1 TYPE	MALE O-RING BOSS
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1 1/4-11 1/2
THREAD B2 DRILL IN	1.020
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.125
C HEX 1 IN	1.875
OVERALL LENGTH L IN	2.170
OVERALL LENGTH L2 IN	1.750
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.9625
CALIFORNIA RESIDENTS	PROP-65 WARNING

6900-24-24-O

$108.59

Attribute: 6900-24-24-O (24MORB-24FPS Strai...)

Stock Status: True

THREAD B1 TYPE	MALE O-RING BOSS
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1 1/2-11 1/2
THREAD B2 DRILL IN	1.250
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.125
C HEX 1 IN	2.125
OVERALL LENGTH L IN	2.370
OVERALL LENGTH L2 IN	1.950
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.2
CALIFORNIA RESIDENTS	PROP-65 WARNING

6900-24-24-O-SS

$730.19

Attribute: 6900-24-24-O-SS (24MORB-24FPS St...)

Stock Status: True

THREAD B1 TYPE	MALE O-RING BOSS
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	1 1/2-11 1/2
THREAD B2 DRILL IN	1.250
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.125
C HEX 1 IN	2.125
OVERALL LENGTH L IN	2.370
OVERALL LENGTH L2 IN	1.950
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.0312
CALIFORNIA RESIDENTS	PROP-65 WARNING

6900-32-32-O

$255.38

Attribute: 6900-32-32-O (32MORB-32FPS Strai...)

Stock Status: True

THREAD B1 TYPE	MALE O-RING BOSS
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM SWIVEL
THREAD B2 SIZE	2-11-1/2
THREAD B2 DRILL IN	1.720
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.750
C HEX 1 IN	2.625
OVERALL LENGTH L IN	2.420
OVERALL LENGTH L2 IN	2.000
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.72
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	NPT, ORB
Shape	Straight

ID	10146931
Category	Tube Fittings and Adapters

Description

Description

Variations (47)

6900-04-02-O

6900-04-02-O-SS

6900-04-04-O

6900-04-04-O-SS

6900-04-06-O

6900-04-06-O-SS

6900-04-08-O

6900-05-04-O

6900-05-08-O

6900-06-04-O

6900-06-06-O

6900-06-06-O-SS

6900-06-08-O

6900-08-04-O

6900-08-06-O

6900-08-06-O-SS

6900-08-08-O

6900-08-08-O-SS

6900-08-12-O

6900-10-06-O

6900-10-06-O-SS

6900-10-08-O

6900-10-08-O-SS

6900-10-12-O

6900-10-12-O-SS

6900-12-06-O

6900-12-08-O

6900-12-08-O-SS

6900-12-12-O

6900-12-12-O-SS

6900-12-16-O

6900-14-12-O

6900-14-16-O

6900-16-08-O

6900-16-12-O

6900-16-16-O

6900-16-16-O-SS

6900-16-20-O

6900-20-12-O

6900-20-16-O

6900-20-16-O-SS

6900-20-20-O

6900-20-20-O-SS

6900-24-20-O

6900-24-24-O

6900-24-24-O-SS

6900-32-32-O

General Attributes

PDF Documents
