6850-NWO-FG

Attribute: 6850-06-06-04-06-NWO-FG (06MJ-06...)

Stock Status: True

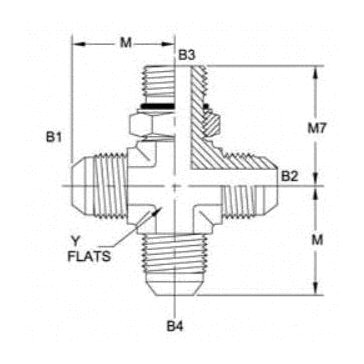

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD 3 SIZE	7/16-20
THREAD 3 DRILL IN	0.172
THREAD 3 SPECIFICATION	SAE J514
THREAD 4 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 4 SIZE	9/16-18
THREAD 4 DRILL IN	0.297
THREAD 4 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.562
OVERALL LENGTH L IN	1.190
OVERALL LENGTH L2 IN	1.060
CENTERLINE LENGTH M2 IN	1.060
SHAPE	CROSS
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.175
CALIFORNIA RESIDENTS	PROP-65 WARNING

Attribute: 6850-06-06-06-06-NWO-FG (06MJ-06...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
THREAD 4 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 4 SIZE	9/16-18
THREAD 4 DRILL IN	0.297
THREAD 4 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.250
OVERALL LENGTH L2 IN	1.060
CENTERLINE LENGTH M2 IN	1.060
SHAPE	CROSS
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.19
CALIFORNIA RESIDENTS	PROP-65 WARNING
