6815-NWO-FG

6815-04-04-NWO-FG

$16.24

Attribute: 6815-04-04-NWO-FG (04MAORB-04FOR...)

Stock Status: True

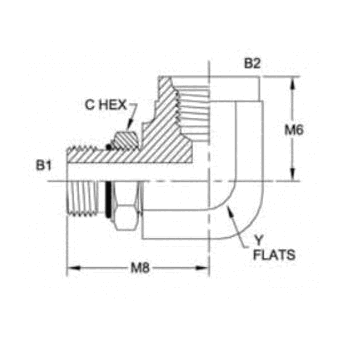

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE O-RING BOSS
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.563
OVERALL LENGTH L IN	0.630
CENTERLINE LENGTH M IN	1.230
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1445
CALIFORNIA RESIDENTS	PROP-65 WARNING

6815-04-04-NWO-SS

$171.54

Attribute: 6815-04-04-NWO-SS (04MAORB-04FOR...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE O-RING BOSS
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.563
OVERALL LENGTH L IN	0.630
CENTERLINE LENGTH M IN	1.230
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.15
CALIFORNIA RESIDENTS	PROP-65 WARNING

6815-04-06-NWO-FG

$20.93

Attribute: 6815-04-06-NWO-FG (04MAORB-06FOR...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE O-RING BOSS
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.562
OVERALL LENGTH L IN	0.750
CENTERLINE LENGTH M IN	1.320
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.2728
CALIFORNIA RESIDENTS	PROP-65 WARNING

6815-06-06-NWO-FG

$19.99

Attribute: 6815-06-06-NWO-FG (06MAORB-06FOR...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE O-RING BOSS
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.020
CENTERLINE LENGTH M IN	1.410
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.2728
CALIFORNIA RESIDENTS	PROP-65 WARNING

6815-06-08-NWO-FG

$51.43

Attribute: 6815-06-08-NWO-FG (06MAORB-08FOR...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE O-RING BOSS
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	0.688
OVERALL LENGTH L IN	0.880
CENTERLINE LENGTH M IN	1.460
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.45
CALIFORNIA RESIDENTS	PROP-65 WARNING

6815-08-08-NWO-FG

$51.88

Attribute: 6815-08-08-NWO-FG (08MAORB-08FOR...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE O-RING BOSS
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	0.875
OVERALL LENGTH L IN	0.880
CENTERLINE LENGTH M IN	1.590
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.45
CALIFORNIA RESIDENTS	PROP-65 WARNING

6815-08-08-NWO-SS

$499.43

Attribute: 6815-08-08-NWO-SS (08MAORB-08FOR...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE O-RING BOSS
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	0.875
OVERALL LENGTH L IN	0.880
CENTERLINE LENGTH M IN	1.590
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.3745
CALIFORNIA RESIDENTS	PROP-65 WARNING

6815-10-10-NWO-FG

$58.33

Attribute: 6815-10-10-NWO-FG (10MAORB-10FOR...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE O-RING BOSS
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.020
CENTERLINE LENGTH M IN	1.810
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.4125
CALIFORNIA RESIDENTS	PROP-65 WARNING

6815-10-10-NWO-SS

$390.25

Attribute: 6815-10-10-NWO-SS (10MAORB-10FOR...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE O-RING BOSS
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.020
CENTERLINE LENGTH M IN	1.810
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.3625
CALIFORNIA RESIDENTS	PROP-65 WARNING

6815-12-08-NWO-FG

$63.50

Attribute: 6815-12-08-NWO-FG (12MAORB-08FOR...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE O-RING BOSS
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.020
CENTERLINE LENGTH M IN	1.940
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.5375
CALIFORNIA RESIDENTS	PROP-65 WARNING

6815-12-12-NWO-FG

$69.60

Attribute: 6815-12-12-NWO-FG (12MAORB-12FOR...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE O-RING BOSS
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.312
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.210
CENTERLINE LENGTH M IN	2.000
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.7562
CALIFORNIA RESIDENTS	PROP-65 WARNING

6815-12-12-NWO-SS

$485.49

Attribute: 6815-12-12-NWO-SS (12MAORB-12FOR...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE O-RING BOSS
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.312
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.210
CENTERLINE LENGTH M IN	2.000
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.7
CALIFORNIA RESIDENTS	PROP-65 WARNING

6815-16-16-NWO-FG

$79.20

Attribute: 6815-16-16-NWO-FG (16MAORB-16FOR...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE O-RING BOSS
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.625
C HEX 1 IN	1.500
OVERALL LENGTH L IN	1.620
CENTERLINE LENGTH M IN	2.250
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.1475
CALIFORNIA RESIDENTS	PROP-65 WARNING

6815-24-24-NWO-FG

$493.62

Attribute: 6815-24-24-NWO-FG (24MAORB-24FOR...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE O-RING BOSS
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.562
C HEX 1 IN	2.125
OVERALL LENGTH L IN	2.080
CENTERLINE LENGTH M IN	2.890
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.144
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	ORB
Shape	Elbow

ID	10146884
Category	Tube Fittings and Adapters

Description

Description

Variations (14)

6815-04-04-NWO-FG

6815-04-04-NWO-SS

6815-04-06-NWO-FG

6815-06-06-NWO-FG

6815-06-08-NWO-FG

6815-08-08-NWO-FG

6815-08-08-NWO-SS

6815-10-10-NWO-FG

6815-10-10-NWO-SS

6815-12-08-NWO-FG

6815-12-12-NWO-FG

6815-12-12-NWO-SS

6815-16-16-NWO-FG

6815-24-24-NWO-FG

General Attributes
