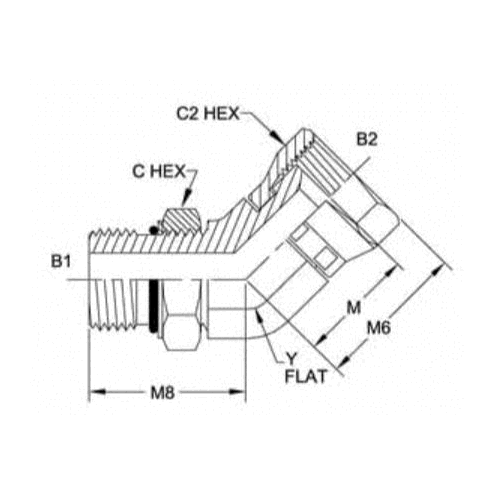

6810-NWO-FG

Attribute: 6810-04-04-NWO-FG (04MAORB-04FJS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.438
C HEX 1 IN	0.562
C HEX 2 IN	0.562
OVERALL LENGTH L IN	0.940
OVERALL LENGTH L2 IN	0.589
CENTERLINE LENGTH M IN	1.050
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.0875
CALIFORNIA RESIDENTS	PROP-65 WARNING

Attribute: 6810-06-06-NWO-FG (06MAORB-06FJS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.688
C HEX 2 IN	0.688
OVERALL LENGTH L IN	1.120
OVERALL LENGTH L2 IN	0.740
CENTERLINE LENGTH M IN	1.140
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1312
CALIFORNIA RESIDENTS	PROP-65 WARNING

Attribute: 6810-08-08-NWO-FG (08MAORB-08FJS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.875
C HEX 2 IN	0.875
OVERALL LENGTH L IN	1.280
OVERALL LENGTH L2 IN	0.850
CENTERLINE LENGTH M IN	1.300
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.2437
CALIFORNIA RESIDENTS	PROP-65 WARNING

Attribute: 6810-12-12-NWO-FG (12MAORB-12FJS...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	1.250
C HEX 2 IN	1.250
OVERALL LENGTH L IN	1.500
OVERALL LENGTH L2 IN	0.930
CENTERLINE LENGTH M IN	1.730
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.5937
CALIFORNIA RESIDENTS	PROP-65 WARNING
