Tube Fittings and Adapters

6807-NWO-FG

Scraped 2026-02-15 08:27:42

Description

Description

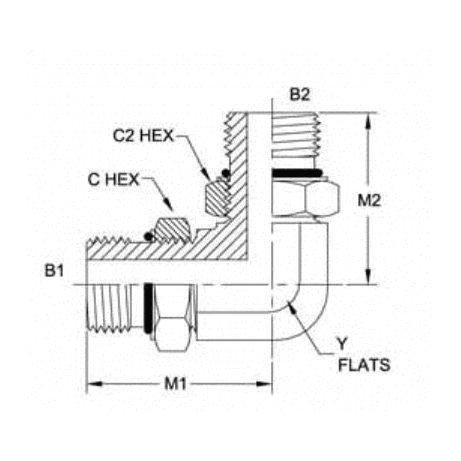

MAORB-MAORB 90 Elbow

Variations (17)

6807-04-04-NWO-FG

$14.03

Attribute: 6807-04-04-NWO-FG (04MAORB-04MAO...)

Stock Status: True

THREAD B1 TYPEMALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE7/16-20
THREAD B1 DRILL IN0.172
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEMALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE7/16-20
THREAD B2 DRILL IN0.172
THREAD B2 SPECIFICATIONSAE J514
BODY HEX IN0.438
C HEX 1 IN0.563
C HEX 2 IN0.563
OVERALL LENGTH L IN1.030
CENTERLINE LENGTH M IN1.030
SHAPE90 DEGREE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
O-RING / SEAL MATERIALNBR
WEIGHT LBS0.092
CALIFORNIA RESIDENTSPROP-65 WARNING

6807-04-04-NWO-SS

$295.54

Attribute: 6807-04-04-NWO-SS (04MAORB-04MAO...)

Stock Status: True

THREAD B1 TYPEMALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE7/16-20
THREAD B1 DRILL IN0.172
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEMALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE7/16-20
THREAD B2 DRILL IN0.172
THREAD B2 SPECIFICATIONSAE J514
BODY HEX IN0.438
C HEX 1 IN0.563
C HEX 2 IN0.563
OVERALL LENGTH L IN1.030
CENTERLINE LENGTH M IN1.030
SHAPE90 DEGREE
BODY MATERIALSTAINLESS STEEL
RAW MATERIAL TYPESTRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIALNBR
WEIGHT LBS0.1875
CALIFORNIA RESIDENTSPROP-65 WARNING

6807-06-04-NWO-FG

$14.32

Attribute: 6807-06-04-NWO-FG (06MAORB-04MAO...)

Stock Status: True

THREAD B1 TYPEMALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE9/16-18
THREAD B1 DRILL IN0.297
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEMALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE7/16-20
THREAD B2 DRILL IN0.172
THREAD B2 SPECIFICATIONSAE J514
BODY HEX IN0.562
C HEX 1 IN0.688
C HEX 2 IN0.562
OVERALL LENGTH L IN1.190
CENTERLINE LENGTH M IN1.250
SHAPE90 DEGREE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
O-RING / SEAL MATERIALNBR
WEIGHT LBS0.1375
CALIFORNIA RESIDENTSPROP-65 WARNING

6807-06-06-NWO-FG

$14.42

Attribute: 6807-06-06-NWO-FG (06MAORB-06MAO...)

Stock Status: True

THREAD B1 TYPEMALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE9/16-18
THREAD B1 DRILL IN0.297
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEMALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE9/16-18
THREAD B2 DRILL IN0.297
THREAD B2 SPECIFICATIONSAE J514
BODY HEX IN0.562
C HEX 1 IN0.688
C HEX 2 IN0.688
OVERALL LENGTH L IN1.250
CENTERLINE LENGTH M IN1.250
SHAPE90 DEGREE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
O-RING / SEAL MATERIALNBR
WEIGHT LBS0.15
CALIFORNIA RESIDENTSPROP-65 WARNING

6807-06-06-NWO-SS

$530.69

Attribute: 6807-06-06-NWO-SS (06MAORB-06MAO...)

Stock Status: True

THREAD B1 TYPEMALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE9/16-18
THREAD B1 DRILL IN0.297
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEMALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE9/16-18
THREAD B2 DRILL IN0.297
THREAD B2 SPECIFICATIONSAE J514
BODY HEX IN0.562
C HEX 1 IN0.688
C HEX 2 IN0.688
OVERALL LENGTH L IN1.250
CENTERLINE LENGTH M IN1.250
SHAPE90 DEGREE
BODY MATERIALSTAINLESS STEEL
RAW MATERIAL TYPESTRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIALNBR
WEIGHT LBS0.15
CALIFORNIA RESIDENTSPROP-65 WARNING

6807-08-06-NWO-FG

$20.67

Attribute: 6807-08-06-NWO-FG (08MAORB-06MAO...)

Stock Status: True

THREAD B1 TYPEMALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE3/4-16
THREAD B1 DRILL IN0.391
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEMALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE9/16-18
THREAD B2 DRILL IN0.297
THREAD B2 SPECIFICATIONSAE J514
BODY HEX IN0.750
C HEX 1 IN0.875
C HEX 2 IN0.688
OVERALL LENGTH L IN1.340
CENTERLINE LENGTH M IN1.450
SHAPE90 DEGREE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
O-RING / SEAL MATERIALNBR
WEIGHT LBS0.2562
CALIFORNIA RESIDENTSPROP-65 WARNING

6807-08-08-NWO-FG

$28.75

Attribute: 6807-08-08-NWO-FG (08MAORB-08MAO...)

Stock Status: True

THREAD B1 TYPEMALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE3/4-16
THREAD B1 DRILL IN0.391
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEMALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE3/4-16
THREAD B2 DRILL IN0.391
THREAD B2 SPECIFICATIONSAE J514
BODY HEX IN0.750
C HEX 1 IN0.875
C HEX 2 IN0.875
OVERALL LENGTH L IN1.450
CENTERLINE LENGTH M IN1.450
SHAPE90 DEGREE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
O-RING / SEAL MATERIALNBR
WEIGHT LBS0.2937
CALIFORNIA RESIDENTSPROP-65 WARNING

6807-08-08-NWO-SS

$530.24

Attribute: 6807-08-08-NWO-SS (08MAORB-08MAO...)

Stock Status: True

THREAD B1 TYPEMALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE3/4-16
THREAD B1 DRILL IN0.391
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEMALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE3/4-16
THREAD B2 DRILL IN0.391
THREAD B2 SPECIFICATIONSAE J514
BODY HEX IN0.750
C HEX 1 IN0.875
C HEX 2 IN0.875
OVERALL LENGTH L IN1.450
CENTERLINE LENGTH M IN1.450
SHAPE90 DEGREE
BODY MATERIALSTAINLESS STEEL
RAW MATERIAL TYPESTRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIALNBR
WEIGHT LBS0.375
CALIFORNIA RESIDENTSPROP-65 WARNING

6807-10-08-NWO-FG

$30.28

Attribute: 6807-10-08-NWO-FG (10MAORB-08MAO...)

Stock Status: True

THREAD B1 TYPEMALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE7/8-14
THREAD B1 DRILL IN0.484
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEMALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE3/4-16
THREAD B2 DRILL IN0.391
THREAD B2 SPECIFICATIONSAE J514
BODY HEX IN0.875
C HEX 1 IN1.000
C HEX 2 IN0.875
OVERALL LENGTH L IN1.540
CENTERLINE LENGTH M IN1.700
SHAPE90 DEGREE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
O-RING / SEAL MATERIALNBR
WEIGHT LBS0.4208
CALIFORNIA RESIDENTSPROP-65 WARNING

6807-10-10-NWO-FG

$44.11

Attribute: 6807-10-10-NWO-FG (10MAORB-10MAO...)

Stock Status: True

THREAD B1 TYPEMALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE7/8-14
THREAD B1 DRILL IN0.484
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEMALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE7/8-14
THREAD B2 DRILL IN0.484
THREAD B2 SPECIFICATIONSAE J514
BODY HEX IN0.875
C HEX 1 IN1.000
C HEX 2 IN1.000
OVERALL LENGTH L IN1.700
CENTERLINE LENGTH M IN1.700
SHAPE90 DEGREE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
O-RING / SEAL MATERIALNBR
WEIGHT LBS0.45
CALIFORNIA RESIDENTSPROP-65 WARNING

6807-12-12-NWO-FG

$63.01

Attribute: 6807-12-12-NWO-FG (12MAORB-12MAO...)

Stock Status: True

THREAD B1 TYPEMALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE1-1/16-12
THREAD B1 DRILL IN0.609
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEMALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE1-1/16-12
THREAD B2 DRILL IN0.609
THREAD B2 SPECIFICATIONSAE J514
BODY HEX IN1.062
C HEX 1 IN1.250
C HEX 2 IN1.250
OVERALL LENGTH L IN1.940
CENTERLINE LENGTH M IN1.940
SHAPE90 DEGREE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
O-RING / SEAL MATERIALNBR
WEIGHT LBS0.756
CALIFORNIA RESIDENTSPROP-65 WARNING

6807-12-12-NWO-SS

$575.04

Attribute: 6807-12-12-NWO-SS (12MAORB-12MAO...)

Stock Status: True

THREAD B1 TYPEMALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE1-1/16-12
THREAD B1 DRILL IN0.609
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEMALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE1-1/16-12
THREAD B2 DRILL IN0.609
THREAD B2 SPECIFICATIONSAE J514
BODY HEX IN1.062
C HEX 1 IN1.250
C HEX 2 IN1.250
OVERALL LENGTH L IN1.940
CENTERLINE LENGTH M IN1.940
SHAPE90 DEGREE
BODY MATERIALSTAINLESS STEEL
RAW MATERIAL TYPESTRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIALNBR
WEIGHT LBS1.0125
CALIFORNIA RESIDENTSPROP-65 WARNING

6807-16-16-NWO-FG

$99.44

Attribute: 6807-16-16-NWO-FG (16MAORB-16MAO...)

Stock Status: True

THREAD B1 TYPEMALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE1-5/16-12
THREAD B1 DRILL IN0.844
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEMALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE1-5/16-12
THREAD B2 DRILL IN0.844
THREAD B2 SPECIFICATIONSAE J514
BODY HEX IN1.312
C HEX 1 IN1.500
C HEX 2 IN1.500
OVERALL LENGTH L IN2.050
CENTERLINE LENGTH M IN2.050
SHAPE90 DEGREE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
O-RING / SEAL MATERIALNBR
WEIGHT LBS1.0925
CALIFORNIA RESIDENTSPROP-65 WARNING

6807-20-20-NWO-FG

$137.63

Attribute: 6807-20-20-NWO-FG (20MAORB-20MAO...)

Stock Status: True

THREAD B1 TYPEMALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE1-5/8-12
THREAD B1 DRILL IN1.078
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEMALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE1-5/8-12
THREAD B2 DRILL IN1.078
THREAD B2 SPECIFICATIONSAE J514
BODY HEX IN1.625
C HEX 1 IN1.875
C HEX 2 IN1.875
OVERALL LENGTH L IN2.250
CENTERLINE LENGTH M IN2.250
SHAPE90 DEGREE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
O-RING / SEAL MATERIALNBR
WEIGHT LBS1.7562
CALIFORNIA RESIDENTSPROP-65 WARNING

6807-24-24-NWO-FG

$219.84

Attribute: 6807-24-24-NWO-FG (24MAORB-24MAO...)

Stock Status: True

THREAD B1 TYPEMALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE1-7/8-12
THREAD B1 DRILL IN1.312
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEMALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE1-7/8-12
THREAD B2 DRILL IN1.312
THREAD B2 SPECIFICATIONSAE J514
BODY HEX IN1.875
C HEX 1 IN2.125
C HEX 2 IN2.125
OVERALL LENGTH L IN2.390
CENTERLINE LENGTH M IN2.390
SHAPE90 DEGREE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
O-RING / SEAL MATERIALNBR
WEIGHT LBS2.375
CALIFORNIA RESIDENTSPROP-65 WARNING

6807-32-32-NWO-FG

$586.60

Attribute: 6807-32-32-NWO-FG (32MAORB-32MAO...)

Stock Status: True

THREAD B1 TYPEMALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE2-1/2-12
THREAD B1 DRILL IN1.781
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEMALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE2-1/2-12
THREAD B2 DRILL IN1.781
THREAD B2 SPECIFICATIONSAE J514
BODY HEX IN2.500
C HEX 1 IN2.750
C HEX 2 IN2.750
OVERALL LENGTH L IN2.890
CENTERLINE LENGTH M IN2.890
SHAPE90 DEGREE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
O-RING / SEAL MATERIALNBR
WEIGHT LBS4.6625
CALIFORNIA RESIDENTSPROP-65 WARNING

6807-32-32-NWO-SS

$1,677.13

Attribute: 6807-32-32-NWO-SS (32MAORB-32MAO...)

Stock Status: True

THREAD B1 TYPEMALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE2-1/2-12
THREAD B1 DRILL IN1.781
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEMALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE2-1/2-12
THREAD B2 DRILL IN1.781
THREAD B2 SPECIFICATIONSAE J514
BODY HEX IN2.500
C HEX 1 IN2.750
C HEX 2 IN2.750
OVERALL LENGTH L IN2.890
CENTERLINE LENGTH M IN2.890
SHAPE90 DEGREE
BODY MATERIALSTAINLESS STEEL
RAW MATERIAL TYPESTRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIALNBR
CALIFORNIA RESIDENTSPROP-65 WARNING

General Attributes

Connections ORB
Shape Elbow
