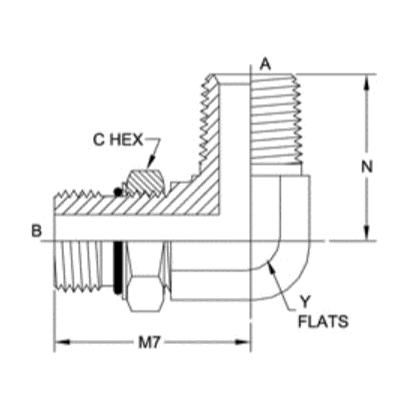

6806-NWO-FG

6806-04-02-NWO-FG

$16.15

Attribute: 6806-04-02-NWO-FG (04MAORB-02MP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
C HEX 1 IN	0.563
OVERALL LENGTH L IN	0.780
CENTERLINE LENGTH M IN	1.030
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.0687
CALIFORNIA RESIDENTS	PROP-65 WARNING

6806-04-04-NWO-FG

$17.09

Attribute: 6806-04-04-NWO-FG (04MAORB-04MP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
C HEX 1 IN	0.562
OVERALL LENGTH L IN	1.090
CENTERLINE LENGTH M IN	1.190
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1125
CALIFORNIA RESIDENTS	PROP-65 WARNING

6806-04-04-NWO-SS

$120.55

Attribute: 6806-04-04-NWO-SS (04MAORB-04MP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
C HEX 1 IN	0.562
OVERALL LENGTH L IN	1.090
CENTERLINE LENGTH M IN	1.190
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.2
CALIFORNIA RESIDENTS	PROP-65 WARNING

6806-05-02-NWO-FG

$13.93

Attribute: 6806-05-02-NWO-FG (05MAORB-02MP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
C HEX 1 IN	0.625
OVERALL LENGTH L IN	0.780
CENTERLINE LENGTH M IN	1.130
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1
CALIFORNIA RESIDENTS	PROP-65 WARNING

6806-06-04-NWO-FG

$13.69

Attribute: 6806-06-04-NWO-FG (06MAORB-04MP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.090
CENTERLINE LENGTH M IN	1.250
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.125
CALIFORNIA RESIDENTS	PROP-65 WARNING

6806-06-04-NWO-SS

$197.65

Attribute: 6806-06-04-NWO-SS (06MAORB-04MP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.090
CENTERLINE LENGTH M IN	1.250
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.2625
CALIFORNIA RESIDENTS	PROP-65 WARNING

6806-06-06-NWO-FG

$22.40

Attribute: 6806-06-06-NWO-FG (06MAORB-06MP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.220
CENTERLINE LENGTH M IN	1.320
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.192
CALIFORNIA RESIDENTS	PROP-65 WARNING

6806-08-06-NWO-FG

$23.97

Attribute: 6806-08-06-NWO-FG (08MAORB-06MP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.220
CENTERLINE LENGTH M IN	1.450
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.2375
CALIFORNIA RESIDENTS	PROP-65 WARNING

6806-08-06-NWO-SS

$257.78

Attribute: 6806-08-06-NWO-SS (08MAORB-06MP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.220
CENTERLINE LENGTH M IN	1.450
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.2375
CALIFORNIA RESIDENTS	PROP-65 WARNING

6806-08-08-NWO-FG

$28.45

Attribute: 6806-08-08-NWO-FG (08MAORB-08MP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.470
CENTERLINE LENGTH M IN	1.540
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.3125
CALIFORNIA RESIDENTS	PROP-65 WARNING

6806-08-08-NWO-SS

$260.00

Attribute: 6806-08-08-NWO-SS (08MAORB-08MP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.470
CENTERLINE LENGTH M IN	1.540
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.7875
CALIFORNIA RESIDENTS	PROP-65 WARNING

6806-10-08-NWO-FG

$29.49

Attribute: 6806-10-08-NWO-FG (10MAORB-08MP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.470
CENTERLINE LENGTH M IN	1.700
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.3562
CALIFORNIA RESIDENTS	PROP-65 WARNING

6806-10-08-NWO-SS

$185.92

Attribute: 6806-10-08-NWO-SS (10MAORB-08MP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.470
CENTERLINE LENGTH M IN	1.700
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.3297
CALIFORNIA RESIDENTS	PROP-65 WARNING

6806-12-12-NWO-FG

$43.07

Attribute: 6806-12-12-NWO-FG (12MAORB-12MP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.590
CENTERLINE LENGTH M IN	1.940
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.5687
CALIFORNIA RESIDENTS	PROP-65 WARNING

6806-12-12-NWO-SS

$616.14

Attribute: 6806-12-12-NWO-SS (12MAORB-12MP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.590
CENTERLINE LENGTH M IN	1.940
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.375
CALIFORNIA RESIDENTS	PROP-65 WARNING

6806-12-16-NWO-FG

$80.97

Attribute: 6806-12-16-NWO-FG (12MAORB-16MP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.312
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.970
CENTERLINE LENGTH M IN	2.050
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.8562
CALIFORNIA RESIDENTS	PROP-65 WARNING

6806-14-12-NWO-FG

$63.94

Attribute: 6806-14-12-NWO-FG (14MAORB-12MP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-3/16-12
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.312
C HEX 1 IN	1.375
OVERALL LENGTH L IN	1.690
CENTERLINE LENGTH M IN	2.000
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.8312
CALIFORNIA RESIDENTS	PROP-65 WARNING

6806-16-12-NWO-FG

$66.01

Attribute: 6806-16-12-NWO-FG (16MAORB-12MP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.312
C HEX 1 IN	1.500
OVERALL LENGTH L IN	1.780
CENTERLINE LENGTH M IN	2.050
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.875
CALIFORNIA RESIDENTS	PROP-65 WARNING

6806-16-16-NWO-FG

$68.18

Attribute: 6806-16-16-NWO-FG (16MAORB-16MP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.312
C HEX 1 IN	1.500
OVERALL LENGTH L IN	1.970
CENTERLINE LENGTH M IN	2.050
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.8875
CALIFORNIA RESIDENTS	PROP-65 WARNING

6806-20-20-NWO-FG

$112.57

Attribute: 6806-20-20-NWO-FG (20MAORB-20MP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.250
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.625
C HEX 1 IN	1.875
OVERALL LENGTH L IN	2.380
CENTERLINE LENGTH M IN	2.250
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.4875
CALIFORNIA RESIDENTS	PROP-65 WARNING

6806-20-24-NWO-FG

$164.65

Attribute: 6806-20-24-NWO-FG (20MAORB-24MP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.500
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.875
C HEX 1 IN	1.875
OVERALL LENGTH L IN	2.640
CENTERLINE LENGTH M IN	2.390
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.9625
CALIFORNIA RESIDENTS	PROP-65 WARNING

6806-24-24-NWO-FG

$157.71

Attribute: 6806-24-24-NWO-FG (24MAORB-24MP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.500
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.875
C HEX 1 IN	2.125
OVERALL LENGTH L IN	2.640
CENTERLINE LENGTH M IN	2.390
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	2.25
CALIFORNIA RESIDENTS	PROP-65 WARNING

6806-32-32-NWO-FG

$367.61

Attribute: 6806-32-32-NWO-FG (32MAORB-32MP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	2-11-1/2
THREAD B2 DRILL IN	1.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.500
C HEX 1 IN	2.750
OVERALL LENGTH L IN	3.000
CENTERLINE LENGTH M IN	2.890
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	4.1
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	NPT, ORB
Shape	Elbow

ID	10146827
Category	Tube Fittings and Adapters

Description

Description

Variations (23)

6806-04-02-NWO-FG

6806-04-04-NWO-FG

6806-04-04-NWO-SS

6806-05-02-NWO-FG

6806-06-04-NWO-FG

6806-06-04-NWO-SS

6806-06-06-NWO-FG

6806-08-06-NWO-FG

6806-08-06-NWO-SS

6806-08-08-NWO-FG

6806-08-08-NWO-SS

6806-10-08-NWO-FG

6806-10-08-NWO-SS

6806-12-12-NWO-FG

6806-12-12-NWO-SS

6806-12-16-NWO-FG

6806-14-12-NWO-FG

6806-16-12-NWO-FG

6806-16-16-NWO-FG

6806-20-20-NWO-FG

6806-20-24-NWO-FG

6806-24-24-NWO-FG

6806-32-32-NWO-FG

General Attributes

PDF Documents
