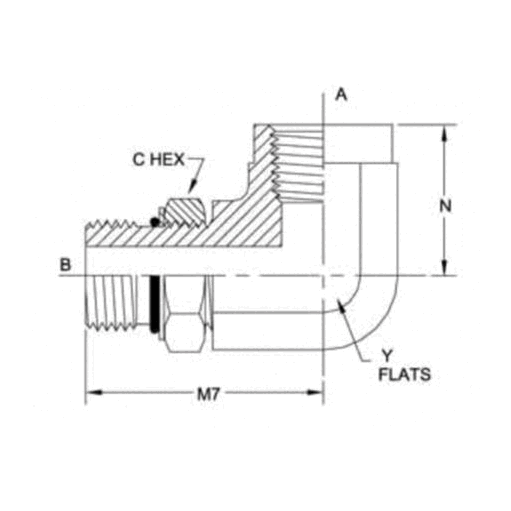

6805-NWO-FG

6805-04-02-NWO-FG

$14.57

Attribute: 6805-04-02-NWO-FG (04MAORB-02FP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
C HEX 1 IN	0.563
OVERALL LENGTH L IN	0.660
CENTERLINE LENGTH M IN	1.190
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.0957
CALIFORNIA RESIDENTS	PROP-65 WARNING

6805-04-02-NWO-SS

$156.38

Attribute: 6805-04-02-NWO-SS (04MAORB-02FP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
C HEX 1 IN	0.563
OVERALL LENGTH L IN	0.660
CENTERLINE LENGTH M IN	1.190
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.2749
CALIFORNIA RESIDENTS	PROP-65 WARNING

6805-04-04-NWO-FG

$15.26

Attribute: 6805-04-04-NWO-FG (04MAORB-04FP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
C HEX 1 IN	0.563
OVERALL LENGTH L IN	0.880
CENTERLINE LENGTH M IN	1.240
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1744
CALIFORNIA RESIDENTS	PROP-65 WARNING

6805-04-04-NWO-SS

$178.71

Attribute: 6805-04-04-NWO-SS (04MAORB-04FP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
C HEX 1 IN	0.563
OVERALL LENGTH L IN	0.880
CENTERLINE LENGTH M IN	1.240
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1757
CALIFORNIA RESIDENTS	PROP-65 WARNING

6805-05-02-NWO-FG

$17.72

Attribute: 6805-05-02-NWO-FG (05MAORB-02FP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
C HEX 1 IN	0.625
OVERALL LENGTH L IN	0.660
CENTERLINE LENGTH M IN	1.190
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1
CALIFORNIA RESIDENTS	PROP-65 WARNING

6805-06-04-NWO-FG

$18.80

Attribute: 6805-06-04-NWO-FG (06MAORB-04FP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
C HEX 1 IN	0.688
OVERALL LENGTH L IN	0.880
CENTERLINE LENGTH M IN	1.320
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.2
CALIFORNIA RESIDENTS	PROP-65 WARNING

6805-06-04-NWO-SS

$169.77

Attribute: 6805-06-04-NWO-SS (06MAORB-04FP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
C HEX 1 IN	0.688
OVERALL LENGTH L IN	0.880
CENTERLINE LENGTH M IN	1.320
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.375
CALIFORNIA RESIDENTS	PROP-65 WARNING

6805-06-06-NWO-FG

$20.63

Attribute: 6805-06-06-NWO-FG (06MAORB-06FP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.020
CENTERLINE LENGTH M IN	1.410
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.2562
CALIFORNIA RESIDENTS	PROP-65 WARNING

6805-06-06-NWO-SS

$227.86

Attribute: 6805-06-06-NWO-SS (06MAORB-06FP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.020
CENTERLINE LENGTH M IN	1.410
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.2527
CALIFORNIA RESIDENTS	PROP-65 WARNING

6805-08-06-NWO-FG

$23.18

Attribute: 6805-08-06-NWO-FG (08MAORB-06FP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.020
CENTERLINE LENGTH M IN	1.540
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.2875
CALIFORNIA RESIDENTS	PROP-65 WARNING

6805-08-06-NWO-SS

$423.92

Attribute: 6805-08-06-NWO-SS (08MAORB-06FP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.020
CENTERLINE LENGTH M IN	1.540
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.7875
CALIFORNIA RESIDENTS	PROP-65 WARNING

6805-08-08-NWO-FG

$29.98

Attribute: 6805-08-08-NWO-FG (08MAORB-08FP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.230
CENTERLINE LENGTH M IN	1.620
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.4312
CALIFORNIA RESIDENTS	PROP-65 WARNING

6805-08-08-NWO-SS

$358.99

Attribute: 6805-08-08-NWO-SS (08MAORB-08FP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.230
CENTERLINE LENGTH M IN	1.620
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.612
CALIFORNIA RESIDENTS	PROP-65 WARNING

6805-10-06-NWO-FG

$34.02

Attribute: 6805-10-06-NWO-FG (10MAORB-06FP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.020
CENTERLINE LENGTH M IN	1.700
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.3403
CALIFORNIA RESIDENTS	PROP-65 WARNING

6805-10-08-NWO-FG

$34.30

Attribute: 6805-10-08-NWO-FG (10MAORB-08FP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.230
CENTERLINE LENGTH M IN	1.780
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.4812
CALIFORNIA RESIDENTS	PROP-65 WARNING

6805-10-08-NWO-SS

$660.15

Attribute: 6805-10-08-NWO-SS (10MAORB-08FP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.230
CENTERLINE LENGTH M IN	1.780
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.4972
CALIFORNIA RESIDENTS	PROP-65 WARNING

6805-12-08-NWO-FG

$51.39

Attribute: 6805-12-08-NWO-FG (12MAORB-08FP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.230
CENTERLINE LENGTH M IN	1.940
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.5606
CALIFORNIA RESIDENTS	PROP-65 WARNING

6805-12-08-NWO-SS

$489.39

Attribute: 6805-12-08-NWO-SS (12MAORB-08FP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.230
CENTERLINE LENGTH M IN	1.940
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.525
CALIFORNIA RESIDENTS	PROP-65 WARNING

6805-12-12-NWO-FG

$47.99

Attribute: 6805-12-12-NWO-FG (12MAORB-12FP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.312
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.100
CENTERLINE LENGTH M IN	2.050
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.7312
CALIFORNIA RESIDENTS	PROP-65 WARNING

6805-12-12-NWO-SS

$602.26

Attribute: 6805-12-12-NWO-SS (12MAORB-12FP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.312
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.100
CENTERLINE LENGTH M IN	2.050
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.7
CALIFORNIA RESIDENTS	PROP-65 WARNING

6805-12-16-NWO-FG

$80.92

Attribute: 6805-12-16-NWO-FG (12MAORB-16FP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.625
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.620
CENTERLINE LENGTH M IN	2.250
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.3312
CALIFORNIA RESIDENTS	PROP-65 WARNING

6805-14-12-NWO-FG

$61.92

Attribute: 6805-14-12-NWO-FG (14MAORB-12FP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-3/16-12
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.312
C HEX 1 IN	1.375
OVERALL LENGTH L IN	1.360
CENTERLINE LENGTH M IN	2.050
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.088
CALIFORNIA RESIDENTS	PROP-65 WARNING

6805-16-12-NWO-FG

$66.89

Attribute: 6805-16-12-NWO-FG (16MAORB-12FP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.312
C HEX 1 IN	1.500
OVERALL LENGTH L IN	1.360
CENTERLINE LENGTH M IN	2.050
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.8348
CALIFORNIA RESIDENTS	PROP-65 WARNING

6805-16-16-NWO-FG

$78.03

Attribute: 6805-16-16-NWO-FG (16MAORB-16FP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.625
C HEX 1 IN	1.500
OVERALL LENGTH L IN	1.620
CENTERLINE LENGTH M IN	2.250
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.3187
CALIFORNIA RESIDENTS	PROP-65 WARNING

6805-16-16-NWO-SS

$820.37

Attribute: 6805-16-16-NWO-SS (16MAORB-16FP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.625
C HEX 1 IN	1.500
OVERALL LENGTH L IN	1.620
CENTERLINE LENGTH M IN	2.250
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.12
CALIFORNIA RESIDENTS	PROP-65 WARNING

6805-20-20-NWO-FG

$108.39

Attribute: 6805-20-20-NWO-FG (20MAORB-20FP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.250
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.875
C HEX 1 IN	1.875
OVERALL LENGTH L IN	1.700
CENTERLINE LENGTH M IN	2.390
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.725
CALIFORNIA RESIDENTS	PROP-65 WARNING

6805-20-20-NWO-SS

$873.87

Attribute: 6805-20-20-NWO-SS (20MAORB-20FP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.250
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.875
C HEX 1 IN	1.875
OVERALL LENGTH L IN	1.700
CENTERLINE LENGTH M IN	2.390
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.141
CALIFORNIA RESIDENTS	PROP-65 WARNING

6805-24-20-NWO-FG

$178.92

Attribute: 6805-24-20-NWO-FG (24MAORB-20FP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.250
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.875
C HEX 1 IN	2.125
OVERALL LENGTH L IN	1.700
CENTERLINE LENGTH M IN	2.390
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

6805-24-24-NWO-FG

$244.06

Attribute: 6805-24-24-NWO-FG (24MAORB-24FP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.500
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.562
C HEX 1 IN	2.125
OVERALL LENGTH L IN	2.080
CENTERLINE LENGTH M IN	2.890
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	4.415
CALIFORNIA RESIDENTS	PROP-65 WARNING

6805-32-32-NWO-FG

$381.34

Attribute: 6805-32-32-NWO-FG (32MAORB-32FP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM
THREAD B2 SIZE	2-11-1/2
THREAD B2 DRILL IN	1.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.812
C HEX 1 IN	2.750
OVERALL LENGTH L IN	2.390
CENTERLINE LENGTH M IN	3.020
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	6.0375
CALIFORNIA RESIDENTS	PROP-65 WARNING

6805-32-32-NWO-SS

$2,954.93

Attribute: 6805-32-32-NWO-SS (32MAORB-32FP ...)

Stock Status: True

THREAD B1 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE NPSM
THREAD B2 SIZE	2-11-1/2
THREAD B2 DRILL IN	1.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.812
C HEX 1 IN	2.750
OVERALL LENGTH L IN	2.390
CENTERLINE LENGTH M IN	3.020
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.19
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	NPT, ORB
Shape	Elbow

ID	10146792
Category	Tube Fittings and Adapters

Description

Description

Variations (31)

6805-04-02-NWO-FG

6805-04-02-NWO-SS

6805-04-04-NWO-FG

6805-04-04-NWO-SS

6805-05-02-NWO-FG

6805-06-04-NWO-FG

6805-06-04-NWO-SS

6805-06-06-NWO-FG

6805-06-06-NWO-SS

6805-08-06-NWO-FG

6805-08-06-NWO-SS

6805-08-08-NWO-FG

6805-08-08-NWO-SS

6805-10-06-NWO-FG

6805-10-08-NWO-FG

6805-10-08-NWO-SS

6805-12-08-NWO-FG

6805-12-08-NWO-SS

6805-12-12-NWO-FG

6805-12-12-NWO-SS

6805-12-16-NWO-FG

6805-14-12-NWO-FG

6805-16-12-NWO-FG

6805-16-16-NWO-FG

6805-16-16-NWO-SS

6805-20-20-NWO-FG

6805-20-20-NWO-SS

6805-24-20-NWO-FG

6805-24-24-NWO-FG

6805-32-32-NWO-FG

6805-32-32-NWO-SS

General Attributes

PDF Documents
