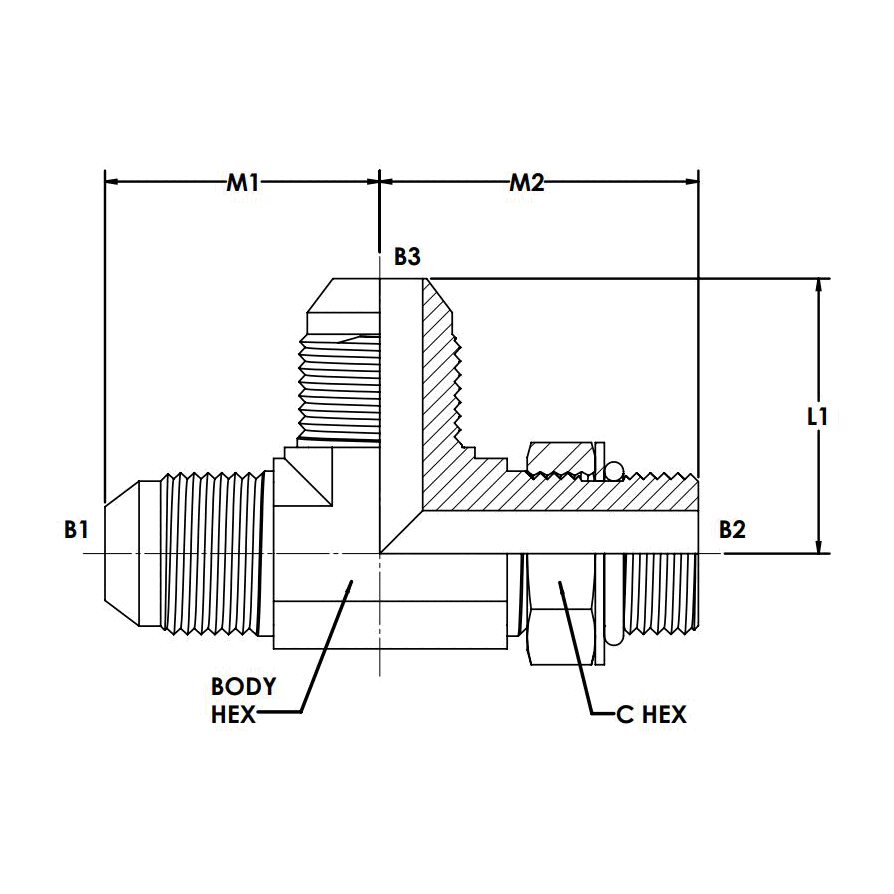

6804-NWO-FG

6804-02-02-02-NWO-SS

$97.96

Attribute: 6804-02-02-02-NWO-SS (02MJ-02MAO...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	5/16-24
THREAD B1 DRILL IN	0.062
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	5/16-24
THREAD B2 DRILL IN	0.062
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	5/16-24
THREAD 3 DRILL IN	0.062
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.438
C HEX 1 IN	0.438
OVERALL LENGTH L IN	0.770
CENTERLINE LENGTH M IN	0.770
CENTERLINE LENGTH M2 IN	0.940
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.15
CALIFORNIA RESIDENTS	PROP-65 WARNING

6804-02-04-02-NWO-FG

$236.32

Attribute: 6804-02-04-02-NWO-FG (02MJ-04MAO...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	5/16-24
THREAD B1 DRILL IN	0.062
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	5/16-24
THREAD 3 DRILL IN	0.062
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.438
C HEX 1 IN	0.563
OVERALL LENGTH L IN	0.890
CENTERLINE LENGTH M IN	0.890
CENTERLINE LENGTH M2 IN	1.030
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.075
CALIFORNIA RESIDENTS	PROP-65 WARNING

6804-02-04-02-NWO-SS

$221.46

Attribute: 6804-02-04-02-NWO-SS (02MJ-04MAO...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	5/16-24
THREAD B1 DRILL IN	0.062
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	5/16-24
THREAD 3 DRILL IN	0.062
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.438
C HEX 1 IN	0.563
OVERALL LENGTH L IN	0.890
CENTERLINE LENGTH M IN	0.890
CENTERLINE LENGTH M2 IN	1.030
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.2062
CALIFORNIA RESIDENTS	PROP-65 WARNING

6804-04-04-04-NWO-FG

$10.48

Attribute: 6804-04-04-04-NWO-FG (04MJ-04MAO...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/16-20
THREAD 3 DRILL IN	0.172
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.438
C HEX 1 IN	0.563
OVERALL LENGTH L IN	0.890
CENTERLINE LENGTH M IN	0.890
CENTERLINE LENGTH M2 IN	1.030
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.0916
CALIFORNIA RESIDENTS	PROP-65 WARNING

6804-04-04-04-NWO-SS

$94.02

Attribute: 6804-04-04-04-NWO-SS (04MJ-04MAO...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/16-20
THREAD 3 DRILL IN	0.172
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.438
C HEX 1 IN	0.563
OVERALL LENGTH L IN	0.890
CENTERLINE LENGTH M IN	0.890
CENTERLINE LENGTH M2 IN	1.030
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.0969
CALIFORNIA RESIDENTS	PROP-65 WARNING

6804-04-06-04-NWO-FG

$23.08

Attribute: 6804-04-06-04-NWO-FG (04MJ-06MAO...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/16-20
THREAD 3 DRILL IN	0.172
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.050
CENTERLINE LENGTH M IN	1.050
CENTERLINE LENGTH M2 IN	1.250
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1635
CALIFORNIA RESIDENTS	PROP-65 WARNING

6804-04-06-04-NWO-SS

$231.51

Attribute: 6804-04-06-04-NWO-SS (04MJ-06MAO...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/16-20
THREAD 3 DRILL IN	0.172
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.050
CENTERLINE LENGTH M IN	1.050
CENTERLINE LENGTH M2 IN	1.250
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

6804-04-06-06-NWO-FG

$23.78

Attribute: 6804-04-06-06-NWO-FG (04MJ-06MAO...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.060
CENTERLINE LENGTH M IN	1.050
CENTERLINE LENGTH M2 IN	1.250
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.15
CALIFORNIA RESIDENTS	PROP-65 WARNING

6804-05-05-05-NWO-FG

$21.51

Attribute: 6804-05-05-05-NWO-FG (05MJ-05MAO...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1/2-20
THREAD B2 DRILL IN	0.234
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1/2-20
THREAD 3 DRILL IN	0.234
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.625
OVERALL LENGTH L IN	0.950
CENTERLINE LENGTH M IN	0.950
CENTERLINE LENGTH M2 IN	1.130
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.125
CALIFORNIA RESIDENTS	PROP-65 WARNING

6804-05-05-05-NWO-SS

$258.75

Attribute: 6804-05-05-05-NWO-SS (05MJ-05MAO...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1/2-20
THREAD B2 DRILL IN	0.234
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1/2-20
THREAD 3 DRILL IN	0.234
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.625
OVERALL LENGTH L IN	0.950
CENTERLINE LENGTH M IN	0.950
CENTERLINE LENGTH M2 IN	1.130
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

6804-06-04-06-NWO-FG

$22.60

Attribute: 6804-06-04-06-NWO-FG (06MJ-04MAO...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.563
OVERALL LENGTH L IN	1.060
CENTERLINE LENGTH M IN	1.060
CENTERLINE LENGTH M2 IN	1.190
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1375
CALIFORNIA RESIDENTS	PROP-65 WARNING

6804-06-04-06-NWO-SS

$332.68

Attribute: 6804-06-04-06-NWO-SS (06MJ-04MAO...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.563
OVERALL LENGTH L IN	1.060
CENTERLINE LENGTH M IN	1.060
CENTERLINE LENGTH M2 IN	1.190
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

6804-06-06-04-NWO-SS

$332.68

Attribute: 6804-06-06-04-NWO-SS (06MJ-06MAO...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/16-20
THREAD 3 DRILL IN	0.172
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.060
CENTERLINE LENGTH M IN	1.060
CENTERLINE LENGTH M2 IN	1.250
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

6804-06-06-06-NWO-FG

$11.22

Attribute: 6804-06-06-06-NWO-FG (06MJ-06MAO...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.060
CENTERLINE LENGTH M IN	1.060
CENTERLINE LENGTH M2 IN	1.250
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1541
CALIFORNIA RESIDENTS	PROP-65 WARNING

6804-06-06-06-NWO-SS

$199.61

Attribute: 6804-06-06-06-NWO-SS (06MJ-06MAO...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.060
CENTERLINE LENGTH M IN	1.060
CENTERLINE LENGTH M2 IN	1.250
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1541
CALIFORNIA RESIDENTS	PROP-65 WARNING

6804-06-08-06-NWO-FG

$19.79

Attribute: 6804-06-08-06-NWO-FG (06MJ-08MAO...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.140
CENTERLINE LENGTH M IN	1.140
CENTERLINE LENGTH M2 IN	1.450
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.2605
CALIFORNIA RESIDENTS	PROP-65 WARNING

6804-06-08-08-NWO-FG

$24.57

Attribute: 6804-06-08-08-NWO-FG (06MJ-08MAO...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/4-16
THREAD 3 DRILL IN	0.391
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.250
CENTERLINE LENGTH M IN	1.140
CENTERLINE LENGTH M2 IN	1.450
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.2875
CALIFORNIA RESIDENTS	PROP-65 WARNING

6804-06-10-10-NWO-FG

$25.84

Attribute: 6804-06-10-10-NWO-FG (06MJ-10MAO...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/8-14
THREAD 3 DRILL IN	0.484
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.450
CENTERLINE LENGTH M IN	1.220
CENTERLINE LENGTH M2 IN	1.700
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.4375
CALIFORNIA RESIDENTS	PROP-65 WARNING

6804-08-06-06-NWO-FG

$31.75

Attribute: 6804-08-06-06-NWO-FG (08MJ-06MAO...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.140
CENTERLINE LENGTH M IN	1.250
CENTERLINE LENGTH M2 IN	1.320
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.2437
CALIFORNIA RESIDENTS	PROP-65 WARNING

6804-08-06-08-NWO-FG

$34.50

Attribute: 6804-08-06-08-NWO-FG (08MJ-06MAO...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/4-16
THREAD 3 DRILL IN	0.391
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.250
CENTERLINE LENGTH M IN	1.250
CENTERLINE LENGTH M2 IN	1.320
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.2946
CALIFORNIA RESIDENTS	PROP-65 WARNING

6804-08-08-04-NWO-FG

$28.75

Attribute: 6804-08-08-04-NWO-FG (08MJ-08MAO...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/16-20
THREAD 3 DRILL IN	0.172
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.120
CENTERLINE LENGTH M IN	1.250
CENTERLINE LENGTH M2 IN	1.450
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.28
CALIFORNIA RESIDENTS	PROP-65 WARNING

6804-08-08-08-NWO-FG

$22.40

Attribute: 6804-08-08-08-NWO-FG (08MJ-08MAO...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/4-16
THREAD 3 DRILL IN	0.391
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.250
CENTERLINE LENGTH M IN	1.250
CENTERLINE LENGTH M2 IN	1.450
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.3
CALIFORNIA RESIDENTS	PROP-65 WARNING

6804-08-08-08-NWO-SS

$239.23

Attribute: 6804-08-08-08-NWO-SS (08MJ-08MAO...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/4-16
THREAD 3 DRILL IN	0.391
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.250
CENTERLINE LENGTH M IN	1.250
CENTERLINE LENGTH M2 IN	1.450
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.3187
CALIFORNIA RESIDENTS	PROP-65 WARNING

6804-08-10-08-NWO-FG

$37.86

Attribute: 6804-08-10-08-NWO-FG (08MJ-10MAO...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/4-16
THREAD 3 DRILL IN	0.391
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.330
CENTERLINE LENGTH M IN	1.330
CENTERLINE LENGTH M2 IN	1.700
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.439
CALIFORNIA RESIDENTS	PROP-65 WARNING

6804-08-12-04-NWO-FG

$47.51

Attribute: 6804-08-12-04-NWO-FG (08MJ-12MAO...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/16-20
THREAD 3 DRILL IN	0.172
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.300
CENTERLINE LENGTH M IN	1.420
CENTERLINE LENGTH M2 IN	1.940
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.6625
CALIFORNIA RESIDENTS	PROP-65 WARNING

6804-08-12-08-NWO-FG

$59.86

Attribute: 6804-08-12-08-NWO-FG (08MJ-12MAO...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/4-16
THREAD 3 DRILL IN	0.391
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.420
CENTERLINE LENGTH M IN	1.420
CENTERLINE LENGTH M2 IN	1.940
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.6611
CALIFORNIA RESIDENTS	PROP-65 WARNING

6804-10-08-10-NWO-FG

$54.05

Attribute: 6804-10-08-10-NWO-FG (10MJ-08MAO...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/8-14
THREAD 3 DRILL IN	0.484
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.450
CENTERLINE LENGTH M IN	1.450
CENTERLINE LENGTH M2 IN	1.540
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.425
CALIFORNIA RESIDENTS	PROP-65 WARNING

6804-10-10-10-NWO-FG

$33.13

Attribute: 6804-10-10-10-NWO-FG (10MJ-10MAO...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/8-14
THREAD 3 DRILL IN	0.484
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.450
CENTERLINE LENGTH M IN	1.450
CENTERLINE LENGTH M2 IN	1.700
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.475
CALIFORNIA RESIDENTS	PROP-65 WARNING

6804-10-10-10-NWO-SS

$441.54

Attribute: 6804-10-10-10-NWO-SS (10MJ-10MAO...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/8-14
THREAD 3 DRILL IN	0.484
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.450
CENTERLINE LENGTH M IN	1.450
CENTERLINE LENGTH M2 IN	1.700
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.484
CALIFORNIA RESIDENTS	PROP-65 WARNING

6804-10-12-10-NWO-FG

$63.25

Attribute: 6804-10-12-10-NWO-FG (10MJ-12MAO...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/8-14
THREAD 3 DRILL IN	0.484
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.540
CENTERLINE LENGTH M IN	1.540
CENTERLINE LENGTH M2 IN	1.940
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.6937
CALIFORNIA RESIDENTS	PROP-65 WARNING

6804-12-08-12-NWO-FG

$64.82

Attribute: 6804-12-08-12-NWO-FG (12MJ-08MAO...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-1/16-12
THREAD 3 DRILL IN	0.609
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.660
CENTERLINE LENGTH M IN	1.660
CENTERLINE LENGTH M2 IN	1.620
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.6187
CALIFORNIA RESIDENTS	PROP-65 WARNING

6804-12-10-12-NWO-FG

$79.05

Attribute: 6804-12-10-12-NWO-FG (12MJ-10MAO...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-1/16-12
THREAD 3 DRILL IN	0.609
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.660
CENTERLINE LENGTH M IN	1.660
CENTERLINE LENGTH M2 IN	1.780
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.7187
CALIFORNIA RESIDENTS	PROP-65 WARNING

6804-12-12-06-NWO-FG

$90.23

Attribute: 6804-12-12-06-NWO-FG (12MJ-12MAO...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.660
CENTERLINE LENGTH M IN	1.660
CENTERLINE LENGTH M2 IN	1.940
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.6812
CALIFORNIA RESIDENTS	PROP-65 WARNING

6804-12-12-08-NWO-FG

$49.48

Attribute: 6804-12-12-08-NWO-FG (12MJ-12MAO...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/4-16
THREAD 3 DRILL IN	0.391
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.420
CENTERLINE LENGTH M IN	1.660
CENTERLINE LENGTH M2 IN	1.940
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.7187
CALIFORNIA RESIDENTS	PROP-65 WARNING

6804-12-12-10-NWO-FG

$73.79

Attribute: 6804-12-12-10-NWO-FG (12MJ-12MAO...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/8-14
THREAD 3 DRILL IN	0.484
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.540
CENTERLINE LENGTH M IN	1.660
CENTERLINE LENGTH M2 IN	1.940
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.7187
CALIFORNIA RESIDENTS	PROP-65 WARNING

6804-12-12-12-NWO-FG

$42.97

Attribute: 6804-12-12-12-NWO-FG (12MJ-12MAO...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-1/16-12
THREAD 3 DRILL IN	0.609
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.660
CENTERLINE LENGTH M IN	1.660
CENTERLINE LENGTH M2 IN	1.940
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.75
CALIFORNIA RESIDENTS	PROP-65 WARNING

6804-12-12-12-NWO-SS

$511.19

Attribute: 6804-12-12-12-NWO-SS (12MJ-12MAO...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-1/16-12
THREAD 3 DRILL IN	0.609
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.660
CENTERLINE LENGTH M IN	1.660
CENTERLINE LENGTH M2 IN	1.940
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.7937
CALIFORNIA RESIDENTS	PROP-65 WARNING

6804-12-12-16-NWO-FG

$111.83

Attribute: 6804-12-12-16-NWO-FG (12MJ-12MAO...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-5/16-12
THREAD 3 DRILL IN	0.844
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.312
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.760
CENTERLINE LENGTH M IN	1.760
CENTERLINE LENGTH M2 IN	2.050
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.0437
CALIFORNIA RESIDENTS	PROP-65 WARNING

6804-12-16-12-NWO-FG

$89.53

Attribute: 6804-12-16-12-NWO-FG (12MJ-16MAO...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-1/16-12
THREAD 3 DRILL IN	0.609
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.312
C HEX 1 IN	1.500
OVERALL LENGTH L IN	1.760
CENTERLINE LENGTH M IN	1.760
CENTERLINE LENGTH M2 IN	2.050
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.0812
CALIFORNIA RESIDENTS	PROP-65 WARNING

6804-12-16-12-NWO-SS

$611.61

Attribute: 6804-12-16-12-NWO-SS (12MJ-16MAO...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-1/16-12
THREAD 3 DRILL IN	0.609
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.312
C HEX 1 IN	1.500
OVERALL LENGTH L IN	1.760
CENTERLINE LENGTH M IN	1.760
CENTERLINE LENGTH M2 IN	2.050
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.0687
CALIFORNIA RESIDENTS	PROP-65 WARNING

6804-14-14-14-NWO-FG

$81.17

Attribute: 6804-14-14-14-NWO-FG (14MJ-14MAO...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-3/16-12
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-3/16-12
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-3/16-12
THREAD 3 DRILL IN	0.719
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.312
C HEX 1 IN	1.375
OVERALL LENGTH L IN	1.800
CENTERLINE LENGTH M IN	1.800
CENTERLINE LENGTH M2 IN	2.000
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.0687
CALIFORNIA RESIDENTS	PROP-65 WARNING

6804-16-12-16-NWO-FG

$105.68

Attribute: 6804-16-12-16-NWO-FG (16MJ-12MAO...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-5/16-12
THREAD 3 DRILL IN	0.844
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.312
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.810
CENTERLINE LENGTH M IN	1.810
CENTERLINE LENGTH M2 IN	2.050
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.05
CALIFORNIA RESIDENTS	PROP-65 WARNING

6804-16-16-12-NWO-FG

$121.88

Attribute: 6804-16-16-12-NWO-FG (16MJ-16MAO...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-1/16-12
THREAD 3 DRILL IN	0.609
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.312
C HEX 1 IN	1.500
OVERALL LENGTH L IN	1.760
CENTERLINE LENGTH M IN	1.810
CENTERLINE LENGTH M2 IN	2.050
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.0687
CALIFORNIA RESIDENTS	PROP-65 WARNING

6804-16-16-16-NWO-FG

$57.54

Attribute: 6804-16-16-16-NWO-FG (16MJ-16MAO...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-5/16-12
THREAD 3 DRILL IN	0.844
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.312
C HEX 1 IN	1.500
OVERALL LENGTH L IN	1.810
CENTERLINE LENGTH M IN	1.810
CENTERLINE LENGTH M2 IN	2.050
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.0875
CALIFORNIA RESIDENTS	PROP-65 WARNING

6804-16-16-16-NWO-SS

$689.44

Attribute: 6804-16-16-16-NWO-SS (16MJ-16MAO...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-5/16-12
THREAD 3 DRILL IN	0.844
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.312
C HEX 1 IN	1.500
OVERALL LENGTH L IN	1.810
CENTERLINE LENGTH M IN	1.810
CENTERLINE LENGTH M2 IN	2.050
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.145
CALIFORNIA RESIDENTS	PROP-65 WARNING

6804-20-20-20-NWO-FG

$123.25

Attribute: 6804-20-20-20-NWO-FG (20MJ-20MAO...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1 5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1 5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1 5/8-12
THREAD 3 DRILL IN	1.078
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.625
C HEX 1 IN	1.875
OVERALL LENGTH L IN	2.060
CENTERLINE LENGTH M IN	2.060
CENTERLINE LENGTH M2 IN	2.250
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	2
CALIFORNIA RESIDENTS	PROP-65 WARNING

6804-20-20-20-NWO-SS

$1,288.63

Attribute: 6804-20-20-20-NWO-SS (20MJ-20MAO...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1 5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1 5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1 5/8-12
THREAD 3 DRILL IN	1.078
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.625
C HEX 1 IN	1.875
OVERALL LENGTH L IN	2.060
CENTERLINE LENGTH M IN	2.060
CENTERLINE LENGTH M2 IN	2.250
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.12
CALIFORNIA RESIDENTS	PROP-65 WARNING

6804-24-24-24-NWO-FG

$186.36

Attribute: 6804-24-24-24-NWO-FG (24MJ-24MAO...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-7/8-12
THREAD 3 DRILL IN	1.312
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.875
C HEX 1 IN	2.125
OVERALL LENGTH L IN	2.330
CENTERLINE LENGTH M IN	2.330
CENTERLINE LENGTH M2 IN	2.390
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.44
CALIFORNIA RESIDENTS	PROP-65 WARNING

6804-24-24-24-NWO-SS

$1,282.24

Attribute: 6804-24-24-24-NWO-SS (24MJ-24MAO...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-7/8-12
THREAD 3 DRILL IN	1.312
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.875
C HEX 1 IN	2.125
OVERALL LENGTH L IN	2.330
CENTERLINE LENGTH M IN	2.330
CENTERLINE LENGTH M2 IN	2.390
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	2.3375
CALIFORNIA RESIDENTS	PROP-65 WARNING

6804-32-32-32-NWO-FG

$374.05

Attribute: 6804-32-32-32-NWO-FG (32MJ-32MAO...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	2-1/2-12
THREAD B2 DRILL IN	1.781
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	2-1/2-12
THREAD 3 DRILL IN	1.781
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	2.500
C HEX 1 IN	2.750
OVERALL LENGTH L IN	3.060
CENTERLINE LENGTH M IN	3.060
CENTERLINE LENGTH M2 IN	2.890
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	5.3
CALIFORNIA RESIDENTS	PROP-65 WARNING

6804-32-32-32-NWO-SS

$2,255.45

Attribute: 6804-32-32-32-NWO-SS (32MJ-32MAO...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	2-1/2-12
THREAD B2 DRILL IN	1.781
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	2-1/2-12
THREAD 3 DRILL IN	1.781
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	2.500
C HEX 1 IN	2.750
OVERALL LENGTH L IN	3.060
CENTERLINE LENGTH M IN	3.060
CENTERLINE LENGTH M2 IN	2.890
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	12.84
CALIFORNIA RESIDENTS	PROP-65 WARNING

Description

Description

Variations (51)

6804-02-02-02-NWO-SS

6804-02-04-02-NWO-FG

6804-02-04-02-NWO-SS

6804-04-04-04-NWO-FG

6804-04-04-04-NWO-SS

6804-04-06-04-NWO-FG

6804-04-06-04-NWO-SS

6804-04-06-06-NWO-FG

6804-05-05-05-NWO-FG

6804-05-05-05-NWO-SS

6804-06-04-06-NWO-FG

6804-06-04-06-NWO-SS

6804-06-06-04-NWO-SS

6804-06-06-06-NWO-FG

6804-06-06-06-NWO-SS

6804-06-08-06-NWO-FG

6804-06-08-08-NWO-FG

6804-06-10-10-NWO-FG

6804-08-06-06-NWO-FG

6804-08-06-08-NWO-FG

6804-08-08-04-NWO-FG

6804-08-08-08-NWO-FG

6804-08-08-08-NWO-SS

6804-08-10-08-NWO-FG

6804-08-12-04-NWO-FG

6804-08-12-08-NWO-FG

6804-10-08-10-NWO-FG

6804-10-10-10-NWO-FG

6804-10-10-10-NWO-SS

6804-10-12-10-NWO-FG

6804-12-08-12-NWO-FG

6804-12-10-12-NWO-FG

6804-12-12-06-NWO-FG

6804-12-12-08-NWO-FG

6804-12-12-10-NWO-FG

6804-12-12-12-NWO-FG

6804-12-12-12-NWO-SS

6804-12-12-16-NWO-FG

6804-12-16-12-NWO-FG

6804-12-16-12-NWO-SS

6804-14-14-14-NWO-FG

6804-16-12-16-NWO-FG

6804-16-16-12-NWO-FG

6804-16-16-16-NWO-FG

6804-16-16-16-NWO-SS

6804-20-20-20-NWO-FG

6804-20-20-20-NWO-SS

6804-24-24-24-NWO-FG

6804-24-24-24-NWO-SS

6804-32-32-32-NWO-FG

6804-32-32-32-NWO-SS

General Attributes

PDF Documents
