6803-NWO-FG

6803-02-02-02-NWO-SS

$510.67

Attribute: 6803-02-02-02-NWO-SS (02MJ-02MJ-...)

Stock Status: True

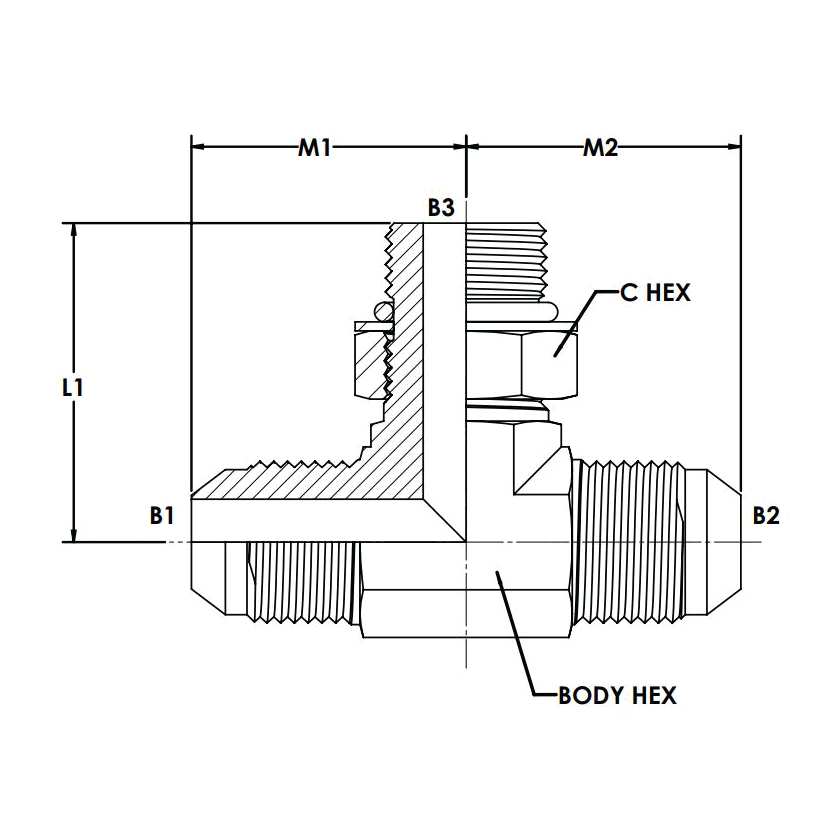

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	5/16-24
THREAD B1 DRILL IN	0.062
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	5/16-24
THREAD B2 DRILL IN	0.062
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD 3 SIZE	5/16-24
THREAD 3 DRILL IN	0.062
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.438
C HEX 1 IN	0.438
OVERALL LENGTH L IN	0.940
CENTERLINE LENGTH M IN	0.770
CENTERLINE LENGTH M2 IN	0.770
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.15
CALIFORNIA RESIDENTS	PROP-65 WARNING

6803-04-04-04-NWO-FG

$13.25

Attribute: 6803-04-04-04-NWO-FG (04MJ-04MJ-...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD 3 SIZE	7/16-20
THREAD 3 DRILL IN	0.172
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.438
C HEX 1 IN	0.563
OVERALL LENGTH L IN	1.030
CENTERLINE LENGTH M IN	0.890
CENTERLINE LENGTH M2 IN	0.890
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.0883
CALIFORNIA RESIDENTS	PROP-65 WARNING

6803-04-04-04-NWO-SS

$114.06

Attribute: 6803-04-04-04-NWO-SS (04MJ-04MJ-...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD 3 SIZE	7/16-20
THREAD 3 DRILL IN	0.172
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.438
C HEX 1 IN	0.563
OVERALL LENGTH L IN	1.030
CENTERLINE LENGTH M IN	0.890
CENTERLINE LENGTH M2 IN	0.890
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.0933
CALIFORNIA RESIDENTS	PROP-65 WARNING

6803-04-04-06-NWO-FG

$23.08

Attribute: 6803-04-04-06-NWO-FG (04MJ-04MJ-...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.250
CENTERLINE LENGTH M IN	1.050
CENTERLINE LENGTH M2 IN	1.050
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1471
CALIFORNIA RESIDENTS	PROP-65 WARNING

6803-04-04-06-NWO-SS

$254.88

Attribute: 6803-04-04-06-NWO-SS (04MJ-04MJ-...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.250
CENTERLINE LENGTH M IN	1.050
CENTERLINE LENGTH M2 IN	1.050
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.139
CALIFORNIA RESIDENTS	PROP-65 WARNING

6803-05-05-05-NWO-FG

$21.51

Attribute: 6803-05-05-05-NWO-FG (05MJ-05MJ-...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1/2-20
THREAD B2 DRILL IN	0.234
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD 3 SIZE	1/2-20
THREAD 3 DRILL IN	0.234
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.625
OVERALL LENGTH L IN	1.130
CENTERLINE LENGTH M IN	0.950
CENTERLINE LENGTH M2 IN	0.950
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1312
CALIFORNIA RESIDENTS	PROP-65 WARNING

6803-05-05-05-NWO-SS

$258.75

Attribute: 6803-05-05-05-NWO-SS (05MJ-05MJ-...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1/2-20
THREAD B2 DRILL IN	0.234
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD 3 SIZE	1/2-20
THREAD 3 DRILL IN	0.234
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.625
OVERALL LENGTH L IN	1.130
CENTERLINE LENGTH M IN	0.950
CENTERLINE LENGTH M2 IN	0.950
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

6803-06-06-04-NWO-FG

$22.60

Attribute: 6803-06-06-04-NWO-FG (06MJ-06MJ-...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD 3 SIZE	7/16-20
THREAD 3 DRILL IN	0.172
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.563
OVERALL LENGTH L IN	1.190
CENTERLINE LENGTH M IN	1.060
CENTERLINE LENGTH M2 IN	1.060
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1437
CALIFORNIA RESIDENTS	PROP-65 WARNING

6803-06-06-06-NWO-FG

$14.72

Attribute: 6803-06-06-06-NWO-FG (06MJ-06MJ-...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.250
CENTERLINE LENGTH M IN	1.060
CENTERLINE LENGTH M2 IN	1.060
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1532
CALIFORNIA RESIDENTS	PROP-65 WARNING

6803-06-06-06-NWO-SS

$214.13

Attribute: 6803-06-06-06-NWO-SS (06MJ-06MJ-...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.250
CENTERLINE LENGTH M IN	1.060
CENTERLINE LENGTH M2 IN	1.060
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1437
CALIFORNIA RESIDENTS	PROP-65 WARNING

6803-06-06-08-NWO-FG

$26.82

Attribute: 6803-06-06-08-NWO-FG (06MJ-06MJ-...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD 3 SIZE	3/4-16
THREAD 3 DRILL IN	0.391
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.450
CENTERLINE LENGTH M IN	1.140
CENTERLINE LENGTH M2 IN	1.140
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.2625
CALIFORNIA RESIDENTS	PROP-65 WARNING

6803-08-08-06-NWO-FG

$34.50

Attribute: 6803-08-08-06-NWO-FG (08MJ-08MJ-...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.320
CENTERLINE LENGTH M IN	1.250
CENTERLINE LENGTH M2 IN	1.250
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.268
CALIFORNIA RESIDENTS	PROP-65 WARNING

6803-08-08-08-NWO-FG

$20.93

Attribute: 6803-08-08-08-NWO-FG (08MJ-08MJ-...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD 3 SIZE	3/4-16
THREAD 3 DRILL IN	0.391
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.450
CENTERLINE LENGTH M IN	1.250
CENTERLINE LENGTH M2 IN	1.250
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.3
CALIFORNIA RESIDENTS	PROP-65 WARNING

6803-08-08-08-NWO-SS

$203.93

Attribute: 6803-08-08-08-NWO-SS (08MJ-08MJ-...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD 3 SIZE	3/4-16
THREAD 3 DRILL IN	0.391
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.450
CENTERLINE LENGTH M IN	1.250
CENTERLINE LENGTH M2 IN	1.250
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.322
CALIFORNIA RESIDENTS	PROP-65 WARNING

6803-08-08-10-NWO-FG

$35.69

Attribute: 6803-08-08-10-NWO-FG (08MJ-08MJ-...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD 3 SIZE	7/8-14
THREAD 3 DRILL IN	0.484
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.700
CENTERLINE LENGTH M IN	1.330
CENTERLINE LENGTH M2 IN	1.330
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.428
CALIFORNIA RESIDENTS	PROP-65 WARNING

6803-08-08-12-NWO-FG

$60.05

Attribute: 6803-08-08-12-NWO-FG (08MJ-08MJ-...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD 3 SIZE	1-1/16-12
THREAD 3 DRILL IN	0.609
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.940
CENTERLINE LENGTH M IN	1.420
CENTERLINE LENGTH M2 IN	1.420
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.6687
CALIFORNIA RESIDENTS	PROP-65 WARNING

6803-10-10-08-NWO-FG

$46.52

Attribute: 6803-10-10-08-NWO-FG (10MJ-10MJ-...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD 3 SIZE	3/4-16
THREAD 3 DRILL IN	0.391
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.540
CENTERLINE LENGTH M IN	1.450
CENTERLINE LENGTH M2 IN	1.450
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.4312
CALIFORNIA RESIDENTS	PROP-65 WARNING

6803-10-10-10-NWO-FG

$32.53

Attribute: 6803-10-10-10-NWO-FG (10MJ-10MJ-...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD 3 SIZE	7/8-14
THREAD 3 DRILL IN	0.484
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.700
CENTERLINE LENGTH M IN	1.450
CENTERLINE LENGTH M2 IN	1.450
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.466
CALIFORNIA RESIDENTS	PROP-65 WARNING

6803-10-10-10-NWO-SS

$441.54

Attribute: 6803-10-10-10-NWO-SS (10MJ-10MJ-...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD 3 SIZE	7/8-14
THREAD 3 DRILL IN	0.484
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.700
CENTERLINE LENGTH M IN	1.450
CENTERLINE LENGTH M2 IN	1.450
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.484
CALIFORNIA RESIDENTS	PROP-65 WARNING

6803-10-10-12-NWO-FG

$74.43

Attribute: 6803-10-10-12-NWO-FG (10MJ-10MJ-...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD 3 SIZE	1-1/16-12
THREAD 3 DRILL IN	0.609
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.940
CENTERLINE LENGTH M IN	1.540
CENTERLINE LENGTH M2 IN	1.540
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.7125
CALIFORNIA RESIDENTS	PROP-65 WARNING

6803-10-10-16-NWO-FG

$105.59

Attribute: 6803-10-10-16-NWO-FG (10MJ-10MJ-...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD 3 SIZE	1-5/16-12
THREAD 3 DRILL IN	0.844
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.312
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.050
CENTERLINE LENGTH M IN	1.640
CENTERLINE LENGTH M2 IN	1.640
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.9625
CALIFORNIA RESIDENTS	PROP-65 WARNING

6803-12-12-08-NWO-FG

$56.56

Attribute: 6803-12-12-08-NWO-FG (12MJ-12MJ-...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD 3 SIZE	3/4-16
THREAD 3 DRILL IN	0.391
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.620
CENTERLINE LENGTH M IN	1.660
CENTERLINE LENGTH M2 IN	1.660
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.6562
CALIFORNIA RESIDENTS	PROP-65 WARNING

6803-12-12-10-NWO-FG

$62.41

Attribute: 6803-12-12-10-NWO-FG (12MJ-12MJ-...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD 3 SIZE	7/8-14
THREAD 3 DRILL IN	0.484
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.780
CENTERLINE LENGTH M IN	1.660
CENTERLINE LENGTH M2 IN	1.660
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.6875
CALIFORNIA RESIDENTS	PROP-65 WARNING

6803-12-12-10-NWO-SS

$656.12

Attribute: 6803-12-12-10-NWO-SS (12MJ-12MJ-...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD 3 SIZE	7/8-14
THREAD 3 DRILL IN	0.484
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.780
CENTERLINE LENGTH M IN	1.660
CENTERLINE LENGTH M2 IN	1.660
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

6803-12-12-12-NWO-FG

$40.71

Attribute: 6803-12-12-12-NWO-FG (12MJ-12MJ-...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD 3 SIZE	1-1/16-12
THREAD 3 DRILL IN	0.609
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.940
CENTERLINE LENGTH M IN	1.660
CENTERLINE LENGTH M2 IN	1.660
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.75
CALIFORNIA RESIDENTS	PROP-65 WARNING

6803-12-12-12-NWO-SS

$461.04

Attribute: 6803-12-12-12-NWO-SS (12MJ-12MJ-...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD 3 SIZE	1-1/16-12
THREAD 3 DRILL IN	0.609
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.940
CENTERLINE LENGTH M IN	1.660
CENTERLINE LENGTH M2 IN	1.660
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.0187
CALIFORNIA RESIDENTS	PROP-65 WARNING

6803-12-12-16-NWO-FG

$66.25

Attribute: 6803-12-12-16-NWO-FG (12MJ-12MJ-...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD 3 SIZE	1-5/16-12
THREAD 3 DRILL IN	0.844
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.312
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.050
CENTERLINE LENGTH M IN	1.760
CENTERLINE LENGTH M2 IN	1.760
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.0625
CALIFORNIA RESIDENTS	PROP-65 WARNING

6803-14-14-14-NWO-FG

$92.49

Attribute: 6803-14-14-14-NWO-FG (14MJ-14MJ-...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-3/16-12
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-3/16-12
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD 3 SIZE	1-3/16-12
THREAD 3 DRILL IN	0.719
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.312
C HEX 1 IN	1.375
OVERALL LENGTH L IN	2.000
CENTERLINE LENGTH M IN	1.800
CENTERLINE LENGTH M2 IN	1.800
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.0687
CALIFORNIA RESIDENTS	PROP-65 WARNING

6803-16-12-16-NWO-FG

$181.09

Attribute: 6803-16-12-16-NWO-FG (16MJ-12MJ-...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD 3 SIZE	1-5/16-12
THREAD 3 DRILL IN	0.844
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.312
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.050
CENTERLINE LENGTH M IN	1.810
CENTERLINE LENGTH M2 IN	1.760
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1
CALIFORNIA RESIDENTS	PROP-65 WARNING

6803-16-16-12-NWO-FG

$86.93

Attribute: 6803-16-16-12-NWO-FG (16MJ-16MJ-...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD 3 SIZE	1-1/16-12
THREAD 3 DRILL IN	0.609
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.312
C HEX 1 IN	1.250
OVERALL LENGTH L IN	2.050
CENTERLINE LENGTH M IN	1.810
CENTERLINE LENGTH M2 IN	1.810
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.1125
CALIFORNIA RESIDENTS	PROP-65 WARNING

6803-16-16-16-NWO-FG

$56.56

Attribute: 6803-16-16-16-NWO-FG (16MJ-16MJ-...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD 3 SIZE	1-5/16-12
THREAD 3 DRILL IN	0.844
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.312
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.050
CENTERLINE LENGTH M IN	1.810
CENTERLINE LENGTH M2 IN	1.810
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.0875
CALIFORNIA RESIDENTS	PROP-65 WARNING

6803-16-16-16-NWO-SS

$632.04

Attribute: 6803-16-16-16-NWO-SS (16MJ-16MJ-...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD 3 SIZE	1-5/16-12
THREAD 3 DRILL IN	0.844
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.312
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.050
CENTERLINE LENGTH M IN	1.810
CENTERLINE LENGTH M2 IN	1.810
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.175
CALIFORNIA RESIDENTS	PROP-65 WARNING

6803-20-20-20-NWO-FG

$162.83

Attribute: 6803-20-20-20-NWO-FG (20MJ-20MJ-...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD 3 SIZE	1-5/8-12
THREAD 3 DRILL IN	1.078
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.625
C HEX 1 IN	1.875
OVERALL LENGTH L IN	2.250
CENTERLINE LENGTH M IN	2.060
CENTERLINE LENGTH M2 IN	2.060
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	2
CALIFORNIA RESIDENTS	PROP-65 WARNING

6803-20-20-20-NWO-SS

$1,288.63

Attribute: 6803-20-20-20-NWO-SS (20MJ-20MJ-...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD 3 SIZE	1-5/8-12
THREAD 3 DRILL IN	1.078
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.625
C HEX 1 IN	1.875
OVERALL LENGTH L IN	2.250
CENTERLINE LENGTH M IN	2.060
CENTERLINE LENGTH M2 IN	2.060
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.8562
CALIFORNIA RESIDENTS	PROP-65 WARNING

6803-24-24-24-NWO-FG

$172.63

Attribute: 6803-24-24-24-NWO-FG (24MJ-24MJ-...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD 3 SIZE	1-7/8-12
THREAD 3 DRILL IN	1.312
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.875
C HEX 1 IN	2.125
OVERALL LENGTH L IN	2.390
CENTERLINE LENGTH M IN	2.330
CENTERLINE LENGTH M2 IN	2.330
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	3.5
CALIFORNIA RESIDENTS	PROP-65 WARNING

6803-24-24-24-NWO-SS

$2,399.18

Attribute: 6803-24-24-24-NWO-SS (24MJ-24MJ-...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD 3 SIZE	1-7/8-12
THREAD 3 DRILL IN	1.312
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.875
C HEX 1 IN	2.125
OVERALL LENGTH L IN	2.390
CENTERLINE LENGTH M IN	2.330
CENTERLINE LENGTH M2 IN	2.330
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.141
CALIFORNIA RESIDENTS	PROP-65 WARNING

6803-32-32-32-NWO-FG

$401.97

Attribute: 6803-32-32-32-NWO-FG (32MJ-32MJ-...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	2-1/2-12
THREAD B2 DRILL IN	1.781
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD 3 SIZE	2-1/2-12
THREAD 3 DRILL IN	1.781
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	2.500
C HEX 1 IN	2.750
OVERALL LENGTH L IN	2.890
CENTERLINE LENGTH M IN	3.060
CENTERLINE LENGTH M2 IN	3.060
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	5.3
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	JIC, ORB
Shape	Tee

ID	10146697
Category	Tube Fittings and Adapters

Description

Description

Variations (37)

6803-02-02-02-NWO-SS

6803-04-04-04-NWO-FG

6803-04-04-04-NWO-SS

6803-04-04-06-NWO-FG

6803-04-04-06-NWO-SS

6803-05-05-05-NWO-FG

6803-05-05-05-NWO-SS

6803-06-06-04-NWO-FG

6803-06-06-06-NWO-FG

6803-06-06-06-NWO-SS

6803-06-06-08-NWO-FG

6803-08-08-06-NWO-FG

6803-08-08-08-NWO-FG

6803-08-08-08-NWO-SS

6803-08-08-10-NWO-FG

6803-08-08-12-NWO-FG

6803-10-10-08-NWO-FG

6803-10-10-10-NWO-FG

6803-10-10-10-NWO-SS

6803-10-10-12-NWO-FG

6803-10-10-16-NWO-FG

6803-12-12-08-NWO-FG

6803-12-12-10-NWO-FG

6803-12-12-10-NWO-SS

6803-12-12-12-NWO-FG

6803-12-12-12-NWO-SS

6803-12-12-16-NWO-FG

6803-14-14-14-NWO-FG

6803-16-12-16-NWO-FG

6803-16-16-12-NWO-FG

6803-16-16-16-NWO-FG

6803-16-16-16-NWO-SS

6803-20-20-20-NWO-FG

6803-20-20-20-NWO-SS

6803-24-24-24-NWO-FG

6803-24-24-24-NWO-SS

6803-32-32-32-NWO-FG

General Attributes

PDF Documents
