6801-NWO-FG

6801-02-02-NWO-FG

$13.79

Attribute: 6801-02-02-NWO-FG (02MJ-02MAORB ...)

Stock Status: True

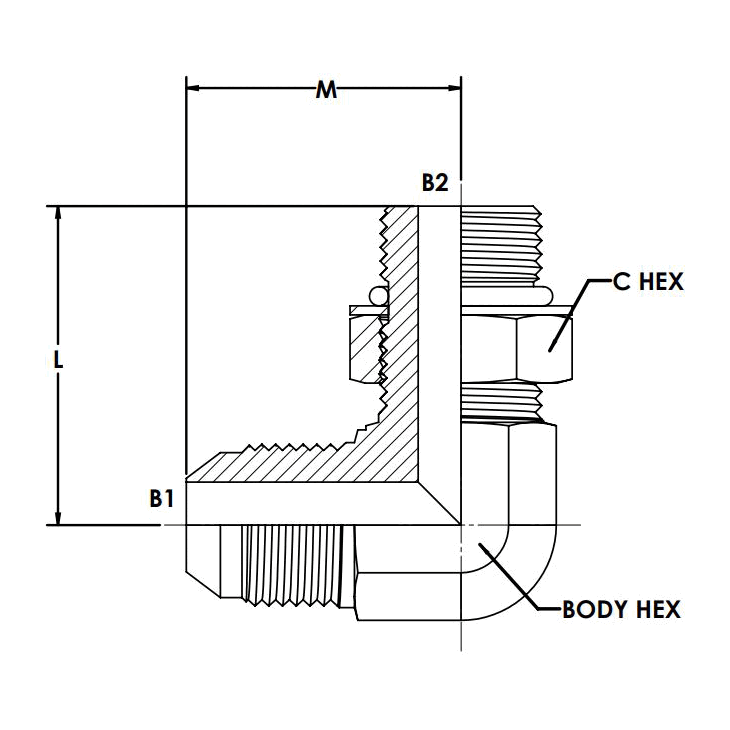

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	5/16-24
THREAD B1 DRILL IN	0.062
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	5/16-24
THREAD B2 DRILL IN	0.062
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.438
C HEX 1 IN	0.438
OVERALL LENGTH L IN	0.940
CENTERLINE LENGTH M IN	0.770
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.0562
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.502

6801-02-02-NWO-SS

$160.52

Attribute: 6801-02-02-NWO-SS (02MJ-02MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	5/16-24
THREAD B1 DRILL IN	0.062
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	5/16-24
THREAD B2 DRILL IN	0.062
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.438
C HEX 1 IN	0.438
OVERALL LENGTH L IN	0.940
CENTERLINE LENGTH M IN	0.770
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.05
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.502

6801-02-04-NWO-FG

$14.82

Attribute: 6801-02-04-NWO-FG (02MJ-04MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	5/16-24
THREAD B1 DRILL IN	0.062
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.438
C HEX 1 IN	0.563
OVERALL LENGTH L IN	1.030
CENTERLINE LENGTH M IN	0.780
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.0687
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.746

6801-02-04-NWO-SS

$217.68

Attribute: 6801-02-04-NWO-SS (02MJ-04MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	5/16-24
THREAD B1 DRILL IN	0.062
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.438
C HEX 1 IN	0.563
OVERALL LENGTH L IN	1.030
CENTERLINE LENGTH M IN	0.780
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.746

6801-03-03-NWO-FG

$13.93

Attribute: 6801-03-03-NWO-FG (03MJ-03MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/8-24
THREAD B1 DRILL IN	0.125
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	3/8-24
THREAD B2 DRILL IN	0.125
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.438
C HEX 1 IN	0.500
OVERALL LENGTH L IN	0.940
CENTERLINE LENGTH M IN	0.830
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.0625
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.626

6801-03-03-NWO-SS

$94.96

Attribute: 6801-03-03-NWO-SS (03MJ-03MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/8-24
THREAD B1 DRILL IN	0.125
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	3/8-24
THREAD B2 DRILL IN	0.125
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.438
C HEX 1 IN	0.500
OVERALL LENGTH L IN	0.940
CENTERLINE LENGTH M IN	0.830
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.07
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.193

6801-03-04-NWO-FG

$46.12

Attribute: 6801-03-04-NWO-FG (03MJ-04MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/8-24
THREAD B1 DRILL IN	0.125
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.438
C HEX 1 IN	0.563
OVERALL LENGTH L IN	1.030
CENTERLINE LENGTH M IN	0.081
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.0687
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.255

6801-04-02-NWO-FG

$15.22

Attribute: 6801-04-02-NWO-FG (04MJ-02MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	5/16-24
THREAD B2 DRILL IN	0.062
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.438
C HEX 1 IN	0.438
OVERALL LENGTH L IN	0.920
CENTERLINE LENGTH M IN	0.890
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.0625
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.553

6801-04-03-NWO-FG

$18.56

Attribute: 6801-04-03-NWO-FG (04MJ-03MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	3/8-24
THREAD B2 DRILL IN	0.125
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.438
C HEX 1 IN	0.500
OVERALL LENGTH L IN	1.020
CENTERLINE LENGTH M IN	0.890
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.0687
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.706

6801-04-03-NWO-SS

$247.16

Attribute: 6801-04-03-NWO-SS (04MJ-03MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	3/8-24
THREAD B2 DRILL IN	0.125
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.438
C HEX 1 IN	0.500
OVERALL LENGTH L IN	1.020
CENTERLINE LENGTH M IN	0.890
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.706

6801-04-04-NWO-FG

$6.65

Attribute: 6801-04-04-NWO-FG (04MJ-04MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.438
C HEX 1 IN	0.563
OVERALL LENGTH L IN	1.030
CENTERLINE LENGTH M IN	0.890
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.072
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.824

6801-04-04-NWO-SS

$59.17

Attribute: 6801-04-04-NWO-SS (04MJ-04MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.438
C HEX 1 IN	0.563
OVERALL LENGTH L IN	1.030
CENTERLINE LENGTH M IN	0.890
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.0812
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.824

6801-04-05-NWO-FG

$15.80

Attribute: 6801-04-05-NWO-FG (04MJ-05MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1/2-20
THREAD B2 DRILL IN	0.234
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.625
OVERALL LENGTH L IN	1.130
CENTERLINE LENGTH M IN	0.950
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.113

6801-04-05-NWO-SS

$408.17

Attribute: 6801-04-05-NWO-SS (04MJ-05MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1/2-20
THREAD B2 DRILL IN	0.234
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.625
OVERALL LENGTH L IN	1.130
CENTERLINE LENGTH M IN	0.950
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.2
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.113

6801-04-06-NWO-FG

$9.35

Attribute: 6801-04-06-NWO-FG (04MJ-06MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.250
CENTERLINE LENGTH M IN	1.050
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.122
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.468

6801-04-06-NWO-SS

$116.76

Attribute: 6801-04-06-NWO-SS (04MJ-06MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.250
CENTERLINE LENGTH M IN	1.050
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1241
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.468

6801-04-08-NWO-FG

$12.31

Attribute: 6801-04-08-NWO-FG (04MJ-08MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.450
CENTERLINE LENGTH M IN	1.120
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.2225
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.487

6801-04-08-NWO-SS

$293.82

Attribute: 6801-04-08-NWO-SS (04MJ-08MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.450
CENTERLINE LENGTH M IN	1.120
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.225
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.487

6801-05-04-NWO-FG

$8.76

Attribute: 6801-05-04-NWO-FG (05MJ-04MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.563
OVERALL LENGTH L IN	1.130
CENTERLINE LENGTH M IN	0.950
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.089
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	0.978

6801-05-05-NWO-FG

$12.06

Attribute: 6801-05-05-NWO-FG (05MJ-05MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1/2-20
THREAD B2 DRILL IN	0.234
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.625
OVERALL LENGTH L IN	1.130
CENTERLINE LENGTH M IN	0.950
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.106
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.113

6801-05-05-NWO-SS

$272.07

Attribute: 6801-05-05-NWO-SS (05MJ-05MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1/2-20
THREAD B2 DRILL IN	0.234
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.625
OVERALL LENGTH L IN	1.130
CENTERLINE LENGTH M IN	0.950
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.2625
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.113

6801-05-06-NWO-FG

$15.60

Attribute: 6801-05-06-NWO-FG (05MJ-06MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.250
CENTERLINE LENGTH M IN	1.050
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1187
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.468

6801-05-08-NWO-FG

$34.90

Attribute: 6801-05-08-NWO-FG (05MJ-08MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.450
CENTERLINE LENGTH M IN	1.120
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.225
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.487

6801-05-10-NWO-FG

$39.57

Attribute: 6801-05-10-NWO-FG (05MJ-10MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.700
CENTERLINE LENGTH M IN	1.210
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.3437
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	3.655

6801-06-02-NWO-FG

$66.99

Attribute: 6801-06-02-NWO-FG (06MJ-02MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	5/16-24
THREAD B2 DRILL IN	0.062
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.438
OVERALL LENGTH L IN	1.080
CENTERLINE LENGTH M IN	1.060
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1062
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.465

6801-06-04-NWO-FG

$8.22

Attribute: 6801-06-04-NWO-FG (06MJ-04MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.563
OVERALL LENGTH L IN	1.190
CENTERLINE LENGTH M IN	1.060
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.108
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.111

6801-06-04-NWO-SS

$87.23

Attribute: 6801-06-04-NWO-SS (06MJ-04MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.563
OVERALL LENGTH L IN	1.190
CENTERLINE LENGTH M IN	1.060
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1172
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.111

6801-06-05-NWO-FG

$12.40

Attribute: 6801-06-05-NWO-FG (06MJ-05MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1/2-20
THREAD B2 DRILL IN	0.234
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.625
OVERALL LENGTH L IN	1.190
CENTERLINE LENGTH M IN	1.060
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1187
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.262

6801-06-05-NWO-SS

$95.89

Attribute: 6801-06-05-NWO-SS (06MJ-05MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1/2-20
THREAD B2 DRILL IN	0.234
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.625
OVERALL LENGTH L IN	1.190
CENTERLINE LENGTH M IN	1.060
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1187
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.262

6801-06-06-NWO-FG

$7.62

Attribute: 6801-06-06-NWO-FG (06MJ-06MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.250
CENTERLINE LENGTH M IN	1.060
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.118
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.479

6801-06-06-NWO-SS

$95.94

Attribute: 6801-06-06-NWO-SS (06MJ-06MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.250
CENTERLINE LENGTH M IN	1.060
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1312
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.479

6801-06-08-NWO-FG

$12.11

Attribute: 6801-06-08-NWO-FG (06MJ-08MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.450
CENTERLINE LENGTH M IN	1.140
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.226
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.519

6801-06-08-NWO-SS

$277.23

Attribute: 6801-06-08-NWO-SS (06MJ-08MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.450
CENTERLINE LENGTH M IN	1.140
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.2337
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.519

6801-06-10-NWO-FG

$21.27

Attribute: 6801-06-10-NWO-FG (06MJ-10MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.700
CENTERLINE LENGTH M IN	1.220
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.325
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	3.677

6801-06-10-NWO-SS

$286.04

Attribute: 6801-06-10-NWO-SS (06MJ-10MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.700
CENTERLINE LENGTH M IN	1.220
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.35
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	3.677

6801-06-12-NWO-FG

$32.19

Attribute: 6801-06-12-NWO-FG (06MJ-12MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.940
CENTERLINE LENGTH M IN	1.310
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.5625
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	5.977

6801-06-12-NWO-SS

$252.08

Attribute: 6801-06-12-NWO-SS (06MJ-12MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.940
CENTERLINE LENGTH M IN	1.310
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	6.053

6801-08-04-NWO-FG

$14.92

Attribute: 6801-08-04-NWO-FG (08MJ-04MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.563
OVERALL LENGTH L IN	1.260
CENTERLINE LENGTH M IN	1.250
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.185
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.993

6801-08-04-NWO-SS

$499.97

Attribute: 6801-08-04-NWO-SS (08MJ-04MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.563
OVERALL LENGTH L IN	1.260
CENTERLINE LENGTH M IN	1.250
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.375
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	1.993

6801-08-05-NWO-FG

$32.98

Attribute: 6801-08-05-NWO-FG (08MJ-05MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1/2-20
THREAD B2 DRILL IN	0.234
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.625
OVERALL LENGTH L IN	1.260
CENTERLINE LENGTH M IN	1.250
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.2
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	5.480

6801-08-06-NWO-FG

$11.66

Attribute: 6801-08-06-NWO-FG (08MJ-06MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.320
CENTERLINE LENGTH M IN	1.250
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.202
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.066

6801-08-06-NWO-SS

$326.75

Attribute: 6801-08-06-NWO-SS (08MJ-06MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.320
CENTERLINE LENGTH M IN	1.250
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.375
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.066

6801-08-08-NWO-FG

$12.06

Attribute: 6801-08-08-NWO-FG (08MJ-08MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.450
CENTERLINE LENGTH M IN	1.250
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.248
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.695

6801-08-08-NWO-SS

$300.86

Attribute: 6801-08-08-NWO-SS (08MJ-08MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.450
CENTERLINE LENGTH M IN	1.250
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.2511
MAXIMUM DYNAMIC PRESSURE PSI	6,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	2.695

6801-08-10-NWO-FG

$14.08

Attribute: 6801-08-10-NWO-FG (08MJ-10MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.700
CENTERLINE LENGTH M IN	1.330
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.352
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	3.912

6801-08-10-NWO-SS

$381.34

Attribute: 6801-08-10-NWO-SS (08MJ-10MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.700
CENTERLINE LENGTH M IN	1.330
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.3654
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	3.912

6801-08-12-NWO-FG

$20.63

Attribute: 6801-08-12-NWO-FG (08MJ-12MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.940
CENTERLINE LENGTH M IN	1.420
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.6
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	6.316

6801-08-12-NWO-SS

$383.60

Attribute: 6801-08-12-NWO-SS (08MJ-12MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.940
CENTERLINE LENGTH M IN	1.420
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.5833
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	6.316

6801-08-16-NWO-FG

$57.40

Attribute: 6801-08-16-NWO-FG (08MJ-16MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.312
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.050
CENTERLINE LENGTH M IN	1.520
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.8375
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	9.214

6801-08-16-NWO-SS

$612.70

Attribute: 6801-08-16-NWO-SS (08MJ-16MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.312
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.050
CENTERLINE LENGTH M IN	1.520
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.8955
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	9.214

6801-10-06-NWO-FG

$20.08

Attribute: 6801-10-06-NWO-FG (10MJ-06MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.410
CENTERLINE LENGTH M IN	1.450
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.3029
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	3.051

6801-10-08-NWO-FG

$20.53

Attribute: 6801-10-08-NWO-FG (10MJ-08MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.540
CENTERLINE LENGTH M IN	1.450
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.3317
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	3.266

6801-10-08-NWO-SS

$353.13

Attribute: 6801-10-08-NWO-SS (10MJ-08MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.540
CENTERLINE LENGTH M IN	1.450
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.35
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	3.266

6801-10-10-NWO-FG

$22.25

Attribute: 6801-10-10-NWO-FG (10MJ-10MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.700
CENTERLINE LENGTH M IN	1.450
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.366
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	4.168

6801-10-10-NWO-SS

$273.64

Attribute: 6801-10-10-NWO-SS (10MJ-10MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.700
CENTERLINE LENGTH M IN	1.450
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.3736
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	4.168

6801-10-12-NWO-FG

$25.84

Attribute: 6801-10-12-NWO-FG (10MJ-12MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.940
CENTERLINE LENGTH M IN	1.540
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.592
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	6.687

6801-10-12-NWO-SS

$476.04

Attribute: 6801-10-12-NWO-SS (10MJ-12MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.940
CENTERLINE LENGTH M IN	1.540
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.5761
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	6.687

6801-10-14-NWO-FG

$49.48

Attribute: 6801-10-14-NWO-FG (10MJ-14MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-3/16-12
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.312
C HEX 1 IN	1.375
OVERALL LENGTH L IN	2.000
CENTERLINE LENGTH M IN	1.650
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.8687
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	8.537

6801-10-16-NWO-FG

$50.11

Attribute: 6801-10-16-NWO-FG (10MJ-16MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.312
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.050
CENTERLINE LENGTH M IN	1.640
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.8932
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	9.701

6801-10-20-NWO-FG

$157.97

Attribute: 6801-10-20-NWO-FG (10MJ-20MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.625
C HEX 1 IN	1.875
OVERALL LENGTH L IN	2.250
CENTERLINE LENGTH M IN	1.840
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1478
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	15.949

6801-12-06-NWO-FG

$39.23

Attribute: 6801-12-06-NWO-FG (12MJ-06MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.490
CENTERLINE LENGTH M IN	1.660
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.475
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	4.703

6801-12-08-NWO-FG

$26.88

Attribute: 6801-12-08-NWO-FG (12MJ-08MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.620
CENTERLINE LENGTH M IN	1.660
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.5062
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	5.005

6801-12-08-NWO-SS

$363.87

Attribute: 6801-12-08-NWO-SS (12MJ-08MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.620
CENTERLINE LENGTH M IN	1.660
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.0437
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	5.005

6801-12-10-NWO-FG

$27.81

Attribute: 6801-12-10-NWO-FG (12MJ-10MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.780
CENTERLINE LENGTH M IN	1.660
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.538
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	5.377

6801-12-10-NWO-SS

$407.38

Attribute: 6801-12-10-NWO-SS (12MJ-10MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.780
CENTERLINE LENGTH M IN	1.660
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.0437
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	7.022

6801-12-12-NWO-FG

$23.63

Attribute: 6801-12-12-NWO-FG (12MJ-12MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.940
CENTERLINE LENGTH M IN	1.660
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.622
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	7.058

6801-12-12-NWO-SS

$303.17

Attribute: 6801-12-12-NWO-SS (12MJ-12MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.940
CENTERLINE LENGTH M IN	1.660
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.6288
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	7.058

6801-12-14-NWO-FG

$55.19

Attribute: 6801-12-14-NWO-FG (12MJ-14MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-3/16-12
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.312
C HEX 1 IN	1.375
OVERALL LENGTH L IN	2.000
CENTERLINE LENGTH M IN	1.770
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.89
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	8.975

6801-12-14-NWO-SS

$646.87

Attribute: 6801-12-14-NWO-SS (12MJ-14MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-3/16-12
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.312
C HEX 1 IN	1.375
OVERALL LENGTH L IN	2.000
CENTERLINE LENGTH M IN	1.770
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	8.975

6801-12-16-NWO-FG

$41.64

Attribute: 6801-12-16-NWO-FG (12MJ-16MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.312
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.050
CENTERLINE LENGTH M IN	1.760
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.864
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	10.188

6801-12-16-NWO-SS

$669.70

Attribute: 6801-12-16-NWO-SS (12MJ-16MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.312
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.050
CENTERLINE LENGTH M IN	1.760
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.8939
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	10.188

6801-12-20-NWO-FG

$107.85

Attribute: 6801-12-20-NWO-FG (12MJ-20MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.625
C HEX 1 IN	1.875
OVERALL LENGTH L IN	2.250
CENTERLINE LENGTH M IN	1.970
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.478
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	16.695

6801-12-20-NWO-SS

$1,408.06

Attribute: 6801-12-20-NWO-SS (12MJ-20MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.625
C HEX 1 IN	1.875
OVERALL LENGTH L IN	2.250
CENTERLINE LENGTH M IN	1.970
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.2
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	16.695

6801-14-12-NWO-FG

$51.25

Attribute: 6801-14-12-NWO-FG (14MJ-12MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-3/16-12
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.312
C HEX 1 IN	1.250
OVERALL LENGTH L IN	2.000
CENTERLINE LENGTH M IN	1.800
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.8562
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	8.558

6801-14-14-NWO-FG

$40.86

Attribute: 6801-14-14-NWO-FG (14MJ-14MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-3/16-12
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-3/16-12
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.312
C HEX 1 IN	1.375
OVERALL LENGTH L IN	2.000
CENTERLINE LENGTH M IN	1.800
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.8875
MAXIMUM DYNAMIC PRESSURE PSI	5,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	9.084

6801-14-16-NWO-FG

$64.92

Attribute: 6801-14-16-NWO-FG (14MJ-16MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-3/16-12
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.312
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.050
CENTERLINE LENGTH M IN	1.790
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.9062
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	10.310

6801-16-08-NWO-FG

$77.43

Attribute: 6801-16-08-NWO-FG (16MJ-08MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.312
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.730
CENTERLINE LENGTH M IN	1.810
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.7687
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	7.720

6801-16-10-NWO-FG

$57.20

Attribute: 6801-16-10-NWO-FG (16MJ-10MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.312
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.890
CENTERLINE LENGTH M IN	1.810
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.775
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	8.237

6801-16-10-NWO-SS

$550.13

Attribute: 6801-16-10-NWO-SS (16MJ-10MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.312
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.890
CENTERLINE LENGTH M IN	1.810
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.8437
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	6.330

6801-16-12-NWO-FG

$35.83

Attribute: 6801-16-12-NWO-FG (16MJ-12MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.312
C HEX 1 IN	1.250
OVERALL LENGTH L IN	2.050
CENTERLINE LENGTH M IN	1.810
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.85
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	8.755

6801-16-12-NWO-SS

$767.41

Attribute: 6801-16-12-NWO-SS (16MJ-12MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.312
C HEX 1 IN	1.250
OVERALL LENGTH L IN	2.050
CENTERLINE LENGTH M IN	1.810
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.85
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	3.180

6801-16-14-NWO-FG

$49.86

Attribute: 6801-16-14-NWO-FG (16MJ-14MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-3/16-12
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.312
C HEX 1 IN	1.375
OVERALL LENGTH L IN	2.050
CENTERLINE LENGTH M IN	1.810
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.904
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	9.293

6801-16-14-NWO-SS

$646.87

Attribute: 6801-16-14-NWO-SS (16MJ-14MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-3/16-12
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.312
C HEX 1 IN	1.375
OVERALL LENGTH L IN	2.050
CENTERLINE LENGTH M IN	1.810
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	9.293

6801-16-16-NWO-FG

$36.72

Attribute: 6801-16-16-NWO-FG (16MJ-16MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.312
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.050
CENTERLINE LENGTH M IN	1.810
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.884
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	10.391

6801-16-16-NWO-SS

$498.44

Attribute: 6801-16-16-NWO-SS (16MJ-16MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.312
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.050
CENTERLINE LENGTH M IN	1.810
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.8948
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	10.391

6801-16-20-NWO-FG

$63.15

Attribute: 6801-16-20-NWO-FG (16MJ-20MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.625
C HEX 1 IN	1.875
OVERALL LENGTH L IN	2.250
CENTERLINE LENGTH M IN	2.010
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.478
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	16.925

6801-16-20-NWO-SS

$840.45

Attribute: 6801-16-20-NWO-SS (16MJ-20MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.625
C HEX 1 IN	1.875
OVERALL LENGTH L IN	2.250
CENTERLINE LENGTH M IN	2.010
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.12
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	16.925

6801-16-24-NWO-FG

$159.34

Attribute: 6801-16-24-NWO-FG (16MJ-24MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.875
C HEX 1 IN	2.125
OVERALL LENGTH L IN	2.390
CENTERLINE LENGTH M IN	2.160
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	2.05
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	22.786

6801-16-24-NWO-SS

$1,398.91

Attribute: 6801-16-24-NWO-SS (16MJ-24MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.875
C HEX 1 IN	2.125
OVERALL LENGTH L IN	2.390
CENTERLINE LENGTH M IN	2.160
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.141
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	22.786

6801-20-12-NWO-FG

$142.16

Attribute: 6801-20-12-NWO-FG (20MJ-12MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.625
C HEX 1 IN	1.250
OVERALL LENGTH L IN	2.250
CENTERLINE LENGTH M IN	2.060
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.25
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	14.295

6801-20-14-NWO-FG

$170.12

Attribute: 6801-20-14-NWO-FG (20MJ-14MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-3/16-12
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.625
C HEX 1 IN	1.375
OVERALL LENGTH L IN	2.250
CENTERLINE LENGTH M IN	2.060
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.4
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	10.913

6801-20-16-NWO-FG

$64.24

Attribute: 6801-20-16-NWO-FG (20MJ-16MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.625
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.250
CENTERLINE LENGTH M IN	2.060
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.45
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	14.295

6801-20-16-NWO-SS

$991.81

Attribute: 6801-20-16-NWO-SS (20MJ-16MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.625
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.250
CENTERLINE LENGTH M IN	2.060
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.45
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	5.593

6801-20-20-NWO-FG

$83.48

Attribute: 6801-20-20-NWO-FG (20MJ-20MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.625
C HEX 1 IN	1.875
OVERALL LENGTH L IN	2.250
CENTERLINE LENGTH M IN	2.060
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.475
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	17.212

6801-20-20-NWO-SS

$713.75

Attribute: 6801-20-20-NWO-SS (20MJ-20MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.625
C HEX 1 IN	1.875
OVERALL LENGTH L IN	2.250
CENTERLINE LENGTH M IN	2.060
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.12
MAXIMUM DYNAMIC PRESSURE PSI	4,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	17.212

6801-20-24-NWO-FG

$138.77

Attribute: 6801-20-24-NWO-FG (20MJ-24MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.875
C HEX 1 IN	2.125
OVERALL LENGTH L IN	2.390
CENTERLINE LENGTH M IN	2.200
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	2.0562
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	23.069

6801-20-24-NWO-SS

$1,399.79

Attribute: 6801-20-24-NWO-SS (20MJ-24MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.875
C HEX 1 IN	2.125
OVERALL LENGTH L IN	2.390
CENTERLINE LENGTH M IN	2.200
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.141
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	23.069

6801-24-16-NWO-FG

$147.18

Attribute: 6801-24-16-NWO-FG (24MJ-16MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.875
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.390
CENTERLINE LENGTH M IN	2.330
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.6
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	29.781

6801-24-20-NWO-FG

$126.75

Attribute: 6801-24-20-NWO-FG (24MJ-20MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.875
C HEX 1 IN	1.875
OVERALL LENGTH L IN	2.390
CENTERLINE LENGTH M IN	2.330
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	2.1734
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	20.386

6801-24-20-NWO-SS

$1,243.60

Attribute: 6801-24-20-NWO-SS (24MJ-20MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.875
C HEX 1 IN	1.875
OVERALL LENGTH L IN	2.390
CENTERLINE LENGTH M IN	2.330
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	2.0198
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	20.386

6801-24-24-NWO-FG

$102.29

Attribute: 6801-24-24-NWO-FG (24MJ-24MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.875
C HEX 1 IN	2.125
OVERALL LENGTH L IN	2.390
CENTERLINE LENGTH M IN	2.330
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	2.0375
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	23.988

6801-24-24-NWO-SS

$1,442.26

Attribute: 6801-24-24-NWO-SS (24MJ-24MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.875
C HEX 1 IN	2.125
OVERALL LENGTH L IN	2.390
CENTERLINE LENGTH M IN	2.330
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.141
MAXIMUM DYNAMIC PRESSURE PSI	3,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	23.988

6801-24-32-NWO-FG

$446.71

Attribute: 6801-24-32-NWO-FG (24MJ-32MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	2-1/2-12
THREAD B2 DRILL IN	1.781
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.500
C HEX 1 IN	2.750
OVERALL LENGTH L IN	2.890
CENTERLINE LENGTH M IN	2.810
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	4.55
MAXIMUM DYNAMIC PRESSURE PSI	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	47.646

6801-32-24-NWO-FG

$416.19

Attribute: 6801-32-24-NWO-FG (32MJ-24MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.500
C HEX 1 IN	2.125
OVERALL LENGTH L IN	2.890
CENTERLINE LENGTH M IN	3.060
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	4.5
MAXIMUM DYNAMIC PRESSURE PSI	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	44.609

6801-32-24-NWO-SS

$1,663.57

Attribute: 6801-32-24-NWO-SS (32MJ-24MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.500
C HEX 1 IN	2.125
OVERALL LENGTH L IN	2.890
CENTERLINE LENGTH M IN	3.060
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	9.4722
MAXIMUM DYNAMIC PRESSURE PSI	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	44.609

6801-32-32-NWO-FG

$340.59

Attribute: 6801-32-32-NWO-FG (32MJ-32MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	2-1/2-12
THREAD B2 DRILL IN	1.781
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.500
C HEX 1 IN	2.750
OVERALL LENGTH L IN	2.890
CENTERLINE LENGTH M IN	3.060
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	4.4
MAXIMUM DYNAMIC PRESSURE PSI	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	50.492

6801-32-32-NWO-SS

$2,333.12

Attribute: 6801-32-32-NWO-SS (32MJ-32MAORB ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE ADJUSTABLE ORING BOSS
THREAD B2 SIZE	2-1/2-12
THREAD B2 DRILL IN	1.781
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.500
C HEX 1 IN	2.750
OVERALL LENGTH L IN	2.890
CENTERLINE LENGTH M IN	3.060
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1867
MAXIMUM DYNAMIC PRESSURE PSI	2,000
CALIFORNIA RESIDENTS	PROP-65 WARNING
CUBIC INCH SPACE L X W X H	50.492

Description

Description

Variations (107)

6801-02-02-NWO-FG

6801-02-02-NWO-SS

6801-02-04-NWO-FG

6801-02-04-NWO-SS

6801-03-03-NWO-FG

6801-03-03-NWO-SS

6801-03-04-NWO-FG

6801-04-02-NWO-FG

6801-04-03-NWO-FG

6801-04-03-NWO-SS

6801-04-04-NWO-FG

6801-04-04-NWO-SS

6801-04-05-NWO-FG

6801-04-05-NWO-SS

6801-04-06-NWO-FG

6801-04-06-NWO-SS

6801-04-08-NWO-FG

6801-04-08-NWO-SS

6801-05-04-NWO-FG

6801-05-05-NWO-FG

6801-05-05-NWO-SS

6801-05-06-NWO-FG

6801-05-08-NWO-FG

6801-05-10-NWO-FG

6801-06-02-NWO-FG

6801-06-04-NWO-FG

6801-06-04-NWO-SS

6801-06-05-NWO-FG

6801-06-05-NWO-SS

6801-06-06-NWO-FG

6801-06-06-NWO-SS

6801-06-08-NWO-FG

6801-06-08-NWO-SS

6801-06-10-NWO-FG

6801-06-10-NWO-SS

6801-06-12-NWO-FG

6801-06-12-NWO-SS

6801-08-04-NWO-FG

6801-08-04-NWO-SS

6801-08-05-NWO-FG

6801-08-06-NWO-FG

6801-08-06-NWO-SS

6801-08-08-NWO-FG

6801-08-08-NWO-SS

6801-08-10-NWO-FG

6801-08-10-NWO-SS

6801-08-12-NWO-FG

6801-08-12-NWO-SS

6801-08-16-NWO-FG

6801-08-16-NWO-SS

6801-10-06-NWO-FG

6801-10-08-NWO-FG

6801-10-08-NWO-SS

6801-10-10-NWO-FG

6801-10-10-NWO-SS

6801-10-12-NWO-FG

6801-10-12-NWO-SS

6801-10-14-NWO-FG

6801-10-16-NWO-FG

6801-10-20-NWO-FG

6801-12-06-NWO-FG

6801-12-08-NWO-FG

6801-12-08-NWO-SS

6801-12-10-NWO-FG

6801-12-10-NWO-SS

6801-12-12-NWO-FG

6801-12-12-NWO-SS

6801-12-14-NWO-FG

6801-12-14-NWO-SS

6801-12-16-NWO-FG

6801-12-16-NWO-SS

6801-12-20-NWO-FG

6801-12-20-NWO-SS

6801-14-12-NWO-FG

6801-14-14-NWO-FG

6801-14-16-NWO-FG
