6660-FG

6660-04-04-04-FG

$41.35

Attribute: 6660-04-04-04-FG (04FORB-04FORB-...)

Stock Status: True

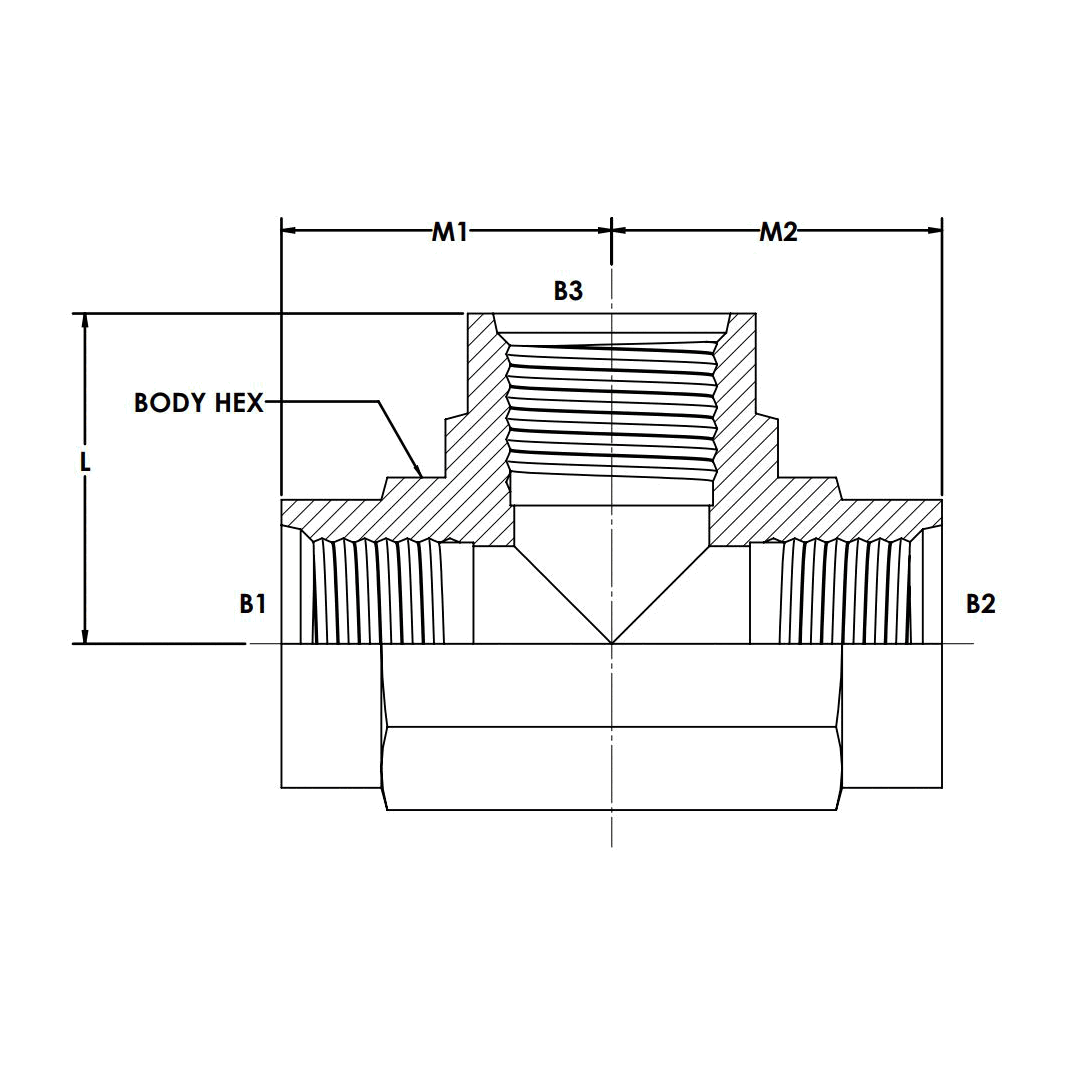

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE SAE O-RING BOSS
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE SAE O-RING BOSS
THREAD 3 SIZE	7/16-20
THREAD 3 DRILL IN	0.172
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.750
OVERALL LENGTH L IN	0.740
CENTERLINE LENGTH M IN	0.740
CENTERLINE LENGTH M2 IN	0.740
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1687
CALIFORNIA RESIDENTS	PROP-65 WARNING

6660-04-04-04-FG-BB

$129.05

Attribute: 6660-04-04-04-FG-BB (04FORB-04FO...)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE SAE O-RING BOSS
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE SAE O-RING BOSS
THREAD 3 SIZE	7/16-20
THREAD 3 DRILL IN	0.172
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.750
OVERALL LENGTH L IN	0.740
CENTERLINE LENGTH M IN	0.740
CENTERLINE LENGTH M2 IN	0.740
SHAPE	TEE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.1687
CALIFORNIA RESIDENTS	PROP-65 WARNING

6660-04-04-04-SS

$558.20

Attribute: 6660-04-04-04-SS (04FORB-04FORB-...)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE SAE O-RING BOSS
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE SAE O-RING BOSS
THREAD 3 SIZE	7/16-20
THREAD 3 DRILL IN	0.172
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.750
OVERALL LENGTH L IN	0.740
CENTERLINE LENGTH M IN	0.740
CENTERLINE LENGTH M2 IN	0.740
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1773
CALIFORNIA RESIDENTS	PROP-65 WARNING

6660-06-06-06-FG

$49.92

Attribute: 6660-06-06-06-FG (06FORB-06FORB-...)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE SAE O-RING BOSS
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE SAE O-RING BOSS
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.750
OVERALL LENGTH L IN	0.860
CENTERLINE LENGTH M IN	0.860
CENTERLINE LENGTH M2 IN	0.860
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1437
CALIFORNIA RESIDENTS	PROP-65 WARNING

6660-06-06-06-FG-BB

$182.43

Attribute: 6660-06-06-06-FG-BB (06FORB-06FO...)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE SAE O-RING BOSS
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE SAE O-RING BOSS
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.750
OVERALL LENGTH L IN	0.860
CENTERLINE LENGTH M IN	0.860
CENTERLINE LENGTH M2 IN	0.860
SHAPE	TEE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.1437
CALIFORNIA RESIDENTS	PROP-65 WARNING

6660-06-06-06-SS

$431.45

Attribute: 6660-06-06-06-SS (06FORB-06FORB-...)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE SAE O-RING BOSS
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE SAE O-RING BOSS
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.750
OVERALL LENGTH L IN	0.860
CENTERLINE LENGTH M IN	0.860
CENTERLINE LENGTH M2 IN	0.860
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1472
CALIFORNIA RESIDENTS	PROP-65 WARNING

6660-08-08-08-FG

$54.05

Attribute: 6660-08-08-08-FG (08FORB-08FORB-...)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE SAE O-RING BOSS
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE SAE O-RING BOSS
THREAD 3 SIZE	3/4-16
THREAD 3 DRILL IN	0.391
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
OVERALL LENGTH L IN	1.030
CENTERLINE LENGTH M IN	1.030
CENTERLINE LENGTH M2 IN	1.030
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.4312
CALIFORNIA RESIDENTS	PROP-65 WARNING

6660-08-08-08-FG-BB

$191.13

Attribute: 6660-08-08-08-FG-BB (08FORB-08FO...)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE SAE O-RING BOSS
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE SAE O-RING BOSS
THREAD 3 SIZE	3/4-16
THREAD 3 DRILL IN	0.391
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
OVERALL LENGTH L IN	1.030
CENTERLINE LENGTH M IN	1.030
CENTERLINE LENGTH M2 IN	1.030
SHAPE	TEE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.4312
CALIFORNIA RESIDENTS	PROP-65 WARNING

6660-08-08-08-SS

$651.08

Attribute: 6660-08-08-08-SS (08FORB-08FORB-...)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE SAE O-RING BOSS
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE SAE O-RING BOSS
THREAD 3 SIZE	3/4-16
THREAD 3 DRILL IN	0.391
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
OVERALL LENGTH L IN	1.030
CENTERLINE LENGTH M IN	1.030
CENTERLINE LENGTH M2 IN	1.030
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.4
CALIFORNIA RESIDENTS	PROP-65 WARNING

6660-10-10-10-FG

$86.19

Attribute: 6660-10-10-10-FG (10FORB-10FORB-...)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE SAE O-RING BOSS
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE SAE O-RING BOSS
THREAD 3 SIZE	7/8-14
THREAD 3 DRILL IN	0.484
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
OVERALL LENGTH L IN	1.180
CENTERLINE LENGTH M IN	1.180
CENTERLINE LENGTH M2 IN	1.180
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.2812
CALIFORNIA RESIDENTS	PROP-65 WARNING

6660-10-10-10-FG-BB

$191.13

Attribute: 6660-10-10-10-FG-BB (10FORB-10FO...)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE SAE O-RING BOSS
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE SAE O-RING BOSS
THREAD 3 SIZE	7/8-14
THREAD 3 DRILL IN	0.484
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
OVERALL LENGTH L IN	1.180
CENTERLINE LENGTH M IN	1.180
CENTERLINE LENGTH M2 IN	1.180
SHAPE	TEE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.2812
CALIFORNIA RESIDENTS	PROP-65 WARNING

6660-12-12-12-FG

$118.73

Attribute: 6660-12-12-12-FG (12FORB-12FORB-...)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE SAE O-RING BOSS
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE SAE O-RING BOSS
THREAD 3 SIZE	1-1/16-12
THREAD 3 DRILL IN	0.609
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.312
OVERALL LENGTH L IN	1.390
CENTERLINE LENGTH M IN	1.390
CENTERLINE LENGTH M2 IN	1.390
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.65
CALIFORNIA RESIDENTS	PROP-65 WARNING

6660-12-12-12-FG-BB

$228.61

Attribute: 6660-12-12-12-FG-BB (12FORB-12FO...)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE SAE O-RING BOSS
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE SAE O-RING BOSS
THREAD 3 SIZE	1-1/16-12
THREAD 3 DRILL IN	0.609
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.312
OVERALL LENGTH L IN	1.390
CENTERLINE LENGTH M IN	1.390
CENTERLINE LENGTH M2 IN	1.390
SHAPE	TEE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	0.65
CALIFORNIA RESIDENTS	PROP-65 WARNING

6660-16-16-16-FG

$144.28

Attribute: 6660-16-16-16-FG (16FORB-16FORB-...)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE SAE O-RING BOSS
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE SAE O-RING BOSS
THREAD 3 SIZE	1-5/16-12
THREAD 3 DRILL IN	0.844
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.625
OVERALL LENGTH L IN	1.520
CENTERLINE LENGTH M IN	1.520
CENTERLINE LENGTH M2 IN	1.520
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.1625
CALIFORNIA RESIDENTS	PROP-65 WARNING

6660-16-16-16-FG-BB

$368.77

Attribute: 6660-16-16-16-FG-BB (16FORB-16FO...)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE SAE O-RING BOSS
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE SAE O-RING BOSS
THREAD 3 SIZE	1-5/16-12
THREAD 3 DRILL IN	0.844
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.625
OVERALL LENGTH L IN	1.520
CENTERLINE LENGTH M IN	1.520
CENTERLINE LENGTH M2 IN	1.520
SHAPE	TEE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	1.1625
CALIFORNIA RESIDENTS	PROP-65 WARNING

6660-20-20-20-FG

$232.88

Attribute: 6660-20-20-20-FG (20FORB-20FORB-...)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE SAE O-RING BOSS
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE SAE O-RING BOSS
THREAD 3 SIZE	1-5/8-12
THREAD 3 DRILL IN	1.078
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	2.000
OVERALL LENGTH L IN	1.700
CENTERLINE LENGTH M IN	1.700
CENTERLINE LENGTH M2 IN	1.700
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.3812
CALIFORNIA RESIDENTS	PROP-65 WARNING

6660-20-20-20-FG-BB

$499.13

Attribute: 6660-20-20-20-FG-BB (20FORB-20FO...)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE SAE O-RING BOSS
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE SAE O-RING BOSS
THREAD 3 SIZE	1-5/8-12
THREAD 3 DRILL IN	1.078
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	2.000
OVERALL LENGTH L IN	1.700
CENTERLINE LENGTH M IN	1.700
CENTERLINE LENGTH M2 IN	1.700
SHAPE	TEE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	1.3812
CALIFORNIA RESIDENTS	PROP-65 WARNING

6660-24-24-24-FG

$323.06

Attribute: 6660-24-24-24-FG (24FORB-24FORB-...)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE SAE O-RING BOSS
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE SAE O-RING BOSS
THREAD 3 SIZE	1-7/8-12
THREAD 3 DRILL IN	1.312
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	2.562
OVERALL LENGTH L IN	2.080
CENTERLINE LENGTH M IN	2.080
CENTERLINE LENGTH M2 IN	2.080
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	4.4625
CALIFORNIA RESIDENTS	PROP-65 WARNING

6660-24-24-24-FG-BB

$1,026.87

Attribute: 6660-24-24-24-FG-BB (24FORB-24FO...)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE SAE O-RING BOSS
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE SAE O-RING BOSS
THREAD 3 SIZE	1-7/8-12
THREAD 3 DRILL IN	1.312
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	2.562
OVERALL LENGTH L IN	2.080
CENTERLINE LENGTH M IN	2.080
CENTERLINE LENGTH M2 IN	2.080
SHAPE	TEE
BODY MATERIAL	COATED STEEL
RAW MATERIAL TYPE	CARBON STEEL
PLATING	CR3
WEIGHT LBS	4.4625
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	ORB
Shape	Tee

ID	10146474
Category	Tube Fittings and Adapters

Description

Description

Variations (19)

6660-04-04-04-FG

6660-04-04-04-FG-BB

6660-04-04-04-SS

6660-06-06-06-FG

6660-06-06-06-FG-BB

6660-06-06-06-SS

6660-08-08-08-FG

6660-08-08-08-FG-BB

6660-08-08-08-SS

6660-10-10-10-FG

6660-10-10-10-FG-BB

6660-12-12-12-FG

6660-12-12-12-FG-BB

6660-16-16-16-FG

6660-16-16-16-FG-BB

6660-20-20-20-FG

6660-20-20-20-FG-BB

6660-24-24-24-FG

6660-24-24-24-FG-BB

General Attributes

PDF Documents
