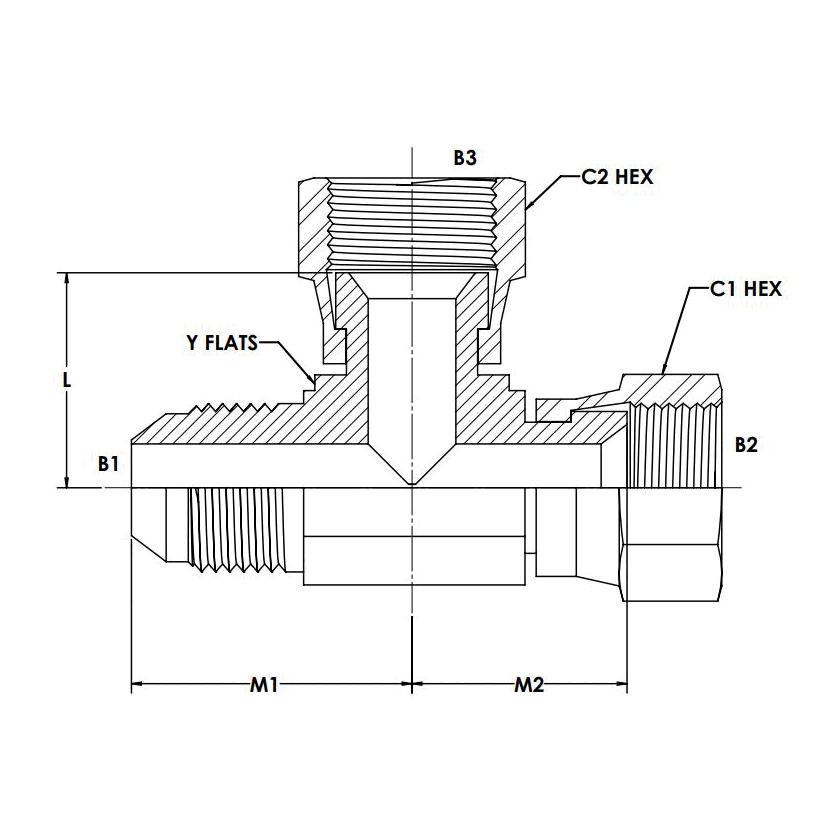

6607-FG

Attribute: 6607-04-04-04-FG (04MJ-04FJS-04F...)

Stock Status: True

TUBE O.D.	1/4
A1 MALE JIC 37	7/16-20
A2 FEMALE JIC 37 SWIVEL	7/16-20
A3 FEMALE JIC 37 SWIVEL	7/16-20
A1 DRILL	0.172
A2 DRILL	0.172
A3 DRILL	0.172
M4 LGTH	0.890
M2 LGTH	1.000
M LGTH	1.000
C HEX	0.562
Y FLATS	0.438
MATERIAL	STEEL

Attribute: 6607-05-05-05-FG (05MJ-05FJS-05F...)

Stock Status: True

TUBE O.D.	5/16
A1 MALE JIC 37	1/2-20
A2 FEMALE JIC 37 SWIVEL	1/2-20
A3 FEMALE JIC 37 SWIVEL	1/2-20
A1 DRILL	0.234
A2 DRILL	0.234
A3 DRILL	0.234
M4 LGTH	0.950
M2 LGTH	0.685
M LGTH	0.685
C HEX	0.625
Y FLATS	0.562
MATERIAL	STEEL

Attribute: 6607-06-06-06-FG (06MJ-06FJS-06F...)

Stock Status: True

TUBE O.D.	3/8
A1 MALE JIC 37	9/16-18
A2 FEMALE JIC 37 SWIVEL	9/16-18
A3 FEMALE JIC 37 SWIVEL	9/16-18
A1 DRILL	0.297
A2 DRILL	0.297
A3 DRILL	0.297
M4 LGTH	1.060
M2 LGTH	1.250
M LGTH	1.250
C HEX	0.687
Y FLATS	0.562
MATERIAL	STEEL

Attribute: 6607-08-08-08-FG (08MJ-08FJS-08F...)

Stock Status: True

TUBE O.D.	1/2
A1 MALE JIC 37	3/4-16
A2 FEMALE JIC 37 SWIVEL	3/4-16
A3 FEMALE JIC 37 SWIVEL	3/4-16
A1 DRILL	0.391
A2 DRILL	0.391
A3 DRILL	0.391
M4 LGTH	1.250
M2 LGTH	1.380
M LGTH	1.380
C HEX	0.875
Y FLATS	0.750
MATERIAL	STEEL

Attribute: 6607-10-10-10-FG (10MJ-10FJS-10F...)

Stock Status: True

TUBE O.D.	5/8
A1 MALE JIC 37	7/8-14
A2 FEMALE JIC 37 SWIVEL	7/8-14
A3 FEMALE JIC 37 SWIVEL	7/8-14
A1 DRILL	0.484
A2 DRILL	0.484
A3 DRILL	0.484
M4 LGTH	1.450
M2 LGTH	1.620
M LGTH	1.620
C HEX	1.000
Y FLATS	0.875
MATERIAL	STEEL

Attribute: 6607-12-12-12-FG (12MJ-12FJS-12F...)

Stock Status: True

TUBE O.D.	3/4
A1 MALE JIC 37	1-1/16-12
A2 FEMALE JIC 37 SWIVEL	1/1/16-12
A3 FEMALE JIC 37 SWIVEL	1-1/16-12
A1 DRILL	0.609
A2 DRILL	0.609
A3 DRILL	0.609
M4 LGTH	1.660
M2 LGTH	1.750
M LGTH	1.750
C HEX	1.250
Y FLATS	1.062
MATERIAL	STEEL

Attribute: 6607-16-16-16-FG (16MJ-16FJS-16F...)

Stock Status: True

TUBE O.D.	1
A1 MALE JIC 37	1-5/16-12
A2 FEMALE JIC 37 SWIVEL	1-5/16-12
A3 FEMALE JIC 37 SWIVEL	1-5/16-12
A1 DRILL	0.844
A2 DRILL	0.844
A3 DRILL	0.844
M4 LGTH	1.810
M2 LGTH	2.000
M LGTH	2.000
C HEX	1.500
Y FLATS	1.312
MATERIAL	STEEL

Attribute: 6607-20-20-20-FG (20MJ-20FJS-20F...)

Stock Status: True

TUBE O.D.	1-1/4
A1 MALE JIC 37	1-5/8-12
A2 FEMALE JIC 37 SWIVEL	1-5/8-12
A3 FEMALE JIC 37 SWIVEL	1-5/8-12
A1 DRILL	1.078
A2 DRILL	1.078
A3 DRILL	1.078
M4 LGTH	2.060
M2 LGTH	2.310
M LGTH	2.310
C HEX	2.000
Y FLATS	1.625
MATERIAL	STEEL

Attribute: 6607-24-24-24-FG (24MJ-24FJS-24F...)

Stock Status: True

TUBE O.D.	1-1/2
A1 MALE JIC 37	1-7/8-12
A2 FEMALE JIC 37 SWIVEL	1-7/8-12
A3 FEMALE JIC 37 SWIVEL	1-7/8-12
A1 DRILL	1.312
A2 DRILL	1.312
A3 DRILL	1.312
M4 LGTH	2.330
M2 LGTH	2.590
M LGTH	2.590
C HEX	2.250
Y FLATS	1.875
MATERIAL	STEEL

Attribute: 6607-32-32-32-FG (32MJ-32FJS-32F...)

Stock Status: True

TUBE O.D.	2
A1 MALE JIC 37	2-1/2-12
A2 FEMALE JIC 37 SWIVEL	2-1/2-12
A3 FEMALE JIC 37 SWIVEL	2-1/2-12
A1 DRILL	1.781
A2 DRILL	1.781
A3 DRILL	1.781
M4 LGTH	3.060
M2 LGTH	3.380
M LGTH	3.380
C HEX	2.875
Y FLATS	2.500
MATERIAL	STEEL
