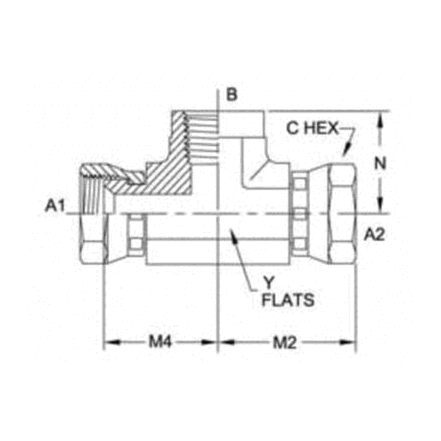

6605-FG

Attribute: 6605-04-04-04-FG (04FJS-04FJS-04...)

Stock Status: True

THREAD B1 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE NPTF
THREAD 3 SIZE	1/4-18
THREAD 3 DRILL IN	0.281
THREAD 3 SPECIFICATION	SAE J476
BODY HEX IN	0.750
C HEX 1 IN	0.563
C HEX 2 IN	0.563
OVERALL LENGTH L IN	0.880
CENTERLINE LENGTH M IN	1.180
CENTERLINE LENGTH M2 IN	1.180
CENTERLINE LENGTH M3 IN	0.836
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.2062
CALIFORNIA RESIDENTS	PROP-65 WARNING
