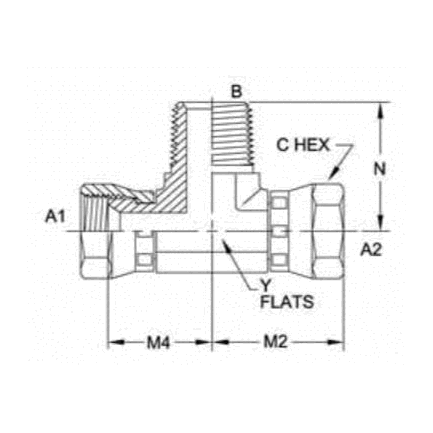

FJS-FJS-MP Tee
Description
Variations (6)
6604-04-04-04-FG
$40.61Attribute: 6604-04-04-04-FG (04FJS-04FJS-04...)
Stock Status: True
| THREAD B1 TYPE | FEMALE JIC SWIVEL 37 DEG FLARE |
|---|---|
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL IN | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | FEMALE JIC SWIVEL 37 DEG FLARE |
| THREAD B2 SIZE | 7/16-20 |
| THREAD B2 DRILL IN | 0.172 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE NPTF |
| THREAD 3 SIZE | 1/4-18 |
| THREAD 3 DRILL IN | 0.281 |
| THREAD 3 SPECIFICATION | SAE J476 |
| BODY HEX IN | 0.562 |
| C HEX 1 IN | 0.562 |
| C HEX 2 IN | 0.562 |
| OVERALL LENGTH L IN | 1.090 |
| CENTERLINE LENGTH M IN | 1.130 |
| CENTERLINE LENGTH M2 IN | 0.790 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.036 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
6604-06-06-06-FG
$56.02Attribute: 6604-06-06-06-FG (06FJS-06FJS-06...)
Stock Status: True
| THREAD B1 TYPE | FEMALE JIC SWIVEL 37 DEG FLARE |
|---|---|
| THREAD B1 SIZE | 9/16-18 |
| THREAD B1 DRILL IN | 0.297 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | FEMALE JIC SWIVEL 37 DEG FLARE |
| THREAD B2 SIZE | 9/16-18 |
| THREAD B2 DRILL IN | 0.297 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE NPTF |
| THREAD 3 SIZE | 3/8-18 |
| THREAD 3 DRILL IN | 0.406 |
| THREAD 3 SPECIFICATION | SAE J476 |
| BODY HEX IN | 0.750 |
| C HEX 1 IN | 0.688 |
| C HEX 2 IN | 0.688 |
| OVERALL LENGTH L IN | 1.220 |
| CENTERLINE LENGTH M IN | 1.280 |
| CENTERLINE LENGTH M2 IN | 0.900 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.25 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
6604-08-08-08-FG
$76.30Attribute: 6604-08-08-08-FG (08FJS-08FJS-08...)
Stock Status: True
| THREAD B1 TYPE | FEMALE JIC SWIVEL 37 DEG FLARE |
|---|---|
| THREAD B1 SIZE | 3/4-16 |
| THREAD B1 DRILL IN | 0.391 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | FEMALE JIC SWIVEL 37 DEG FLARE |
| THREAD B2 SIZE | 3/4-16 |
| THREAD B2 DRILL IN | 0.391 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE NPTF |
| THREAD 3 SIZE | 1/2-14 |
| THREAD 3 DRILL IN | 0.531 |
| THREAD 3 SPECIFICATION | SAE J476 |
| BODY HEX IN | 0.875 |
| C HEX 1 IN | 0.875 |
| C HEX 2 IN | 0.875 |
| OVERALL LENGTH L IN | 1.470 |
| CENTERLINE LENGTH M IN | 1.510 |
| CENTERLINE LENGTH M2 IN | 1.080 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 0.425 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
6604-12-12-12-FG
$111.64Attribute: 6604-12-12-12-FG (12FJS-12FJS-12...)
Stock Status: True
| THREAD B1 TYPE | FEMALE JIC SWIVEL 37 DEG FLARE |
|---|---|
| THREAD B1 SIZE | 1-1/16-12 |
| THREAD B1 DRILL IN | 0.609 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | FEMALE JIC SWIVEL 37 DEG FLARE |
| THREAD B2 SIZE | 1-1/16-12 |
| THREAD B2 DRILL IN | 0.609 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE NPTF |
| THREAD 3 SIZE | 3/4-14 |
| THREAD 3 DRILL IN | 0.719 |
| THREAD 3 SPECIFICATION | SAE J476 |
| BODY HEX IN | 1.062 |
| C HEX 1 IN | 1.250 |
| C HEX 2 IN | 1.250 |
| OVERALL LENGTH L IN | 1.590 |
| CENTERLINE LENGTH M IN | 1.750 |
| CENTERLINE LENGTH M2 IN | 1.180 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 1.075 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
6604-16-16-16-FG
$124.29Attribute: 6604-16-16-16-FG (16FJS-16FJS-16...)
Stock Status: True
| THREAD B1 TYPE | FEMALE JIC SWIVEL 37 DEG FLARE |
|---|---|
| THREAD B1 SIZE | 1-5/16-12 |
| THREAD B1 DRILL IN | 0.844 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | FEMALE JIC SWIVEL 37 DEG FLARE |
| THREAD B2 SIZE | 1-5/16-12 |
| THREAD B2 DRILL IN | 0.844 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE NPTF |
| THREAD 3 SIZE | 1-11-1/2 |
| THREAD 3 DRILL IN | 0.938 |
| THREAD 3 SPECIFICATION | SAE J476 |
| BODY HEX IN | 1.312 |
| C HEX 1 IN | 1.500 |
| C HEX 2 IN | 1.500 |
| OVERALL LENGTH L IN | 1.970 |
| CENTERLINE LENGTH M IN | 2.000 |
| CENTERLINE LENGTH M2 IN | 1.400 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| WEIGHT LBS | 1.0812 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
6604-16-16-16-SS
$1,293.73Attribute: 6604-16-16-16-SS (16FJS-16FJS-16...)
Stock Status: True
| THREAD B1 TYPE | FEMALE JIC SWIVEL 37 DEG FLARE |
|---|---|
| THREAD B1 SIZE | 1-5/16-12 |
| THREAD B1 DRILL IN | 0.844 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | FEMALE JIC SWIVEL 37 DEG FLARE |
| THREAD B2 SIZE | 1-5/16-12 |
| THREAD B2 DRILL IN | 0.844 |
| THREAD B2 SPECIFICATION | SAE J514 |
| THREAD 3 TYPE | MALE NPTF |
| THREAD 3 SIZE | 1-11-1/2 |
| THREAD 3 DRILL IN | 0.938 |
| THREAD 3 SPECIFICATION | SAE J476 |
| BODY HEX IN | 1.312 |
| C HEX 1 IN | 1.500 |
| C HEX 2 IN | 1.500 |
| OVERALL LENGTH L IN | 1.970 |
| CENTERLINE LENGTH M IN | 2.000 |
| CENTERLINE LENGTH M2 IN | 1.400 |
| SHAPE | TEE |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
General Attributes
| Connections | NPT, JIC |
|---|---|
| Shape | Tee |
