Tube Fittings and Adapters

6603-FG

Scraped 2026-02-15 08:27:42

Description

Description

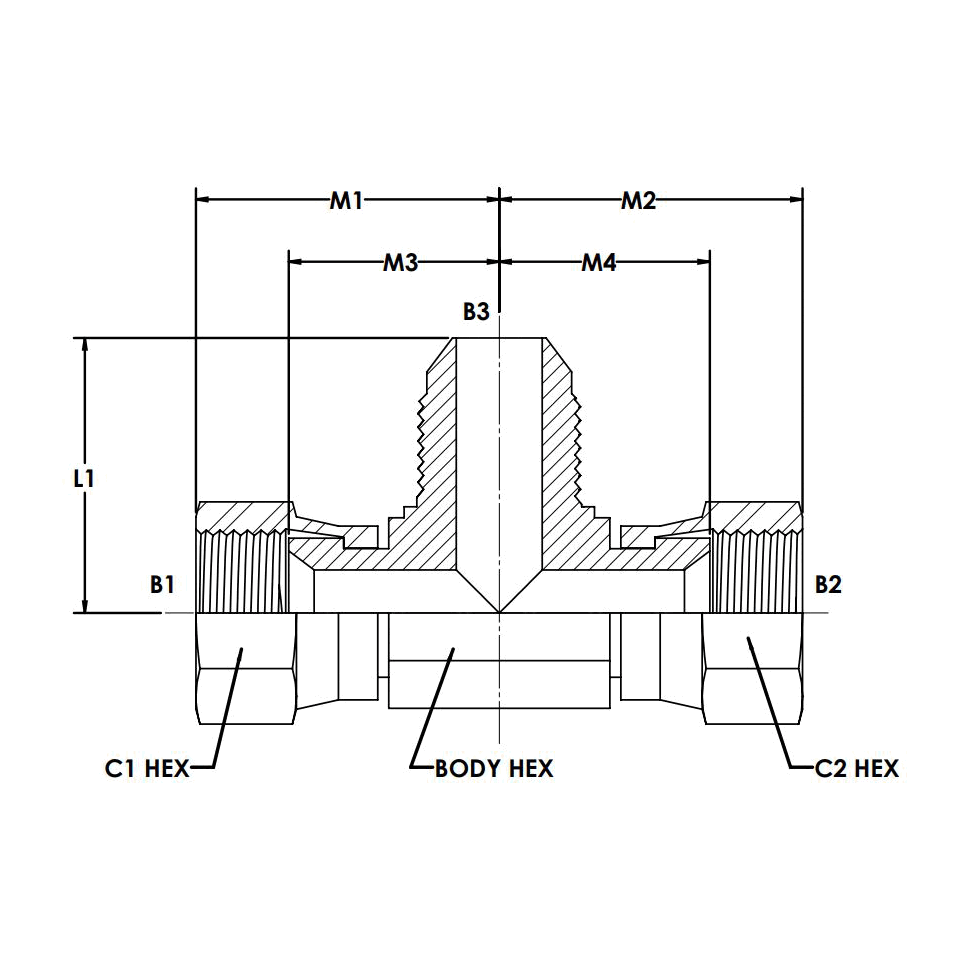

FJS-FJS-MJ Tee

Variations (8)

6603-04-04-04-FG

$36.57

Attribute: 6603-04-04-04-FG (04FJS-04FJS-04...)

Stock Status: True

THREAD B1 TYPEFEMALE JIC SWIVEL 37 DEG FLARE
THREAD B1 SIZE7/16-20
THREAD B1 DRILL IN0.172
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEFEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE7/16-20
THREAD B2 DRILL IN0.172
THREAD B2 SPECIFICATIONSAE J514
THREAD 3 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE7/16-20
THREAD 3 DRILL IN0.172
THREAD 3 SPECIFICATIONSAE J514
BODY HEX IN0.438
C HEX 1 IN0.563
C HEX 2 IN0.563
OVERALL LENGTH L IN0.890
CENTERLINE LENGTH M IN1.000
CENTERLINE LENGTH M2 IN1.000
CENTERLINE LENGTH M3 IN0.656
SHAPETEE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS0.1
CALIFORNIA RESIDENTSPROP-65 WARNING

6603-06-06-06-FG

$50.65

Attribute: 6603-06-06-06-FG (06FJS-06FJS-06...)

Stock Status: True

THREAD B1 TYPEFEMALE JIC SWIVEL 37 DEG FLARE
THREAD B1 SIZE9/16-18
THREAD B1 DRILL IN0.297
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEFEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE9/16-18
THREAD B2 DRILL IN0.297
THREAD B2 SPECIFICATIONSAE J514
THREAD 3 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE9/16-18
THREAD 3 DRILL IN0.297
THREAD 3 SPECIFICATIONSAE J514
BODY HEX IN0.562
C HEX 1 IN0.688
C HEX 2 IN0.688
OVERALL LENGTH L IN1.060
CENTERLINE LENGTH M IN1.250
CENTERLINE LENGTH M2 IN1.250
CENTERLINE LENGTH M3 IN0.875
SHAPETEE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS0.1625
CALIFORNIA RESIDENTSPROP-65 WARNING

6603-08-08-08-FG

$68.32

Attribute: 6603-08-08-08-FG (08FJS-08FJS-08...)

Stock Status: True

THREAD B1 TYPEFEMALE JIC SWIVEL 37 DEG FLARE
THREAD B1 SIZE3/4-16
THREAD B1 DRILL IN0.391
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEFEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE3/4-16
THREAD B2 DRILL IN0.391
THREAD B2 SPECIFICATIONSAE J514
THREAD 3 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE3/4-16
THREAD 3 DRILL IN0.391
THREAD 3 SPECIFICATIONSAE J514
BODY HEX IN0.750
C HEX 1 IN0.875
C HEX 2 IN0.875
OVERALL LENGTH L IN1.250
CENTERLINE LENGTH M IN1.380
CENTERLINE LENGTH M2 IN1.380
CENTERLINE LENGTH M3 IN0.958
SHAPETEE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS0.3
CALIFORNIA RESIDENTSPROP-65 WARNING

6603-10-10-10-FG

$77.09

Attribute: 6603-10-10-10-FG (10FJS-10FJS-10...)

Stock Status: True

THREAD B1 TYPEFEMALE JIC SWIVEL 37 DEG FLARE
THREAD B1 SIZE7/8-14
THREAD B1 DRILL IN0.484
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEFEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE7/8-14
THREAD B2 DRILL IN0.484
THREAD B2 SPECIFICATIONSAE J514
THREAD 3 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE7/8-14
THREAD 3 DRILL IN0.484
THREAD 3 SPECIFICATIONSAE J514
BODY HEX IN0.875
C HEX 1 IN1.000
C HEX 2 IN1.000
OVERALL LENGTH L IN1.450
CENTERLINE LENGTH M IN1.620
CENTERLINE LENGTH M2 IN1.620
CENTERLINE LENGTH M3 IN1.120
SHAPETEE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS0.45
CALIFORNIA RESIDENTSPROP-65 WARNING

6603-12-12-12-FG

$102.92

Attribute: 6603-12-12-12-FG (12FJS-12FJS-12...)

Stock Status: True

THREAD B1 TYPEFEMALE JIC SWIVEL 37 DEG FLARE
THREAD B1 SIZE1-1/16-12
THREAD B1 DRILL IN0.609
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEFEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE1-1/16-12
THREAD B2 DRILL IN0.609
THREAD B2 SPECIFICATIONSAE J514
THREAD 3 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE1-1/16-12
THREAD 3 DRILL IN0.609
THREAD 3 SPECIFICATIONSAE J514
BODY HEX IN1.062
C HEX 1 IN1.250
C HEX 2 IN1.250
OVERALL LENGTH L IN1.660
CENTERLINE LENGTH M IN1.750
CENTERLINE LENGTH M2 IN1.750
CENTERLINE LENGTH M3 IN1.188
SHAPETEE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS0.7437
CALIFORNIA RESIDENTSPROP-65 WARNING

6603-16-16-16-FG

$112.97

Attribute: 6603-16-16-16-FG (16FJS-16FJS-16...)

Stock Status: True

THREAD B1 TYPEFEMALE JIC SWIVEL 37 DEG FLARE
THREAD B1 SIZE1-5/16-12
THREAD B1 DRILL IN0.844
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEFEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE1-5/16-12
THREAD B2 DRILL IN0.844
THREAD B2 SPECIFICATIONSAE J514
THREAD 3 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE1-5/16-12
THREAD 3 DRILL IN0.844
THREAD 3 SPECIFICATIONSAE J514
BODY HEX IN1.312
C HEX 1 IN1.500
C HEX 2 IN1.500
OVERALL LENGTH L IN1.810
CENTERLINE LENGTH M IN2.000
CENTERLINE LENGTH M2 IN2.000
CENTERLINE LENGTH M3 IN1.406
SHAPETEE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS1.1062
CALIFORNIA RESIDENTSPROP-65 WARNING

6603-20-20-20-FG

$295.94

Attribute: 6603-20-20-20-FG (20FJS-20FJS-20...)

Stock Status: True

THREAD B1 TYPEFEMALE JIC SWIVEL 37 DEG FLARE
THREAD B1 SIZE1-5/8-12
THREAD B1 DRILL IN1.078
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEFEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE1-5/8-12
THREAD B2 DRILL IN1.078
THREAD B2 SPECIFICATIONSAE J514
THREAD 3 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE1-5/8-12
THREAD 3 DRILL IN1.078
THREAD 3 SPECIFICATIONSAE J514
BODY HEX IN1.625
C HEX 1 IN2.000
C HEX 2 IN2.000
OVERALL LENGTH L IN2.059
CENTERLINE LENGTH M3 IN1.685
SHAPETEE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS2.0062
CALIFORNIA RESIDENTSPROP-65 WARNING

6603-24-24-24-FG

$348.41

Attribute: 6603-24-24-24-FG (24FJS-24FJS-24...)

Stock Status: True

THREAD B1 TYPEFEMALE JIC SWIVEL 37 DEG FLARE
THREAD B1 SIZE1-7/8-12
THREAD B1 DRILL IN1.311
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEFEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE1-7/8-12
THREAD B2 DRILL IN1.311
THREAD B2 SPECIFICATIONSAE J514
THREAD 3 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE1-7/8-12
THREAD 3 DRILL IN1.311
THREAD 3 SPECIFICATIONSAE J514
BODY HEX IN1.875
C HEX 1 IN2.250
C HEX 2 IN2.250
OVERALL LENGTH L IN2.331
CENTERLINE LENGTH M3 IN1.854
SHAPETEE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS2.6812
CALIFORNIA RESIDENTSPROP-65 WARNING

General Attributes

Connections JIC
Shape Tee

PDF Documents

Download CAD and Drawings Open PDF
