6602-FG

6602-03-03-03-FG

$24.02

Attribute: 6602-03-03-03-FG (03MJ-03FJS-03M...)

Stock Status: True

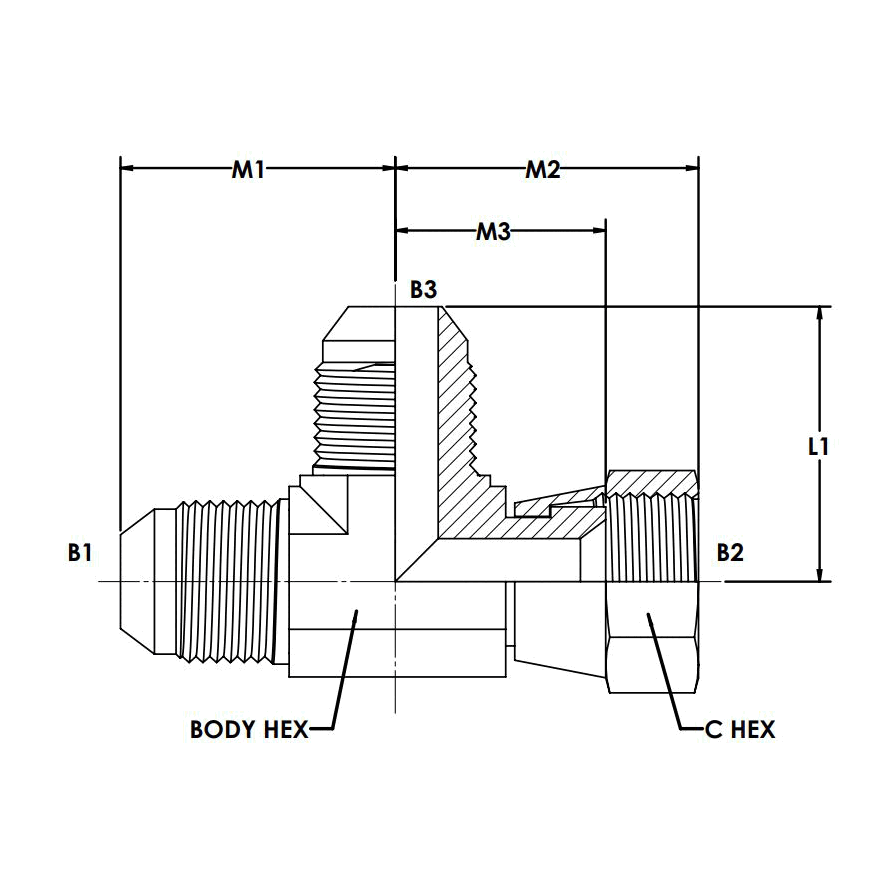

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/8-24
THREAD B1 DRILL IN	0.125
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/8-24
THREAD B2 DRILL IN	0.125
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/8-24
THREAD 3 DRILL IN	0.125
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.438
C HEX 1 IN	0.500
OVERALL LENGTH L IN	0.830
CENTERLINE LENGTH M IN	0.830
CENTERLINE LENGTH M2 IN	1.000
CENTERLINE LENGTH M3 IN	0.670
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.075
CALIFORNIA RESIDENTS	PROP-65 WARNING

6602-03-03-03-SS

$97.21

Attribute: 6602-03-03-03-SS (03MJ-03FJS-03M...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/8-24
THREAD B1 DRILL IN	0.125
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/8-24
THREAD B2 DRILL IN	0.125
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/8-24
THREAD 3 DRILL IN	0.125
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.438
C HEX 1 IN	0.500
OVERALL LENGTH L IN	0.830
CENTERLINE LENGTH M IN	0.830
CENTERLINE LENGTH M2 IN	1.000
CENTERLINE LENGTH M3 IN	0.670
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

6602-04-04-04-FG

$10.78

Attribute: 6602-04-04-04-FG (04MJ-04FJS-04M...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/16-20
THREAD 3 DRILL IN	0.172
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.438
C HEX 1 IN	0.563
OVERALL LENGTH L IN	0.890
CENTERLINE LENGTH M IN	0.890
CENTERLINE LENGTH M2 IN	1.000
CENTERLINE LENGTH M3 IN	0.650
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.084
CALIFORNIA RESIDENTS	PROP-65 WARNING

6602-04-04-04-SS

$106.18

Attribute: 6602-04-04-04-SS (04MJ-04FJS-04M...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/16-20
THREAD 3 DRILL IN	0.172
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.438
C HEX 1 IN	0.563
OVERALL LENGTH L IN	0.890
CENTERLINE LENGTH M IN	0.890
CENTERLINE LENGTH M2 IN	1.000
CENTERLINE LENGTH M3 IN	0.650
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.15
CALIFORNIA RESIDENTS	PROP-65 WARNING

6602-04-06-06-FG

$25.65

Attribute: 6602-04-06-06-FG (04MJ-06FJS-06M...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.060
CENTERLINE LENGTH M IN	1.050
CENTERLINE LENGTH M2 IN	1.250
CENTERLINE LENGTH M3 IN	0.875
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.15
CALIFORNIA RESIDENTS	PROP-65 WARNING

6602-04-10-10-FG

$60.80

Attribute: 6602-04-10-10-FG (04MJ-10FJS-10M...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/8-14
THREAD 3 DRILL IN	0.484
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.450
CENTERLINE LENGTH M IN	1.210
CENTERLINE LENGTH M2 IN	1.620
CENTERLINE LENGTH M3 IN	1.050
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.3875
CALIFORNIA RESIDENTS	PROP-65 WARNING

6602-05-05-05-FG

$22.35

Attribute: 6602-05-05-05-FG (05MJ-05FJS-05M...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1/2-20
THREAD B2 DRILL IN	0.234
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1/2-20
THREAD 3 DRILL IN	0.234
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.625
OVERALL LENGTH L IN	0.950
CENTERLINE LENGTH M IN	0.950
CENTERLINE LENGTH M2 IN	1.060
CENTERLINE LENGTH M3 IN	0.680
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1187
CALIFORNIA RESIDENTS	PROP-65 WARNING

6602-05-05-05-SS

$333.64

Attribute: 6602-05-05-05-SS (05MJ-05FJS-05M...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1/2-20
THREAD B2 DRILL IN	0.234
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1/2-20
THREAD 3 DRILL IN	0.234
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.625
OVERALL LENGTH L IN	0.950
CENTERLINE LENGTH M IN	0.950
CENTERLINE LENGTH M2 IN	1.060
CENTERLINE LENGTH M3 IN	0.680
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.2812
CALIFORNIA RESIDENTS	PROP-65 WARNING

6602-06-06-04-FG

$20.43

Attribute: 6602-06-06-04-FG (06MJ-06FJS-04M...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/16-20
THREAD 3 DRILL IN	0.172
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.050
CENTERLINE LENGTH M IN	1.060
CENTERLINE LENGTH M2 IN	1.250
CENTERLINE LENGTH M3 IN	0.875
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1437
CALIFORNIA RESIDENTS	PROP-65 WARNING

6602-06-06-06-FG

$11.86

Attribute: 6602-06-06-06-FG (06MJ-06FJS-06M...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.687
OVERALL LENGTH L IN	1.060
CENTERLINE LENGTH M IN	1.060
CENTERLINE LENGTH M2 IN	1.250
CENTERLINE LENGTH M3 IN	0.875
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.142
CALIFORNIA RESIDENTS	PROP-65 WARNING

6602-06-06-06-SS

$124.78

Attribute: 6602-06-06-06-SS (06MJ-06FJS-06M...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.687
OVERALL LENGTH L IN	1.060
CENTERLINE LENGTH M IN	1.060
CENTERLINE LENGTH M2 IN	1.250
CENTERLINE LENGTH M3 IN	0.875
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.2812
CALIFORNIA RESIDENTS	PROP-65 WARNING

6602-06-08-06-FG

$33.96

Attribute: 6602-06-08-06-FG (06MJ-08FJS-06M...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.140
CENTERLINE LENGTH M IN	1.140
CENTERLINE LENGTH M2 IN	1.380
CENTERLINE LENGTH M3 IN	0.950
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.2425
CALIFORNIA RESIDENTS	PROP-65 WARNING

6602-06-08-06-SS

$737.79

Attribute: 6602-06-08-06-SS (06MJ-08FJS-06M...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.140
CENTERLINE LENGTH M IN	1.140
CENTERLINE LENGTH M2 IN	1.380
CENTERLINE LENGTH M3 IN	0.950
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

6602-06-08-08-FG

$38.40

Attribute: 6602-06-08-08-FG (06MJ-08FJS-08M...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/4-16
THREAD 3 DRILL IN	0.391
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.250
CENTERLINE LENGTH M IN	1.140
CENTERLINE LENGTH M2 IN	1.380
CENTERLINE LENGTH M3 IN	0.950
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.2625
CALIFORNIA RESIDENTS	PROP-65 WARNING

6602-08-08-04-FG

$46.76

Attribute: 6602-08-08-04-FG (08MJ-08FJS-04M...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/16-20
THREAD 3 DRILL IN	0.172
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.120
CENTERLINE LENGTH M IN	1.250
CENTERLINE LENGTH M2 IN	1.380
CENTERLINE LENGTH M3 IN	0.950
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.2625
CALIFORNIA RESIDENTS	PROP-65 WARNING

6602-08-08-05-FG

$63.94

Attribute: 6602-08-08-05-FG (08MJ-08FJS-05M...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1/2-20
THREAD 3 DRILL IN	0.234
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.120
CENTERLINE LENGTH M IN	1.250
CENTERLINE LENGTH M2 IN	1.380
CENTERLINE LENGTH M3 IN	0.950
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.3
CALIFORNIA RESIDENTS	PROP-65 WARNING

6602-08-08-06-FG

$29.39

Attribute: 6602-08-08-06-FG (08MJ-08FJS-06M...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.140
CENTERLINE LENGTH M IN	1.250
CENTERLINE LENGTH M2 IN	1.380
CENTERLINE LENGTH M3 IN	0.950
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.2625
CALIFORNIA RESIDENTS	PROP-65 WARNING

6602-08-08-08-FG

$17.62

Attribute: 6602-08-08-08-FG (08MJ-08FJS-08M...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/4-16
THREAD 3 DRILL IN	0.391
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.250
CENTERLINE LENGTH M IN	1.250
CENTERLINE LENGTH M2 IN	1.380
CENTERLINE LENGTH M3 IN	0.950
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.282
CALIFORNIA RESIDENTS	PROP-65 WARNING

6602-08-08-08-SS

$216.64

Attribute: 6602-08-08-08-SS (08MJ-08FJS-08M...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	3/4-16
THREAD 3 DRILL IN	0.391
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.250
CENTERLINE LENGTH M IN	1.250
CENTERLINE LENGTH M2 IN	1.380
CENTERLINE LENGTH M3 IN	0.950
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.5187
CALIFORNIA RESIDENTS	PROP-65 WARNING

6602-08-08-12-FG

$98.01

Attribute: 6602-08-08-12-FG (08MJ-08FJS-12M...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-1/16-12
THREAD 3 DRILL IN	0.609
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.660
CENTERLINE LENGTH M IN	1.420
CENTERLINE LENGTH M2 IN	1.550
CENTERLINE LENGTH M3 IN	1.130
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.5625
CALIFORNIA RESIDENTS	PROP-65 WARNING

6602-08-12-12-FG

$79.90

Attribute: 6602-08-12-12-FG (08MJ-12FJS-12M...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-1/16-12
THREAD 3 DRILL IN	0.609
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.660
CENTERLINE LENGTH M IN	1.420
CENTERLINE LENGTH M2 IN	1.750
CENTERLINE LENGTH M3 IN	1.180
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.6125
CALIFORNIA RESIDENTS	PROP-65 WARNING

6602-08-20-20-FG

$188.23

Attribute: 6602-08-20-20-FG (08MJ-20FJS-20M...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-5/8-12
THREAD 3 DRILL IN	1.078
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.625
C HEX 1 IN	2.000
OVERALL LENGTH L IN	2.060
CENTERLINE LENGTH M IN	1.720
CENTERLINE LENGTH M2 IN	2.310
CENTERLINE LENGTH M3 IN	1.670
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.775
CALIFORNIA RESIDENTS	PROP-65 WARNING

6602-10-10-10-FG

$25.65

Attribute: 6602-10-10-10-FG (10MJ-10FJS-10M...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/8-14
THREAD 3 DRILL IN	0.484
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.450
CENTERLINE LENGTH M IN	1.450
CENTERLINE LENGTH M2 IN	1.620
CENTERLINE LENGTH M3 IN	1.120
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.426
CALIFORNIA RESIDENTS	PROP-65 WARNING

6602-10-10-10-SS

$336.93

Attribute: 6602-10-10-10-SS (10MJ-10FJS-10M...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/8-14
THREAD 3 DRILL IN	0.484
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.450
CENTERLINE LENGTH M IN	1.450
CENTERLINE LENGTH M2 IN	1.620
CENTERLINE LENGTH M3 IN	1.120
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.432
CALIFORNIA RESIDENTS	PROP-65 WARNING

6602-10-10-12-FG

$85.79

Attribute: 6602-10-10-12-FG (10MJ-10FJS-12M...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-1/16-12
THREAD 3 DRILL IN	0.609
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.660
CENTERLINE LENGTH M IN	1.540
CENTERLINE LENGTH M2 IN	1.660
CENTERLINE LENGTH M3 IN	1.150
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.6062
CALIFORNIA RESIDENTS	PROP-65 WARNING

6602-12-12-04-FG

$64.88

Attribute: 6602-12-12-04-FG (12MJ-12FJS-04M...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	7/16-20
THREAD 3 DRILL IN	0.172
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.300
CENTERLINE LENGTH M IN	1.660
CENTERLINE LENGTH M2 IN	1.750
CENTERLINE LENGTH M3 IN	1.180
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.625
CALIFORNIA RESIDENTS	PROP-65 WARNING

6602-12-12-12-FG

$36.03

Attribute: 6602-12-12-12-FG (12MJ-12FJS-12M...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-1/16-12
THREAD 3 DRILL IN	0.609
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.660
CENTERLINE LENGTH M IN	1.660
CENTERLINE LENGTH M2 IN	1.750
CENTERLINE LENGTH M3 IN	1.180
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.686
CALIFORNIA RESIDENTS	PROP-65 WARNING

6602-12-12-12-SS

$342.40

Attribute: 6602-12-12-12-SS (12MJ-12FJS-12M...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-1/16-12
THREAD 3 DRILL IN	0.609
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.660
CENTERLINE LENGTH M IN	1.660
CENTERLINE LENGTH M2 IN	1.750
CENTERLINE LENGTH M3 IN	1.180
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1.4187
CALIFORNIA RESIDENTS	PROP-65 WARNING

6602-14-14-14-FG

$87.03

Attribute: 6602-14-14-14-FG (14MJ-14FJS-14M...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-3/16-12
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-3/16-12
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-3/16-12
THREAD 3 DRILL IN	0.719
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.312
C HEX 1 IN	1.375
OVERALL LENGTH L IN	1.800
CENTERLINE LENGTH M IN	1.800
CENTERLINE LENGTH M2 IN	1.780
CENTERLINE LENGTH M3 IN	1.200
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.9562
CALIFORNIA RESIDENTS	PROP-65 WARNING

6602-16-16-12-FG

$104.35

Attribute: 6602-16-16-12-FG (16MJ-16FJS-12M...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-1/16-12
THREAD 3 DRILL IN	0.609
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.312
C HEX 1 IN	1.500
OVERALL LENGTH L IN	1.760
CENTERLINE LENGTH M IN	1.810
CENTERLINE LENGTH M2 IN	2.000
CENTERLINE LENGTH M3 IN	1.400
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1
CALIFORNIA RESIDENTS	PROP-65 WARNING

6602-16-16-16-FG

$70.25

Attribute: 6602-16-16-16-FG (16MJ-16FJS-16M...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-5/16-12
THREAD 3 DRILL IN	0.844
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.312
C HEX 1 IN	1.500
OVERALL LENGTH L IN	1.810
CENTERLINE LENGTH M IN	1.810
CENTERLINE LENGTH M2 IN	2.000
CENTERLINE LENGTH M3 IN	1.400
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.012
CALIFORNIA RESIDENTS	PROP-65 WARNING

6602-16-16-16-SS

$521.04

Attribute: 6602-16-16-16-SS (16MJ-16FJS-16M...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-5/16-12
THREAD 3 DRILL IN	0.844
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.312
C HEX 1 IN	1.500
OVERALL LENGTH L IN	1.810
CENTERLINE LENGTH M IN	1.810
CENTERLINE LENGTH M2 IN	2.000
CENTERLINE LENGTH M3 IN	1.400
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1.0402
CALIFORNIA RESIDENTS	PROP-65 WARNING

6602-16-20-20-FG

$180.31

Attribute: 6602-16-20-20-FG (16MJ-20FJS-20M...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-5/8-12
THREAD 3 DRILL IN	1.078
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.625
C HEX 1 IN	2.000
OVERALL LENGTH L IN	2.060
CENTERLINE LENGTH M IN	2.010
CENTERLINE LENGTH M2 IN	2.310
CENTERLINE LENGTH M3 IN	1.670
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.7562
CALIFORNIA RESIDENTS	PROP-65 WARNING

6602-20-20-20-FG

$130.20

Attribute: 6602-20-20-20-FG (20MJ-20FJS-20M...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-5/8-12
THREAD 3 DRILL IN	1.078
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.625
C HEX 1 IN	2.000
OVERALL LENGTH L IN	2.060
CENTERLINE LENGTH M IN	2.060
CENTERLINE LENGTH M2 IN	2.310
CENTERLINE LENGTH M3 IN	1.685
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	2
CALIFORNIA RESIDENTS	PROP-65 WARNING

6602-20-20-20-SS

$615.21

Attribute: 6602-20-20-20-SS (20MJ-20FJS-20M...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-5/8-12
THREAD 3 DRILL IN	1.078
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.625
C HEX 1 IN	2.000
OVERALL LENGTH L IN	2.060
CENTERLINE LENGTH M IN	2.060
CENTERLINE LENGTH M2 IN	2.310
CENTERLINE LENGTH M3 IN	1.685
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1.825
CALIFORNIA RESIDENTS	PROP-65 WARNING

6602-24-24-24-FG

$201.96

Attribute: 6602-24-24-24-FG (24MJ-24FJS-24M...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-7/8-12
THREAD 3 DRILL IN	1.312
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.875
C HEX 1 IN	2.250
OVERALL LENGTH L IN	2.330
CENTERLINE LENGTH M IN	2.330
CENTERLINE LENGTH M2 IN	2.590
CENTERLINE LENGTH M3 IN	1.870
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	2.4187
CALIFORNIA RESIDENTS	PROP-65 WARNING

6602-24-24-24-SS

$1,483.91

Attribute: 6602-24-24-24-SS (24MJ-24FJS-24M...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	1-7/8-12
THREAD 3 DRILL IN	1.312
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.875
C HEX 1 IN	2.250
OVERALL LENGTH L IN	2.330
CENTERLINE LENGTH M IN	2.330
CENTERLINE LENGTH M2 IN	2.590
CENTERLINE LENGTH M3 IN	1.870
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	3.3
CALIFORNIA RESIDENTS	PROP-65 WARNING

6602-32-32-32-FG

$569.23

Attribute: 6602-32-32-32-FG (32MJ-32FJS-32M...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	2-1/2-12
THREAD B2 DRILL IN	1.781
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	2-1/2-12
THREAD 3 DRILL IN	1.781
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	2.500
C HEX 1 IN	2.875
OVERALL LENGTH L IN	3.060
CENTERLINE LENGTH M IN	3.060
CENTERLINE LENGTH M2 IN	3.380
CENTERLINE LENGTH M3 IN	2.430
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	5.5
CALIFORNIA RESIDENTS	PROP-65 WARNING

6602-32-32-32-SS

$2,830.98

Attribute: 6602-32-32-32-SS (32MJ-32FJS-32M...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	2-1/2-12
THREAD B2 DRILL IN	1.781
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD 3 SIZE	2-1/2-12
THREAD 3 DRILL IN	1.781
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	2.500
C HEX 1 IN	2.875
OVERALL LENGTH L IN	3.060
CENTERLINE LENGTH M IN	3.060
CENTERLINE LENGTH M2 IN	3.380
CENTERLINE LENGTH M3 IN	2.430
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	12.6
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	JIC
Shape	Tee

ID	10146374
Category	Tube Fittings and Adapters

Description

Description

Variations (39)

6602-03-03-03-FG

6602-03-03-03-SS

6602-04-04-04-FG

6602-04-04-04-SS

6602-04-06-06-FG

6602-04-10-10-FG

6602-05-05-05-FG

6602-05-05-05-SS

6602-06-06-04-FG

6602-06-06-06-FG

6602-06-06-06-SS

6602-06-08-06-FG

6602-06-08-06-SS

6602-06-08-08-FG

6602-08-08-04-FG

6602-08-08-05-FG

6602-08-08-06-FG

6602-08-08-08-FG

6602-08-08-08-SS

6602-08-08-12-FG

6602-08-12-12-FG

6602-08-20-20-FG

6602-10-10-10-FG

6602-10-10-10-SS

6602-10-10-12-FG

6602-12-12-04-FG

6602-12-12-12-FG

6602-12-12-12-SS

6602-14-14-14-FG

6602-16-16-12-FG

6602-16-16-16-FG

6602-16-16-16-SS

6602-16-20-20-FG

6602-20-20-20-FG

6602-20-20-20-SS

6602-24-24-24-FG

6602-24-24-24-SS

6602-32-32-32-FG

6602-32-32-32-SS

General Attributes

PDF Documents
