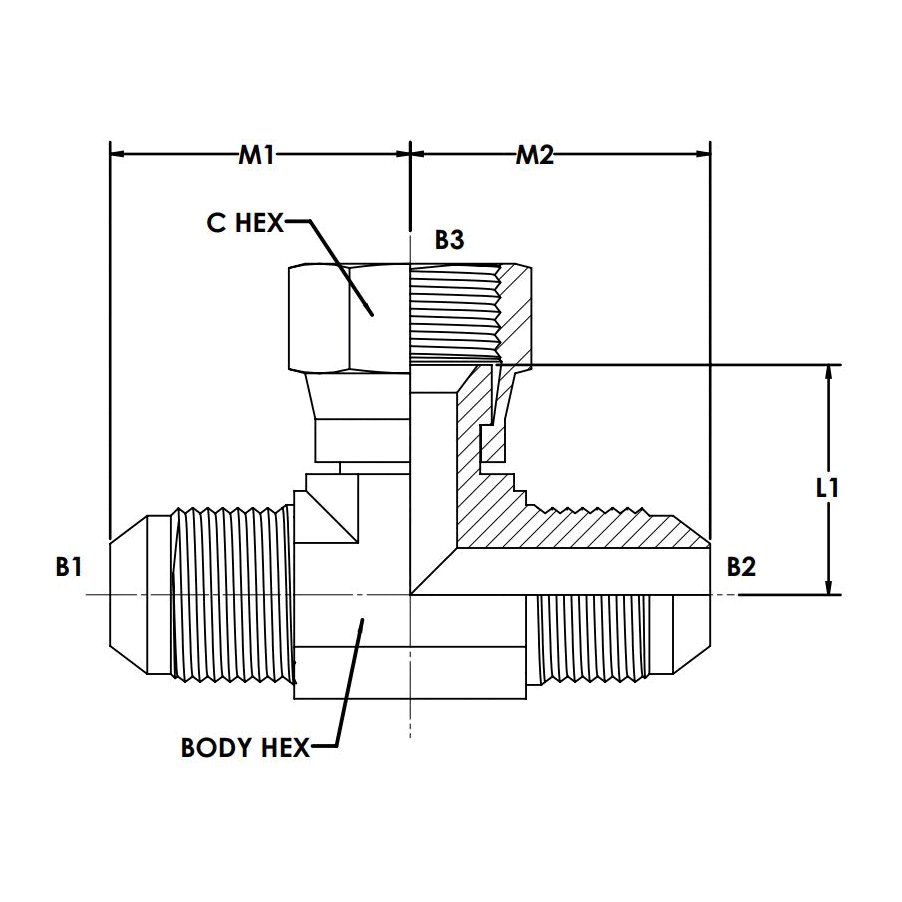

6600-FG

6600-02-02-02-SS

$291.17

Attribute: 6600-02-02-02-SS (02MJ-02MJ-02FJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	5/16-24
THREAD B1 DRILL IN	0.062
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	5/16-24
THREAD B2 DRILL IN	0.062
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD 3 SIZE	5/16-24
THREAD 3 DRILL IN	0.062
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.438
C HEX 1 IN	0.438
OVERALL LENGTH L IN	0.970
OVERALL LENGTH L2 IN	0.660
CENTERLINE LENGTH M IN	0.770
CENTERLINE LENGTH M2 IN	0.770
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

6600-03-03-03-FG

$20.47

Attribute: 6600-03-03-03-FG (03MJ-03MJ-03FJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/8-24
THREAD B1 DRILL IN	0.125
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/8-24
THREAD B2 DRILL IN	0.125
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD 3 SIZE	3/8-24
THREAD 3 DRILL IN	0.125
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.438
C HEX 1 IN	0.500
OVERALL LENGTH L IN	1.000
OVERALL LENGTH L2 IN	0.660
CENTERLINE LENGTH M IN	0.830
CENTERLINE LENGTH M2 IN	0.830
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.075
CALIFORNIA RESIDENTS	PROP-65 WARNING

6600-04-04-04-FG

$9.69

Attribute: 6600-04-04-04-FG (04MJ-04MJ-04FJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD 3 SIZE	7/16-20
THREAD 3 DRILL IN	0.172
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.438
C HEX 1 IN	0.563
OVERALL LENGTH L IN	1.000
OVERALL LENGTH L2 IN	0.650
CENTERLINE LENGTH M IN	0.890
CENTERLINE LENGTH M2 IN	0.890
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.088
CALIFORNIA RESIDENTS	PROP-65 WARNING

6600-04-04-04-SS

$103.32

Attribute: 6600-04-04-04-SS (04MJ-04MJ-04FJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD 3 SIZE	7/16-20
THREAD 3 DRILL IN	0.172
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.438
C HEX 1 IN	0.563
OVERALL LENGTH L IN	1.000
OVERALL LENGTH L2 IN	0.650
CENTERLINE LENGTH M IN	0.890
CENTERLINE LENGTH M2 IN	0.890
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.15
CALIFORNIA RESIDENTS	PROP-65 WARNING

6600-05-05-05-FG

$26.24

Attribute: 6600-05-05-05-FG (05MJ-05MJ-05FJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1/2-20
THREAD B2 DRILL IN	0.234
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD 3 SIZE	1/2-20
THREAD 3 DRILL IN	0.234
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.625
OVERALL LENGTH L IN	1.060
OVERALL LENGTH L2 IN	0.680
CENTERLINE LENGTH M IN	0.950
CENTERLINE LENGTH M2 IN	0.950
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.132
CALIFORNIA RESIDENTS	PROP-65 WARNING

6600-05-05-05-SS

$269.65

Attribute: 6600-05-05-05-SS (05MJ-05MJ-05FJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1/2-20
THREAD B2 DRILL IN	0.234
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD 3 SIZE	1/2-20
THREAD 3 DRILL IN	0.234
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.625
OVERALL LENGTH L IN	1.060
OVERALL LENGTH L2 IN	0.680
CENTERLINE LENGTH M IN	0.950
CENTERLINE LENGTH M2 IN	0.950
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1
CALIFORNIA RESIDENTS	PROP-65 WARNING

6600-06-06-06-FG

$10.93

Attribute: 6600-06-06-06-FG (06MJ-06MJ-06FJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.250
OVERALL LENGTH L2 IN	0.870
CENTERLINE LENGTH M IN	1.060
CENTERLINE LENGTH M2 IN	1.060
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.152
CALIFORNIA RESIDENTS	PROP-65 WARNING

6600-06-06-06-SS

$136.30

Attribute: 6600-06-06-06-SS (06MJ-06MJ-06FJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD 3 SIZE	9/16-18
THREAD 3 DRILL IN	0.297
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.250
OVERALL LENGTH L2 IN	0.870
CENTERLINE LENGTH M IN	1.060
CENTERLINE LENGTH M2 IN	1.060
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.2812
CALIFORNIA RESIDENTS	PROP-65 WARNING

6600-06-06-08-FG

$66.69

Attribute: 6600-06-06-08-FG (06MJ-06MJ-08FJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD 3 SIZE	3/4-16
THREAD 3 DRILL IN	0.391
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.380
OVERALL LENGTH L2 IN	0.950
CENTERLINE LENGTH M IN	1.140
CENTERLINE LENGTH M2 IN	1.140
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.2375
CALIFORNIA RESIDENTS	PROP-65 WARNING

6600-08-08-08-FG

$16.34

Attribute: 6600-08-08-08-FG (08MJ-08MJ-08FJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD 3 SIZE	3/4-16
THREAD 3 DRILL IN	0.391
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.380
OVERALL LENGTH L2 IN	0.950
CENTERLINE LENGTH M IN	1.250
CENTERLINE LENGTH M2 IN	1.250
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.278
CALIFORNIA RESIDENTS	PROP-65 WARNING

6600-08-08-08-SS

$204.87

Attribute: 6600-08-08-08-SS (08MJ-08MJ-08FJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD 3 SIZE	3/4-16
THREAD 3 DRILL IN	0.391
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.380
OVERALL LENGTH L2 IN	0.950
CENTERLINE LENGTH M IN	1.250
CENTERLINE LENGTH M2 IN	1.250
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.5187
CALIFORNIA RESIDENTS	PROP-65 WARNING

6600-10-10-10-FG

$23.24

Attribute: 6600-10-10-10-FG (10MJ-10MJ-10FJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD 3 SIZE	7/8-14
THREAD 3 DRILL IN	0.484
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.620
OVERALL LENGTH L2 IN	1.120
CENTERLINE LENGTH M IN	1.450
CENTERLINE LENGTH M2 IN	1.450
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.43
CALIFORNIA RESIDENTS	PROP-65 WARNING

6600-10-10-10-SS

$324.83

Attribute: 6600-10-10-10-SS (10MJ-10MJ-10FJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD 3 SIZE	7/8-14
THREAD 3 DRILL IN	0.484
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.620
OVERALL LENGTH L2 IN	1.120
CENTERLINE LENGTH M IN	1.450
CENTERLINE LENGTH M2 IN	1.450
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.825
CALIFORNIA RESIDENTS	PROP-65 WARNING

6600-12-12-10-FG

$68.96

Attribute: 6600-12-12-10-FG (12MJ-12MJ-10FJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD 3 SIZE	7/8-14
THREAD 3 DRILL IN	0.484
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.630
OVERALL LENGTH L2 IN	1.130
CENTERLINE LENGTH M IN	1.660
CENTERLINE LENGTH M2 IN	1.660
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.6312
CALIFORNIA RESIDENTS	PROP-65 WARNING

6600-12-12-12-FG

$36.72

Attribute: 6600-12-12-12-FG (12MJ-12MJ-12FJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD 3 SIZE	1-1/16-12
THREAD 3 DRILL IN	0.609
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.750
OVERALL LENGTH L2 IN	1.180
CENTERLINE LENGTH M IN	1.660
CENTERLINE LENGTH M2 IN	1.660
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.696
CALIFORNIA RESIDENTS	PROP-65 WARNING

6600-12-12-12-SS

$329.35

Attribute: 6600-12-12-12-SS (12MJ-12MJ-12FJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD 3 SIZE	1-1/16-12
THREAD 3 DRILL IN	0.609
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.750
OVERALL LENGTH L2 IN	1.180
CENTERLINE LENGTH M IN	1.660
CENTERLINE LENGTH M2 IN	1.660
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.7
CALIFORNIA RESIDENTS	PROP-65 WARNING

6600-14-14-14-FG

$108.79

Attribute: 6600-14-14-14-FG (14MJ-14MJ-14FJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-3/16-12
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-3/16-12
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD 3 SIZE	1-3/16-12
THREAD 3 DRILL IN	0.719
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.312
C HEX 1 IN	1.375
OVERALL LENGTH L IN	1.780
OVERALL LENGTH L2 IN	1.200
CENTERLINE LENGTH M IN	1.800
CENTERLINE LENGTH M2 IN	1.800
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.975
CALIFORNIA RESIDENTS	PROP-65 WARNING

6600-16-16-16-FG

$56.07

Attribute: 6600-16-16-16-FG (16MJ-16MJ-16FJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD 3 SIZE	1-5/16-12
THREAD 3 DRILL IN	0.844
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.312
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.000
OVERALL LENGTH L2 IN	1.400
CENTERLINE LENGTH M IN	1.810
CENTERLINE LENGTH M2 IN	1.810
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.02
CALIFORNIA RESIDENTS	PROP-65 WARNING

6600-16-16-16-SS

$613.38

Attribute: 6600-16-16-16-SS (16MJ-16MJ-16FJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD 3 SIZE	1-5/16-12
THREAD 3 DRILL IN	0.844
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.312
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.000
OVERALL LENGTH L2 IN	1.400
CENTERLINE LENGTH M IN	1.810
CENTERLINE LENGTH M2 IN	1.810
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1.05
CALIFORNIA RESIDENTS	PROP-65 WARNING

6600-20-20-20-FG

$190.34

Attribute: 6600-20-20-20-FG (20MJ-20MJ-20FJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD 3 SIZE	1-5/8-12
THREAD 3 DRILL IN	1.078
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.625
C HEX 1 IN	2.000
OVERALL LENGTH L IN	2.310
OVERALL LENGTH L2 IN	1.670
CENTERLINE LENGTH M IN	2.060
CENTERLINE LENGTH M2 IN	2.060
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.75
CALIFORNIA RESIDENTS	PROP-65 WARNING

6600-24-24-24-FG

$228.16

Attribute: 6600-24-24-24-FG (24MJ-24MJ-24FJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD 3 SIZE	1-7/8-12
THREAD 3 DRILL IN	1.312
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.875
C HEX 1 IN	2.250
OVERALL LENGTH L IN	2.590
OVERALL LENGTH L2 IN	1.870
CENTERLINE LENGTH M IN	2.330
CENTERLINE LENGTH M2 IN	2.330
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	2.525
CALIFORNIA RESIDENTS	PROP-65 WARNING

6600-24-24-24-SS

$1,258.57

Attribute: 6600-24-24-24-SS (24MJ-24MJ-24FJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD 3 SIZE	1-7/8-12
THREAD 3 DRILL IN	1.312
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	1.875
C HEX 1 IN	2.250
OVERALL LENGTH L IN	2.590
OVERALL LENGTH L2 IN	1.870
CENTERLINE LENGTH M IN	2.330
CENTERLINE LENGTH M2 IN	2.330
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	3.3
CALIFORNIA RESIDENTS	PROP-65 WARNING

6600-32-32-32-FG

$583.26

Attribute: 6600-32-32-32-FG (32MJ-32MJ-32FJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	2-1/2-12
THREAD B2 DRILL IN	1.781
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD 3 SIZE	2-1/2-12
THREAD 3 DRILL IN	1.781
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	2.500
C HEX 1 IN	2.875
OVERALL LENGTH L IN	3.380
OVERALL LENGTH L2 IN	2.430
CENTERLINE LENGTH M IN	3.060
CENTERLINE LENGTH M2 IN	3.060
SHAPE	TEE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	5.4
CALIFORNIA RESIDENTS	PROP-65 WARNING

6600-32-32-32-SS

$2,831.13

Attribute: 6600-32-32-32-SS (32MJ-32MJ-32FJ...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B2 SIZE	2-1/2-12
THREAD B2 DRILL IN	1.781
THREAD B2 SPECIFICATION	SAE J514
THREAD 3 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD 3 SIZE	2-1/2-12
THREAD 3 DRILL IN	1.781
THREAD 3 SPECIFICATION	SAE J514
BODY HEX IN	2.500
C HEX 1 IN	2.875
OVERALL LENGTH L IN	3.380
OVERALL LENGTH L2 IN	2.430
CENTERLINE LENGTH M IN	3.060
CENTERLINE LENGTH M2 IN	3.060
SHAPE	TEE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	12.6
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	JIC
Shape	Tee

ID	10146346
Category	Tube Fittings and Adapters

Description

Description

Variations (24)

6600-02-02-02-SS

6600-03-03-03-FG

6600-04-04-04-FG

6600-04-04-04-SS

6600-05-05-05-FG

6600-05-05-05-SS

6600-06-06-06-FG

6600-06-06-06-SS

6600-06-06-08-FG

6600-08-08-08-FG

6600-08-08-08-SS

6600-10-10-10-FG

6600-10-10-10-SS

6600-12-12-10-FG

6600-12-12-12-FG

6600-12-12-12-SS

6600-14-14-14-FG

6600-16-16-16-FG

6600-16-16-16-SS

6600-20-20-20-FG

6600-24-24-24-FG

6600-24-24-24-SS

6600-32-32-32-FG

6600-32-32-32-SS

General Attributes

PDF Documents
