6565

6565-04-04

$11.26

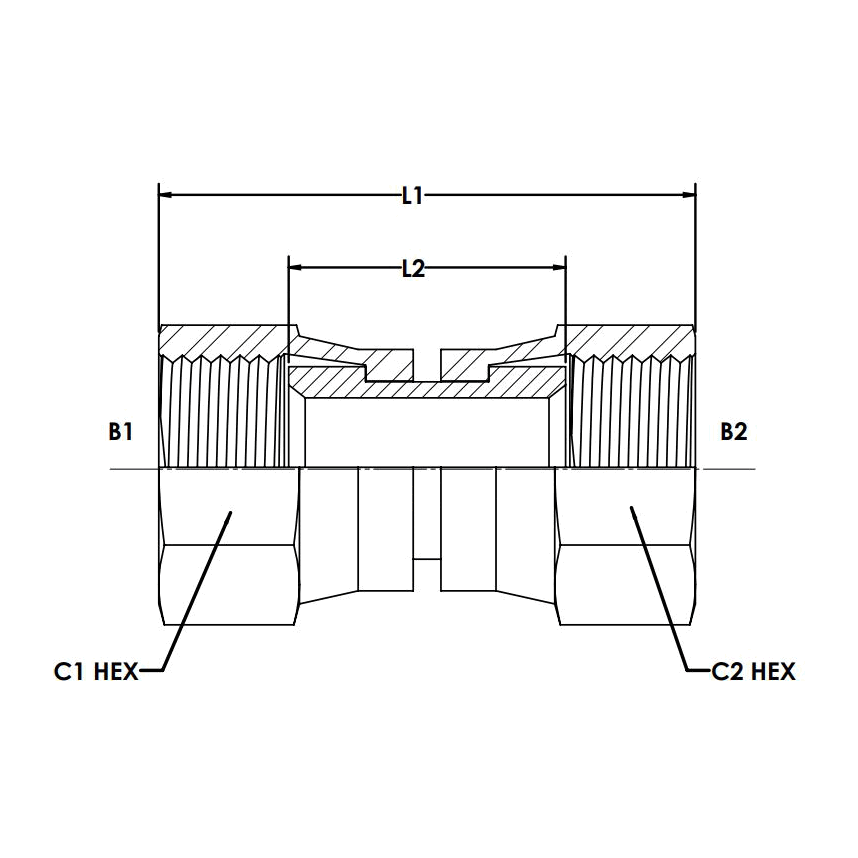

Attribute: 6565-04-04 (04FJS-04FJS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
C HEX 1 IN	0.563
C HEX 2 IN	0.563
OVERALL LENGTH L IN	1.330
OVERALL LENGTH L2 IN	0.650
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.056
CALIFORNIA RESIDENTS	PROP-65 WARNING

6565-04-04-SS

$101.99

Attribute: 6565-04-04-SS (04FJS-04FJS Strai...)

Stock Status: True

THREAD B1 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
C HEX 1 IN	0.563
C HEX 2 IN	0.563
OVERALL LENGTH L IN	1.330
OVERALL LENGTH L2 IN	0.650
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.0565
CALIFORNIA RESIDENTS	PROP-65 WARNING

6565-06-06

$12.21

Attribute: 6565-06-06 (06FJS-06FJS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
C HEX 1 IN	0.688
C HEX 2 IN	0.688
OVERALL LENGTH L IN	1.550
OVERALL LENGTH L2 IN	0.800
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.0806
CALIFORNIA RESIDENTS	PROP-65 WARNING

6565-06-06-SS

$104.11

Attribute: 6565-06-06-SS (06FJS-06FJS Strai...)

Stock Status: True

THREAD B1 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
C HEX 1 IN	0.688
C HEX 2 IN	0.688
OVERALL LENGTH L IN	1.550
OVERALL LENGTH L2 IN	0.800
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.0875
CALIFORNIA RESIDENTS	PROP-65 WARNING

6565-08-06

$25.68

Attribute: 6565-08-06 (08FJS-06FJS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
C HEX 1 IN	0.875
C HEX 2 IN	0.688
OVERALL LENGTH L2 IN	0.830
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.1187
CALIFORNIA RESIDENTS	PROP-65 WARNING

6565-08-08

$17.06

Attribute: 6565-08-08 (08FJS-08FJS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
C HEX 1 IN	0.875
C HEX 2 IN	0.875
OVERALL LENGTH L IN	1.800
OVERALL LENGTH L2 IN	0.900
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.1322
CALIFORNIA RESIDENTS	PROP-65 WARNING

6565-08-08-SS

$212.80

Attribute: 6565-08-08-SS (08FJS-08FJS Strai...)

Stock Status: True

THREAD B1 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
C HEX 1 IN	0.875
C HEX 2 IN	0.875
OVERALL LENGTH L IN	1.800
OVERALL LENGTH L2 IN	0.900
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.2125
CALIFORNIA RESIDENTS	PROP-65 WARNING

6565-10-10

$20.06

Attribute: 6565-10-10 (10FJS-10FJS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
C HEX 1 IN	1.000
C HEX 2 IN	1.000
OVERALL LENGTH L IN	2.000
OVERALL LENGTH L2 IN	0.970
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.1875
CALIFORNIA RESIDENTS	PROP-65 WARNING

6565-10-10-SS

$306.87

Attribute: 6565-10-10-SS (10FJS-10FJS Strai...)

Stock Status: True

THREAD B1 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
C HEX 1 IN	1.000
C HEX 2 IN	1.000
OVERALL LENGTH L IN	2.000
OVERALL LENGTH L2 IN	0.970
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.2125
CALIFORNIA RESIDENTS	PROP-65 WARNING

6565-12-08

$48.06

Attribute: 6565-12-08 (12FJS-08FJS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
C HEX 1 IN	1.250
C HEX 2 IN	0.875
OVERALL LENGTH L2 IN	1.000
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.2687
CALIFORNIA RESIDENTS	PROP-65 WARNING

6565-12-12

$28.42

Attribute: 6565-12-12 (12FJS-12FJS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
C HEX 1 IN	1.250
C HEX 2 IN	1.250
OVERALL LENGTH L IN	2.210
OVERALL LENGTH L2 IN	1.040
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.3928
CALIFORNIA RESIDENTS	PROP-65 WARNING

6565-12-12-SS

$378.83

Attribute: 6565-12-12-SS (12FJS-12FJS Strai...)

Stock Status: True

THREAD B1 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
C HEX 1 IN	1.250
C HEX 2 IN	1.250
OVERALL LENGTH L IN	2.210
OVERALL LENGTH L2 IN	1.040
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.375
CALIFORNIA RESIDENTS	PROP-65 WARNING

6565-16-16

$41.93

Attribute: 6565-16-16 (16FJS-16FJS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
C HEX 1 IN	1.500
C HEX 2 IN	1.500
OVERALL LENGTH L IN	2.390
OVERALL LENGTH L2 IN	1.190
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.4875
CALIFORNIA RESIDENTS	PROP-65 WARNING

6565-16-16-SS

$628.59

Attribute: 6565-16-16-SS (16FJS-16FJS Strai...)

Stock Status: True

THREAD B1 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
C HEX 1 IN	1.500
C HEX 2 IN	1.500
OVERALL LENGTH L IN	2.390
OVERALL LENGTH L2 IN	1.190
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.525
CALIFORNIA RESIDENTS	PROP-65 WARNING

6565-20-20

$66.06

Attribute: 6565-20-20 (20FJS-20FJS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
C HEX 1 IN	2.000
C HEX 2 IN	2.000
OVERALL LENGTH L IN	2.560
OVERALL LENGTH L2 IN	1.340
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	1.0125
CALIFORNIA RESIDENTS	PROP-65 WARNING

6565-20-20-SS

$718.08

Attribute: 6565-20-20-SS (20FJS-20FJS Strai...)

Stock Status: True

THREAD B1 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
C HEX 1 IN	2.000
C HEX 2 IN	2.000
OVERALL LENGTH L IN	2.560
OVERALL LENGTH L2 IN	1.340
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.0937
CALIFORNIA RESIDENTS	PROP-65 WARNING

6565-24-24

$94.24

Attribute: 6565-24-24 (24FJS-24FJS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
C HEX 1 IN	2.250
C HEX 2 IN	2.250
OVERALL LENGTH L IN	2.910
OVERALL LENGTH L2 IN	1.440
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	1.2687
CALIFORNIA RESIDENTS	PROP-65 WARNING

6565-24-24-SS

$983.75

Attribute: 6565-24-24-SS (24FJS-24FJS Strai...)

Stock Status: True

THREAD B1 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
C HEX 1 IN	2.250
C HEX 2 IN	2.250
OVERALL LENGTH L IN	2.860
OVERALL LENGTH L2 IN	1.440
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1.2687
CALIFORNIA RESIDENTS	PROP-65 WARNING

6565-32-32

$213.97

Attribute: 6565-32-32 (32FJS-32FJS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	2-1/2-12
THREAD B2 DRILL IN	1.781
THREAD B2 SPECIFICATION	SAE J514
C HEX 1 IN	2.875
C HEX 2 IN	2.875
OVERALL LENGTH L IN	3.480
OVERALL LENGTH L2 IN	1.600
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	2.1812
CALIFORNIA RESIDENTS	PROP-65 WARNING

ID	10146324
Category	Tube Fittings and Adapters

Description

Description

Variations (19)

6565-04-04

6565-04-04-SS

6565-06-06

6565-06-06-SS

6565-08-06

6565-08-08

6565-08-08-SS

6565-10-10

6565-10-10-SS

6565-12-08

6565-12-12

6565-12-12-SS

6565-16-16

6565-16-16-SS

6565-20-20

6565-20-20-SS

6565-24-24

6565-24-24-SS

6565-32-32

General Attributes

PDF Documents

Connections	JIC
Shape	Straight
