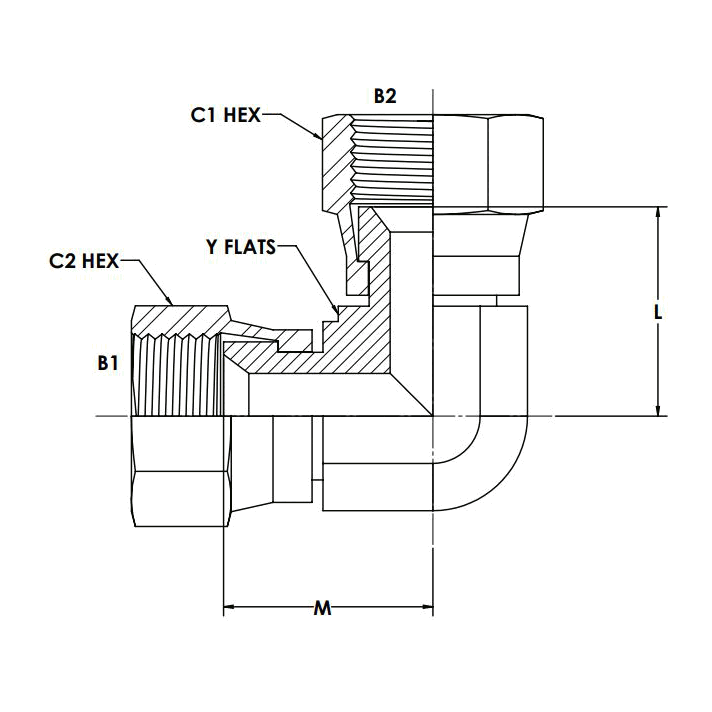

6560-FG

Attribute: 6560-04-04-FG (04FJS-04FJS 90 El...)

Stock Status: True

TUBE O.D.	1/4
B1 SAE 37	7/16-20
B2 SAE 37	7/16-20
B1 DRILL	0.172
B2 DRILL	0.172
M LGTH	1.000
L LGTH	1.000
C2 HEX	0.563
C1 HEX	0.563
Y FLATS	0.438
MATERIAL	STEEL

Attribute: 6560-05-05-FG (05FJS-05FJS 90 El...)

Stock Status: True

TUBE O.D.	5/16
B1 SAE 37	1/2-20
B2 SAE 37	1/2-20
B1 DRILL	0.234
B2 DRILL	0.234
M LGTH	1.060
L LGTH	1.060
C2 HEX	0.625
C1 HEX	0.625
Y FLATS	0.562
MATERIAL	STEEL

Attribute: 6560-06-06-FG (06FJS-06FJS 90 El...)

Stock Status: True

TUBE O.D.	3/8
B1 SAE 37	9/16-18
B2 SAE 37	9/16-18
B1 DRILL	0.297
B2 DRILL	0.297
M LGTH	0.875
L LGTH	0.875
C2 HEX	0.688
C1 HEX	0.688
Y FLATS	0.562
MATERIAL	STEEL

Attribute: 6560-08-08-FG (08FJS-08FJS 90 El...)

Stock Status: True

TUBE O.D.	1/2
B1 SAE 37	3/4-16
B2 SAE 37	3/4-16
B1 DRILL	0.391
B2 DRILL	0.391
M LGTH	0.958
L LGTH	0.958
C2 HEX	0.875
C1 HEX	0.875
Y FLATS	0.750
MATERIAL	STEEL

Attribute: 6560-10-10-FG (10FJS-10FJS 90 El...)

Stock Status: True

TUBE O.D.	5/8
B1 SAE 37	7/8-14
B2 SAE 37	7/8-14
B1 DRILL	0.484
B2 DRILL	0.484
M LGTH	1.120
L LGTH	1.120
C2 HEX	1.000
C1 HEX	1.000
Y FLATS	0.875
MATERIAL	STEEL

Attribute: 6560-12-12-FG (12FJS-12FJS 90 El...)

Stock Status: True

TUBE O.D.	3/4
B1 SAE 37	1-1/16-12
B2 SAE 37	1-1/16-12
B1 DRILL	0.609
B2 DRILL	0.609
M LGTH	1.180
L LGTH	1.180
C2 HEX	1.250
C1 HEX	1.250
Y FLATS	1.062
MATERIAL	STEEL

Attribute: 6560-14-14-FG (14FJS-14FJS 90 El...)

Stock Status: True

TUBE O.D.	7/8
B1 SAE 37	1-3/16-12
B2 SAE 37	1-3/16-12
B1 DRILL	0.719
B2 DRILL	0.719
M LGTH	1.202
L LGTH	1.202
C2 HEX	1.375
C1 HEX	1.375
Y FLATS	1.312
MATERIAL	STEEL

Attribute: 6560-16-16-FG (16FJS-16FJS 90 El...)

Stock Status: True

TUBE O.D.	1
B1 SAE 37	1-5/16-12
B2 SAE 37	1-5/16-12
B1 DRILL	0.844
B2 DRILL	0.844
M LGTH	1.406
L LGTH	1.406
C2 HEX	1.500
C1 HEX	1.500
Y FLATS	1.312
MATERIAL	STEEL

Attribute: 6560-20-20-FG (20FJS-20FJS 90 El...)

Stock Status: True

TUBE O.D.	1-1/4
B1 SAE 37	1-5/8-12
B2 SAE 37	1-5/8-12
B1 DRILL	1.078
B2 DRILL	1.078
M LGTH	1.685
L LGTH	1.685
C2 HEX	2.000
C1 HEX	2.000
Y FLATS	1.625
MATERIAL	STEEL

Attribute: 6560-24-24-FG (24FJS-24FJS 90 El...)

Stock Status: True

TUBE O.D.	1-1/2
B1 SAE 37	1-7/8-12
B2 SAE 37	1-7/8-12
B1 DRILL	1.312
B2 DRILL	1.312
M LGTH	1.856
L LGTH	1.856
C2 HEX	2.250
C1 HEX	2.250
Y FLATS	1.875
MATERIAL	STEEL

Attribute: 6560-32-32-FG (32FJS-32FJS 90 El...)

Stock Status: True

TUBE O.D.	2
B1 SAE 37	2-1/2-12
B2 SAE 37	2-1/2-12
B1 DRILL	1.781
B2 DRILL	1.781
M LGTH	2.442
L LGTH	2.442
C2 HEX	2.875
C1 HEX	2.875
Y FLATS	2.500
MATERIAL	STEEL
