6506

6506-02-02

$14.72

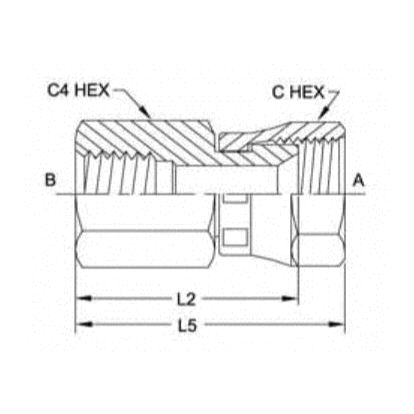

Attribute: 6506-02-02 (02FP-02FJS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL IN	0.188
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	5/16-24
THREAD B2 DRILL IN	0.062
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.437
OVERALL LENGTH L2 IN	0.941
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.0562
CALIFORNIA RESIDENTS	PROP-65 WARNING

6506-02-04

$18.26

Attribute: 6506-02-04 (02FP-04FJS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL IN	0.188
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.562
OVERALL LENGTH L IN	1.260
OVERALL LENGTH L2 IN	0.920
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.056
CALIFORNIA RESIDENTS	PROP-65 WARNING

6506-02-04-SS

$276.89

Attribute: 6506-02-04-SS (02FP-04FJS Straig...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL IN	0.188
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.562
OVERALL LENGTH L IN	1.260
OVERALL LENGTH L2 IN	0.920
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.0875
CALIFORNIA RESIDENTS	PROP-65 WARNING

6506-04-02

$13.59

Attribute: 6506-04-02 (04FP-02FJS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	5/16-24
THREAD B2 DRILL IN	0.062
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.438
OVERALL LENGTH L IN	1.512
OVERALL LENGTH L2 IN	1.200
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.0937
CALIFORNIA RESIDENTS	PROP-65 WARNING

6506-04-04

$10.73

Attribute: 6506-04-04 (04FP-04FJS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.563
OVERALL LENGTH L IN	1.520
OVERALL LENGTH L2 IN	1.170
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.112
CALIFORNIA RESIDENTS	PROP-65 WARNING

6506-04-04-SS

$156.25

Attribute: 6506-04-04-SS (04FP-04FJS Straig...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.563
OVERALL LENGTH L IN	1.520
OVERALL LENGTH L2 IN	1.170
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1125
CALIFORNIA RESIDENTS	PROP-65 WARNING

6506-04-05

$23.28

Attribute: 6506-04-05 (04FP-05FJS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1/2-20
THREAD B2 DRILL IN	0.234
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.625
OVERALL LENGTH L IN	1.590
OVERALL LENGTH L2 IN	1.210
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.1125
CALIFORNIA RESIDENTS	PROP-65 WARNING

6506-04-05-SS

$200.01

Attribute: 6506-04-05-SS (04FP-05FJS Straig...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1/2-20
THREAD B2 DRILL IN	0.234
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.625
OVERALL LENGTH L IN	1.590
OVERALL LENGTH L2 IN	1.210
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1437
CALIFORNIA RESIDENTS	PROP-65 WARNING

6506-04-06

$16.99

Attribute: 6506-04-06 (04FP-06FJS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.630
OVERALL LENGTH L2 IN	1.255
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.118
CALIFORNIA RESIDENTS	PROP-65 WARNING

6506-04-06-SS

$181.31

Attribute: 6506-04-06-SS (04FP-06FJS Straig...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.630
OVERALL LENGTH L2 IN	1.255
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1375
CALIFORNIA RESIDENTS	PROP-65 WARNING

6506-06-04

$22.00

Attribute: 6506-06-04 (06FP-04FJS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.563
OVERALL LENGTH L IN	1.590
OVERALL LENGTH L2 IN	1.240
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.0687
CALIFORNIA RESIDENTS	PROP-65 WARNING

6506-06-04-SS

$324.68

Attribute: 6506-06-04-SS (06FP-04FJS Straig...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.563
OVERALL LENGTH L IN	1.590
OVERALL LENGTH L2 IN	1.240
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.075
CALIFORNIA RESIDENTS	PROP-65 WARNING

6506-06-06

$11.12

Attribute: 6506-06-06 (06FP-06FJS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.685
OVERALL LENGTH L2 IN	1.310
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.156
CALIFORNIA RESIDENTS	PROP-65 WARNING

6506-06-06-SS

$165.05

Attribute: 6506-06-06-SS (06FP-06FJS Straig...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.685
OVERALL LENGTH L2 IN	1.310
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1562
CALIFORNIA RESIDENTS	PROP-65 WARNING

6506-06-08

$12.11

Attribute: 6506-06-08 (06FP-08FJS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.780
OVERALL LENGTH L2 IN	1.360
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.262
CALIFORNIA RESIDENTS	PROP-65 WARNING

6506-06-08-SS

$322.71

Attribute: 6506-06-08-SS (06FP-08FJS Straig...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.780
OVERALL LENGTH L2 IN	1.360
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.175
CALIFORNIA RESIDENTS	PROP-65 WARNING

6506-06-10

$38.50

Attribute: 6506-06-10 (06FP-10FJS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.938
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.900
OVERALL LENGTH L2 IN	1.400
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.2
CALIFORNIA RESIDENTS	PROP-65 WARNING

6506-08-06

$34.60

Attribute: 6506-08-06 (08FP-06FJS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.125
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.920
OVERALL LENGTH L2 IN	1.540
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.206
CALIFORNIA RESIDENTS	PROP-65 WARNING

6506-08-06-SS

$359.33

Attribute: 6506-08-06-SS (08FP-06FJS Straig...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.125
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.920
OVERALL LENGTH L2 IN	1.540
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.275
CALIFORNIA RESIDENTS	PROP-65 WARNING

6506-08-08

$17.53

Attribute: 6506-08-08 (08FP-08FJS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.125
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.910
OVERALL LENGTH L2 IN	1.480
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.2985
CALIFORNIA RESIDENTS	PROP-65 WARNING

6506-08-08-SS

$287.37

Attribute: 6506-08-08-SS (08FP-08FJS Straig...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.125
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.910
OVERALL LENGTH L2 IN	1.480
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.325
CALIFORNIA RESIDENTS	PROP-65 WARNING

6506-08-10

$19.30

Attribute: 6506-08-10 (08FP-10FJS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.125
C HEX 1 IN	1.000
OVERALL LENGTH L IN	2.120
OVERALL LENGTH L2 IN	1.620
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.236
CALIFORNIA RESIDENTS	PROP-65 WARNING

6506-08-10-SS

$408.31

Attribute: 6506-08-10-SS (08FP-10FJS Straig...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.125
C HEX 1 IN	1.000
OVERALL LENGTH L IN	2.120
OVERALL LENGTH L2 IN	1.620
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.325
CALIFORNIA RESIDENTS	PROP-65 WARNING

6506-08-12

$42.08

Attribute: 6506-08-12 (08FP-12FJS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.125
C HEX 1 IN	1.250
OVERALL LENGTH L IN	2.230
OVERALL LENGTH L2 IN	1.660
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.3875
CALIFORNIA RESIDENTS	PROP-65 WARNING

6506-08-12-SS

$631.00

Attribute: 6506-08-12-SS (08FP-12FJS Straig...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.125
C HEX 1 IN	1.250
OVERALL LENGTH L IN	2.230
OVERALL LENGTH L2 IN	1.660
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.3
CALIFORNIA RESIDENTS	PROP-65 WARNING

6506-12-10

$40.11

Attribute: 6506-12-10 (12FP-10FJS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.375
C HEX 1 IN	1.000
OVERALL LENGTH L IN	2.180
OVERALL LENGTH L2 IN	1.680
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.404
CALIFORNIA RESIDENTS	PROP-65 WARNING

6506-12-10-SS

$294.61

Attribute: 6506-12-10-SS (12FP-10FJS Straig...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.375
C HEX 1 IN	1.000
OVERALL LENGTH L IN	2.180
OVERALL LENGTH L2 IN	1.680
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.45
CALIFORNIA RESIDENTS	PROP-65 WARNING

6506-12-12

$28.31

Attribute: 6506-12-12 (12FP-12FJS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.375
C HEX 1 IN	1.250
OVERALL LENGTH L IN	2.290
OVERALL LENGTH L2 IN	1.720
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.3533
CALIFORNIA RESIDENTS	PROP-65 WARNING

6506-12-12-SS

$399.94

Attribute: 6506-12-12-SS (12FP-12FJS Straig...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.375
C HEX 1 IN	1.250
OVERALL LENGTH L IN	2.290
OVERALL LENGTH L2 IN	1.720
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.5625
CALIFORNIA RESIDENTS	PROP-65 WARNING

6506-12-14

$86.05

Attribute: 6506-12-14 (12FP-14FJS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-3/16-12
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.375
C HEX 1 IN	1.375
OVERALL LENGTH L IN	2.335
OVERALL LENGTH L2 IN	1.750
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.476
CALIFORNIA RESIDENTS	PROP-65 WARNING

6506-12-16

$56.66

Attribute: 6506-12-16 (12FP-16FJS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.375
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.200
OVERALL LENGTH L2 IN	1.610
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.5125
CALIFORNIA RESIDENTS	PROP-65 WARNING

6506-12-16-SS

$434.50

Attribute: 6506-12-16-SS (12FP-16FJS Straig...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.375
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.200
OVERALL LENGTH L2 IN	1.610
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.2187
CALIFORNIA RESIDENTS	PROP-65 WARNING

6506-16-16

$48.14

Attribute: 6506-16-16 (16FP-16FJS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1-11-1/2
THREAD B1 DRILL IN	0.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.625
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.614
OVERALL LENGTH L2 IN	2.020
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.84
CALIFORNIA RESIDENTS	PROP-65 WARNING

6506-16-16-SS

$524.38

Attribute: 6506-16-16-SS (16FP-16FJS Straig...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1-11-1/2
THREAD B1 DRILL IN	0.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.625
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.614
OVERALL LENGTH L2 IN	2.020
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.2187
CALIFORNIA RESIDENTS	PROP-65 WARNING

6506-20-20

$95.74

Attribute: 6506-20-20 (20FP-20FJS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1-1/4-11-1/2
THREAD B1 DRILL IN	1.250
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.000
C HEX 1 IN	2.000
OVERALL LENGTH L IN	2.825
OVERALL LENGTH L2 IN	2.200
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	1.3
CALIFORNIA RESIDENTS	PROP-65 WARNING

6506-20-20-SS

$694.01

Attribute: 6506-20-20-SS (20FP-20FJS Straig...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1-1/4-11-1/2
THREAD B1 DRILL IN	1.250
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.000
C HEX 1 IN	2.000
OVERALL LENGTH L IN	2.825
OVERALL LENGTH L2 IN	2.200
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.4812
CALIFORNIA RESIDENTS	PROP-65 WARNING

6506-24-24

$153.97

Attribute: 6506-24-24 (24FP-24FJS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1-1/2-11-1/2
THREAD B1 DRILL IN	1.500
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.375
C HEX 1 IN	2.250
OVERALL LENGTH L IN	2.990
OVERALL LENGTH L2 IN	2.270
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	1
CALIFORNIA RESIDENTS	PROP-65 WARNING

6506-24-24-SS

$1,160.96

Attribute: 6506-24-24-SS (24FP-24FJS Straig...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1-1/2-11-1/2
THREAD B1 DRILL IN	1.500
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.375
C HEX 1 IN	2.250
OVERALL LENGTH L IN	2.990
OVERALL LENGTH L2 IN	2.270
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1.95
CALIFORNIA RESIDENTS	PROP-65 WARNING

6506-32-32

$558.74

Attribute: 6506-32-32 (32FP-32FJS Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	2-11-1/2
THREAD B1 DRILL IN	1.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	2-1/2-12
THREAD B2 DRILL IN	1.781
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.875
C HEX 1 IN	2.875
OVERALL LENGTH L IN	3.120
OVERALL LENGTH L2 IN	2.260
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	2.4375
CALIFORNIA RESIDENTS	PROP-65 WARNING

6506-32-32-SS

$1,554.25

Attribute: 6506-32-32-SS (32FP-32FJS Straig...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	2-11-1/2
THREAD B1 DRILL IN	1.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	2-1/2-12
THREAD B2 DRILL IN	1.781
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.875
C HEX 1 IN	2.875
OVERALL LENGTH L IN	3.120
OVERALL LENGTH L2 IN	2.260
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	2.925
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	NPT, JIC
Shape	Straight

ID	10146267
Category	Tube Fittings and Adapters

Description

Description

Variations (40)

6506-02-02

6506-02-04

6506-02-04-SS

6506-04-02

6506-04-04

6506-04-04-SS

6506-04-05

6506-04-05-SS

6506-04-06

6506-04-06-SS

6506-06-04

6506-06-04-SS

6506-06-06

6506-06-06-SS

6506-06-08

6506-06-08-SS

6506-06-10

6506-08-06

6506-08-06-SS

6506-08-08

6506-08-08-SS

6506-08-10

6506-08-10-SS

6506-08-12

6506-08-12-SS

6506-12-10

6506-12-10-SS

6506-12-12

6506-12-12-SS

6506-12-14

6506-12-16

6506-12-16-SS

6506-16-16

6506-16-16-SS

6506-20-20

6506-20-20-SS

6506-24-24

6506-24-24-SS

6506-32-32

6506-32-32-SS

General Attributes

PDF Documents
