6505

6505-02-02

$13.19

Attribute: 6505-02-02 (02MP-02FJS Straight)

Stock Status: True

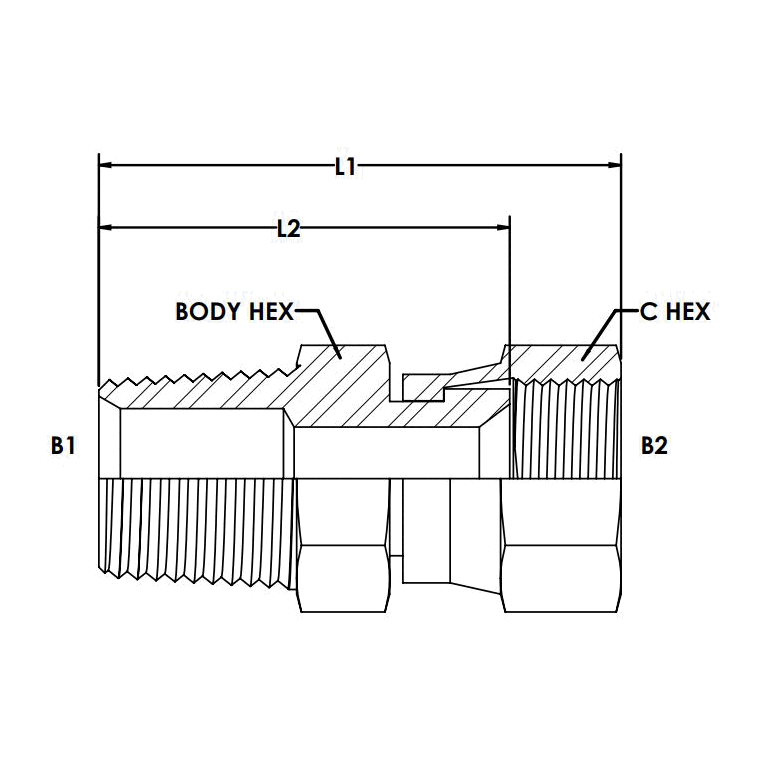

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL IN	0.188
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	5/16-24
THREAD B2 DRILL IN	0.062
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.438
OVERALL LENGTH L2 IN	0.980
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.0375
CALIFORNIA RESIDENTS	PROP-65 WARNING

6505-02-04

$19.74

Attribute: 6505-02-04 (02MP-04FJS Straight)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL IN	0.188
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.500
C HEX 1 IN	0.563
OVERALL LENGTH L IN	1.350
OVERALL LENGTH L2 IN	1.010
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.05
CALIFORNIA RESIDENTS	PROP-65 WARNING

6505-02-04-SS

$62.27

Attribute: 6505-02-04-SS (02MP-04FJS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL IN	0.188
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.500
C HEX 1 IN	0.563
OVERALL LENGTH L IN	1.350
OVERALL LENGTH L2 IN	1.010
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.075
CALIFORNIA RESIDENTS	PROP-65 WARNING

6505-02-05

$40.81

Attribute: 6505-02-05 (02MP-05FJS Straight)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL IN	0.188
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1/2-20
THREAD B2 DRILL IN	0.234
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.625
OVERALL LENGTH L IN	1.420
OVERALL LENGTH L2 IN	1.050
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.0625
CALIFORNIA RESIDENTS	PROP-65 WARNING

6505-02-05-SS

$421.95

Attribute: 6505-02-05-SS (02MP-05FJS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL IN	0.188
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1/2-20
THREAD B2 DRILL IN	0.234
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.625
OVERALL LENGTH L IN	1.420
OVERALL LENGTH L2 IN	1.050
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.0625
CALIFORNIA RESIDENTS	PROP-65 WARNING

6505-04-04

$8.42

Attribute: 6505-04-04 (04MP-04FJS Straight)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.625
C HEX 1 IN	0.563
OVERALL LENGTH L IN	1.540
OVERALL LENGTH L2 IN	1.200
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.1
CALIFORNIA RESIDENTS	PROP-65 WARNING

6505-04-04-SS

$76.00

Attribute: 6505-04-04-SS (04MP-04FJS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.625
C HEX 1 IN	0.563
OVERALL LENGTH L IN	1.540
OVERALL LENGTH L2 IN	1.200
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.0875
CALIFORNIA RESIDENTS	PROP-65 WARNING

6505-04-05

$19.84

Attribute: 6505-04-05 (04MP-05FJS Straight)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1/2-20
THREAD B2 DRILL IN	0.234
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.625
OVERALL LENGTH L IN	1.640
OVERALL LENGTH L2 IN	1.260
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.081
CALIFORNIA RESIDENTS	PROP-65 WARNING

6505-04-05-SS

$96.43

Attribute: 6505-04-05-SS (04MP-05FJS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1/2-20
THREAD B2 DRILL IN	0.234
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.625
OVERALL LENGTH L IN	1.640
OVERALL LENGTH L2 IN	1.260
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1125
CALIFORNIA RESIDENTS	PROP-65 WARNING

6505-04-06

$11.22

Attribute: 6505-04-06 (04MP-06FJS Straight)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.675
OVERALL LENGTH L2 IN	1.300
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.0814
CALIFORNIA RESIDENTS	PROP-65 WARNING

6505-04-06-SS

$127.79

Attribute: 6505-04-06-SS (04MP-06FJS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.675
OVERALL LENGTH L2 IN	1.300
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.0875
CALIFORNIA RESIDENTS	PROP-65 WARNING

6505-04-08-SS

$388.04

Attribute: 6505-04-08-SS (04MP-08FJS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.730
OVERALL LENGTH L2 IN	1.310
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1437
CALIFORNIA RESIDENTS	PROP-65 WARNING

6505-04-10-SS

$320.06

Attribute: 6505-04-10-SS (04MP-10FJS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.000
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.900
OVERALL LENGTH L2 IN	1.400
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.2062
CALIFORNIA RESIDENTS	PROP-65 WARNING

6505-06-04

$24.61

Attribute: 6505-06-04 (06MP-04FJS Straight)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.563
OVERALL LENGTH L IN	1.570
OVERALL LENGTH L2 IN	1.226
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.0937
CALIFORNIA RESIDENTS	PROP-65 WARNING

6505-06-06

$11.86

Attribute: 6505-06-06 (06MP-06FJS Straight)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.640
OVERALL LENGTH L2 IN	1.260
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.126
CALIFORNIA RESIDENTS	PROP-65 WARNING

6505-06-06-SS

$127.70

Attribute: 6505-06-06-SS (06MP-06FJS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.640
OVERALL LENGTH L2 IN	1.260
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1062
CALIFORNIA RESIDENTS	PROP-65 WARNING

6505-06-08

$14.37

Attribute: 6505-06-08 (06MP-08FJS Straight)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.730
OVERALL LENGTH L2 IN	1.310
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.143
CALIFORNIA RESIDENTS	PROP-65 WARNING

6505-06-08-SS

$145.39

Attribute: 6505-06-08-SS (06MP-08FJS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.730
OVERALL LENGTH L2 IN	1.310
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1812
CALIFORNIA RESIDENTS	PROP-65 WARNING

6505-06-10

$30.72

Attribute: 6505-06-10 (06MP-10FJS Straight)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.000
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.900
OVERALL LENGTH L2 IN	1.400
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.2
CALIFORNIA RESIDENTS	PROP-65 WARNING

6505-06-10-SS

$317.90

Attribute: 6505-06-10-SS (06MP-10FJS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.000
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.900
OVERALL LENGTH L2 IN	1.400
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

6505-08-06

$31.06

Attribute: 6505-08-06 (08MP-06FJS Straight)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.880
OVERALL LENGTH L2 IN	1.505
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.15
CALIFORNIA RESIDENTS	PROP-65 WARNING

6505-08-08

$15.70

Attribute: 6505-08-08 (08MP-08FJS Straight)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.980
OVERALL LENGTH L2 IN	1.560
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.2
CALIFORNIA RESIDENTS	PROP-65 WARNING

6505-08-08-SS

$201.42

Attribute: 6505-08-08-SS (08MP-08FJS STRAIG...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.980
OVERALL LENGTH L2 IN	1.560
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.2062
CALIFORNIA RESIDENTS	PROP-65 WARNING

6505-08-10

$19.30

Attribute: 6505-08-10 (08MP-10FJS Straight)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.000
C HEX 1 IN	1.000
OVERALL LENGTH L IN	2.100
OVERALL LENGTH L2 IN	1.600
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.2489
CALIFORNIA RESIDENTS	PROP-65 WARNING

6505-08-10-SS

$325.03

Attribute: 6505-08-10-SS (08MP-10FJS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.000
C HEX 1 IN	1.000
OVERALL LENGTH L IN	2.100
OVERALL LENGTH L2 IN	1.600
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.25
CALIFORNIA RESIDENTS	PROP-65 WARNING

6505-08-12

$35.15

Attribute: 6505-08-12 (08MP-12FJS Straight)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.000
C HEX 1 IN	1.250
OVERALL LENGTH L IN	2.140
OVERALL LENGTH L2 IN	1.580
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.3296
CALIFORNIA RESIDENTS	PROP-65 WARNING

6505-08-12-SS

$392.56

Attribute: 6505-08-12-SS (08MP-12FJS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.000
C HEX 1 IN	1.250
OVERALL LENGTH L IN	2.140
OVERALL LENGTH L2 IN	1.580
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.3562
CALIFORNIA RESIDENTS	PROP-65 WARNING

6505-12-08

$37.21

Attribute: 6505-12-08 (12MP-08FJS Straight)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.2812
CALIFORNIA RESIDENTS	PROP-65 WARNING

6505-12-10

$45.28

Attribute: 6505-12-10 (12MP-10FJS Straight)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.125
C HEX 1 IN	1.000
OVERALL LENGTH L IN	2.207
OVERALL LENGTH L2 IN	1.700
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.3187
CALIFORNIA RESIDENTS	PROP-65 WARNING

6505-12-10-SS

$325.77

Attribute: 6505-12-10-SS (12MP-10FJS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.125
C HEX 1 IN	1.000
OVERALL LENGTH L IN	2.207
OVERALL LENGTH L2 IN	1.700
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.3625
CALIFORNIA RESIDENTS	PROP-65 WARNING

6505-12-12

$22.15

Attribute: 6505-12-12 (12MP-12FJS Straight)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.125
C HEX 1 IN	1.250
OVERALL LENGTH L IN	2.290
OVERALL LENGTH L2 IN	1.720
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.337
CALIFORNIA RESIDENTS	PROP-65 WARNING

6505-12-12-SS

$245.53

Attribute: 6505-12-12-SS (12MP-12FJS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.125
C HEX 1 IN	1.250
OVERALL LENGTH L IN	2.290
OVERALL LENGTH L2 IN	1.720
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1375
CALIFORNIA RESIDENTS	PROP-65 WARNING

6505-12-16

$28.04

Attribute: 6505-12-16 (12MP-16FJS Straight)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.375
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.380
OVERALL LENGTH L2 IN	1.770
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.481
CALIFORNIA RESIDENTS	PROP-65 WARNING

6505-12-16-SS

$471.32

Attribute: 6505-12-16-SS (12MP-16FJS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.375
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.380
OVERALL LENGTH L2 IN	1.770
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.2187
CALIFORNIA RESIDENTS	PROP-65 WARNING

6505-16-16

$30.18

Attribute: 6505-16-16 (16MP-16FJS Straight)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-11-1/2
THREAD B1 DRILL IN	0.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.375
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.560
OVERALL LENGTH L2 IN	1.970
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.576
CALIFORNIA RESIDENTS	PROP-65 WARNING

6505-16-16-SS

$398.17

Attribute: 6505-16-16-SS (16MP-16FJS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-11-1/2
THREAD B1 DRILL IN	0.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.375
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.560
OVERALL LENGTH L2 IN	1.970
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.6
CALIFORNIA RESIDENTS	PROP-65 WARNING

6505-20-20

$62.85

Attribute: 6505-20-20 (20MP-20FJS Straight)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-1/4-11-1/2
THREAD B1 DRILL IN	1.250
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.688
C HEX 1 IN	2.000
OVERALL LENGTH L IN	2.850
OVERALL LENGTH L2 IN	2.210
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.9312
CALIFORNIA RESIDENTS	PROP-65 WARNING

6505-20-20-SS

$619.63

Attribute: 6505-20-20-SS (20MP-20FJS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-1/4-11-1/2
THREAD B1 DRILL IN	1.250
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.688
C HEX 1 IN	2.000
OVERALL LENGTH L IN	2.850
OVERALL LENGTH L2 IN	2.210
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.4812
CALIFORNIA RESIDENTS	PROP-65 WARNING

6505-24-24

$135.37

Attribute: 6505-24-24 (24MP-24FJS Straight)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-1/2-11-1/2
THREAD B1 DRILL IN	1.500
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.000
C HEX 1 IN	2.250
OVERALL LENGTH L IN	2.990
OVERALL LENGTH L2 IN	2.270
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	1.2875
CALIFORNIA RESIDENTS	PROP-65 WARNING

6505-24-24-SS

$932.90

Attribute: 6505-24-24-SS (24MP-24FJS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-1/2-11-1/2
THREAD B1 DRILL IN	1.500
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.000
C HEX 1 IN	2.250
OVERALL LENGTH L IN	2.990
OVERALL LENGTH L2 IN	2.270
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.725
CALIFORNIA RESIDENTS	PROP-65 WARNING

6505-32-32

$491.60

Attribute: 6505-32-32 (32MP-32FJS Straight)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	2-11-1/2
THREAD B1 DRILL IN	1.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	2-1/2-12
THREAD B2 DRILL IN	1.781
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.625
C HEX 1 IN	2.875
OVERALL LENGTH L IN	3.440
OVERALL LENGTH L2 IN	2.500
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	2.0187
CALIFORNIA RESIDENTS	PROP-65 WARNING

6505-32-32-SS

$1,701.82

Attribute: 6505-32-32-SS (32MP-32FJS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	2-11-1/2
THREAD B1 DRILL IN	1.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	2-1/2-12
THREAD B2 DRILL IN	1.781
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.625
C HEX 1 IN	2.875
OVERALL LENGTH L IN	3.450
OVERALL LENGTH L2 IN	2.500
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	2.2437
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	NPT, JIC
Shape	Straight

ID	10146221
Category	Tube Fittings and Adapters

Description

Description

Variations (42)

6505-02-02

6505-02-04

6505-02-04-SS

6505-02-05

6505-02-05-SS

6505-04-04

6505-04-04-SS

6505-04-05

6505-04-05-SS

6505-04-06

6505-04-06-SS

6505-04-08-SS

6505-04-10-SS

6505-06-04

6505-06-06

6505-06-06-SS

6505-06-08

6505-06-08-SS

6505-06-10

6505-06-10-SS

6505-08-06

6505-08-08

6505-08-08-SS

6505-08-10

6505-08-10-SS

6505-08-12

6505-08-12-SS

6505-12-08

6505-12-10

6505-12-10-SS

6505-12-12

6505-12-12-SS

6505-12-16

6505-12-16-SS

6505-16-16

6505-16-16-SS

6505-20-20

6505-20-20-SS

6505-24-24

6505-24-24-SS

6505-32-32

6505-32-32-SS

General Attributes

PDF Documents
