6504

6504-04-03-SS

$166.35

Attribute: 6504-04-03-SS (04MJ-03FJS Straig...)

Stock Status: True

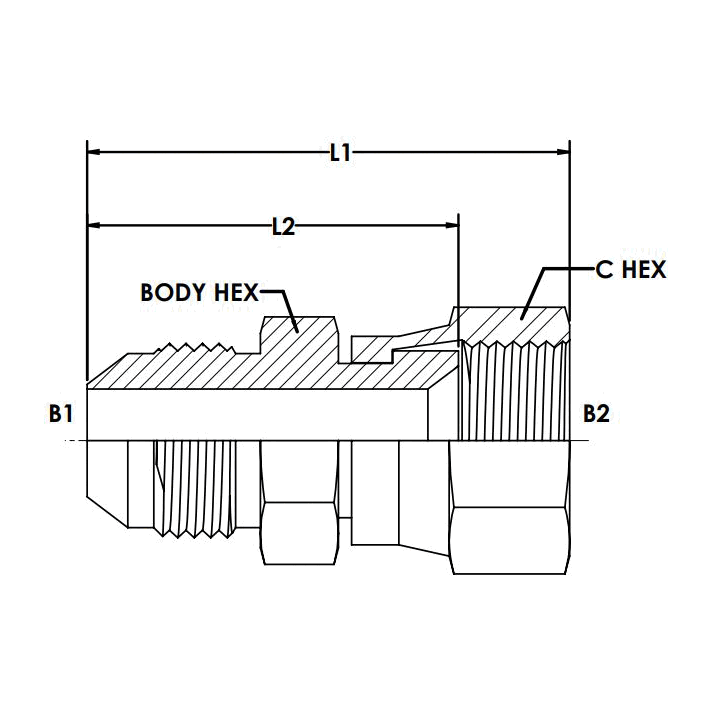

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/8-24
THREAD B2 DRILL IN	0.125
THREAD B2 SPECIFICATION	SAE J514
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

6504-04-04

$12.06

Attribute: 6504-04-04 (04MJ-04FJS Straight)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.500
C HEX 1 IN	0.562
OVERALL LENGTH L IN	1.511
OVERALL LENGTH L2 IN	1.160
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.058
CALIFORNIA RESIDENTS	PROP-65 WARNING

6504-04-04-SS

$115.28

Attribute: 6504-04-04-SS (04MJ-04FJS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.500
C HEX 1 IN	0.562
OVERALL LENGTH L IN	1.511
OVERALL LENGTH L2 IN	1.160
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.0625
CALIFORNIA RESIDENTS	PROP-65 WARNING

6504-04-06

$22.60

Attribute: 6504-04-06 (04MJ-06FJS Straight)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.590
OVERALL LENGTH L2 IN	1.210
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.0687
CALIFORNIA RESIDENTS	PROP-65 WARNING

6504-04-06-SS

$420.33

Attribute: 6504-04-06-SS (04MJ-06FJS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.590
OVERALL LENGTH L2 IN	1.210
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1.2
CALIFORNIA RESIDENTS	PROP-65 WARNING

6504-05-05

$84.47

Attribute: 6504-05-05 (05MJ-05FJS Straight)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1/2-20
THREAD B2 DRILL IN	0.234
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.480
OVERALL LENGTH L2 IN	1.105
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.0625
CALIFORNIA RESIDENTS	PROP-65 WARNING

6504-06-04

$12.75

Attribute: 6504-06-04 (06MJ-04FJS Straight)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.625
C HEX 1 IN	0.563
OVERALL LENGTH L IN	1.504
OVERALL LENGTH L2 IN	1.160
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.0687
CALIFORNIA RESIDENTS	PROP-65 WARNING

6504-06-04-SS

$169.57

Attribute: 6504-06-04-SS (06MJ-04FJS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.625
C HEX 1 IN	0.563
OVERALL LENGTH L IN	1.504
OVERALL LENGTH L2 IN	1.160
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.7
CALIFORNIA RESIDENTS	PROP-65 WARNING

6504-06-06

$13.05

Attribute: 6504-06-06 (06MJ-06FJS Straight)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.625
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.640
OVERALL LENGTH L2 IN	1.270
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.081
CALIFORNIA RESIDENTS	PROP-65 WARNING

6504-06-06-SS

$170.90

Attribute: 6504-06-06-SS (06MJ-06FJS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.625
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.640
OVERALL LENGTH L2 IN	1.270
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1
CALIFORNIA RESIDENTS	PROP-65 WARNING

6504-06-08

$30.52

Attribute: 6504-06-08 (06MJ-08FJS Straight)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.813
C HEX 1 IN	0.875
OVERALL LENGTH L2 IN	1.308
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.1312
CALIFORNIA RESIDENTS	PROP-65 WARNING

6504-08-06

$44.01

Attribute: 6504-08-06 (08MJ-06FJS Straight)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.812
OVERALL LENGTH L IN	1.735
OVERALL LENGTH L2 IN	1.360
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.125
CALIFORNIA RESIDENTS	PROP-65 WARNING

6504-08-08

$16.15

Attribute: 6504-08-08 (08MJ-08FJS Straight)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.812
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.830
OVERALL LENGTH L2 IN	1.420
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.1419
CALIFORNIA RESIDENTS	PROP-65 WARNING

6504-08-08-SS

$94.46

Attribute: 6504-08-08-SS (08MJ-08FJS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.812
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.830
OVERALL LENGTH L2 IN	1.420
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.175
CALIFORNIA RESIDENTS	PROP-65 WARNING

6504-08-10

$22.94

Attribute: 6504-08-10 (08MJ-10FJS Straight)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.938
C HEX 1 IN	1.000
OVERALL LENGTH L IN	2.070
OVERALL LENGTH L2 IN	1.570
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.2062
CALIFORNIA RESIDENTS	PROP-65 WARNING

6504-08-10-SS

$366.97

Attribute: 6504-08-10-SS (08MJ-10FJS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.938
C HEX 1 IN	1.000
OVERALL LENGTH L IN	2.070
OVERALL LENGTH L2 IN	1.570
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.2437
CALIFORNIA RESIDENTS	PROP-65 WARNING

6504-08-12

$44.89

Attribute: 6504-08-12 (08MJ-12FJS Straight)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	1.250
OVERALL LENGTH L IN	2.100
OVERALL LENGTH L2 IN	1.540
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.3062
CALIFORNIA RESIDENTS	PROP-65 WARNING

6504-10-08

$22.20

Attribute: 6504-10-08 (10MJ-08FJS Straight)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.937
C HEX 1 IN	0.875
OVERALL LENGTH L2 IN	1.550
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.2
CALIFORNIA RESIDENTS	PROP-65 WARNING

6504-10-10

$23.24

Attribute: 6504-10-10 (10MJ-10FJS Straight)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.938
C HEX 1 IN	1.000
OVERALL LENGTH L IN	2.070
OVERALL LENGTH L2 IN	1.610
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.25
CALIFORNIA RESIDENTS	PROP-65 WARNING

6504-10-10-SS

$166.53

Attribute: 6504-10-10-SS (10MJ-10FJS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.938
C HEX 1 IN	1.000
OVERALL LENGTH L IN	2.070
OVERALL LENGTH L2 IN	1.610
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.2437
CALIFORNIA RESIDENTS	PROP-65 WARNING

6504-12-08

$45.54

Attribute: 6504-12-08 (12MJ-08FJS Straight)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.125
C HEX 1 IN	0.875
OVERALL LENGTH L2 IN	1.736
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
CALIFORNIA RESIDENTS	PROP-65 WARNING

6504-12-08-SS

$369.04

Attribute: 6504-12-08-SS (12MJ-08FJS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.125
C HEX 1 IN	0.875
OVERALL LENGTH L2 IN	1.736
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.7
CALIFORNIA RESIDENTS	PROP-65 WARNING

6504-12-12

$29.14

Attribute: 6504-12-12 (12MJ-12FJS Straight)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.125
C HEX 1 IN	1.250
OVERALL LENGTH L IN	2.330
OVERALL LENGTH L2 IN	1.770
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.3629
CALIFORNIA RESIDENTS	PROP-65 WARNING

6504-12-12-SS

$288.45

Attribute: 6504-12-12-SS (12MJ-12FJS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.125
C HEX 1 IN	1.250
OVERALL LENGTH L IN	2.330
OVERALL LENGTH L2 IN	1.770
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.2625
CALIFORNIA RESIDENTS	PROP-65 WARNING

6504-12-16

$56.46

Attribute: 6504-12-16 (12MJ-16FJS Straight)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.375
OVERALL LENGTH L IN	2.450
OVERALL LENGTH L2 IN	1.856
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.4875
CALIFORNIA RESIDENTS	PROP-65 WARNING

6504-16-12

$48.78

Attribute: 6504-16-12 (16MJ-12FJS Straight)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.375
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.450
OVERALL LENGTH L2 IN	1.870
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.475
CALIFORNIA RESIDENTS	PROP-65 WARNING

6504-16-16

$38.74

Attribute: 6504-16-16 (16MJ-16FJS Straight)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.375
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.500
OVERALL LENGTH L2 IN	1.910
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.505
CALIFORNIA RESIDENTS	PROP-65 WARNING

6504-16-16-SS

$396.80

Attribute: 6504-16-16-SS (16MJ-16FJS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.375
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.500
OVERALL LENGTH L2 IN	1.910
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.5562
CALIFORNIA RESIDENTS	PROP-65 WARNING

6504-20-16

$73.05

Attribute: 6504-20-16 (20MJ-16FJS Straight)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.688
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.500
OVERALL LENGTH L2 IN	1.890
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.7375
CALIFORNIA RESIDENTS	PROP-65 WARNING

6504-20-16-SS

$754.51

Attribute: 6504-20-16-SS (20MJ-16FJS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.688
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.500
OVERALL LENGTH L2 IN	1.890
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.925
CALIFORNIA RESIDENTS	PROP-65 WARNING

6504-20-20

$90.67

Attribute: 6504-20-20 (20MJ-20FJS Straight)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.687
C HEX 1 IN	2.000
OVERALL LENGTH L IN	2.700
OVERALL LENGTH L2 IN	2.070
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.95
CALIFORNIA RESIDENTS	PROP-65 WARNING

6504-20-20-SS

$798.76

Attribute: 6504-20-20-SS (20MJ-20FJS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.687
C HEX 1 IN	2.000
OVERALL LENGTH L IN	2.700
OVERALL LENGTH L2 IN	1.070
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.925
CALIFORNIA RESIDENTS	PROP-65 WARNING

6504-24-24

$186.26

Attribute: 6504-24-24 (24MJ-24FJS Straight)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.000
C HEX 1 IN	2.250
OVERALL LENGTH L IN	3.104
OVERALL LENGTH L2 IN	2.370
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	1.275
CALIFORNIA RESIDENTS	PROP-65 WARNING

6504-24-24-SS

$964.05

Attribute: 6504-24-24-SS (24MJ-24FJS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.000
C HEX 1 IN	2.250
OVERALL LENGTH L IN	3.104
OVERALL LENGTH L2 IN	2.370
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1.3375
CALIFORNIA RESIDENTS	PROP-65 WARNING

6504-32-32

$549.93

Attribute: 6504-32-32 (32MJ-32FJS Straight)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	2-1/2-12
THREAD B2 DRILL IN	1.781
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.625
C HEX 1 IN	2.875
OVERALL LENGTH L IN	2.862
OVERALL LENGTH L2 IN	3.700
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	2.3937
CALIFORNIA RESIDENTS	PROP-65 WARNING

6504-32-32-SS

$1,488.68

Attribute: 6504-32-32-SS (32MJ-32FJS Straig...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	2-1/2-12
THREAD B2 DRILL IN	1.781
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.625
C HEX 1 IN	2.875
OVERALL LENGTH L IN	2.862
OVERALL LENGTH L2 IN	3.700
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	2.4875
CALIFORNIA RESIDENTS	PROP-65 WARNING

ID	10146182
Category	Tube Fittings and Adapters

Connections	JIC
Shape	Straight

Description

Description

Variations (36)

6504-04-03-SS

6504-04-04

6504-04-04-SS

6504-04-06

6504-04-06-SS

6504-05-05

6504-06-04

6504-06-04-SS

6504-06-06

6504-06-06-SS

6504-06-08

6504-08-06

6504-08-08

6504-08-08-SS

6504-08-10

6504-08-10-SS

6504-08-12

6504-10-08

6504-10-10

6504-10-10-SS

6504-12-08

6504-12-08-SS

6504-12-12

6504-12-12-SS

6504-12-16

6504-16-12

6504-16-16

6504-16-16-SS

6504-20-16

6504-20-16-SS

6504-20-20

6504-20-20-SS

6504-24-24

6504-24-24-SS

6504-32-32

6504-32-32-SS

General Attributes

PDF Documents
