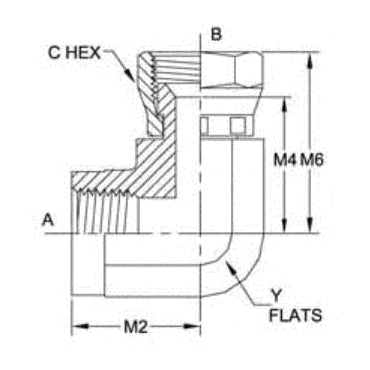

6503-FG

6503-02-04-FG

$29.78

Attribute: 6503-02-04-FG (02FP-04FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL IN	0.188
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.562
OVERALL LENGTH L IN	1.140
OVERALL LENGTH L2 IN	0.800
CENTERLINE LENGTH M IN	0.660
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.0937
CALIFORNIA RESIDENTS	PROP-65 WARNING

6503-04-04-FG

$16.93

Attribute: 6503-04-04-FG (04FP-04FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.562
OVERALL LENGTH L IN	1.180
OVERALL LENGTH L2 IN	0.830
CENTERLINE LENGTH M IN	0.880
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1687
CALIFORNIA RESIDENTS	PROP-65 WARNING

6503-04-04-SS

$405.75

Attribute: 6503-04-04-SS (04FP-04FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.562
OVERALL LENGTH L IN	1.180
OVERALL LENGTH L2 IN	0.830
CENTERLINE LENGTH M IN	0.880
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1645
CALIFORNIA RESIDENTS	PROP-65 WARNING

6503-04-05-SS

$443.48

Attribute: 6503-04-05-SS (04FP-05FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1/2-20
THREAD B2 DRILL IN	0.234
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.625
OVERALL LENGTH L IN	1.250
OVERALL LENGTH L2 IN	0.870
CENTERLINE LENGTH M IN	0.880
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1763
CALIFORNIA RESIDENTS	PROP-65 WARNING

6503-04-06-FG

$30.92

Attribute: 6503-04-06-FG (04FP-06FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.290
OVERALL LENGTH L2 IN	0.910
CENTERLINE LENGTH M IN	0.880
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1687
CALIFORNIA RESIDENTS	PROP-65 WARNING

6503-06-06-FG

$25.05

Attribute: 6503-06-06-FG (06FP-06FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.380
OVERALL LENGTH L2 IN	1.040
CENTERLINE LENGTH M IN	1.020
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.2562
CALIFORNIA RESIDENTS	PROP-65 WARNING

6503-06-06-SS

$596.25

Attribute: 6503-06-06-SS (06FP-06FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.380
OVERALL LENGTH L2 IN	1.040
CENTERLINE LENGTH M IN	1.020
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.2341
CALIFORNIA RESIDENTS	PROP-65 WARNING

6503-06-08-FG

$26.78

Attribute: 6503-06-08-FG (06FP-08FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.510
OVERALL LENGTH L2 IN	1.090
CENTERLINE LENGTH M IN	1.020
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.275
CALIFORNIA RESIDENTS	PROP-65 WARNING

6503-08-08-FG

$41.98

Attribute: 6503-08-08-FG (08FP-08FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.550
OVERALL LENGTH L2 IN	1.120
CENTERLINE LENGTH M IN	1.230
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.4125
CALIFORNIA RESIDENTS	PROP-65 WARNING

6503-08-08-SS

$513.94

Attribute: 6503-08-08-SS (08FP-08FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.550
OVERALL LENGTH L2 IN	1.120
CENTERLINE LENGTH M IN	1.230
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.4
CALIFORNIA RESIDENTS	PROP-65 WARNING

6503-08-10-FG

$60.35

Attribute: 6503-08-10-FG (08FP-10FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.660
OVERALL LENGTH L2 IN	1.160
CENTERLINE LENGTH M IN	1.230
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.4187
CALIFORNIA RESIDENTS	PROP-65 WARNING

6503-08-10-SS

$396.60

Attribute: 6503-08-10-SS (08FP-10FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.660
OVERALL LENGTH L2 IN	1.160
CENTERLINE LENGTH M IN	1.230
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.45
CALIFORNIA RESIDENTS	PROP-65 WARNING

6503-12-12-FG

$77.63

Attribute: 6503-12-12-FG (12FP-12FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	FEMALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.312
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.860
OVERALL LENGTH L2 IN	1.300
CENTERLINE LENGTH M IN	1.360
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.7
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	NPT, JIC
Shape	Elbow

ID	10146166
Category	Tube Fittings and Adapters

Description

Description

Variations (13)

6503-02-04-FG

6503-04-04-FG

6503-04-04-SS

6503-04-05-SS

6503-04-06-FG

6503-06-06-FG

6503-06-06-SS

6503-06-08-FG

6503-08-08-FG

6503-08-08-SS

6503-08-10-FG

6503-08-10-SS

6503-12-12-FG

General Attributes

PDF Documents
