6502-FG

6502-02-02-FG

$14.37

Attribute: 6502-02-02-FG (02MJ-02FJS 45 Elb...)

Stock Status: True

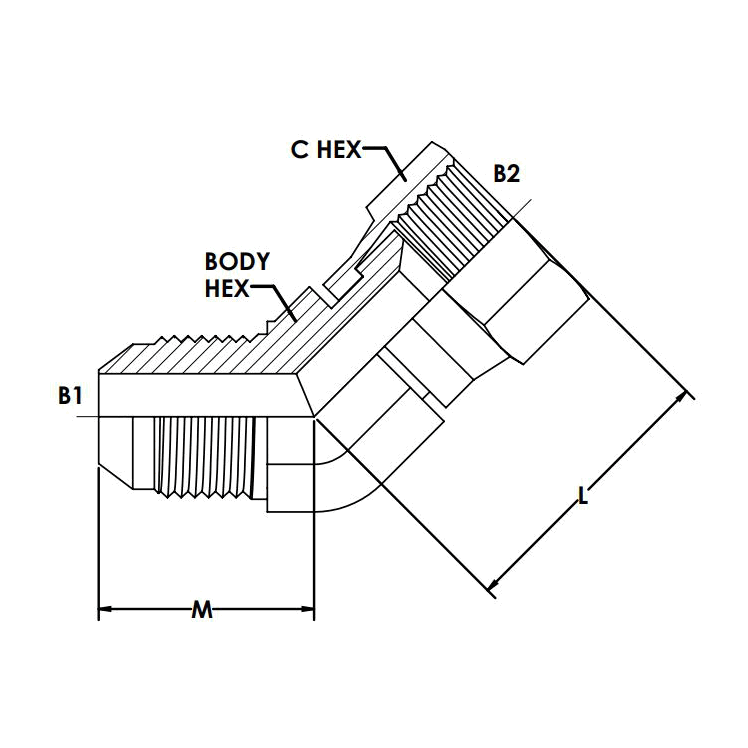

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	5/16-24
THREAD B1 DRILL IN	0.062
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	5/16-24
THREAD B2 DRILL IN	0.062
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.438
C HEX 1 IN	0.438
OVERALL LENGTH L IN	0.940
CENTERLINE LENGTH M IN	0.690
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.0625
CALIFORNIA RESIDENTS	PROP-65 WARNING

6502-02-02-SS

$122.02

Attribute: 6502-02-02-SS (02MJ-02FJS 45 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	5/16-24
THREAD B1 DRILL IN	0.062
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	5/16-24
THREAD B2 DRILL IN	0.062
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.438
C HEX 1 IN	0.438
OVERALL LENGTH L IN	0.940
CENTERLINE LENGTH M IN	0.690
SHAPE	45 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

6502-03-03-FG

$19.20

Attribute: 6502-03-03-FG (03MJ-03FJS 45 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/8-24
THREAD B1 DRILL IN	0.125
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/8-24
THREAD B2 DRILL IN	0.125
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.438
C HEX 1 IN	0.438
OVERALL LENGTH L IN	0.940
CENTERLINE LENGTH M IN	0.690
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.0562
CALIFORNIA RESIDENTS	PROP-65 WARNING

6502-04-04-FG

$9.11

Attribute: 6502-04-04-FG (04MJ-04FJS 45 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.438
C HEX 1 IN	0.563
OVERALL LENGTH L IN	0.940
CENTERLINE LENGTH M IN	0.720
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.0567
CALIFORNIA RESIDENTS	PROP-65 WARNING

6502-04-04-SS

$128.33

Attribute: 6502-04-04-SS (04MJ-04FJS 45 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.438
C HEX 1 IN	0.563
OVERALL LENGTH L IN	0.940
CENTERLINE LENGTH M IN	0.720
SHAPE	45 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.0707
CALIFORNIA RESIDENTS	PROP-65 WARNING

6502-05-05-FG

$31.26

Attribute: 6502-05-05-FG (05MJ-05FJS 45 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1/2-20
THREAD B2 DRILL IN	0.234
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.625
OVERALL LENGTH L IN	1.000
CENTERLINE LENGTH M IN	0.770
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.0812
CALIFORNIA RESIDENTS	PROP-65 WARNING

6502-05-05-SS

$351.75

Attribute: 6502-05-05-SS (05MJ-05FJS 45 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1/2-20
THREAD B2 DRILL IN	0.234
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.625
OVERALL LENGTH L IN	1.000
CENTERLINE LENGTH M IN	0.770
SHAPE	45 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1437
CALIFORNIA RESIDENTS	PROP-65 WARNING

6502-06-06-FG

$9.15

Attribute: 6502-06-06-FG (06MJ-06FJS 45 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.120
CENTERLINE LENGTH M IN	0.830
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.096
CALIFORNIA RESIDENTS	PROP-65 WARNING

6502-06-06-SS

$146.15

Attribute: 6502-06-06-SS (06MJ-06FJS 45 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.120
CENTERLINE LENGTH M IN	0.830
SHAPE	45 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1437
CALIFORNIA RESIDENTS	PROP-65 WARNING

6502-08-08-FG

$14.23

Attribute: 6502-08-08-FG (08MJ-08FJS 45 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.280
CENTERLINE LENGTH M IN	0.980
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.18
CALIFORNIA RESIDENTS	PROP-65 WARNING

6502-08-08-SS

$184.19

Attribute: 6502-08-08-SS (08MJ-08FJS 45 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.280
CENTERLINE LENGTH M IN	0.980
SHAPE	45 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.3
CALIFORNIA RESIDENTS	PROP-65 WARNING

6502-10-08-FG

$34.60

Attribute: 6502-10-08-FG (10MJ-08FJS 45 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.330
CENTERLINE LENGTH M IN	1.110
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.25
CALIFORNIA RESIDENTS	PROP-65 WARNING

6502-10-10-FG

$20.47

Attribute: 6502-10-10-FG (10MJ-10FJS 45 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.440
CENTERLINE LENGTH M IN	1.110
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.274
CALIFORNIA RESIDENTS	PROP-65 WARNING

6502-10-10-SS

$237.01

Attribute: 6502-10-10-SS (10MJ-10FJS 45 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.440
CENTERLINE LENGTH M IN	1.110
SHAPE	45 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.2906
CALIFORNIA RESIDENTS	PROP-65 WARNING

6502-12-12-FG

$23.33

Attribute: 6502-12-12-FG (12MJ-12FJS 45 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.500
CENTERLINE LENGTH M IN	1.280
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.442
CALIFORNIA RESIDENTS	PROP-65 WARNING

6502-12-12-SS

$391.48

Attribute: 6502-12-12-SS (12MJ-12FJS 45 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.500
CENTERLINE LENGTH M IN	1.280
SHAPE	45 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.8125
CALIFORNIA RESIDENTS	PROP-65 WARNING

6502-14-14-FG

$127.53

Attribute: 6502-14-14-FG (14MJ-14FJS 45 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-3/16-12
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-3/16-12
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.312
C HEX 1 IN	1.375
OVERALL LENGTH L IN	1.620
CENTERLINE LENGTH M IN	1.450
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.6312
CALIFORNIA RESIDENTS	PROP-65 WARNING

6502-16-12-FG

$76.24

Attribute: 6502-16-12-FG (16MJ-12FJS 45 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.312
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.700
CENTERLINE LENGTH M IN	1.470
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.65
CALIFORNIA RESIDENTS	PROP-65 WARNING

6502-16-16-FG

$43.41

Attribute: 6502-16-16-FG (16MJ-16FJS 45 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.312
C HEX 1 IN	1.500
OVERALL LENGTH L IN	1.750
CENTERLINE LENGTH M IN	1.470
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.69
CALIFORNIA RESIDENTS	PROP-65 WARNING

6502-16-16-SS

$392.76

Attribute: 6502-16-16-SS (16MJ-16FJS 45 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.312
C HEX 1 IN	1.500
OVERALL LENGTH L IN	1.750
CENTERLINE LENGTH M IN	1.470
SHAPE	45 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1.375
CALIFORNIA RESIDENTS	PROP-65 WARNING

6502-20-20-FG

$87.56

Attribute: 6502-20-20-FG (20MJ-20FJS 45 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.625
C HEX 1 IN	2.000
OVERALL LENGTH L IN	2.030
CENTERLINE LENGTH M IN	1.590
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.2485
CALIFORNIA RESIDENTS	PROP-65 WARNING

6502-20-20-SS

$430.66

Attribute: 6502-20-20-SS (20MJ-20FJS 45 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.625
C HEX 1 IN	2.000
OVERALL LENGTH L IN	2.030
CENTERLINE LENGTH M IN	1.590
SHAPE	45 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.4812
CALIFORNIA RESIDENTS	PROP-65 WARNING

6502-24-24-FG

$133.99

Attribute: 6502-24-24-FG (24MJ-24FJS 45 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.875
C HEX 1 IN	2.250
OVERALL LENGTH L IN	2.250
CENTERLINE LENGTH M IN	1.780
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.6375
CALIFORNIA RESIDENTS	PROP-65 WARNING

6502-24-24-SS

$1,443.74

Attribute: 6502-24-24-SS (24MJ-24FJS 45 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.875
C HEX 1 IN	2.250
OVERALL LENGTH L IN	2.250
CENTERLINE LENGTH M IN	1.780
SHAPE	45 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.725
CALIFORNIA RESIDENTS	PROP-65 WARNING

6502-32-32-FG

$431.40

Attribute: 6502-32-32-FG (32MJ-32FJS 45 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	2-1/2-12
THREAD B2 DRILL IN	1.781
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.500
C HEX 1 IN	2.875
OVERALL LENGTH L IN	2.910
CENTERLINE LENGTH M IN	2.220
SHAPE	45 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	3.375
CALIFORNIA RESIDENTS	PROP-65 WARNING

6502-32-32-SS

$2,833.54

Attribute: 6502-32-32-SS (32MJ-32FJS 45 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	2-1/2-12
THREAD B2 DRILL IN	1.781
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.500
C HEX 1 IN	2.875
OVERALL LENGTH L IN	2.910
CENTERLINE LENGTH M IN	2.220
SHAPE	45 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	3.45
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	JIC
Shape	Elbow

ID	10146137
Category	Tube Fittings and Adapters

Description

Description

Variations (26)

6502-02-02-FG

6502-02-02-SS

6502-03-03-FG

6502-04-04-FG

6502-04-04-SS

6502-05-05-FG

6502-05-05-SS

6502-06-06-FG

6502-06-06-SS

6502-08-08-FG

6502-08-08-SS

6502-10-08-FG

6502-10-10-FG

6502-10-10-SS

6502-12-12-FG

6502-12-12-SS

6502-14-14-FG

6502-16-12-FG

6502-16-16-FG

6502-16-16-SS

6502-20-20-FG

6502-20-20-SS

6502-24-24-FG

6502-24-24-SS

6502-32-32-FG

6502-32-32-SS

General Attributes

PDF Documents
