6501-FG

6501-02-04-FG

$10.53

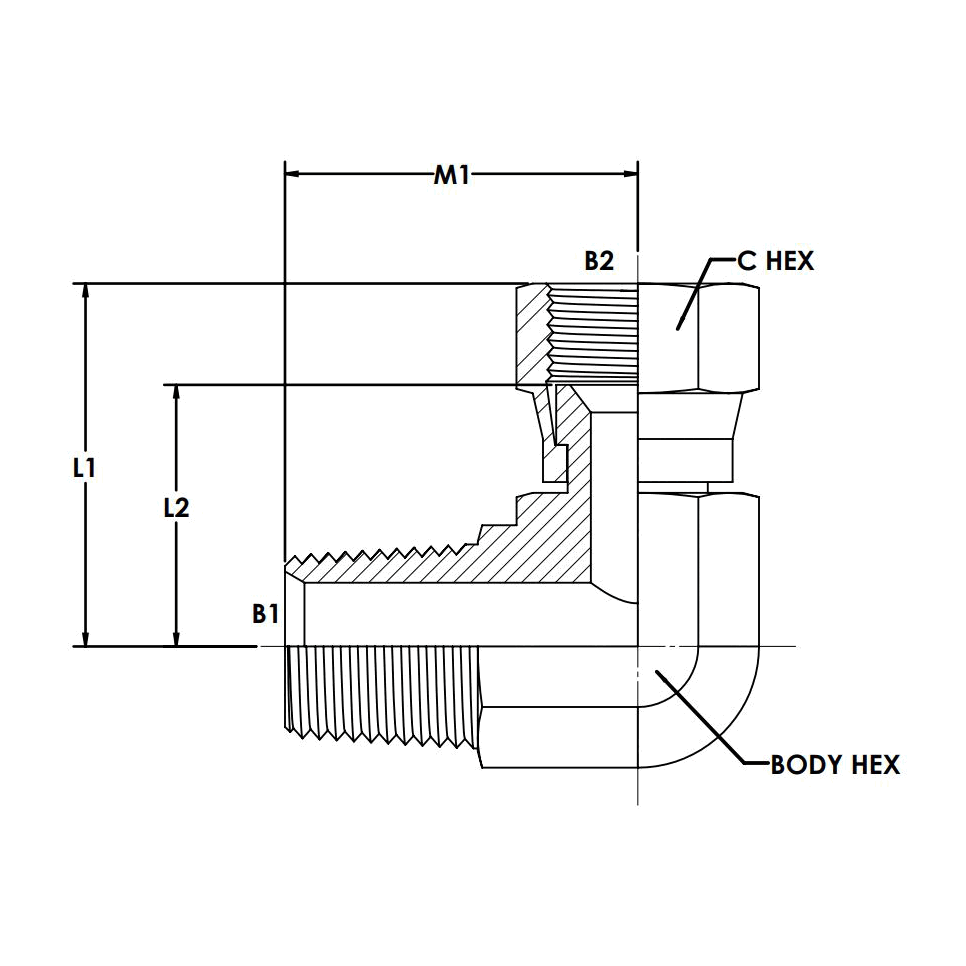

Attribute: 6501-02-04-FG (02MP-04FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL IN	0.188
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.438
OVERALL LENGTH L IN	1.000
OVERALL LENGTH L2 IN	0.660
CENTERLINE LENGTH M IN	0.780
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.0625
CALIFORNIA RESIDENTS	PROP-65 WARNING

6501-02-04-SS

$109.03

Attribute: 6501-02-04-SS (02MP-04FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL IN	0.188
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.438
OVERALL LENGTH L IN	1.000
OVERALL LENGTH L2 IN	0.660
CENTERLINE LENGTH M IN	0.780
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.072
CALIFORNIA RESIDENTS	PROP-65 WARNING

6501-02-05-FG

$19.59

Attribute: 6501-02-05-FG (02MP-05FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/8-27
THREAD B1 DRILL IN	0.188
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1/2-20
THREAD B2 DRILL IN	0.234
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.625
C HEX 1 IN	0.562
OVERALL LENGTH L IN	1.060
OVERALL LENGTH L2 IN	0.678
CENTERLINE LENGTH M IN	0.900
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.0937
CALIFORNIA RESIDENTS	PROP-65 WARNING

6501-04-04-FG

$16.99

Attribute: 6501-04-04-FG (04MP-04FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.562
OVERALL LENGTH L IN	1.144
OVERALL LENGTH L2 IN	0.800
CENTERLINE LENGTH M IN	1.090
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1062
CALIFORNIA RESIDENTS	PROP-65 WARNING

6501-04-04-SS

$255.48

Attribute: 6501-04-04-SS (04MP-04FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.562
OVERALL LENGTH L IN	1.144
OVERALL LENGTH L2 IN	0.800
CENTERLINE LENGTH M IN	1.090
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.119
CALIFORNIA RESIDENTS	PROP-65 WARNING

6501-04-05-FG

$25.79

Attribute: 6501-04-05-FG (04MP-05FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1/2-20
THREAD B2 DRILL IN	0.234
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.625
C HEX 1 IN	0.562
OVERALL LENGTH L IN	1.060
OVERALL LENGTH L2 IN	0.690
CENTERLINE LENGTH M IN	1.090
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1125
CALIFORNIA RESIDENTS	PROP-65 WARNING

6501-04-05-SS

$327.48

Attribute: 6501-04-05-SS (04MP-05FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1/2-20
THREAD B2 DRILL IN	0.234
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.625
C HEX 1 IN	0.562
OVERALL LENGTH L IN	1.060
OVERALL LENGTH L2 IN	0.690
CENTERLINE LENGTH M IN	1.090
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1.7
CALIFORNIA RESIDENTS	PROP-65 WARNING

6501-04-06-FG

$15.95

Attribute: 6501-04-06-FG (04MP-06FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.688
C HEX 1 IN	0.562
OVERALL LENGTH L IN	1.250
OVERALL LENGTH L2 IN	0.875
CENTERLINE LENGTH M IN	1.090
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1187
CALIFORNIA RESIDENTS	PROP-65 WARNING

6501-04-06-SS

$271.81

Attribute: 6501-04-06-SS (04MP-06FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/4-18
THREAD B1 DRILL IN	0.281
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.688
C HEX 1 IN	0.562
OVERALL LENGTH L IN	1.250
OVERALL LENGTH L2 IN	0.875
CENTERLINE LENGTH M IN	1.090
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.2
CALIFORNIA RESIDENTS	PROP-65 WARNING

6501-06-04-FG

$36.72

Attribute: 6501-06-04-FG (06MP-04FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.750
OVERALL LENGTH L IN	1.170
OVERALL LENGTH L2 IN	0.830
CENTERLINE LENGTH M IN	1.220
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1812
CALIFORNIA RESIDENTS	PROP-65 WARNING

6501-06-06-FG

$18.96

Attribute: 6501-06-06-FG (06MP-06FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.688
C HEX 1 IN	0.750
OVERALL LENGTH L IN	1.280
OVERALL LENGTH L2 IN	0.900
CENTERLINE LENGTH M IN	1.220
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1875
CALIFORNIA RESIDENTS	PROP-65 WARNING

6501-06-06-SS

$201.18

Attribute: 6501-06-06-SS (06MP-06FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.688
C HEX 1 IN	0.750
OVERALL LENGTH L IN	1.280
OVERALL LENGTH L2 IN	0.900
CENTERLINE LENGTH M IN	1.220
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.375
CALIFORNIA RESIDENTS	PROP-65 WARNING

6501-06-08-FG

$19.59

Attribute: 6501-06-08-FG (06MP-08FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.750
OVERALL LENGTH L IN	1.380
OVERALL LENGTH L2 IN	0.958
CENTERLINE LENGTH M IN	1.220
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.2062
CALIFORNIA RESIDENTS	PROP-65 WARNING

6501-06-08-SS

$325.67

Attribute: 6501-06-08-SS (06MP-08FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/8-18
THREAD B1 DRILL IN	0.406
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.750
OVERALL LENGTH L IN	1.220
OVERALL LENGTH L2 IN	0.960
CENTERLINE LENGTH M IN	1.380
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.375
CALIFORNIA RESIDENTS	PROP-65 WARNING

6501-08-06-FG

$19.59

Attribute: 6501-08-06-FG (08MP-06FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.688
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.420
OVERALL LENGTH L2 IN	1.045
CENTERLINE LENGTH M IN	1.470
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.2812
CALIFORNIA RESIDENTS	PROP-65 WARNING

6501-08-06-SS

$182.13

Attribute: 6501-08-06-SS (08MP-06FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.688
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.420
OVERALL LENGTH L2 IN	1.045
CENTERLINE LENGTH M IN	1.470
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.5875
CALIFORNIA RESIDENTS	PROP-65 WARNING

6501-08-08-FG

$19.94

Attribute: 6501-08-08-FG (08MP-08FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.520
OVERALL LENGTH L2 IN	1.090
CENTERLINE LENGTH M IN	1.470
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.3
CALIFORNIA RESIDENTS	PROP-65 WARNING

6501-08-08-SS

$277.28

Attribute: 6501-08-08-SS (08MP-08FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.520
OVERALL LENGTH L2 IN	1.090
CENTERLINE LENGTH M IN	1.470
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.5875
CALIFORNIA RESIDENTS	PROP-65 WARNING

6501-08-10-FG

$23.08

Attribute: 6501-08-10-FG (08MP-10FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.000
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.620
OVERALL LENGTH L2 IN	1.120
CENTERLINE LENGTH M IN	1.470
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.3187
CALIFORNIA RESIDENTS	PROP-65 WARNING

6501-08-12-FG

$36.03

Attribute: 6501-08-12-FG (08MP-12FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1/2-14
THREAD B1 DRILL IN	0.531
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.250
C HEX 1 IN	1.062
OVERALL LENGTH L IN	1.750
OVERALL LENGTH L2 IN	1.180
CENTERLINE LENGTH M IN	1.590
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.5062
CALIFORNIA RESIDENTS	PROP-65 WARNING

6501-12-08-FG

$36.53

Attribute: 6501-12-08-FG (12MP-08FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	1.062
OVERALL LENGTH L IN	1.612
OVERALL LENGTH L2 IN	1.120
CENTERLINE LENGTH M IN	1.590
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.25
CALIFORNIA RESIDENTS	PROP-65 WARNING

6501-12-12-FG

$28.59

Attribute: 6501-12-12-FG (12MP-12FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.250
C HEX 1 IN	1.062
OVERALL LENGTH L IN	1.750
OVERALL LENGTH L2 IN	1.180
CENTERLINE LENGTH M IN	1.590
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.5062
CALIFORNIA RESIDENTS	PROP-65 WARNING

6501-12-12-SS

$415.45

Attribute: 6501-12-12-SS (12MP-12FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.250
C HEX 1 IN	1.062
OVERALL LENGTH L IN	1.750
OVERALL LENGTH L2 IN	1.180
CENTERLINE LENGTH M IN	1.590
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.5125
CALIFORNIA RESIDENTS	PROP-65 WARNING

6501-12-14-FG

$54.54

Attribute: 6501-12-14-FG (12MP-14FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	3/4-14
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-3/16-12
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.375
C HEX 1 IN	1.312
OVERALL LENGTH L IN	1.890
OVERALL LENGTH L2 IN	1.310
CENTERLINE LENGTH M IN	1.690
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.7812
CALIFORNIA RESIDENTS	PROP-65 WARNING

6501-16-16-FG

$42.58

Attribute: 6501-16-16-FG (16MP-16FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-11-1/2
THREAD B1 DRILL IN	0.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.500
C HEX 1 IN	1.312
OVERALL LENGTH L IN	2.010
OVERALL LENGTH L2 IN	1.410
CENTERLINE LENGTH M IN	1.970
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.7812
CALIFORNIA RESIDENTS	PROP-65 WARNING

6501-16-16-SS

$568.34

Attribute: 6501-16-16-SS (16MP-16FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-11-1/2
THREAD B1 DRILL IN	0.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.500
C HEX 1 IN	1.312
OVERALL LENGTH L IN	2.010
OVERALL LENGTH L2 IN	1.410
CENTERLINE LENGTH M IN	1.970
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.825
CALIFORNIA RESIDENTS	PROP-65 WARNING

6501-20-20-FG

$124.15

Attribute: 6501-20-20-FG (20MP-20FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-1/4-11-1/2
THREAD B1 DRILL IN	1.250
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.000
C HEX 1 IN	1.625
OVERALL LENGTH L IN	2.310
OVERALL LENGTH L2 IN	1.670
CENTERLINE LENGTH M IN	2.380
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.8571
CALIFORNIA RESIDENTS	PROP-65 WARNING

6501-20-20-SS

$1,083.03

Attribute: 6501-20-20-SS (20MP-20FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-1/4-11-1/2
THREAD B1 DRILL IN	1.250
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.000
C HEX 1 IN	1.625
OVERALL LENGTH L IN	2.310
OVERALL LENGTH L2 IN	1.670
CENTERLINE LENGTH M IN	2.380
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	2.9312
CALIFORNIA RESIDENTS	PROP-65 WARNING

6501-24-24-FG

$192.96

Attribute: 6501-24-24-FG (24MP-24FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-1/2-11-1/2
THREAD B1 DRILL IN	1.500
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.250
C HEX 1 IN	1.875
OVERALL LENGTH L IN	2.590
OVERALL LENGTH L2 IN	1.856
CENTERLINE LENGTH M IN	2.640
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	2.5
CALIFORNIA RESIDENTS	PROP-65 WARNING

6501-24-24-SS

$1,241.73

Attribute: 6501-24-24-SS (24MP-24FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	1-1/2-11-1/2
THREAD B1 DRILL IN	1.500
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.250
C HEX 1 IN	1.875
OVERALL LENGTH L IN	2.590
OVERALL LENGTH L2 IN	1.856
CENTERLINE LENGTH M IN	2.640
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	2.443
CALIFORNIA RESIDENTS	PROP-65 WARNING

6501-32-32-FG

$828.64

Attribute: 6501-32-32-FG (32MP-32FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	2-11-1/2
THREAD B1 DRILL IN	1.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	2-1/2-12
THREAD B2 DRILL IN	1.781
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.875
C HEX 1 IN	2.500
OVERALL LENGTH L IN	3.380
OVERALL LENGTH L2 IN	2.440
CENTERLINE LENGTH M IN	3.000
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	5
CALIFORNIA RESIDENTS	PROP-65 WARNING

6501-32-32-SS

$2,292.27

Attribute: 6501-32-32-SS (32MP-32FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE NPTF
THREAD B1 SIZE	2-11-1/2
THREAD B1 DRILL IN	1.938
THREAD B1 SPECIFICATION	SAE J476
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	2-1/2-12
THREAD B2 DRILL IN	1.781
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.875
C HEX 1 IN	2.500
OVERALL LENGTH L IN	3.380
OVERALL LENGTH L2 IN	2.440
CENTERLINE LENGTH M IN	3.000
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	9.3
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	NPT, JIC
Shape	Elbow

ID	10146102
Category	Tube Fittings and Adapters

Description

Description

Variations (32)

6501-02-04-FG

6501-02-04-SS

6501-02-05-FG

6501-04-04-FG

6501-04-04-SS

6501-04-05-FG

6501-04-05-SS

6501-04-06-FG

6501-04-06-SS

6501-06-04-FG

6501-06-06-FG

6501-06-06-SS

6501-06-08-FG

6501-06-08-SS

6501-08-06-FG

6501-08-06-SS

6501-08-08-FG

6501-08-08-SS

6501-08-10-FG

6501-08-12-FG

6501-12-08-FG

6501-12-12-FG

6501-12-12-SS

6501-12-14-FG

6501-16-16-FG

6501-16-16-SS

6501-20-20-FG

6501-20-20-SS

6501-24-24-FG

6501-24-24-SS

6501-32-32-FG

6501-32-32-SS

General Attributes

PDF Documents
