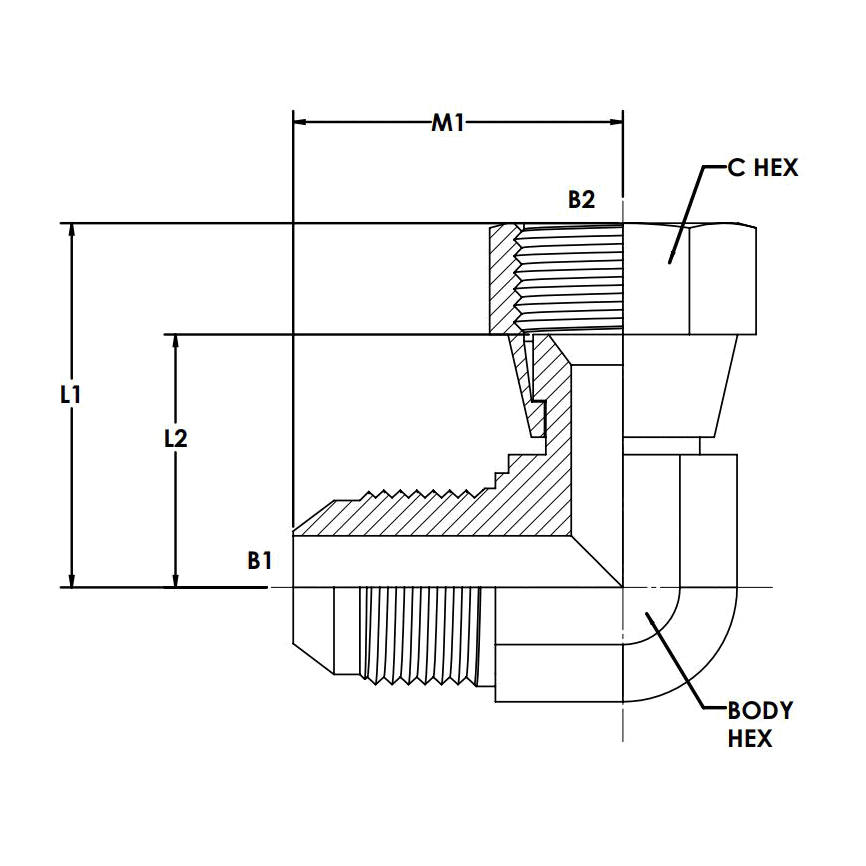

6500-FG

6500-02-02-FG

$14.52

Attribute: 6500-02-02-FG (02MJ-02FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	5/16-24
THREAD B1 DRILL IN	0.062
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	5/16-24
THREAD B2 DRILL IN	0.062
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.438
C HEX 1 IN	0.438
OVERALL LENGTH L IN	0.970
OVERALL LENGTH L2 IN	0.660
CENTERLINE LENGTH M IN	0.770
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.0562
CALIFORNIA RESIDENTS	PROP-65 WARNING

6500-02-02-SS

$111.54

Attribute: 6500-02-02-SS (02MJ-02FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	5/16-24
THREAD B1 DRILL IN	0.062
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	5/16-24
THREAD B2 DRILL IN	0.062
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.438
C HEX 1 IN	0.438
OVERALL LENGTH L IN	0.970
OVERALL LENGTH L2 IN	0.660
CENTERLINE LENGTH M IN	0.770
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.0533
CALIFORNIA RESIDENTS	PROP-65 WARNING

6500-03-03-FG

$19.20

Attribute: 6500-03-03-FG (03MJ-03FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/8-24
THREAD B1 DRILL IN	0.125
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/8-24
THREAD B2 DRILL IN	0.125
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.500
C HEX 1 IN	0.438
OVERALL LENGTH L IN	1.000
OVERALL LENGTH L2 IN	0.670
CENTERLINE LENGTH M IN	0.830
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.0625
CALIFORNIA RESIDENTS	PROP-65 WARNING

6500-03-03-SS

$124.54

Attribute: 6500-03-03-SS (03MJ-03FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/8-24
THREAD B1 DRILL IN	0.125
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/8-24
THREAD B2 DRILL IN	0.125
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.500
C HEX 1 IN	0.438
OVERALL LENGTH L IN	1.000
OVERALL LENGTH L2 IN	0.670
CENTERLINE LENGTH M IN	0.830
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.075
CALIFORNIA RESIDENTS	PROP-65 WARNING

6500-04-04-FG

$8.96

Attribute: 6500-04-04-FG (04MJ-04FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.563
C HEX 1 IN	0.438
OVERALL LENGTH L IN	1.000
OVERALL LENGTH L2 IN	0.650
CENTERLINE LENGTH M IN	0.890
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.068
CALIFORNIA RESIDENTS	PROP-65 WARNING

6500-04-04-SS

$66.45

Attribute: 6500-04-04-SS (04MJ-04FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.563
C HEX 1 IN	0.438
OVERALL LENGTH L IN	1.000
OVERALL LENGTH L2 IN	0.650
CENTERLINE LENGTH M IN	0.890
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.075
CALIFORNIA RESIDENTS	PROP-65 WARNING

6500-04-06-FG

$23.43

Attribute: 6500-04-06-FG (04MJ-06FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.688
C HEX 1 IN	0.562
OVERALL LENGTH L IN	1.250
OVERALL LENGTH L2 IN	0.870
CENTERLINE LENGTH M IN	1.050
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1125
CALIFORNIA RESIDENTS	PROP-65 WARNING

6500-05-05-FG

$12.65

Attribute: 6500-05-05-FG (05MJ-05FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1/2-20
THREAD B2 DRILL IN	0.234
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.625
C HEX 1 IN	0.562
OVERALL LENGTH L IN	1.060
OVERALL LENGTH L2 IN	0.678
CENTERLINE LENGTH M IN	0.950
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.0937
CALIFORNIA RESIDENTS	PROP-65 WARNING

6500-05-05-SS

$396.60

Attribute: 6500-05-05-SS (05MJ-05FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1/2-20
THREAD B2 DRILL IN	0.234
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.625
C HEX 1 IN	0.562
OVERALL LENGTH L IN	1.060
OVERALL LENGTH L2 IN	0.678
CENTERLINE LENGTH M IN	0.950
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.2
CALIFORNIA RESIDENTS	PROP-65 WARNING

6500-05-06-FG

$19.64

Attribute: 6500-05-06-FG (05MJ-06FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.688
C HEX 1 IN	0.562
OVERALL LENGTH L IN	1.250
OVERALL LENGTH L2 IN	0.870
CENTERLINE LENGTH M IN	0.950
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.0937
CALIFORNIA RESIDENTS	PROP-65 WARNING

6500-06-04-FG

$22.74

Attribute: 6500-06-04-FG (06MJ-04FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.562
OVERALL LENGTH L IN	1.240
OVERALL LENGTH L2 IN	0.900
CENTERLINE LENGTH M IN	1.060
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1125
CALIFORNIA RESIDENTS	PROP-65 WARNING

6500-06-04-SS

$399.30

Attribute: 6500-06-04-SS (06MJ-04FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.562
OVERALL LENGTH L IN	1.240
OVERALL LENGTH L2 IN	0.900
CENTERLINE LENGTH M IN	1.060
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.2
CALIFORNIA RESIDENTS	PROP-65 WARNING

6500-06-06-FG

$9.79

Attribute: 6500-06-06-FG (06MJ-06FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.688
C HEX 1 IN	0.562
OVERALL LENGTH L IN	1.250
OVERALL LENGTH L2 IN	0.870
CENTERLINE LENGTH M IN	1.060
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.11
CALIFORNIA RESIDENTS	PROP-65 WARNING

6500-06-06-SS

$88.55

Attribute: 6500-06-06-SS (06MJ-06FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.688
C HEX 1 IN	0.562
OVERALL LENGTH L IN	1.250
OVERALL LENGTH L2 IN	0.870
CENTERLINE LENGTH M IN	1.060
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.2
CALIFORNIA RESIDENTS	PROP-65 WARNING

6500-06-08-FG

$24.71

Attribute: 6500-06-08-FG (06MJ-08FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.750
OVERALL LENGTH L IN	1.380
OVERALL LENGTH L2 IN	0.950
CENTERLINE LENGTH M IN	1.140
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.2062
CALIFORNIA RESIDENTS	PROP-65 WARNING

6500-08-06-FG

$27.08

Attribute: 6500-08-06-FG (08MJ-06FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.688
C HEX 1 IN	0.750
OVERALL LENGTH L IN	1.280
OVERALL LENGTH L2 IN	0.910
CENTERLINE LENGTH M IN	1.250
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.1937
CALIFORNIA RESIDENTS	PROP-65 WARNING

6500-08-06-SS

$240.26

Attribute: 6500-08-06-SS (08MJ-06FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.688
C HEX 1 IN	0.750
OVERALL LENGTH L IN	1.280
OVERALL LENGTH L2 IN	0.910
CENTERLINE LENGTH M IN	1.250
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.225
CALIFORNIA RESIDENTS	PROP-65 WARNING

6500-08-08-FG

$13.69

Attribute: 6500-08-08-FG (08MJ-08FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.750
OVERALL LENGTH L IN	1.380
OVERALL LENGTH L2 IN	0.950
CENTERLINE LENGTH M IN	1.250
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.22
CALIFORNIA RESIDENTS	PROP-65 WARNING

6500-08-08-SS

$174.20

Attribute: 6500-08-08-SS (08MJ-08FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.750
OVERALL LENGTH L IN	1.380
OVERALL LENGTH L2 IN	0.950
CENTERLINE LENGTH M IN	1.250
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.375
CALIFORNIA RESIDENTS	PROP-65 WARNING

6500-08-10-FG

$32.53

Attribute: 6500-08-10-FG (08MJ-10FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.000
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.620
OVERALL LENGTH L2 IN	1.120
CENTERLINE LENGTH M IN	1.330
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.3187
CALIFORNIA RESIDENTS	PROP-65 WARNING

6500-08-12-FG

$53.22

Attribute: 6500-08-12-FG (08MJ-12FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.250
C HEX 1 IN	1.062
OVERALL LENGTH L IN	1.750
OVERALL LENGTH L2 IN	1.180
CENTERLINE LENGTH M IN	1.420
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.5125
CALIFORNIA RESIDENTS	PROP-65 WARNING

6500-10-08-FG

$27.27

Attribute: 6500-10-08-FG (10MJ-08FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.510
OVERALL LENGTH L2 IN	1.090
CENTERLINE LENGTH M IN	1.450
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.3187
CALIFORNIA RESIDENTS	PROP-65 WARNING

6500-10-10-FG

$15.95

Attribute: 6500-10-10-FG (10MJ-10FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.000
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.620
OVERALL LENGTH L2 IN	1.120
CENTERLINE LENGTH M IN	1.450
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.3119
CALIFORNIA RESIDENTS	PROP-65 WARNING

6500-10-10-SS

$181.39

Attribute: 6500-10-10-SS (10MJ-10FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.000
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.620
OVERALL LENGTH L2 IN	1.120
CENTERLINE LENGTH M IN	1.450
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.5875
CALIFORNIA RESIDENTS	PROP-65 WARNING

6500-10-12-FG

$52.86

Attribute: 6500-10-12-FG (10MJ-12FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.250
C HEX 1 IN	1.062
OVERALL LENGTH L IN	1.750
OVERALL LENGTH L2 IN	1.180
CENTERLINE LENGTH M IN	1.540
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.5187
CALIFORNIA RESIDENTS	PROP-65 WARNING

6500-12-08-FG

$49.02

Attribute: 6500-12-08-FG (12MJ-08FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	1.062
OVERALL LENGTH L IN	1.550
OVERALL LENGTH L2 IN	1.120
CENTERLINE LENGTH M IN	1.660
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.475
CALIFORNIA RESIDENTS	PROP-65 WARNING

6500-12-10-FG

$55.43

Attribute: 6500-12-10-FG (12MJ-10FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.000
C HEX 1 IN	1.062
OVERALL LENGTH L IN	1.660
OVERALL LENGTH L2 IN	1.160
CENTERLINE LENGTH M IN	1.660
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.5
CALIFORNIA RESIDENTS	PROP-65 WARNING

6500-12-12-FG

$28.21

Attribute: 6500-12-12-FG (12MJ-12FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.250
C HEX 1 IN	1.062
OVERALL LENGTH L IN	1.750
OVERALL LENGTH L2 IN	1.180
CENTERLINE LENGTH M IN	1.660
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.542
CALIFORNIA RESIDENTS	PROP-65 WARNING

6500-12-12-SS

$281.76

Attribute: 6500-12-12-SS (12MJ-12FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.250
C HEX 1 IN	1.062
OVERALL LENGTH L IN	1.750
OVERALL LENGTH L2 IN	1.180
CENTERLINE LENGTH M IN	1.660
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.5
CALIFORNIA RESIDENTS	PROP-65 WARNING

6500-12-16-FG

$142.55

Attribute: 6500-12-16-FG (12MJ-16FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.500
C HEX 1 IN	1.312
OVERALL LENGTH L IN	2.000
OVERALL LENGTH L2 IN	1.400
CENTERLINE LENGTH M IN	1.810
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.775
CALIFORNIA RESIDENTS	PROP-65 WARNING

6500-14-14-FG

$68.12

Attribute: 6500-14-14-FG (14MJ-14FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-3/16-12
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-3/16-12
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.375
C HEX 1 IN	1.312
OVERALL LENGTH L IN	1.780
OVERALL LENGTH L2 IN	1.200
CENTERLINE LENGTH M IN	1.800
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.82
CALIFORNIA RESIDENTS	PROP-65 WARNING

6500-16-12-FG

$46.96

Attribute: 6500-16-12-FG (16MJ-12FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.250
C HEX 1 IN	1.312
OVERALL LENGTH L IN	1.910
OVERALL LENGTH L2 IN	1.340
CENTERLINE LENGTH M IN	1.810
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.8
CALIFORNIA RESIDENTS	PROP-65 WARNING

6500-16-12-SS

$848.82

Attribute: 6500-16-12-SS (16MJ-12FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.250
C HEX 1 IN	1.312
OVERALL LENGTH L IN	1.910
OVERALL LENGTH L2 IN	1.340
CENTERLINE LENGTH M IN	1.810
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.897
CALIFORNIA RESIDENTS	PROP-65 WARNING

6500-16-16-FG

$43.02

Attribute: 6500-16-16-FG (16MJ-16FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.500
C HEX 1 IN	1.312
OVERALL LENGTH L IN	2.000
OVERALL LENGTH L2 IN	1.400
CENTERLINE LENGTH M IN	1.810
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	0.85
CALIFORNIA RESIDENTS	PROP-65 WARNING

6500-16-16-SS

$388.68

Attribute: 6500-16-16-SS (16MJ-16FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.500
C HEX 1 IN	1.312
OVERALL LENGTH L IN	2.000
OVERALL LENGTH L2 IN	1.400
CENTERLINE LENGTH M IN	1.810
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.85
CALIFORNIA RESIDENTS	PROP-65 WARNING

6500-20-20-FG

$97.47

Attribute: 6500-20-20-FG (20MJ-20FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.000
C HEX 1 IN	1.625
OVERALL LENGTH L IN	2.310
OVERALL LENGTH L2 IN	1.670
CENTERLINE LENGTH M IN	2.060
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	1.5687
CALIFORNIA RESIDENTS	PROP-65 WARNING

6500-20-20-SS

$657.98

Attribute: 6500-20-20-SS (20MJ-20FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.000
C HEX 1 IN	1.625
OVERALL LENGTH L IN	2.310
OVERALL LENGTH L2 IN	1.670
CENTERLINE LENGTH M IN	2.060
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	2.9312
CALIFORNIA RESIDENTS	PROP-65 WARNING

6500-24-24-FG

$154.31

Attribute: 6500-24-24-FG (24MJ-24FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.250
C HEX 1 IN	1.875
OVERALL LENGTH L IN	2.590
OVERALL LENGTH L2 IN	1.870
CENTERLINE LENGTH M IN	2.330
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	2.0812
CALIFORNIA RESIDENTS	PROP-65 WARNING

6500-24-24-SS

$941.17

Attribute: 6500-24-24-SS (24MJ-24FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.250
C HEX 1 IN	1.875
OVERALL LENGTH L IN	2.590
OVERALL LENGTH L2 IN	1.870
CENTERLINE LENGTH M IN	2.330
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	2.1389
CALIFORNIA RESIDENTS	PROP-65 WARNING

6500-32-32-FG

$522.91

Attribute: 6500-32-32-FG (32MJ-32FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	2-1/2-12
THREAD B2 DRILL IN	1.781
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.875
C HEX 1 IN	2.500
OVERALL LENGTH L IN	3.380
OVERALL LENGTH L2 IN	2.430
CENTERLINE LENGTH M IN	3.060
SHAPE	90 DEGREE
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STEEL FORGING
PLATING	CR3
WEIGHT LBS	4.7687
CALIFORNIA RESIDENTS	PROP-65 WARNING

6500-32-32-SS

$2,690.35

Attribute: 6500-32-32-SS (32MJ-32FJS 90 Elb...)

Stock Status: True

THREAD B1 TYPE	MALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	2-1/2-12
THREAD B2 DRILL IN	1.781
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.875
C HEX 1 IN	2.500
OVERALL LENGTH L IN	3.380
OVERALL LENGTH L2 IN	2.430
CENTERLINE LENGTH M IN	3.060
SHAPE	90 DEGREE
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	4.575
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	JIC
Shape	Elbow

ID	10146058
Category	Tube Fittings and Adapters

Description

Description

Variations (41)

6500-02-02-FG

6500-02-02-SS

6500-03-03-FG

6500-03-03-SS

6500-04-04-FG

6500-04-04-SS

6500-04-06-FG

6500-05-05-FG

6500-05-05-SS

6500-05-06-FG

6500-06-04-FG

6500-06-04-SS

6500-06-06-FG

6500-06-06-SS

6500-06-08-FG

6500-08-06-FG

6500-08-06-SS

6500-08-08-FG

6500-08-08-SS

6500-08-10-FG

6500-08-12-FG

6500-10-08-FG

6500-10-10-FG

6500-10-10-SS

6500-10-12-FG

6500-12-08-FG

6500-12-10-FG

6500-12-12-FG

6500-12-12-SS

6500-12-16-FG

6500-14-14-FG

6500-16-12-FG

6500-16-12-SS

6500-16-16-FG

6500-16-16-SS

6500-20-20-FG

6500-20-20-SS

6500-24-24-FG

6500-24-24-SS

6500-32-32-FG

6500-32-32-SS

General Attributes

PDF Documents
