Tube Fittings and Adapters

6464-O

Scraped 2026-02-15 08:27:45

Description

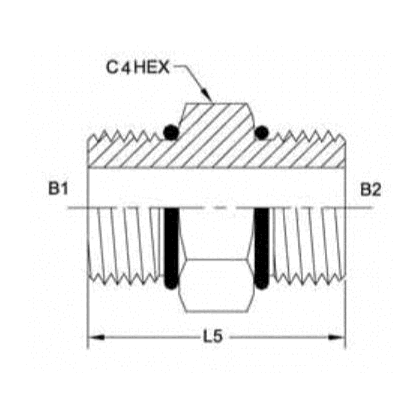

MORB-MORB Straight

Variations (10)

6464-04-04-O

$7.58

Attribute: 6464-04-04-O (04MORB-04MORB Stra...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE O-RING BOSS
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.000
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.0375
CALIFORNIA RESIDENTS	PROP-65 WARNING

6464-06-06-O

$11.22

Attribute: 6464-06-06-O (06MORB-06MORB Stra...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE O-RING BOSS
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.688
OVERALL LENGTH L IN	1.092
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.0625
CALIFORNIA RESIDENTS	PROP-65 WARNING

6464-08-08-O

$12.21

Attribute: 6464-08-08-O (08MORB-08MORB Stra...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE O-RING BOSS
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.220
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1187
CALIFORNIA RESIDENTS	PROP-65 WARNING

6464-08-08-O-SS

$286.58

Attribute: 6464-08-08-O-SS (08MORB-08MORB S...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE O-RING BOSS
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.220
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.125
CALIFORNIA RESIDENTS	PROP-65 WARNING

6464-10-08-O

$17.87

Attribute: 6464-10-08-O (10MORB-08MORB Stra...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE O-RING BOSS
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.000
OVERALL LENGTH L IN	1.340
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1625
CALIFORNIA RESIDENTS	PROP-65 WARNING

6464-10-10-O

$16.64

Attribute: 6464-10-10-O (10MORB-10MORB Stra...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE O-RING BOSS
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.000
OVERALL LENGTH L IN	1.400
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.175
CALIFORNIA RESIDENTS	PROP-65 WARNING

6464-16-12-O

$30.28

Attribute: 6464-16-12-O (16MORB-12MORB Stra...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE O-RING BOSS
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.500
OVERALL LENGTH L IN	1.690
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.3937
CALIFORNIA RESIDENTS	PROP-65 WARNING

6464-16-16-O

$54.15

Attribute: 6464-16-16-O (16MORB-16MORB Stra...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE O-RING BOSS
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.500
OVERALL LENGTH L IN	1.720
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.4312
CALIFORNIA RESIDENTS	PROP-65 WARNING

6464-20-16-O

$130.43

Attribute: 6464-20-16-O (20MORB-16MORB Stra...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE O-RING BOSS
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.875
OVERALL LENGTH L IN	1.806
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

6464-20-20-O-SS

$657.14

Attribute: 6464-20-20-O-SS (20MORB-20MORB S...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE SAE O-RING BOSS
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.875
OVERALL LENGTH L IN	1.800
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

General Attributes

Connections	ORB
Shape	Straight
