6425

6425-04-04

$13.15

Attribute: 6425-04-04 (04FORB-04FORB Straig...)

Stock Status: True

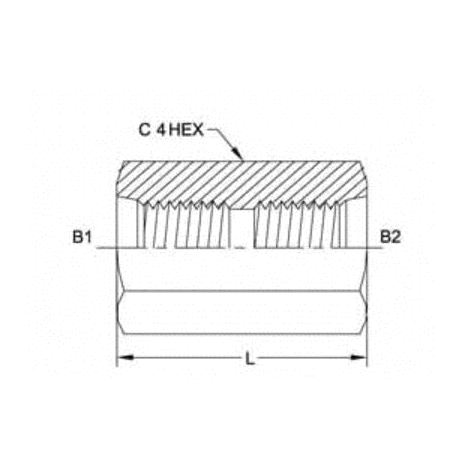

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE SAE O-RING BOSS
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.688
OVERALL LENGTH L IN	1.130
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.0875
CALIFORNIA RESIDENTS	PROP-65 WARNING

6425-04-04-SS

$72.06

Attribute: 6425-04-04-SS (04FORB-04FORB Str...)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE SAE O-RING BOSS
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.688
OVERALL LENGTH L IN	1.130
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.0937
CALIFORNIA RESIDENTS	PROP-65 WARNING

6425-06-06

$16.19

Attribute: 6425-06-06 (06FORB-06FORB Straig...)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE SAE O-RING BOSS
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.812
OVERALL LENGTH L IN	1.260
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.125
CALIFORNIA RESIDENTS	PROP-65 WARNING

6425-06-06-SS

$182.68

Attribute: 6425-06-06-SS (06FORB-06FORB Str...)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE SAE O-RING BOSS
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.812
OVERALL LENGTH L IN	1.260
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.125
CALIFORNIA RESIDENTS	PROP-65 WARNING

6425-08-08

$27.57

Attribute: 6425-08-08 (08FORB-08FORB Straig...)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE SAE O-RING BOSS
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.000
OVERALL LENGTH L IN	1.420
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.1875
CALIFORNIA RESIDENTS	PROP-65 WARNING

6425-08-08-SS

$325.57

Attribute: 6425-08-08-SS (08FORB-08FORB Str...)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE SAE O-RING BOSS
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.000
OVERALL LENGTH L IN	1.420
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1375
CALIFORNIA RESIDENTS	PROP-65 WARNING

6425-10-10

$34.30

Attribute: 6425-10-10 (10FORB-10FORB Straig...)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE SAE O-RING BOSS
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.188
OVERALL LENGTH L IN	1.600
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.2875
CALIFORNIA RESIDENTS	PROP-65 WARNING

6425-12-12

$45.38

Attribute: 6425-12-12 (12FORB-12FORB Straig...)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE SAE O-RING BOSS
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.375
OVERALL LENGTH L IN	1.850
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.4125
CALIFORNIA RESIDENTS	PROP-65 WARNING

6425-12-12-SS

$353.72

Attribute: 6425-12-12-SS (12FORB-12FORB Str...)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE SAE O-RING BOSS
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.375
OVERALL LENGTH L IN	1.850
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.425
CALIFORNIA RESIDENTS	PROP-65 WARNING

6425-16-16

$206.74

Attribute: 6425-16-16 (16FORB-16FORB Straig...)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE SAE O-RING BOSS
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.625
OVERALL LENGTH L IN	1.950
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.55
CALIFORNIA RESIDENTS	PROP-65 WARNING

6425-16-16-SS

$372.43

Attribute: 6425-16-16-SS (16FORB-16FORB Str...)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE SAE O-RING BOSS
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.625
OVERALL LENGTH L IN	1.950
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

6425-20-20

$272.11

Attribute: 6425-20-20 (20FORB-20FORB Straig...)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE SAE O-RING BOSS
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.000
OVERALL LENGTH L IN	2.100
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.8625
CALIFORNIA RESIDENTS	PROP-65 WARNING

6425-20-20-SS

$398.96

Attribute: 6425-20-20-SS (20FORB-20FORB Str...)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE SAE O-RING BOSS
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.000
OVERALL LENGTH L IN	2.100
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	ORB
Shape	Straight

ID	10146029
Category	Tube Fittings and Adapters
