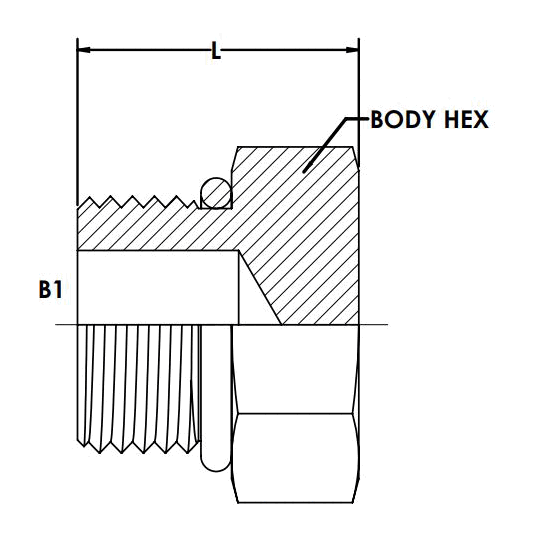

6408-O

6408-02-O

$4.82

Attribute: 6408-02-O (02MORB External Hex H...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	5/16-24
THREAD B1 DRILL IN	0.062
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	EXTERNAL HEX HEAD PLUG
BODY HEX IN	0.438
OVERALL LENGTH L IN	0.600
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.0187
CALIFORNIA RESIDENTS	PROP-65 WARNING

6408-02-O-SS

$18.36

Attribute: 6408-02-O-SS (02MORB External He...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	5/16-24
THREAD B1 DRILL IN	0.062
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	EXTERNAL HEX HEAD PLUG
BODY HEX IN	0.438
OVERALL LENGTH L IN	0.600
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.017
CALIFORNIA RESIDENTS	PROP-65 WARNING

6408-03-O

$4.82

Attribute: 6408-03-O (03MORB External Hex H...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	3/8-24
THREAD B1 DRILL IN	0.125
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	EXTERNAL HEX HEAD PLUG
BODY HEX IN	0.500
OVERALL LENGTH L IN	0.600
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.025
CALIFORNIA RESIDENTS	PROP-65 WARNING

6408-03-O-SS

$18.86

Attribute: 6408-03-O-SS (03MORB External He...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	3/8-24
THREAD B1 DRILL IN	0.125
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	EXTERNAL HEX HEAD PLUG
BODY HEX IN	0.500
OVERALL LENGTH L IN	0.600
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.024
CALIFORNIA RESIDENTS	PROP-65 WARNING

6408-04-O

$2.07

Attribute: 6408-04-O (04MORB External Hex H...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	EXTERNAL HEX HEAD PLUG
BODY HEX IN	0.562
OVERALL LENGTH L IN	0.670
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.0302
CALIFORNIA RESIDENTS	PROP-65 WARNING

6408-04-O-SS

$19.34

Attribute: 6408-04-O-SS (04MORB External He...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	EXTERNAL HEX HEAD PLUG
BODY HEX IN	0.562
OVERALL LENGTH L IN	0.670
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.037
CALIFORNIA RESIDENTS	PROP-65 WARNING

6408-05-O

$4.08

Attribute: 6408-05-O (05MORB External Hex H...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	EXTERNAL HEX HEAD PLUG
BODY HEX IN	0.625
OVERALL LENGTH L IN	0.670
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.04
CALIFORNIA RESIDENTS	PROP-65 WARNING

6408-05-O-SS

$36.27

Attribute: 6408-05-O-SS (05MORB External He...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	EXTERNAL HEX HEAD PLUG
BODY HEX IN	0.625
OVERALL LENGTH L IN	0.670
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.046
CALIFORNIA RESIDENTS	PROP-65 WARNING

6408-06-O

$2.56

Attribute: 6408-06-O (06MORB External Hex H...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	EXTERNAL HEX HEAD PLUG
BODY HEX IN	0.687
OVERALL LENGTH L IN	0.730
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.0532
CALIFORNIA RESIDENTS	PROP-65 WARNING

6408-06-O-SS

$25.89

Attribute: 6408-06-O-SS (06MORB External He...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	EXTERNAL HEX HEAD PLUG
BODY HEX IN	0.687
OVERALL LENGTH L IN	0.730
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.07
CALIFORNIA RESIDENTS	PROP-65 WARNING

6408-08-O

$4.92

Attribute: 6408-08-O (08MORB External Hex H...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	EXTERNAL HEX HEAD PLUG
BODY HEX IN	0.875
OVERALL LENGTH L IN	0.800
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.09
CALIFORNIA RESIDENTS	PROP-65 WARNING

6408-08-O-SS

$34.16

Attribute: 6408-08-O-SS (08MORB External He...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	EXTERNAL HEX HEAD PLUG
BODY HEX IN	0.875
OVERALL LENGTH L IN	0.800
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1
CALIFORNIA RESIDENTS	PROP-65 WARNING

6408-10-O

$5.31

Attribute: 6408-10-O (10MORB External Hex H...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	EXTERNAL HEX HEAD PLUG
BODY HEX IN	1.000
OVERALL LENGTH L IN	0.930
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.146
CALIFORNIA RESIDENTS	PROP-65 WARNING

6408-10-O-SS

$67.63

Attribute: 6408-10-O-SS (10MORB External He...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	EXTERNAL HEX HEAD PLUG
BODY HEX IN	1.000
OVERALL LENGTH L IN	0.930
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.18
CALIFORNIA RESIDENTS	PROP-65 WARNING

6408-12-O

$7.28

Attribute: 6408-12-O (12MORB External Hex H...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	EXTERNAL HEX HEAD PLUG
BODY HEX IN	1.250
OVERALL LENGTH L IN	1.090
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.254
CALIFORNIA RESIDENTS	PROP-65 WARNING

6408-12-O-SS

$97.61

Attribute: 6408-12-O-SS (12MORB External He...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	EXTERNAL HEX HEAD PLUG
BODY HEX IN	1.250
OVERALL LENGTH L IN	1.090
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.325
CALIFORNIA RESIDENTS	PROP-65 WARNING

6408-14-O

$10.48

Attribute: 6408-14-O (14MORB External Hex H...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-3/16-12
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	EXTERNAL HEX HEAD PLUG
BODY HEX IN	1.375
OVERALL LENGTH L IN	1.090
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.3257
CALIFORNIA RESIDENTS	PROP-65 WARNING

6408-14-O-SS

$162.88

Attribute: 6408-14-O-SS (14MORB External He...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-3/16-12
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	EXTERNAL HEX HEAD PLUG
BODY HEX IN	1.375
OVERALL LENGTH L IN	1.090
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.3687
CALIFORNIA RESIDENTS	PROP-65 WARNING

6408-16-O

$12.70

Attribute: 6408-16-O (16MORB External Hex H...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	EXTERNAL HEX HEAD PLUG
BODY HEX IN	1.500
OVERALL LENGTH L IN	1.120
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.3867
CALIFORNIA RESIDENTS	PROP-65 WARNING

6408-16-O-SS

$148.66

Attribute: 6408-16-O-SS (16MORB External He...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	EXTERNAL HEX HEAD PLUG
BODY HEX IN	1.500
OVERALL LENGTH L IN	1.120
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.5
CALIFORNIA RESIDENTS	PROP-65 WARNING

6408-20-O

$19.14

Attribute: 6408-20-O (20MORB External Hex H...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	EXTERNAL HEX HEAD PLUG
BODY HEX IN	1.875
OVERALL LENGTH L IN	1.200
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.6717
CALIFORNIA RESIDENTS	PROP-65 WARNING

6408-20-O-SS

$281.90

Attribute: 6408-20-O-SS (20MORB External He...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	EXTERNAL HEX HEAD PLUG
BODY HEX IN	1.875
OVERALL LENGTH L IN	1.200
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.827
CALIFORNIA RESIDENTS	PROP-65 WARNING

6408-24-O

$32.15

Attribute: 6408-24-O (24MORB External Hex H...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	EXTERNAL HEX HEAD PLUG
BODY HEX IN	2.125
OVERALL LENGTH L IN	1.270
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.14
CALIFORNIA RESIDENTS	PROP-65 WARNING

6408-24-O-SS

$476.30

Attribute: 6408-24-O-SS (24MORB External He...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	EXTERNAL HEX HEAD PLUG
BODY HEX IN	2.125
OVERALL LENGTH L IN	1.270
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.1
CALIFORNIA RESIDENTS	PROP-65 WARNING

6408-32-O

$100.27

Attribute: 6408-32-O (32MORB External Hex H...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	EXTERNAL HEX HEAD PLUG
BODY HEX IN	2.750
OVERALL LENGTH L IN	1.430
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.7667
CALIFORNIA RESIDENTS	PROP-65 WARNING

6408-32-O-SOLID

$121.54

Attribute: 6408-32-O-SOLID (32MORB External...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	SOLID
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	EXTERNAL HEX HEAD PLUG
BODY HEX IN	2.750
OVERALL LENGTH L IN	1.430
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	2.3437
CALIFORNIA RESIDENTS	PROP-65 WARNING

6408-32-O-SS

$532.36

Attribute: 6408-32-O-SS (32MORB External He...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	EXTERNAL HEX HEAD PLUG
BODY HEX IN	2.750
OVERALL LENGTH L IN	1.430
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.78
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	ORB
Shape	Plug

ID	10145868
Category	Tube Fittings and Adapters

Description

Description

Variations (27)

6408-02-O

6408-02-O-SS

6408-03-O

6408-03-O-SS

6408-04-O

6408-04-O-SS

6408-05-O

6408-05-O-SS

6408-06-O

6408-06-O-SS

6408-08-O

6408-08-O-SS

6408-10-O

6408-10-O-SS

6408-12-O

6408-12-O-SS

6408-14-O

6408-14-O-SS

6408-16-O

6408-16-O-SS

6408-20-O

6408-20-O-SS

6408-24-O

6408-24-O-SS

6408-32-O

6408-32-O-SOLID

6408-32-O-SS

General Attributes

PDF Documents
