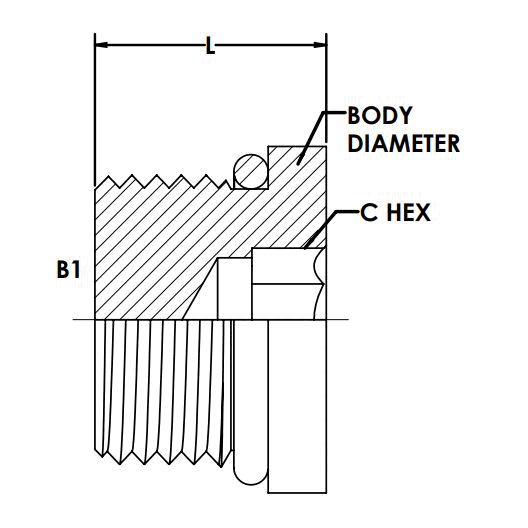

MORB Hollow Hex Plug
Description
Variations (25)
6408-H02-O
$2.07Attribute: 6408-H02-O (02MORB Hollow Hex Pl...)
Stock Status: True
| THREAD B1 TYPE | MALE SAE O-RING BOSS |
|---|---|
| THREAD B1 SIZE | 5/16-24 |
| THREAD B1 DRILL IN | 0.062 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | EXTERNAL HEX HEAD PLUG |
| BODY HEX IN | 0.125 |
| OVERALL LENGTH L IN | 0.400 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.0094 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
6408-H02-O-SS
$29.93Attribute: 6408-H02-O-SS (02MORB Hollow Hex...)
Stock Status: True
| THREAD B1 TYPE | MALE SAE O-RING BOSS |
|---|---|
| THREAD B1 SIZE | 5/16-24 |
| THREAD B1 DRILL IN | 0.062 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | EXTERNAL HEX HEAD PLUG |
| BODY HEX IN | 0.125 |
| OVERALL LENGTH L IN | 0.400 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.01 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
6408-H03-O
$2.56Attribute: 6408-H03-O (03MORB Hollow Hex Pl...)
Stock Status: True
| THREAD B1 TYPE | MALE SAE O-RING BOSS |
|---|---|
| THREAD B1 SIZE | 3/8-24 |
| THREAD B1 DRILL IN | 0.125 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | EXTERNAL HEX HEAD PLUG |
| BODY HEX IN | 0.125 |
| OVERALL LENGTH L IN | 0.400 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.0125 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
6408-H03-O-SS
$32.88Attribute: 6408-H03-O-SS (03MORB Hollow Hex...)
Stock Status: True
| THREAD B1 TYPE | MALE SAE O-RING BOSS |
|---|---|
| THREAD B1 SIZE | 3/8-24 |
| THREAD B1 DRILL IN | 0.125 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | EXTERNAL HEX HEAD PLUG |
| BODY HEX IN | 0.125 |
| OVERALL LENGTH L IN | 0.400 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.01 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
6408-H04-O
$2.17Attribute: 6408-H04-O (04MORB Hollow Hex Pl...)
Stock Status: True
| THREAD B1 TYPE | MALE SAE O-RING BOSS |
|---|---|
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL IN | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | EXTERNAL HEX HEAD PLUG |
| BODY HEX IN | 0.188 |
| OVERALL LENGTH L IN | 0.470 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.0189 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
6408-H04-O-SS
$35.05Attribute: 6408-H04-O-SS (04MORB Hollow Hex...)
Stock Status: True
| THREAD B1 TYPE | MALE SAE O-RING BOSS |
|---|---|
| THREAD B1 SIZE | 7/16-20 |
| THREAD B1 DRILL IN | 0.172 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | EXTERNAL HEX HEAD PLUG |
| BODY HEX IN | 0.188 |
| OVERALL LENGTH L IN | 0.470 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.01 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
6408-H05-O
$4.08Attribute: 6408-H05-O (05MORB Hollow Hex Pl...)
Stock Status: True
| THREAD B1 TYPE | MALE SAE O-RING BOSS |
|---|---|
| THREAD B1 SIZE | 1/2-20 |
| THREAD B1 DRILL IN | 0.234 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | EXTERNAL HEX HEAD PLUG |
| BODY HEX IN | 0.188 |
| OVERALL LENGTH L IN | 0.470 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.025 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
6408-H05-O-SS
$61.58Attribute: 6408-H05-O-SS (05MORB Hollow Hex...)
Stock Status: True
| THREAD B1 TYPE | MALE SAE O-RING BOSS |
|---|---|
| THREAD B1 SIZE | 1/2-20 |
| THREAD B1 DRILL IN | 0.234 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | EXTERNAL HEX HEAD PLUG |
| BODY HEX IN | 0.188 |
| OVERALL LENGTH L IN | 0.470 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.029 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
6408-H06-O
$2.51Attribute: 6408-H06-O (06MORB Hollow Hex Pl...)
Stock Status: True
| THREAD B1 TYPE | MALE SAE O-RING BOSS |
|---|---|
| THREAD B1 SIZE | 9/16-18 |
| THREAD B1 DRILL IN | 0.297 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | EXTERNAL HEX HEAD PLUG |
| BODY HEX IN | 0.250 |
| OVERALL LENGTH L IN | 0.500 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.03 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
6408-H06-O-SS
$47.25Attribute: 6408-H06-O-SS (06MORB Hollow Hex...)
Stock Status: True
| THREAD B1 TYPE | MALE SAE O-RING BOSS |
|---|---|
| THREAD B1 SIZE | 9/16-18 |
| THREAD B1 DRILL IN | 0.297 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | EXTERNAL HEX HEAD PLUG |
| BODY HEX IN | 0.250 |
| OVERALL LENGTH L IN | 0.500 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.029 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
6408-H08-O
$3.98Attribute: 6408-H08-O (08MORB Hollow Hex Pl...)
Stock Status: True
| THREAD B1 TYPE | MALE SAE O-RING BOSS |
|---|---|
| THREAD B1 SIZE | 3/4-16 |
| THREAD B1 DRILL IN | 0.391 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | EXTERNAL HEX HEAD PLUG |
| BODY HEX IN | 0.313 |
| OVERALL LENGTH L IN | 0.580 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.0675 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
6408-H08-O-SS
$62.97Attribute: 6408-H08-O-SS (08MORB Hollow Hex...)
Stock Status: True
| THREAD B1 TYPE | MALE SAE O-RING BOSS |
|---|---|
| THREAD B1 SIZE | 3/4-16 |
| THREAD B1 DRILL IN | 0.391 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | EXTERNAL HEX HEAD PLUG |
| BODY HEX IN | 0.313 |
| OVERALL LENGTH L IN | 0.580 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.061 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
6408-H10-O
$5.07Attribute: 6408-H10-O (10MORB Hollow Hex Pl...)
Stock Status: True
| THREAD B1 TYPE | MALE SAE O-RING BOSS |
|---|---|
| THREAD B1 SIZE | 7/8-14 |
| THREAD B1 DRILL IN | 0.484 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | EXTERNAL HEX HEAD PLUG |
| BODY HEX IN | 0.375 |
| OVERALL LENGTH L IN | 0.650 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.096 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
6408-H10-O-SS
$88.36Attribute: 6408-H10-O-SS (10MORB Hollow Hex...)
Stock Status: True
| THREAD B1 TYPE | MALE SAE O-RING BOSS |
|---|---|
| THREAD B1 SIZE | 7/8-14 |
| THREAD B1 DRILL IN | 0.484 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | EXTERNAL HEX HEAD PLUG |
| BODY HEX IN | 0.375 |
| OVERALL LENGTH L IN | 0.650 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.09 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
6408-H12-O
$7.54Attribute: 6408-H12-O (12MORB Hollow Hex Pl...)
Stock Status: True
| THREAD B1 TYPE | MALE SAE O-RING BOSS |
|---|---|
| THREAD B1 SIZE | 1-1/16-12 |
| THREAD B1 DRILL IN | 0.609 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | EXTERNAL HEX HEAD PLUG |
| BODY HEX IN | 0.562 |
| OVERALL LENGTH L IN | 0.770 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.1568 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
6408-H12-O-SS
$134.48Attribute: 6408-H12-O-SS (12MORB Hollow Hex...)
Stock Status: True
| THREAD B1 TYPE | MALE SAE O-RING BOSS |
|---|---|
| THREAD B1 SIZE | 1-1/16-12 |
| THREAD B1 DRILL IN | 0.609 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | EXTERNAL HEX HEAD PLUG |
| BODY HEX IN | 0.562 |
| OVERALL LENGTH L IN | 0.770 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.13 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
6408-H14-O
$12.60Attribute: 6408-H14-O (14MORB Hollow Hex Pl...)
Stock Status: True
| THREAD B1 TYPE | MALE SAE O-RING BOSS |
|---|---|
| THREAD B1 SIZE | 1-3/16-12 |
| THREAD B1 DRILL IN | 0.719 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | EXTERNAL HEX HEAD PLUG |
| BODY HEX IN | 0.563 |
| OVERALL LENGTH L IN | 0.770 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.19 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
6408-H16-O
$10.93Attribute: 6408-H16-O (16MORB Hollow Hex Pl...)
Stock Status: True
| THREAD B1 TYPE | MALE SAE O-RING BOSS |
|---|---|
| THREAD B1 SIZE | 1-5/16-12 |
| THREAD B1 DRILL IN | 0.844 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | EXTERNAL HEX HEAD PLUG |
| BODY HEX IN | 0.625 |
| OVERALL LENGTH L IN | 0.775 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.245 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
6408-H16-O-SS
$220.72Attribute: 6408-H16-O-SS (16MORB Hollow Hex...)
Stock Status: True
| THREAD B1 TYPE | MALE SAE O-RING BOSS |
|---|---|
| THREAD B1 SIZE | 1-5/16-12 |
| THREAD B1 DRILL IN | 0.844 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | EXTERNAL HEX HEAD PLUG |
| BODY HEX IN | 0.625 |
| OVERALL LENGTH L IN | 0.775 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.2375 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
6408-H20-O
$18.76Attribute: 6408-H20-O (20MORB Hollow Hex Pl...)
Stock Status: True
| THREAD B1 TYPE | MALE SAE O-RING BOSS |
|---|---|
| THREAD B1 SIZE | 1-5/8-12 |
| THREAD B1 DRILL IN | 1.078 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | EXTERNAL HEX HEAD PLUG |
| BODY HEX IN | 0.750 |
| OVERALL LENGTH L IN | 0.770 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.4 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
6408-H20-O-SS
$334.78Attribute: 6408-H20-O-SS (20MORB Hollow Hex...)
Stock Status: True
| THREAD B1 TYPE | MALE SAE O-RING BOSS |
|---|---|
| THREAD B1 SIZE | 1-5/8-12 |
| THREAD B1 DRILL IN | 1.078 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | EXTERNAL HEX HEAD PLUG |
| BODY HEX IN | 0.750 |
| OVERALL LENGTH L IN | 0.770 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.4062 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
6408-H24-O
$33.23Attribute: 6408-H24-O (24MORB Hollow Hex Pl...)
Stock Status: True
| THREAD B1 TYPE | MALE SAE O-RING BOSS |
|---|---|
| THREAD B1 SIZE | 1-7/8-12 |
| THREAD B1 DRILL IN | 1.312 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | EXTERNAL HEX HEAD PLUG |
| BODY HEX IN | 0.750 |
| OVERALL LENGTH L IN | 0.770 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.533 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
6408-H24-O-SS
$303.91Attribute: 6408-H24-O-SS (24MORB Hollow Hex...)
Stock Status: True
| THREAD B1 TYPE | MALE SAE O-RING BOSS |
|---|---|
| THREAD B1 SIZE | 1-7/8-12 |
| THREAD B1 DRILL IN | 1.312 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | EXTERNAL HEX HEAD PLUG |
| BODY HEX IN | 0.750 |
| OVERALL LENGTH L IN | 0.770 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 0.29 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
6408-H32-O
$95.60Attribute: 6408-H32-O (32MORB Hollow Hex Pl...)
Stock Status: True
| THREAD B1 TYPE | MALE SAE O-RING BOSS |
|---|---|
| THREAD B1 SIZE | 2-1/2-12 |
| THREAD B1 DRILL IN | 1.781 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | EXTERNAL HEX HEAD PLUG |
| BODY HEX IN | 0.750 |
| OVERALL LENGTH L IN | 0.770 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STRAIGHT STEEL |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 1.14 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
6408-H32-O-SS
$375.13Attribute: 6408-H32-O-SS (32MORB Hollow Hex...)
Stock Status: True
| THREAD B1 TYPE | MALE SAE O-RING BOSS |
|---|---|
| THREAD B1 SIZE | 2-1/2-12 |
| THREAD B1 DRILL IN | 1.781 |
| THREAD B1 SPECIFICATION | SAE J514 |
| THREAD B2 TYPE | EXTERNAL HEX HEAD PLUG |
| BODY HEX IN | 0.750 |
| OVERALL LENGTH L IN | 0.770 |
| SHAPE | STRAIGHT |
| BODY MATERIAL | STAINLESS STEEL |
| RAW MATERIAL TYPE | STRAIGHT STAINLESS STEEL |
| O-RING / SEAL MATERIAL | NBR |
| WEIGHT LBS | 1.0187 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
General Attributes
| Connections | ORB |
|---|---|
| Shape | Plug |
PDF Documents
Download CAD and Drawings
Open PDF
