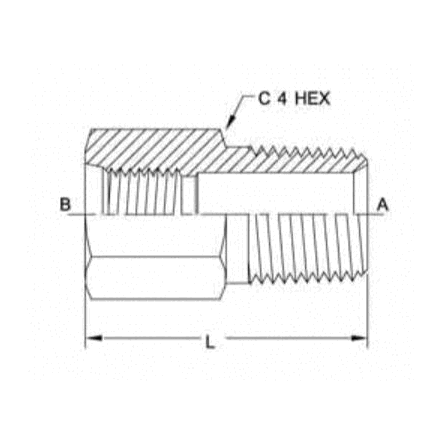

6404

6404-02-02

$24.22

Attribute: 6404-02-02 (02FORB-02MP Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	5/16-24
THREAD B1 DRILL IN	0.062
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.150
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.0562
CALIFORNIA RESIDENTS	PROP-65 WARNING

6404-04-02

$19.99

Attribute: 6404-04-02 (04FORB-02MP Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.688
OVERALL LENGTH L IN	1.060
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.07
CALIFORNIA RESIDENTS	PROP-65 WARNING

6404-04-02-SS

$264.57

Attribute: 6404-04-02-SS (04FORB-02MP Strai...)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.688
OVERALL LENGTH L IN	1.060
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.0687
CALIFORNIA RESIDENTS	PROP-65 WARNING

6404-04-04

$21.17

Attribute: 6404-04-04 (04FORB-04MP Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.688
OVERALL LENGTH L IN	1.340
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.08
CALIFORNIA RESIDENTS	PROP-65 WARNING

6404-04-04-SS

$140.64

Attribute: 6404-04-04-SS (04FORB-04MP Strai...)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.688
OVERALL LENGTH L IN	1.340
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.087
CALIFORNIA RESIDENTS	PROP-65 WARNING

6404-04-06

$25.35

Attribute: 6404-04-06 (04FORB-06MP Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.687
OVERALL LENGTH L IN	1.140
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.087
CALIFORNIA RESIDENTS	PROP-65 WARNING

6404-04-06-SS

$355.79

Attribute: 6404-04-06-SS (04FORB-06MP Strai...)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.687
OVERALL LENGTH L IN	1.140
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.0812
CALIFORNIA RESIDENTS	PROP-65 WARNING

6404-05-02

$21.21

Attribute: 6404-05-02 (05FORB-02MP Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.370
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.084
CALIFORNIA RESIDENTS	PROP-65 WARNING

6404-05-04

$30.86

Attribute: 6404-05-04 (05FORB-04MP Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.390
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.1
CALIFORNIA RESIDENTS	PROP-65 WARNING

6404-05-04-SS

$166.35

Attribute: 6404-05-04-SS (05FORB-04MP Strai...)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.390
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

6404-05-06

$40.17

Attribute: 6404-05-06 (05FORB-06MP Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
OVERALL LENGTH L IN	1.350
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.1
CALIFORNIA RESIDENTS	PROP-65 WARNING

6404-06-04

$20.73

Attribute: 6404-06-04 (06FORB-04MP Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.590
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.156
CALIFORNIA RESIDENTS	PROP-65 WARNING

6404-06-04-SS

$150.13

Attribute: 6404-06-04-SS (06FORB-04MP Strai...)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.590
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1687
CALIFORNIA RESIDENTS	PROP-65 WARNING

6404-06-06

$15.36

Attribute: 6404-06-06 (06FORB-06MP Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.812
OVERALL LENGTH L IN	1.380
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.12
CALIFORNIA RESIDENTS	PROP-65 WARNING

6404-06-06-SS

$325.17

Attribute: 6404-06-06-SS (06FORB-06MP Strai...)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.812
OVERALL LENGTH L IN	1.380
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1125
CALIFORNIA RESIDENTS	PROP-65 WARNING

6404-06-08

$20.93

Attribute: 6404-06-08 (06FORB-08MP Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.580
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.1514
CALIFORNIA RESIDENTS	PROP-65 WARNING

6404-08-04-SS

$285.29

Attribute: 6404-08-04-SS (08FORB-04MP Strai...)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.125
OVERALL LENGTH L IN	1.600
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
CALIFORNIA RESIDENTS	PROP-65 WARNING

6404-08-06

$15.36

Attribute: 6404-08-06 (08FORB-06MP Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.000
OVERALL LENGTH L IN	1.500
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.1714
CALIFORNIA RESIDENTS	PROP-65 WARNING

6404-08-06-SS

$483.44

Attribute: 6404-08-06-SS (08FORB-06MP Strai...)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.000
OVERALL LENGTH L IN	1.500
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1625
CALIFORNIA RESIDENTS	PROP-65 WARNING

6404-08-08

$13.53

Attribute: 6404-08-08 (08FORB-08MP Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
OVERALL LENGTH L IN	1.650
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.17
CALIFORNIA RESIDENTS	PROP-65 WARNING

6404-08-08-SS

$396.60

Attribute: 6404-08-08-SS (08FORB-08MP Strai...)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
OVERALL LENGTH L IN	1.650
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.192
CALIFORNIA RESIDENTS	PROP-65 WARNING

6404-08-12

$76.74

Attribute: 6404-08-12 (08FORB-12MP Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.125
OVERALL LENGTH L IN	1.690
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.2625
CALIFORNIA RESIDENTS	PROP-65 WARNING

6404-08-12-SS

$446.41

Attribute: 6404-08-12-SS (08FORB-12MP Strai...)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.125
OVERALL LENGTH L IN	1.690
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.2687
CALIFORNIA RESIDENTS	PROP-65 WARNING

6404-10-06

$60.60

Attribute: 6404-10-06 (10FORB-06MP Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.250
OVERALL LENGTH L IN	1.640
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.265
CALIFORNIA RESIDENTS	PROP-65 WARNING

6404-10-08

$16.83

Attribute: 6404-10-08 (10FORB-08MP Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.250
OVERALL LENGTH L IN	1.750
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.3
CALIFORNIA RESIDENTS	PROP-65 WARNING

6404-10-08-SS

$270.88

Attribute: 6404-10-08-SS (10FORB-08MP Strai...)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.250
OVERALL LENGTH L IN	1.750
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.3125
CALIFORNIA RESIDENTS	PROP-65 WARNING

6404-10-12

$78.21

Attribute: 6404-10-12 (10FORB-12MP Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.250
OVERALL LENGTH L IN	1.850
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.35
CALIFORNIA RESIDENTS	PROP-65 WARNING

6404-10-12-SS

$461.08

Attribute: 6404-10-12-SS (10FORB-12MP Strai...)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.250
OVERALL LENGTH L IN	1.850
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.3375
CALIFORNIA RESIDENTS	PROP-65 WARNING

6404-12-08

$36.17

Attribute: 6404-12-08 (12FORB-08MP Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.375
OVERALL LENGTH L IN	1.960
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.3687
CALIFORNIA RESIDENTS	PROP-65 WARNING

6404-12-08-SS

$408.12

Attribute: 6404-12-08-SS (12FORB-08MP Strai...)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.375
OVERALL LENGTH L IN	1.960
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.3687
CALIFORNIA RESIDENTS	PROP-65 WARNING

6404-12-12

$44.05

Attribute: 6404-12-12 (12FORB-12MP Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.375
OVERALL LENGTH L IN	1.980
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.3267
CALIFORNIA RESIDENTS	PROP-65 WARNING

6404-12-12-SS

$312.22

Attribute: 6404-12-12-SS (12FORB-12MP Strai...)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.375
OVERALL LENGTH L IN	1.980
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.15
CALIFORNIA RESIDENTS	PROP-65 WARNING

6404-14-12

$107.21

Attribute: 6404-14-12 (14FORB-12MP Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	1-3/16-12
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.625
OVERALL LENGTH L IN	1.910
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.5
CALIFORNIA RESIDENTS	PROP-65 WARNING

6404-16-12

$87.72

Attribute: 6404-16-12 (16FORB-12MP Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.625
OVERALL LENGTH L IN	1.910
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.5125
CALIFORNIA RESIDENTS	PROP-65 WARNING

6404-16-16

$69.90

Attribute: 6404-16-16 (16FORB-16MP Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.625
OVERALL LENGTH L IN	2.100
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.518
CALIFORNIA RESIDENTS	PROP-65 WARNING

6404-16-16-SS

$485.05

Attribute: 6404-16-16-SS (16FORB-16MP Strai...)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.625
OVERALL LENGTH L IN	2.100
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.5062
CALIFORNIA RESIDENTS	PROP-65 WARNING

6404-16-20

$112.67

Attribute: 6404-16-20 (16FORB-20MP Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.250
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.688
OVERALL LENGTH L IN	2.130
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.5187
CALIFORNIA RESIDENTS	PROP-65 WARNING

6404-16-24

$119.87

Attribute: 6404-16-24 (16FORB-24MP Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.500
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.000
OVERALL LENGTH L IN	2.160
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	1.125
CALIFORNIA RESIDENTS	PROP-65 WARNING

6404-20-16

$164.80

Attribute: 6404-20-16 (20FORB-16MP Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.125
OVERALL LENGTH L IN	2.160
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.9
CALIFORNIA RESIDENTS	PROP-65 WARNING

6404-20-20

$131.53

Attribute: 6404-20-20 (20FORB-20MP Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.250
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.125
OVERALL LENGTH L IN	2.340
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	1.075
CALIFORNIA RESIDENTS	PROP-65 WARNING

6404-20-20-SS

$501.94

Attribute: 6404-20-20-SS (20FORB-20MP Strai...)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.250
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.125
OVERALL LENGTH L IN	2.340
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.9437
CALIFORNIA RESIDENTS	PROP-65 WARNING

6404-24-24

$231.84

Attribute: 6404-24-24 (24FORB-24MP Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.500
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.250
OVERALL LENGTH L IN	2.230
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.975
CALIFORNIA RESIDENTS	PROP-65 WARNING

6404-24-24-SS

$977.10

Attribute: 6404-24-24-SS (24FORB-24MP Strai...)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.500
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.250
OVERALL LENGTH L IN	2.230
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.9312
CALIFORNIA RESIDENTS	PROP-65 WARNING

6404-32-32

$794.33

Attribute: 6404-32-32 (32FORB-32MP Straight)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	2-11-1/2
THREAD B2 DRILL IN	1.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.875
OVERALL LENGTH L IN	2.260
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	1.3
CALIFORNIA RESIDENTS	PROP-65 WARNING

6404-32-32-SS

$1,002.11

Attribute: 6404-32-32-SS (32FORB-32MP Strai...)

Stock Status: True

THREAD B1 TYPE	FEMALE SAE O-RING BOSS
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	2-11-1/2
THREAD B2 DRILL IN	1.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.875
OVERALL LENGTH L IN	2.260
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	1.2812
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	NPT, ORB
Shape	Straight

ID	10145690
Category	Tube Fittings and Adapters

Description

Description

Variations (45)

6404-02-02

6404-04-02

6404-04-02-SS

6404-04-04

6404-04-04-SS

6404-04-06

6404-04-06-SS

6404-05-02

6404-05-04

6404-05-04-SS

6404-05-06

6404-06-04

6404-06-04-SS

6404-06-06

6404-06-06-SS

6404-06-08

6404-08-04-SS

6404-08-06

6404-08-06-SS

6404-08-08

6404-08-08-SS

6404-08-12

6404-08-12-SS

6404-10-06

6404-10-08

6404-10-08-SS

6404-10-12

6404-10-12-SS

6404-12-08

6404-12-08-SS

6404-12-12

6404-12-12-SS

6404-14-12

6404-16-12

6404-16-16

6404-16-16-SS

6404-16-20

6404-16-24

6404-20-16

6404-20-20

6404-20-20-SS

6404-24-24

6404-24-24-SS

6404-32-32

6404-32-32-SS

General Attributes

PDF Documents
