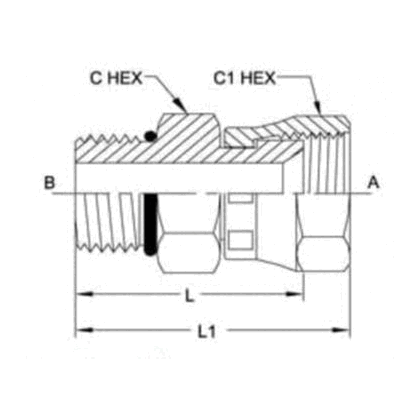

6402-O

6402-04-04-O

$9.35

Attribute: 6402-04-04-O (04MORB-04FJS Strai...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.562
OVERALL LENGTH L IN	1.310
OVERALL LENGTH L2 IN	0.960
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1
CALIFORNIA RESIDENTS	PROP-65 WARNING

6402-04-04-O-SS

$210.09

Attribute: 6402-04-04-O-SS (04MORB-04FJS St...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.562
OVERALL LENGTH L IN	1.310
OVERALL LENGTH L2 IN	0.960
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.075
CALIFORNIA RESIDENTS	PROP-65 WARNING

6402-04-06-O

$23.48

Attribute: 6402-04-06-O (04MORB-06FJS Strai...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.410
OVERALL LENGTH L2 IN	1.040
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.0687
CALIFORNIA RESIDENTS	PROP-65 WARNING

6402-04-06-O-SS

$265.86

Attribute: 6402-04-06-O-SS (04MORB-06FJS St...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.410
OVERALL LENGTH L2 IN	1.040
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.0687
CALIFORNIA RESIDENTS	PROP-65 WARNING

6402-06-04-O

$21.81

Attribute: 6402-06-04-O (06MORB-04FJS Strai...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.688
C HEX 1 IN	0.562
OVERALL LENGTH L IN	1.410
OVERALL LENGTH L2 IN	1.060
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.08
CALIFORNIA RESIDENTS	PROP-65 WARNING

6402-06-06-O

$10.73

Attribute: 6402-06-06-O (06MORB-06FJS Strai...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.688
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.430
OVERALL LENGTH L2 IN	1.050
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.08
CALIFORNIA RESIDENTS	PROP-65 WARNING

6402-06-06-O-SS

$210.29

Attribute: 6402-06-06-O-SS (06MORB-06FJS St...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.688
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.430
OVERALL LENGTH L2 IN	1.050
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.0875
CALIFORNIA RESIDENTS	PROP-65 WARNING

6402-06-08-O

$19.44

Attribute: 6402-06-08-O (06MORB-08FJS Strai...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.620
OVERALL LENGTH L2 IN	1.200
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1122
CALIFORNIA RESIDENTS	PROP-65 WARNING

6402-06-08-O-SS

$326.26

Attribute: 6402-06-08-O-SS (06MORB-08FJS St...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.750
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.620
OVERALL LENGTH L2 IN	1.200
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.15
CALIFORNIA RESIDENTS	PROP-65 WARNING

6402-08-06-O

$25.65

Attribute: 6402-08-06-O (08MORB-06FJS Strai...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.580
OVERALL LENGTH L2 IN	1.210
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1375
CALIFORNIA RESIDENTS	PROP-65 WARNING

6402-08-06-O-SS

$230.77

Attribute: 6402-08-06-O-SS (08MORB-06FJS St...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.580
OVERALL LENGTH L2 IN	1.210
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.135
CALIFORNIA RESIDENTS	PROP-65 WARNING

6402-08-08-O

$15.26

Attribute: 6402-08-08-O (08MORB-08FJS Strai...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.650
OVERALL LENGTH L2 IN	1.230
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1534
CALIFORNIA RESIDENTS	PROP-65 WARNING

6402-08-08-O-SS

$429.09

Attribute: 6402-08-08-O-SS (08MORB-08FJS St...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.650
OVERALL LENGTH L2 IN	1.230
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1875
CALIFORNIA RESIDENTS	PROP-65 WARNING

6402-08-10-O

$23.08

Attribute: 6402-08-10-O (08MORB-10FJS Strai...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.800
OVERALL LENGTH L2 IN	1.300
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1875
CALIFORNIA RESIDENTS	PROP-65 WARNING

6402-08-10-O-SS

$545.95

Attribute: 6402-08-10-O-SS (08MORB-10FJS St...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.800
OVERALL LENGTH L2 IN	1.300
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

6402-08-16-O-SS

$683.83

Attribute: 6402-08-16-O-SS (08MORB-16FJS St...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.2187
CALIFORNIA RESIDENTS	PROP-65 WARNING

6402-10-08-O

$31.70

Attribute: 6402-10-08-O (10MORB-08FJS Strai...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.000
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.790
OVERALL LENGTH L2 IN	1.370
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.2375
CALIFORNIA RESIDENTS	PROP-65 WARNING

6402-10-08-O-SS

$182.86

Attribute: 6402-10-08-O-SS (10MORB-08FJS St...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.000
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.790
OVERALL LENGTH L2 IN	1.370
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

6402-10-10-O

$20.53

Attribute: 6402-10-10-O (10MORB-10FJS Strai...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.000
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.890
OVERALL LENGTH L2 IN	1.390
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.185
CALIFORNIA RESIDENTS	PROP-65 WARNING

6402-10-10-O-SS

$404.43

Attribute: 6402-10-10-O-SS (10MORB-10FJS St...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.000
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.890
OVERALL LENGTH L2 IN	1.390
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.185
CALIFORNIA RESIDENTS	PROP-65 WARNING

6402-12-10-O

$66.25

Attribute: 6402-12-10-O (12MORB-10FJS Strai...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.250
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.920
OVERALL LENGTH L2 IN	1.420
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.3062
CALIFORNIA RESIDENTS	PROP-65 WARNING

6402-12-12-O

$21.01

Attribute: 6402-12-12-O (12MORB-12FJS Strai...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.250
C HEX 1 IN	1.250
OVERALL LENGTH L IN	2.140
OVERALL LENGTH L2 IN	1.580
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.4
CALIFORNIA RESIDENTS	PROP-65 WARNING

6402-12-12-O-SS

$552.34

Attribute: 6402-12-12-O-SS (12MORB-12FJS St...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.250
C HEX 1 IN	1.250
OVERALL LENGTH L IN	2.140
OVERALL LENGTH L2 IN	1.580
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.4
CALIFORNIA RESIDENTS	PROP-65 WARNING

6402-12-16-O

$64.14

Attribute: 6402-12-16-O (12MORB-16FJS Strai...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.500
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.260
OVERALL LENGTH L2 IN	1.670
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.55
CALIFORNIA RESIDENTS	PROP-65 WARNING

6402-12-16-O-SS

$658.86

Attribute: 6402-12-16-O-SS (12MORB-16FJS St...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.500
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.260
OVERALL LENGTH L2 IN	1.670
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.55
CALIFORNIA RESIDENTS	PROP-65 WARNING

6402-16-12-O

$67.05

Attribute: 6402-16-12-O (16MORB-12FJS Strai...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.500
C HEX 1 IN	1.250
OVERALL LENGTH L IN	2.140
OVERALL LENGTH L2 IN	1.570
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.4875
CALIFORNIA RESIDENTS	PROP-65 WARNING

6402-16-16-O

$32.53

Attribute: 6402-16-16-O (16MORB-16FJS Strai...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.500
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.260
OVERALL LENGTH L2 IN	1.666
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.5
CALIFORNIA RESIDENTS	PROP-65 WARNING

6402-16-16-O-SS

$709.47

Attribute: 6402-16-16-O-SS (16MORB-16FJS St...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.500
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.260
OVERALL LENGTH L2 IN	1.666
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.58
CALIFORNIA RESIDENTS	PROP-65 WARNING

6402-20-20-O

$73.74

Attribute: 6402-20-20-O (20MORB-20FJS Strai...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.875
C HEX 1 IN	2.000
OVERALL LENGTH L IN	2.420
OVERALL LENGTH L2 IN	1.800
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.9875
CALIFORNIA RESIDENTS	PROP-65 WARNING

6402-20-20-O-SS

$901.94

Attribute: 6402-20-20-O-SS (20MORB-20FJS St...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.875
C HEX 1 IN	2.000
OVERALL LENGTH L IN	2.420
OVERALL LENGTH L2 IN	1.800
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.4812
CALIFORNIA RESIDENTS	PROP-65 WARNING

6402-24-24-O

$113.90

Attribute: 6402-24-24-O (24MORB-24FJS Strai...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.125
C HEX 1 IN	2.250
OVERALL LENGTH L IN	2.611
OVERALL LENGTH L2 IN	1.870
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.542
CALIFORNIA RESIDENTS	PROP-65 WARNING

6402-24-24-O-SS

$959.82

Attribute: 6402-24-24-O-SS (24MORB-24FJS St...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.312
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.125
C HEX 1 IN	2.250
OVERALL LENGTH L IN	2.611
OVERALL LENGTH L2 IN	1.870
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.725
CALIFORNIA RESIDENTS	PROP-65 WARNING

6402-32-32-O

$251.78

Attribute: 6402-32-32-O (32MORB-32FJS Strai...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	2-1/2-12
THREAD B2 DRILL IN	1.781
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.750
C HEX 1 IN	2.875
OVERALL LENGTH L IN	2.950
OVERALL LENGTH L2 IN	2.010
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	2.2062
CALIFORNIA RESIDENTS	PROP-65 WARNING

6402-32-32-O-SS

$1,477.51

Attribute: 6402-32-32-O-SS (32MORB-32FJS St...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	2-1/2-12
THREAD B2 DRILL IN	1.781
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.750
C HEX 1 IN	2.875
OVERALL LENGTH L IN	2.950
OVERALL LENGTH L2 IN	2.010
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	2.2187
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	JIC, ORB
Shape	Straight

ID	10145653
Category	Tube Fittings and Adapters

Description

Description

Variations (34)

6402-04-04-O

6402-04-04-O-SS

6402-04-06-O

6402-04-06-O-SS

6402-06-04-O

6402-06-06-O

6402-06-06-O-SS

6402-06-08-O

6402-06-08-O-SS

6402-08-06-O

6402-08-06-O-SS

6402-08-08-O

6402-08-08-O-SS

6402-08-10-O

6402-08-10-O-SS

6402-08-16-O-SS

6402-10-08-O

6402-10-08-O-SS

6402-10-10-O

6402-10-10-O-SS

6402-12-10-O

6402-12-12-O

6402-12-12-O-SS

6402-12-16-O

6402-12-16-O-SS

6402-16-12-O

6402-16-16-O

6402-16-16-O-SS

6402-20-20-O

6402-20-20-O-SS

6402-24-24-O

6402-24-24-O-SS

6402-32-32-O

6402-32-32-O-SS

General Attributes

PDF Documents
