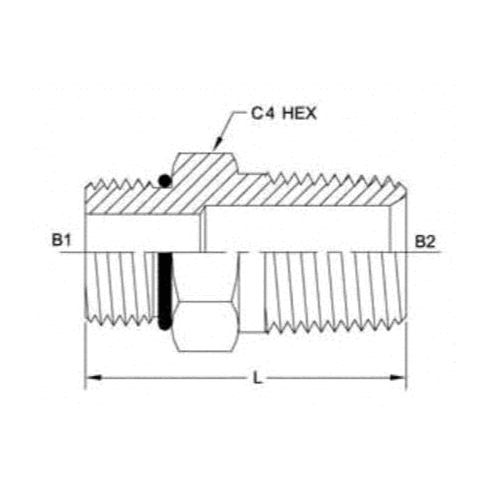

6401-O

6401-02-02-O

$13.93

Attribute: 6401-02-02-O (02MORB-02MP Straig...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	5/16-24
THREAD B1 DRILL IN	0.062
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.438
OVERALL LENGTH L IN	1.010
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.039
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-03-02-O

$13.73

Attribute: 6401-03-02-O (03MORB-02MP Straig...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	3/8-24
THREAD B1 DRILL IN	0.125
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.500
OVERALL LENGTH L IN	1.000
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.0375
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-04-02-O

$6.50

Attribute: 6401-04-02-O (04MORB-02MP Straig...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.040
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.04
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-04-02-O-SS

$138.95

Attribute: 6401-04-02-O-SS (04MORB-02MP Str...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.040
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.04
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-04-04-O

$7.04

Attribute: 6401-04-04-O (04MORB-04MP Straig...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.230
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.052
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-04-04-O-SS

$93.73

Attribute: 6401-04-04-O-SS (04MORB-04MP Str...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.562
OVERALL LENGTH L IN	1.230
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.052
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-04-06-O

$10.04

Attribute: 6401-04-06-O (04MORB-06MP Straig...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.750
OVERALL LENGTH L IN	1.320
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.0799
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-04-08-O-SS

$195.37

Attribute: 6401-04-08-O-SS (04MORB-08MP Str...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	7/16-20
THREAD B1 DRILL IN	0.172
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.510
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.125
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-05-02-O

$11.46

Attribute: 6401-05-02-O (05MORB-02MP Straig...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.625
OVERALL LENGTH L IN	1.050
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.04
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-05-04-O

$20.43

Attribute: 6401-05-04-O (05MORB-04MP Straig...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.625
OVERALL LENGTH L IN	1.230
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.0687
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-05-04-O-SS

$382.23

Attribute: 6401-05-04-O-SS (05MORB-04MP Str...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1/2-20
THREAD B1 DRILL IN	0.234
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.625
OVERALL LENGTH L IN	1.230
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.051
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-06-02-O

$38.79

Attribute: 6401-06-02-O (06MORB-02MP Straig...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.688
OVERALL LENGTH L IN	1.130
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.06
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-06-04-O

$6.60

Attribute: 6401-06-04-O (06MORB-04MP Straig...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.688
OVERALL LENGTH L IN	1.290
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.06
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-06-04-O-SS

$175.38

Attribute: 6401-06-04-O-SS (06MORB-04MP Str...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.688
OVERALL LENGTH L IN	1.290
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.06
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-06-06-O

$6.15

Attribute: 6401-06-06-O (06MORB-06MP Straig...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.813
OVERALL LENGTH L IN	1.260
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.075
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-06-06-O-SS

$234.25

Attribute: 6401-06-06-O-SS (06MORB-06MP Str...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.813
OVERALL LENGTH L IN	1.260
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.087
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-06-08-O

$22.05

Attribute: 6401-06-08-O (06MORB-08MP Straig...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.540
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.12
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-06-08-O-SS

$114.99

Attribute: 6401-06-08-O-SS (06MORB-08MP Str...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	9/16-18
THREAD B1 DRILL IN	0.297
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.540
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1375
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-08-02-O

$9.59

Attribute: 6401-08-02-O (08MORB-02MP Straig...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/8-27
THREAD B2 DRILL IN	0.188
THREAD B2 SPECIFICATION	SAE J476
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-08-04-O

$9.21

Attribute: 6401-08-04-O (08MORB-04MP Straig...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.360
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1044
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-08-04-O-SS

$323.30

Attribute: 6401-08-04-O-SS (08MORB-04MP Str...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.360
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.0875
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-08-06-O

$8.61

Attribute: 6401-08-06-O (08MORB-06MP Straig...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.360
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1225
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-08-06-O-SS

$156.18

Attribute: 6401-08-06-O-SS (08MORB-06MP Str...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.360
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.12
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-08-08-O

$9.89

Attribute: 6401-08-08-O (08MORB-08MP Straig...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.550
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.14
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-08-08-O-SS

$163.96

Attribute: 6401-08-08-O-SS (08MORB-08MP Str...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	0.875
OVERALL LENGTH L IN	1.550
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.14
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-08-12-O

$34.50

Attribute: 6401-08-12-O (08MORB-12MP Straig...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
OVERALL LENGTH L IN	1.760
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.2056
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-08-12-O-SS

$360.62

Attribute: 6401-08-12-O-SS (08MORB-12MP Str...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	3/4-16
THREAD B1 DRILL IN	0.391
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.062
OVERALL LENGTH L IN	1.760
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.2437
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-10-04-O

$22.20

Attribute: 6401-10-04-O (10MORB-04MP Straig...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.000
OVERALL LENGTH L IN	1.460
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.15
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-10-06-O

$23.53

Attribute: 6401-10-06-O (10MORB-06MP Straig...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.000
OVERALL LENGTH L IN	1.460
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.15
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-10-06-O-SS

$247.30

Attribute: 6401-10-06-O-SS (10MORB-06MP Str...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.000
OVERALL LENGTH L IN	1.460
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1687
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-10-08-O

$12.16

Attribute: 6401-10-08-O (10MORB-08MP Straig...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.000
OVERALL LENGTH L IN	1.650
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.1897
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-10-08-O-SS

$202.12

Attribute: 6401-10-08-O-SS (10MORB-08MP Str...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.000
OVERALL LENGTH L IN	1.650
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.187
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-10-12-O

$22.64

Attribute: 6401-10-12-O (10MORB-12MP Straig...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.125
OVERALL LENGTH L IN	1.760
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.245
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-10-12-O-SS

$318.68

Attribute: 6401-10-12-O-SS (10MORB-12MP Str...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	7/8-14
THREAD B1 DRILL IN	0.484
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.125
OVERALL LENGTH L IN	1.760
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	4.1
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-12-04-O-SS

$379.13

Attribute: 6401-12-04-O-SS (12MORB-04MP Str...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/4-18
THREAD B2 DRILL IN	0.281
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.250
OVERALL LENGTH L IN	1.620
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.2625
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-12-06-O

$28.45

Attribute: 6401-12-06-O (12MORB-06MP Straig...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.250
OVERALL LENGTH L IN	1.620
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.2562
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-12-08-O

$22.35

Attribute: 6401-12-08-O (12MORB-08MP Straig...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.250
OVERALL LENGTH L IN	1.840
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.3067
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-12-08-O-SS

$271.77

Attribute: 6401-12-08-O-SS (12MORB-08MP Str...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1/2-14
THREAD B2 DRILL IN	0.531
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.250
OVERALL LENGTH L IN	1.840
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.3
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-12-12-O

$17.13

Attribute: 6401-12-12-O (12MORB-12MP Straig...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.250
OVERALL LENGTH L IN	1.730
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.2628
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-12-12-O-SS

$294.61

Attribute: 6401-12-12-O-SS (12MORB-12MP Str...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.250
OVERALL LENGTH L IN	1.730
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.292
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-12-16-O

$44.84

Attribute: 6401-12-16-O (12MORB-16MP Straig...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.375
OVERALL LENGTH L IN	2.120
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.56
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-12-16-O-SS

$429.28

Attribute: 6401-12-16-O-SS (12MORB-16MP Str...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-1/16-12
THREAD B1 DRILL IN	0.609
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.375
OVERALL LENGTH L IN	2.120
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.4125
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-14-12-O

$58.23

Attribute: 6401-14-12-O (14MORB-12MP Straig...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-3/16-12
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.375
OVERALL LENGTH L IN	1.780
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.3562
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-14-16-O

$52.92

Attribute: 6401-14-16-O (14MORB-16MP Straig...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-3/16-12
THREAD B1 DRILL IN	0.719
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.375
OVERALL LENGTH L IN	2.050
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.375
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-16-06-O

$52.72

Attribute: 6401-16-06-O (16MORB-06MP Straig...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/8-18
THREAD B2 DRILL IN	0.406
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.500
OVERALL LENGTH L IN	1.690
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-16-12-O

$35.83

Attribute: 6401-16-12-O (16MORB-12MP Straig...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.500
OVERALL LENGTH L IN	1.960
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.448
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-16-12-O-SS

$548.46

Attribute: 6401-16-12-O-SS (16MORB-12MP Str...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.500
OVERALL LENGTH L IN	1.960
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.4
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-16-16-O

$26.04

Attribute: 6401-16-16-O (16MORB-16MP Straig...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.500
OVERALL LENGTH L IN	2.120
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.5
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-16-16-O-SS

$231.30

Attribute: 6401-16-16-O-SS (16MORB-16MP Str...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.500
OVERALL LENGTH L IN	2.120
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.51
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-16-20-O

$199.89

Attribute: 6401-16-20-O (16MORB-20MP Straig...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-5/16-12
THREAD B1 DRILL IN	0.844
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.250
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.688
OVERALL LENGTH L IN	2.290
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.725
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-20-12-O

$104.95

Attribute: 6401-20-12-O (20MORB-12MP Straig...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	3/4-14
THREAD B2 DRILL IN	0.719
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.875
OVERALL LENGTH L IN	1.950
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.6375
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-20-16-O

$68.56

Attribute: 6401-20-16-O (20MORB-16MP Straig...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.875
OVERALL LENGTH L IN	2.150
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.6875
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-20-16-O-SS

$641.43

Attribute: 6401-20-16-O-SS (20MORB-16MP Str...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.875
OVERALL LENGTH L IN	2.150
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.7062
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-20-20-O

$41.64

Attribute: 6401-20-20-O (20MORB-20MP Straig...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.250
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.875
OVERALL LENGTH L IN	2.160
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.85
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-20-20-O-SS

$568.89

Attribute: 6401-20-20-O-SS (20MORB-20MP Str...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.250
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	1.875
OVERALL LENGTH L IN	2.160
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.7
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-20-24-O

$48.58

Attribute: 6401-20-24-O (20MORB-24MP Straig...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.500
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.000
OVERALL LENGTH L IN	2.400
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.9562
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-20-24-O-SS

$575.38

Attribute: 6401-20-24-O-SS (20MORB-24MP Str...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-5/8-12
THREAD B1 DRILL IN	1.078
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.500
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.000
OVERALL LENGTH L IN	2.400
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.9687
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-24-16-O

$152.30

Attribute: 6401-24-16-O (24MORB-16MP Straig...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-11-1/2
THREAD B2 DRILL IN	0.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.125
OVERALL LENGTH L IN	2.210
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.9
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-24-20-O

$106.32

Attribute: 6401-24-20-O (24MORB-20MP Straig...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/4-11-1/2
THREAD B2 DRILL IN	1.250
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.125
OVERALL LENGTH L IN	2.250
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.9062
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-24-24-O

$90.57

Attribute: 6401-24-24-O (24MORB-24MP Straig...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.500
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.125
OVERALL LENGTH L IN	2.280
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.04
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-24-24-O-SS

$778.63

Attribute: 6401-24-24-O-SS (24MORB-24MP Str...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	1-7/8-12
THREAD B1 DRILL IN	1.312
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	1-1/2-11-1/2
THREAD B2 DRILL IN	1.500
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.125
OVERALL LENGTH L IN	2.280
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	0.905
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-32-32-O

$201.32

Attribute: 6401-32-32-O (32MORB-32MP Straig...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	2-11-1/2
THREAD B2 DRILL IN	1.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.750
OVERALL LENGTH L IN	2.480
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.8
CALIFORNIA RESIDENTS	PROP-65 WARNING

6401-32-32-O-SS

$1,300.75

Attribute: 6401-32-32-O-SS (32MORB-32MP Str...)

Stock Status: True

THREAD B1 TYPE	MALE SAE O-RING BOSS
THREAD B1 SIZE	2-1/2-12
THREAD B1 DRILL IN	1.781
THREAD B1 SPECIFICATION	SAE J514
THREAD B2 TYPE	MALE NPTF
THREAD B2 SIZE	2-11-1/2
THREAD B2 DRILL IN	1.938
THREAD B2 SPECIFICATION	SAE J476
BODY HEX IN	2.750
OVERALL LENGTH L IN	2.480
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
O-RING / SEAL MATERIAL	NBR
WEIGHT LBS	1.8312
CALIFORNIA RESIDENTS	PROP-65 WARNING

Description

Description

Variations (63)

6401-02-02-O

6401-03-02-O

6401-04-02-O

6401-04-02-O-SS

6401-04-04-O

6401-04-04-O-SS

6401-04-06-O

6401-04-08-O-SS

6401-05-02-O

6401-05-04-O

6401-05-04-O-SS

6401-06-02-O

6401-06-04-O

6401-06-04-O-SS

6401-06-06-O

6401-06-06-O-SS

6401-06-08-O

6401-06-08-O-SS

6401-08-02-O

6401-08-04-O

6401-08-04-O-SS

6401-08-06-O

6401-08-06-O-SS

6401-08-08-O

6401-08-08-O-SS

6401-08-12-O

6401-08-12-O-SS

6401-10-04-O

6401-10-06-O

6401-10-06-O-SS

6401-10-08-O

6401-10-08-O-SS

6401-10-12-O

6401-10-12-O-SS

6401-12-04-O-SS

6401-12-06-O

6401-12-08-O

6401-12-08-O-SS

6401-12-12-O

6401-12-12-O-SS

6401-12-16-O

6401-12-16-O-SS

6401-14-12-O

6401-14-16-O

6401-16-06-O

6401-16-12-O

6401-16-12-O-SS

6401-16-16-O

6401-16-16-O-SS

6401-16-20-O

6401-20-12-O

6401-20-16-O

6401-20-16-O-SS

6401-20-20-O

6401-20-20-O-SS

6401-20-24-O

6401-20-24-O-SS

6401-24-16-O

6401-24-20-O

6401-24-24-O

6401-24-24-O-SS

6401-32-32-O

6401-32-32-O-SS

General Attributes

PDF Documents
