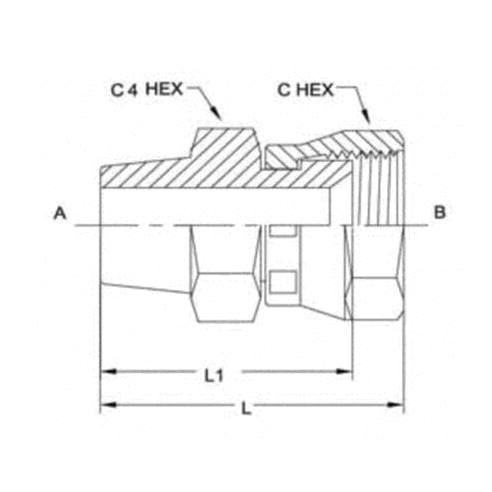

6316

6316-04

$12.50

Attribute: 6316-04 (04FJS-Buttweld Straight)

Stock Status: True

THREAD B1 TYPE	BUTTWELD
THREAD B1 SIZE	TUBE OD 1/4
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.562
OVERALL LENGTH L IN	1.364
OVERALL LENGTH L2 IN	1.020
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.0625
CALIFORNIA RESIDENTS	PROP-65 WARNING

6316-04-SS

$46.52

Attribute: 6316-04-SS (04FJS-Buttweld Strai...)

Stock Status: True

THREAD B1 TYPE	BUTTWELD
THREAD B1 SIZE	TUBE OD 1/4
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/16-20
THREAD B2 DRILL IN	0.172
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.562
C HEX 1 IN	0.562
OVERALL LENGTH L IN	1.364
OVERALL LENGTH L2 IN	1.020
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.0625
CALIFORNIA RESIDENTS	PROP-65 WARNING

6316-06

$15.40

Attribute: 6316-06 (06FJS-Buttweld Straight)

Stock Status: True

THREAD B1 TYPE	BUTTWELD
THREAD B1 SIZE	TUBE OD 3/8
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.688
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.460
OVERALL LENGTH L2 IN	1.002
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.0875
CALIFORNIA RESIDENTS	PROP-65 WARNING

6316-06-SS

$57.24

Attribute: 6316-06-SS (06FJS-Buttweld Strai...)

Stock Status: True

THREAD B1 TYPE	BUTTWELD
THREAD B1 SIZE	TUBE OD 3/8
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	9/16-18
THREAD B2 DRILL IN	0.297
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.688
C HEX 1 IN	0.688
OVERALL LENGTH L IN	1.470
OVERALL LENGTH L2 IN	1.002
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.0937
CALIFORNIA RESIDENTS	PROP-65 WARNING

6316-08

$21.37

Attribute: 6316-08 (08FJS-Buttweld Straight)

Stock Status: True

THREAD B1 TYPE	BUTTWELD
THREAD B1 SIZE	TUBE OD 1/2
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.609
OVERALL LENGTH L2 IN	1.187
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.1375
CALIFORNIA RESIDENTS	PROP-65 WARNING

6316-08-SS

$55.87

Attribute: 6316-08-SS (08FJS-Buttweld Strai...)

Stock Status: True

THREAD B1 TYPE	BUTTWELD
THREAD B1 SIZE	TUBE OD 1/2
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	3/4-16
THREAD B2 DRILL IN	0.391
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.875
C HEX 1 IN	0.875
OVERALL LENGTH L IN	1.609
OVERALL LENGTH L2 IN	1.187
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1375
CALIFORNIA RESIDENTS	PROP-65 WARNING

6316-10-SS

$114.34

Attribute: 6316-10-SS (10FJS-Buttweld Strai...)

Stock Status: True

THREAD B1 TYPE	BUTTWELD
THREAD B1 SIZE	TUBE OD 5/8
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	7/8-14
THREAD B2 DRILL IN	0.484
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	0.938
C HEX 1 IN	1.000
OVERALL LENGTH L IN	1.781
OVERALL LENGTH L2 IN	1.281
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.1875
CALIFORNIA RESIDENTS	PROP-65 WARNING

6316-12

$28.99

Attribute: 6316-12 (12FJS-Buttweld Straight)

Stock Status: True

THREAD B1 TYPE	BUTTWELD
THREAD B1 SIZE	TUBE OD 3/4
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.837
OVERALL LENGTH L2 IN	1.268
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.2687
CALIFORNIA RESIDENTS	PROP-65 WARNING

6316-12-SS

$115.48

Attribute: 6316-12-SS (12FJS-Buttweld Strai...)

Stock Status: True

THREAD B1 TYPE	BUTTWELD
THREAD B1 SIZE	TUBE OD 3/4
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-1/16-12
THREAD B2 DRILL IN	0.609
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.062
C HEX 1 IN	1.250
OVERALL LENGTH L IN	1.837
OVERALL LENGTH L2 IN	1.268
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.2687
CALIFORNIA RESIDENTS	PROP-65 WARNING

6316-16

$39.13

Attribute: 6316-16 (16FJS-Buttweld Straight)

Stock Status: True

THREAD B1 TYPE	BUTTWELD
THREAD B1 SIZE	TUBE OD 1
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.312
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.003
OVERALL LENGTH L2 IN	1.409
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.3812
CALIFORNIA RESIDENTS	PROP-65 WARNING

6316-16-SS

$166.77

Attribute: 6316-16-SS (16FJS-Buttweld Strai...)

Stock Status: True

THREAD B1 TYPE	BUTTWELD
THREAD B1 SIZE	TUBE OD 1
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/16-12
THREAD B2 DRILL IN	0.844
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.312
C HEX 1 IN	1.500
OVERALL LENGTH L IN	2.003
OVERALL LENGTH L2 IN	1.409
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.3937
CALIFORNIA RESIDENTS	PROP-65 WARNING

6316-20

$58.63

Attribute: 6316-20 (20FJS-Buttweld Straight)

Stock Status: True

THREAD B1 TYPE	BUTTWELD
THREAD B1 SIZE	TUBE OD 1-1/4
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.750
C HEX 1 IN	2.000
OVERALL LENGTH L IN	2.275
OVERALL LENGTH L2 IN	1.650
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.7875
CALIFORNIA RESIDENTS	PROP-65 WARNING

6316-20-SS

$411.26

Attribute: 6316-20-SS (20FJS-Buttweld Strai...)

Stock Status: True

THREAD B1 TYPE	BUTTWELD
THREAD B1 SIZE	TUBE OD 1-1/4
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-5/8-12
THREAD B2 DRILL IN	1.078
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	1.750
C HEX 1 IN	2.000
OVERALL LENGTH L IN	2.275
OVERALL LENGTH L2 IN	1.650
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.8187
CALIFORNIA RESIDENTS	PROP-65 WARNING

6316-24

$89.35

Attribute: 6316-24 (24FJS-Buttweld Straight)

Stock Status: True

THREAD B1 TYPE	BUTTWELD
THREAD B1 SIZE	TUBE OD 1-1/2
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.311
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.000
C HEX 1 IN	2.250
OVERALL LENGTH L IN	2.245
OVERALL LENGTH L2 IN	1.504
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	0.95
CALIFORNIA RESIDENTS	PROP-65 WARNING

6316-24-SS

$445.62

Attribute: 6316-24-SS (24FJS-Buttweld Strai...)

Stock Status: True

THREAD B1 TYPE	BUTTWELD
THREAD B1 SIZE	TUBE OD 1-1/2
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	1-7/8-12
THREAD B2 DRILL IN	1.311
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.000
C HEX 1 IN	2.250
OVERALL LENGTH L IN	2.245
OVERALL LENGTH L2 IN	1.504
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	0.9375
CALIFORNIA RESIDENTS	PROP-65 WARNING

6316-32

$154.91

Attribute: 6316-32 (32FJS-Buttweld Straight)

Stock Status: True

THREAD B1 TYPE	BUTTWELD
THREAD B1 SIZE	TUBE OD 2
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	2-1/2-12
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.500
C HEX 1 IN	2.875
OVERALL LENGTH L IN	2.933
OVERALL LENGTH L2 IN	1.988
SHAPE	STRAIGHT
BODY MATERIAL	STEEL
RAW MATERIAL TYPE	STRAIGHT STEEL
PLATING	CR3
WEIGHT LBS	1.8187
CALIFORNIA RESIDENTS	PROP-65 WARNING

6316-32-SS

$742.10

Attribute: 6316-32-SS (32FJS-Buttweld Strai...)

Stock Status: True

THREAD B1 TYPE	BUTTWELD
THREAD B1 SIZE	TUBE OD 2
THREAD B2 TYPE	FEMALE JIC SWIVEL 37 DEG FLARE
THREAD B2 SIZE	2-1/2-12
THREAD B2 SPECIFICATION	SAE J514
BODY HEX IN	2.500
C HEX 1 IN	2.875
OVERALL LENGTH L IN	2.933
OVERALL LENGTH L2 IN	1.988
SHAPE	STRAIGHT
BODY MATERIAL	STAINLESS STEEL
RAW MATERIAL TYPE	STRAIGHT STAINLESS STEEL
WEIGHT LBS	2.0375
CALIFORNIA RESIDENTS	PROP-65 WARNING

Connections	JIC, Weld
Shape	Straight

ID	10145381
Category	Tube Fittings and Adapters

Description

Description

Variations (17)

6316-04

6316-04-SS

6316-06

6316-06-SS

6316-08

6316-08-SS

6316-10-SS

6316-12

6316-12-SS

6316-16

6316-16-SS

6316-20

6316-20-SS

6316-24

6316-24-SS

6316-32

6316-32-SS
