Tube Fittings and Adapters

5701-FG

Scraped 2026-02-15 08:27:45

Description

Description

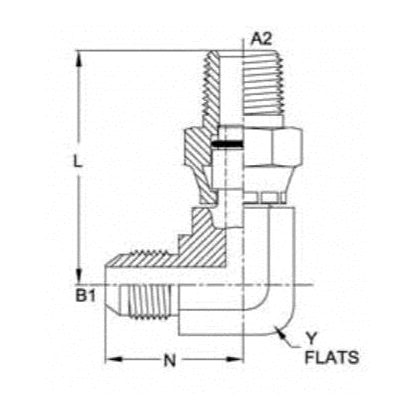

MJ-MPS 90 Elbow

Variations (7)

5701-04-04-FG

$32.05

Attribute: 5701-04-04-FG (04MJ-04MPS 90 Elb...)

Stock Status: True

THREAD B1 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE7/16-20
THREAD B1 DRILL IN0.172
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEMALE NPTF SWIVEL
THREAD B2 SIZE1/4-18
THREAD B2 DRILL IN0.220
THREAD B2 SPECIFICATIONSAE J476
BODY HEX IN0.562
C HEX 1 IN0.625
OVERALL LENGTH L IN1.506
CENTERLINE LENGTH M IN1.051
SHAPE90 DEGREE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS0.125
CALIFORNIA RESIDENTSPROP-65 WARNING

5701-06-04-FG

$61.24

Attribute: 5701-06-04-FG (06MJ-04MPS 90 Elb...)

Stock Status: True

THREAD B1 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE9/16-18
THREAD B1 DRILL IN0.297
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEMALE NPTF SWIVEL
THREAD B2 SIZE1/4-18
THREAD B2 DRILL IN0.220
THREAD B2 SPECIFICATIONSAE J476
BODY HEX IN0.687
C HEX 1 IN0.625
OVERALL LENGTH L IN1.720
CENTERLINE LENGTH M IN1.080
SHAPE90 DEGREE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS0.148
CALIFORNIA RESIDENTSPROP-65 WARNING

5701-06-06-FG

$38.54

Attribute: 5701-06-06-FG (06MJ-06MPS 90 Elb...)

Stock Status: True

THREAD B1 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE9/16-18
THREAD B1 DRILL IN0.297
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEMALE NPTF SWIVEL
THREAD B2 SIZE3/8-18
THREAD B2 DRILL IN0.340
THREAD B2 SPECIFICATIONSAE J476
BODY HEX IN0.750
C HEX 1 IN0.875
OVERALL LENGTH L IN1.660
CENTERLINE LENGTH M IN1.140
SHAPE90 DEGREE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS0.2562
CALIFORNIA RESIDENTSPROP-65 WARNING

5701-08-06-FG

$85.89

Attribute: 5701-08-06-FG (08MJ-06MPS 90 Elb...)

Stock Status: True

THREAD B1 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE3/4-16
THREAD B1 DRILL IN0.391
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEMALE NPTF SWIVEL
THREAD B2 SIZE3/8-18
THREAD B2 DRILL IN0.340
THREAD B2 SPECIFICATIONSAE J476
BODY HEX IN0.750
C HEX 1 IN0.875
OVERALL LENGTH L IN1.660
CENTERLINE LENGTH M IN1.250
SHAPE90 DEGREE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS0.275
CALIFORNIA RESIDENTSPROP-65 WARNING

5701-08-08-FG

$54.93

Attribute: 5701-08-08-FG (08MJ-08MPS 90 Elb...)

Stock Status: True

THREAD B1 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE3/4-16
THREAD B1 DRILL IN0.391
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEMALE NPTF SWIVEL
THREAD B2 SIZE1/2-14
THREAD B2 DRILL IN0.44/0.46
THREAD B2 SPECIFICATIONSAE J476
BODY HEX IN0.750
C HEX 1 IN0.937
OVERALL LENGTH L IN2.150
CENTERLINE LENGTH M IN1.330
SHAPE90 DEGREE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS0.325
CALIFORNIA RESIDENTSPROP-65 WARNING

5701-10-08-FG

$104.99

Attribute: 5701-10-08-FG (10MJ-08MPS 90 Elb...)

Stock Status: True

THREAD B1 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE7/8-14
THREAD B1 DRILL IN0.484
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEMALE NPTF SWIVEL
THREAD B2 SIZE1/2-14
THREAD B2 DRILL IN0.44/0.46
THREAD B2 SPECIFICATIONSAE J476
BODY HEX IN0.875
C HEX 1 IN0.937
OVERALL LENGTH L IN1.960
CENTERLINE LENGTH M IN1.450
SHAPE90 DEGREE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS0.4625
CALIFORNIA RESIDENTSPROP-65 WARNING

5701-12-12-FG

$122.72

Attribute: 5701-12-12-FG (12MJ-12MPS 90 Elb...)

Stock Status: True

THREAD B1 TYPEMALE JIC SAE 37 DEGREE FLARE
THREAD B1 SIZE1-1/16-12
THREAD B1 DRILL IN0.609
THREAD B1 SPECIFICATIONSAE J514
THREAD B2 TYPEMALE NPTF SWIVEL
THREAD B2 SIZE3/4-14
THREAD B2 DRILL IN0.620
THREAD B2 SPECIFICATIONSAE J476
BODY HEX IN1.062
C HEX 1 IN1.250
OVERALL LENGTH L IN2.327
CENTERLINE LENGTH M IN1.670
SHAPE90 DEGREE
BODY MATERIALSTEEL
RAW MATERIAL TYPESTEEL FORGING
PLATINGCR3
WEIGHT LBS0.6562
CALIFORNIA RESIDENTSPROP-65 WARNING

General Attributes

Connections NPT, JIC
Shape Elbow
